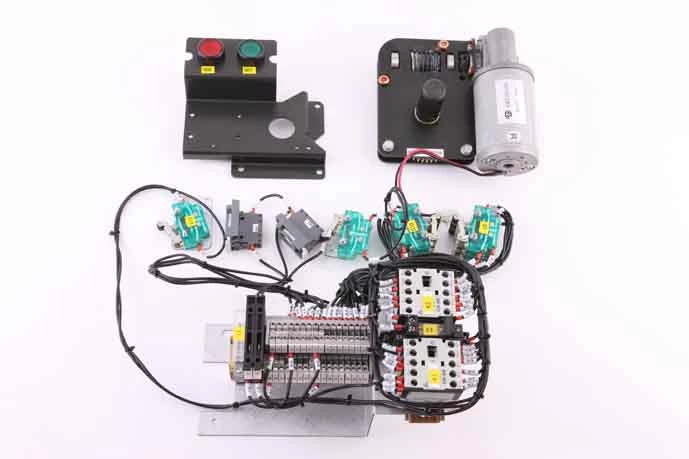

Circuit Breaker Motor Gear

AD DC 1 – C / AC220 series of Circuit Breaker Motor Gear are applicable for modules of ABB safe cabinets. Operated by motor gear, it can store energy to make-and-break the circuit breakers of MV switchgears. Functions include Remote/local switching and local make-and-break of switches, local and remote indication of the status of load switches, earth switches and fuses.



Technical Parameter of Circuit Breaker Motor Gear AD DC 1 – C / AC220


Rated

Voltage

VDC

Rated

Power

W

Rated

Current

A

Rated

Speed

r/min

Rated

Torque

N.m

Working

Temperature(℃)

Storage

time of motors

220





65

0.6





180





3.45





-40+40





8±1

110

1.2

48

2.8

24

5.6

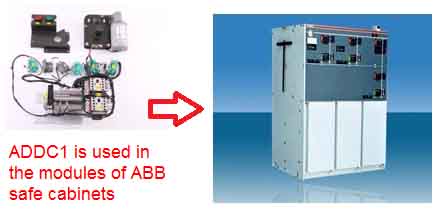

Application examples of Circuit Breaker Motor Gear AD DC 1 – C / AC220
