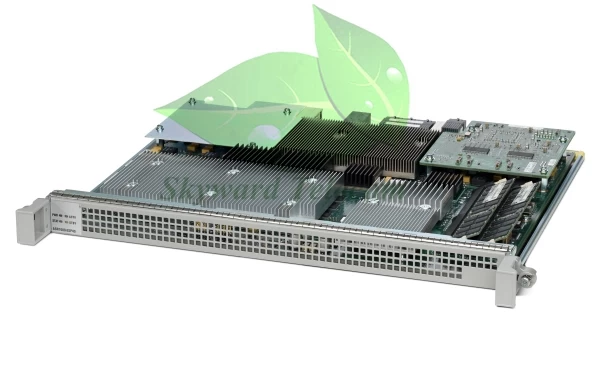

ASR1000-ESP40 Overview
The Cisco ASR1000-ESP40 forwarding performance will vary depending on features configured. Up to 4 Mpps for the combination of the following commonly-used features: IPv4 forwarding, IP Multicast, ACL, QoS, Reverse Path Forwarding (RPF), load balancing, and Sampled NetFlow.
This ASR1000-ESP40 is similar with the ASR1000-ESP40=. The ASR1000-ESP40= is a spare one.
ASR1000-ESP40 Specification
|
ASR1000-ESP40 Specification
|
|
Performance
|
|
Up
to 25 Mpps
|
Variable forwarding performance, depending on
features configured
|
|
Bandwidth
|
|
Up
to 40 Gbps
|
For the combination of commonly used features +
Firewall or NAT,Shared by all Cisco ASR 1000 SIP (ASR1000-SIP10 or
ASR1000-SIP40) cards
|
|
Up to 12.9
Gbps
|
For
plain IPsec encryption (1400-byte packets)
|
|
Scaling
|
|
Access
control
|
Up
to 4,000 unique ACLs and 100,000 ACEs per system
|
|
Broadband
|
Up
to 64,000 sessions and 16,000 L2TP tunnels
|
|
IP
|
Up to:
● 4,000,000 IPv4
or 4,000,000 IPv6 routes
Multicast: 100,000 routes and 4,000 groups
|
|
QoS
|
Flexible number of queues per system:
● Up to 128,000
queues
● Three
levels of hierarchy
● Two LLQ
queues per policy, with up to 4,000 policies
8-kbps policing and queuing granularity
<100-microsecond latency for high-priority applications
|
|
Real-time
traffic
|
Up
to 4,000 CRTP sessions
|
|
Security
|
Up to:
● IPsec: 8,000
tunnels
● Firewall
or NAT: 2,000,000 sessions and 200,000 sessions-per-sec setup rate
● Carrier-Grade
NAT: 4,000,000 sessions
|
|
L3VPN
|
Up
to 8,000 VRF instances
|
|
GRE
|
Up
to 4,000 tunnels
|
|
Cisco Unified Border Element (SP Edition)
|
Up to 64,000 sessions (each session represents a
complete voice call with 14 SIP messages per call; that is, two call legs on
the SBC consisting of two media legs for a bidirectional media flow and seven
SIP messages per call leg)
|
