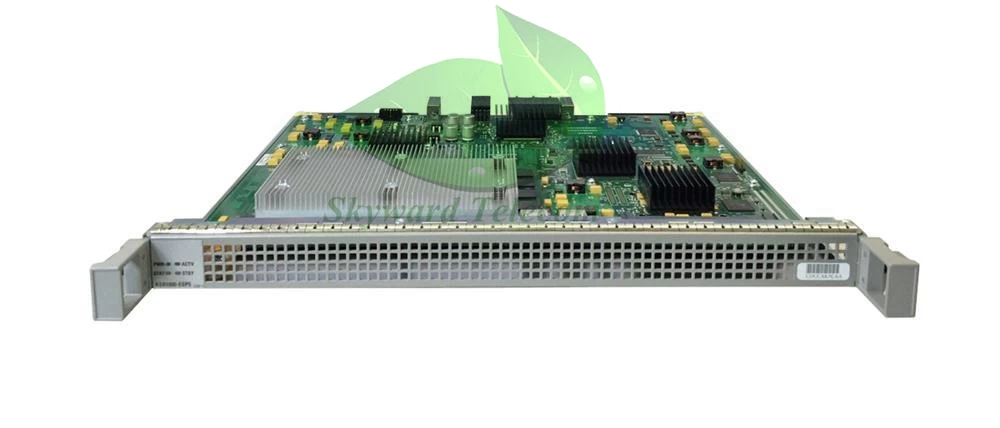

Cisco ASR1000-ESP5 ASR1K Embedded Services Processor,5Gbps,ASR1002 only

CISPR 24, EN 60950, VCCI Class A ITE, IEC 60950, EN55024, EN55022 Class A, UL 60950, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-4-2, EN 61000-4-6, EN 50082-2, EN 61000-4-11, EN300-386, AS/NZS 3548:1995.

Facebook Twitter Pinterest LinkedIn 分享

ASR1000-ESP5 Overview


The Cisco ASR1000-ESP5 forwarding performance will vary depending on features configured. Up to 4 Mpps for the combination of the following commonly-used features: IPv4 forwarding, IP Multicast, ACL, QoS, Reverse Path Forwarding (RPF), load balancing, and Sampled NetFlow.


ASR1000-ESP5 Specification


Technical Specifications
General
Device Type Control processor
Width 16.9 in
Depth 14.2 in
Height 0.8 in
Processor / Memory / Storage
RAM 2 GB
Networking
Form Factor Plug-in module
Connectivity Technology Wired
Remote Management Protocol SNMP, Telnet
Performance Bandwidth: 5 Gbps
Capacity IPv4 routes: 1000000 ¦ IPv6 routes: 250000 ¦ ACL rules: 4000 ¦ IPSec VPN tunnels: 5000 ¦ NAT entries: 250000
Status Indicators Power, active, standby, status
Features Firewall protection, NAT support, IPv6 support, Quality of Service (QoS)
Expansion / Connectivity
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards CISPR 24, EN 60950, VCCI Class A ITE, IEC 60950, EN55024, EN55022 Class A, UL 60950, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-4-2, EN 61000-4-6, EN 50082-2, EN 61000-4-11, EN300-386, AS/NZS 3548:1995
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 85%
Compatibility Information
Designed For Cisco ASR 1002, 1002 BB Bundle, 1002 FPI Bundle, 1002 HA Bundle, 1002 Security HA Bundle, 1002 VPN and Firewall Bundle, 1002 VPN Bundle
