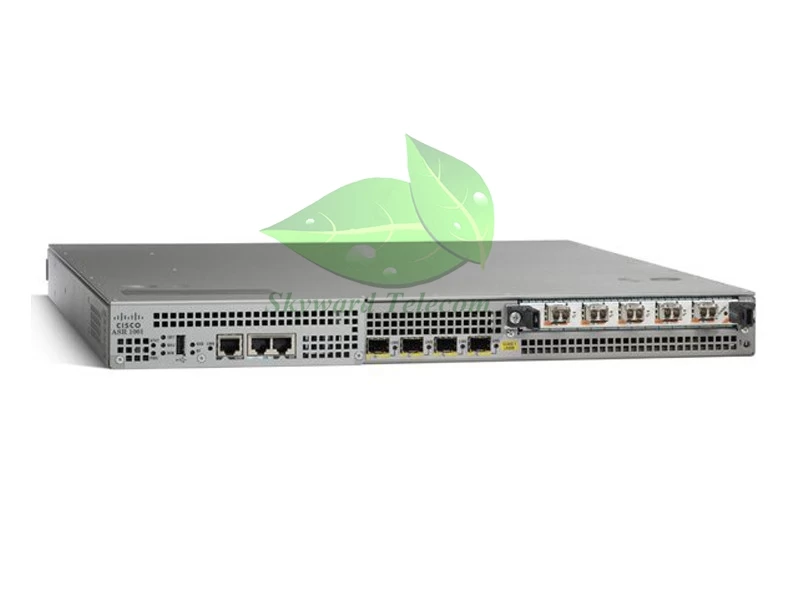

ASR1001-4X1GE Overview

The Cisco ASR 1001 router is a small footprint edge routing solution that delivers high performance throughput with services turned on, enabling deployment agility in high-end enterprise branch, WAN edge, and managed services environments.

ASR1001-4X1GE Specification

General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number :ASR1001-4X1GE
Brand Name Cisco
Product Series 1000
Product Model 1001
Product Name1001 Aggregation Services Router
Product Type Router
Interfaces/Ports
USB Yes
Management Port Yes
I/O Expansions
Number of Total Expansion Slots 6
Expansion Slot Type Shared Port Adapter
Expansion Slot Type SFP (mini-GBIC)
Network & Communication
Network Technology 10/100/1000Base-T
VoIP Supported No
Management & Protocols
Security Features-
IPsec
NAT
L2TP
ACL
AES
3DES
SSH
Deep packet inspection
Cisco IOS Firewall
Zone-Based Policy Firewall
Memory
Flash Memory 1 GB
Power Description
PoE (RJ-45) Port No
Input Voltage 110 V AC
Input Voltage 220 V AC
Power Source Power Supply
Redundant Power Supply Yes
