| Specification: |
|
| Print |
Printing Method |
Thermal Line |
| Printing Speed |
250mm/s |
| Resolution |
8 dots/mm, 576 dots/line |
| Effective Printing Width |
72mm |
| Character |
Character Set |
ANK,GB18030(Chinese) |
| Print Font |
ANK: 12 x24,9x17, Chinese: 24 x 24 |
| Character per Line |
48-font A/64-font B |
| User defined |
support |
| Language(code page) |
support simplified&traditional Chinese, |
| English,and other 45 kinds of international character sets. |
| Paper Spec |
Paper Type |
Thermal paper |
| Paper Width |
79.5± 0.5mm |
| Paper Roll Diameter |
Max: 80.0mm |
| Paper Thickness |
0.056 to 0.1mm |
| Paper Supply Method |

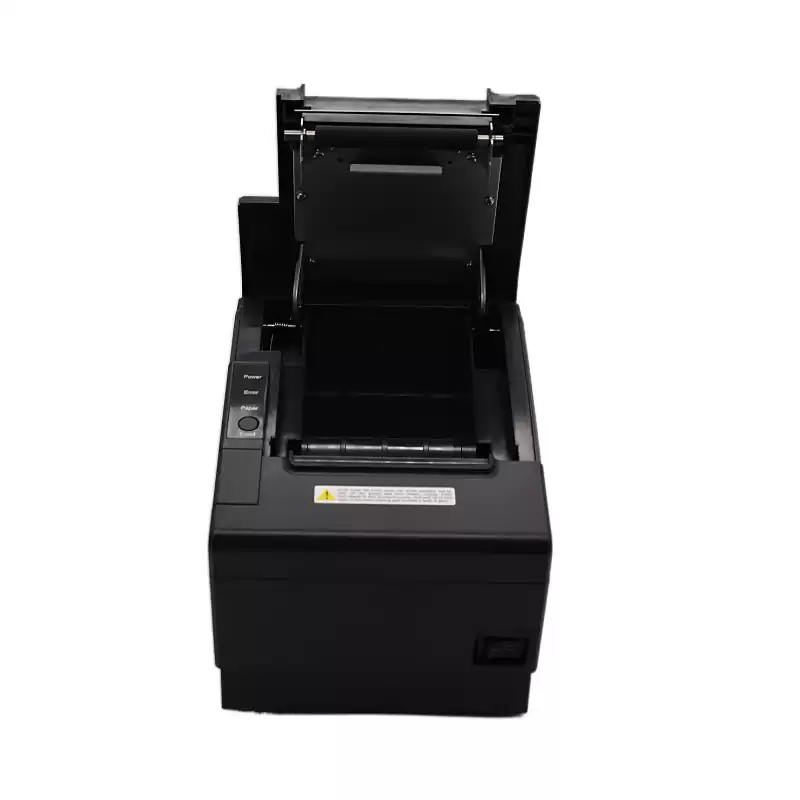

Drop-in paper load |
| Reliability |
Auto Cutter |
1000,000 cuts |
| TPH |
100km |
| Barcodes |
UPC-A,UPC-E,EAN-13,EAN-8,CODE39,ITF,CODEBAR,CODE93,CODE128,QR CODE |
| command sets |
ESC/POS |
| Driver |
Windows(WIN7/WIN8/WIN10/Vista/XP/2000)
Ubuntu 12.04 32/64 Ubuntu 14.04 32/64 MAC OS |
|
| Sensor |
paper out |
| Drawer Port |
1 Port,RJ11-6P6C Socket,24v |
| Interface |
USB/USB+Serial/USB+Bluetooth/USB+Ethernet/WIFI optional |
| Power Supply (Adapter) |
AC100 ~240V(± 10%) DC 24V, 2.0A |
| Auto cutter |
Life |
1,000,000 cuts |
| Physical |
Net Weight |
1.3kg |
| Gross Weight |
2.5kg |

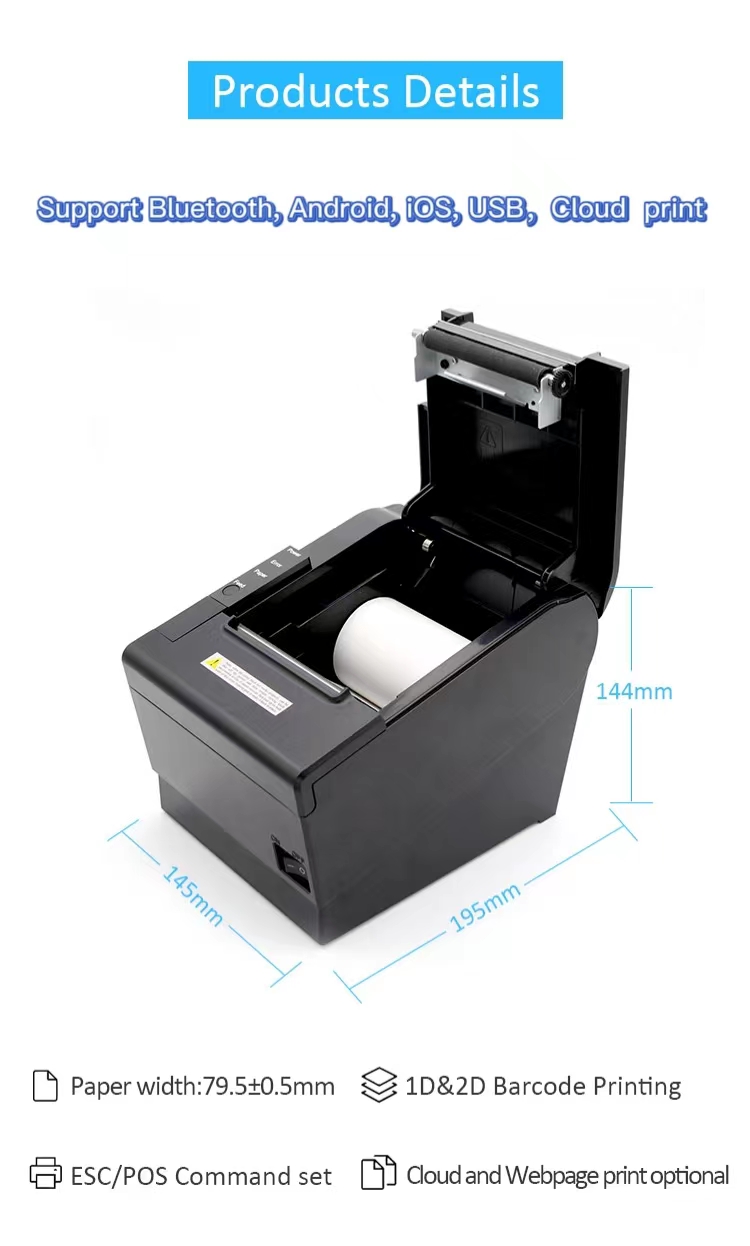

| Printer Dimension (LxWxH) |
195x145x144 mm |
| Application |
Restaurants, Department Stores, Kitchen, Convenience Stores, Specialty Retail, Super market |
