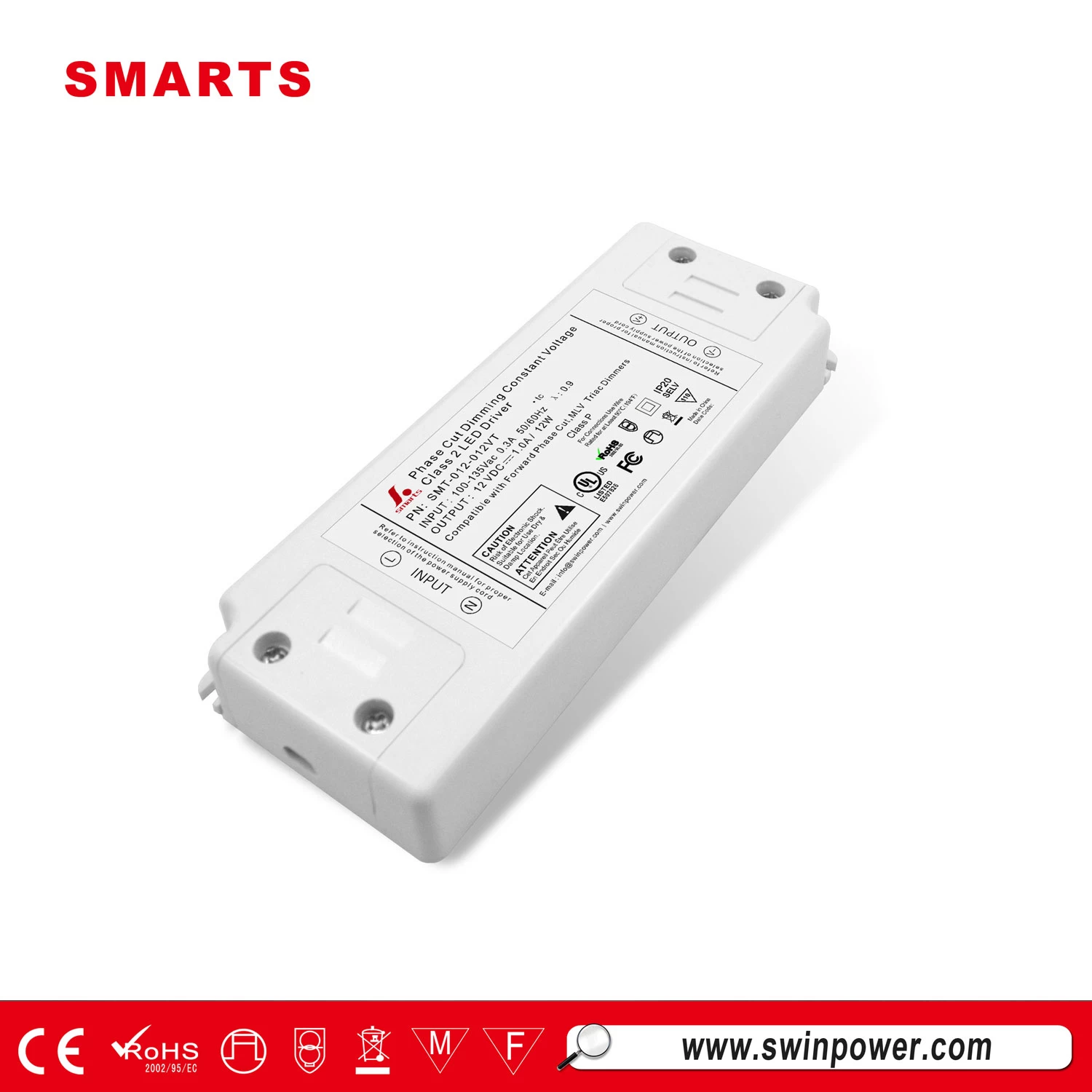

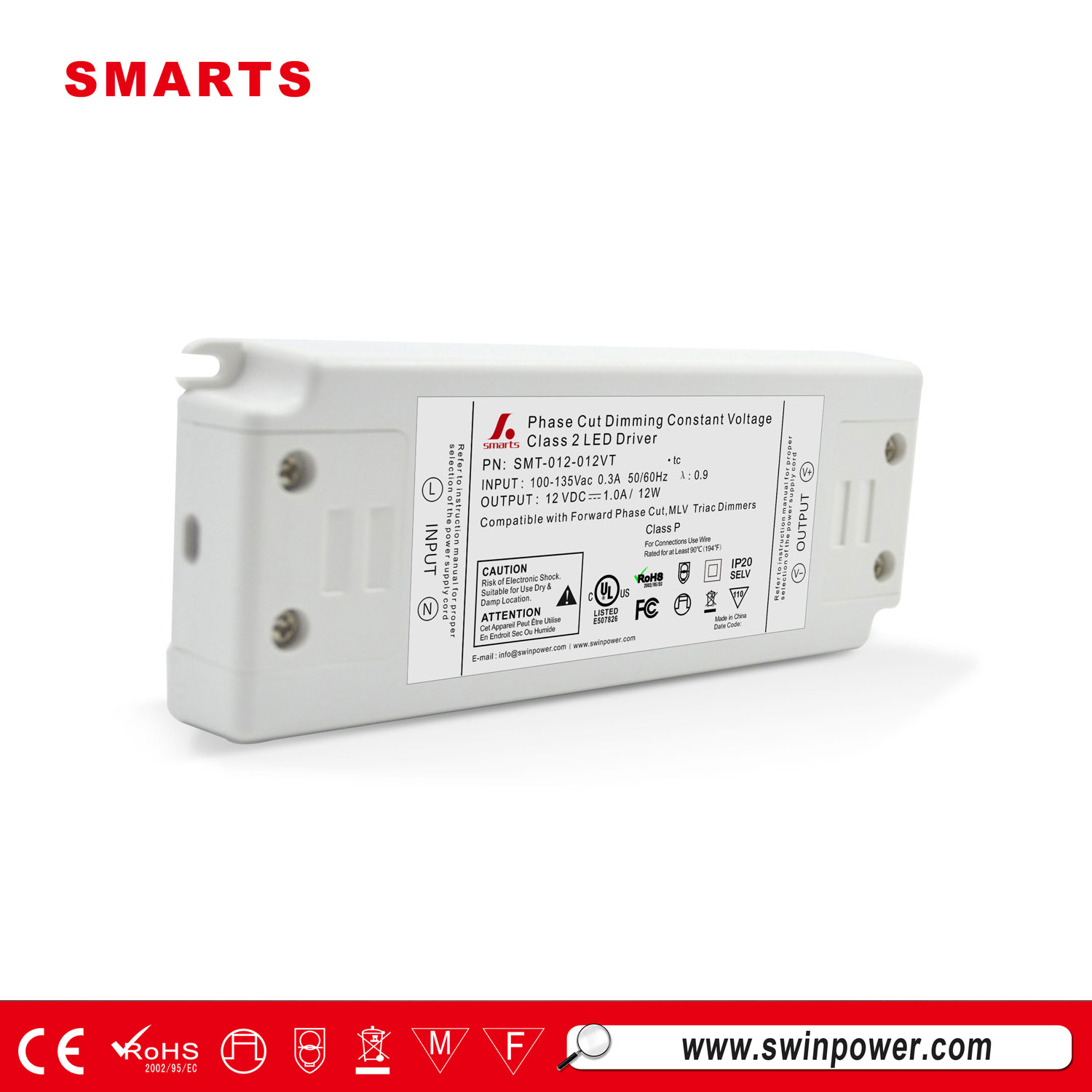

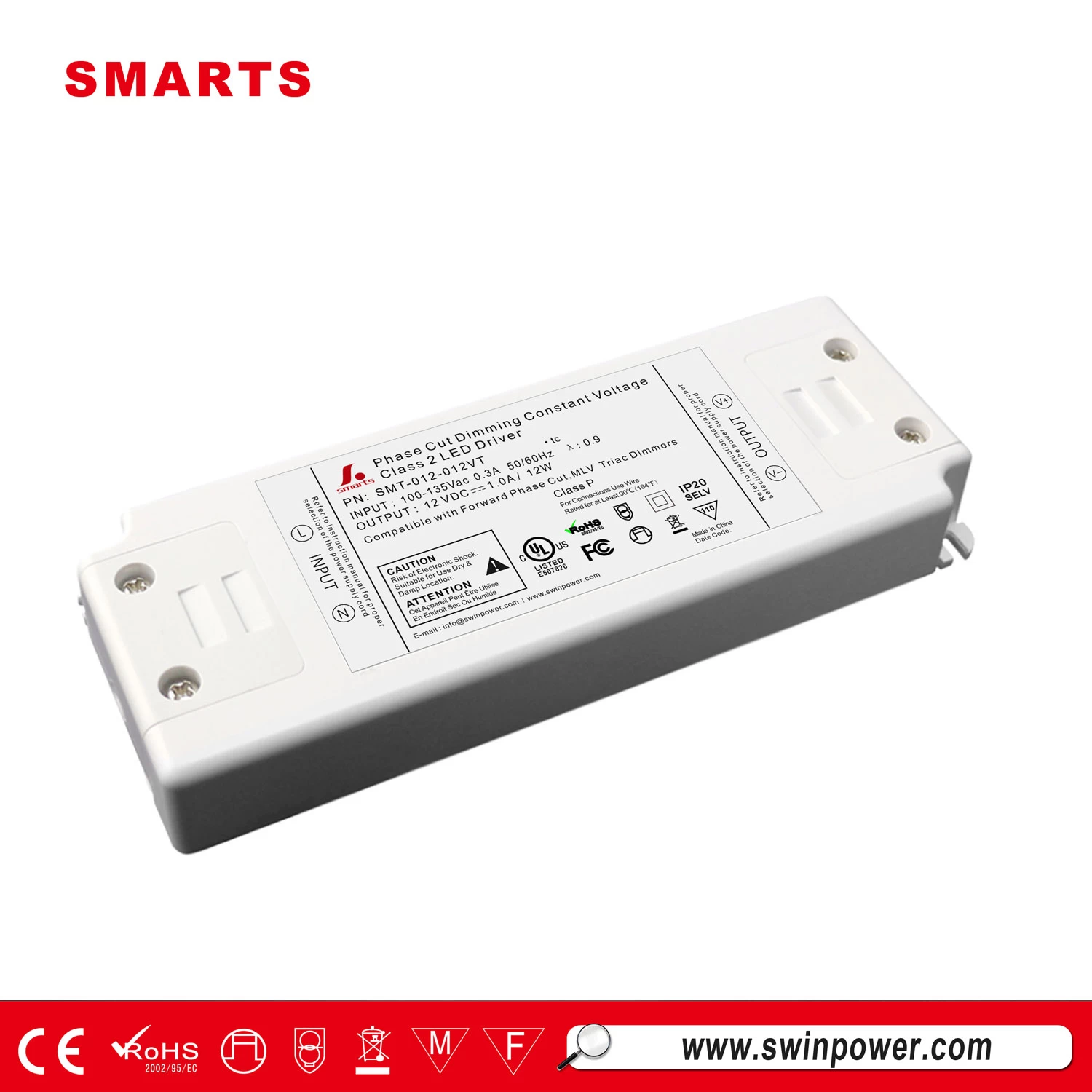

class 2 dimmable 12v dc 12w led panel power supply for led lights
Built-in PFC function >0.9, Strong compatibility, flicker-free dimming, class 2 power supply phase cut dimming work with leading edge and trailing edge triac dimmers.
Specification
|
Model
|
SMT-012-012VT
|
SMT-024-012VT
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
|
Rated current
|
1.0A
|
0.5A
|
|
|
Rated power
|
12W
|
12W
|
|
Input
|
Voltage Range
|
90-135VAC / 170～250VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.92/110V ; PF≧0.94/220V ; PF≧0.95/250V
|
|
|
Full Load Efficiency（Typ.）
|
>82%
|
>82%
|
|
|
AC Current（Typ.）
|
0.17A/110VAC 0.15A/170VAC 0.12A/220VAC 0.1A/265VAC
|
|
|
Leakage current
|
<0.8mA/110VAC, ﹤0.7mA/220VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
|
Over Current
|
1.4 Times output current
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
|
Working Humidity
|
20～90%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
|
|
Safety&
EMC
|
Safety standards
|
EN-60950-1, EN-61347-1/-2/-13
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
|
Isolation resistance
|
I/P-O/P：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,11,EN61547,Alight industry level
|
|
Others
|
Weight
|
0.16Kg
|
|
|
Size
|
140*45*28mm（L*W*H）
|
|
|
packing
|
320*280*215mm
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC~ 230VAC input , rated
load and 25℃ of ambient temperature.
2. Tolerance: includes set us tolerance,line regulation and load regulation .
|

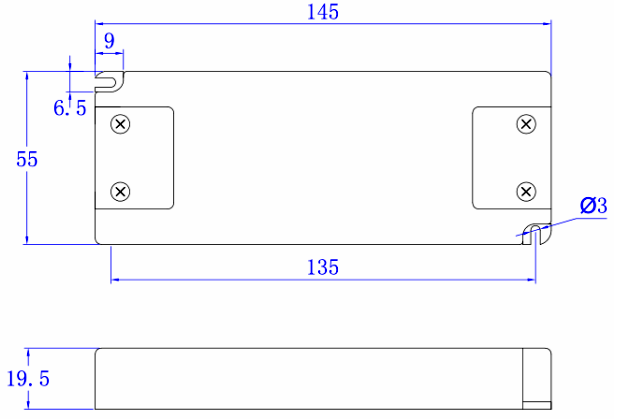

Mechanical Specification
Input AC (L),AC(N)
Output（DIM+）,（DIM-）
Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life
