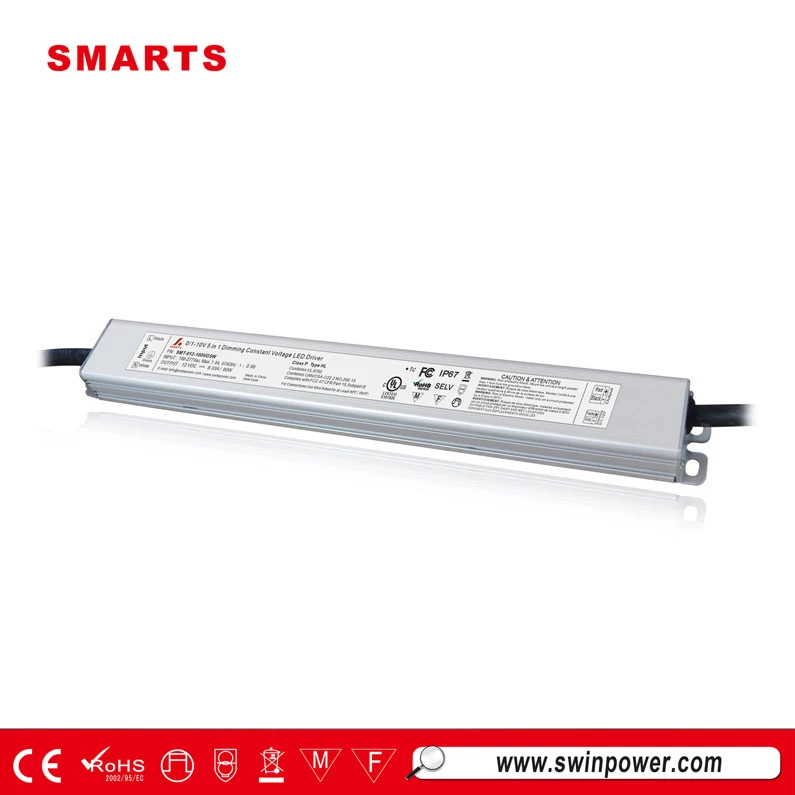

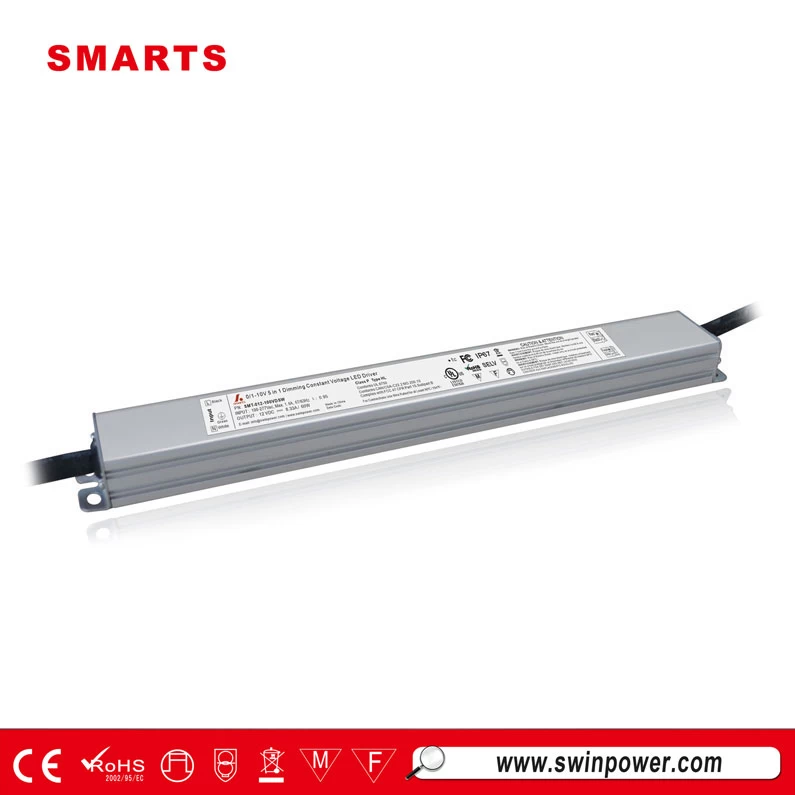

Class 2 power supply 12 volt 5A 60w dimmable led transformer

dimmable led transformer bring a number of advantages to the lighting industry including high efficiency,superior durability and a greater usage lifetime when compared to other lamp sources which can result in reduced maintenance.


  • CertificationClass P,Class 2,UL
  • Size300mm*32mm*20mm
  • Dimming mode0-10V dimming
  • Working ModeConstant voltage
  • Output Current5A
  • Output Voltage12V
  • Input Voltage100-277VAC

 Class 2 power supply  12 volt 5A 60w dimmable led transformer


Class 2 power supply constant voltage 12VDC LED Driver features outstanding LED dimming performance. 60W 12VDC Class 2 Dimmable LED Driver uses Pulse-Width Modulation (PWM) dimming for smooth dimming.12VDC Class 2 Dimmable LED Driver is compatible with wide range of dimmers.


 Feature


·Input voltage range 100-277VAC

·UL, cUL listed, Class 2, Class P standard

·Built-in PFC function / Efficiency > 86% / PF> 0.99

·Dimming range: 0~100%

·Protections:short circuit/over voltage/over heat

·IP67 design for indoor dry,wet or damp environment installations

·Cooling by free air convection

·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1

·Full protection aluminum housing, for dry, damp, wet location

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

·Compliance to worldwide safety regulations for lighting

·7 years warranty


 Specification


Model

SMT-012-060VDSW

SMT-024-060VDSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

5.0Amp

2.5Amp

Rated power

60W

60W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

0.99@120VAC   0.95@277VAC

THD(Typ. ) @ full load

<10%@120VAC  <15%@277VAC

Full Load Efficiency(Typ.)

84%@120VAC ,86%@277VAC

83%@120VAC ,85%@277VAC

AC Current(Typ.)

0.9A

Inrush Current(Typ.)

11A,50%,1ms@120VAC;     27A,50%,960us@277V

Leakage current

<0.5mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13

Withstand voltage

I/P-O/P:1.88KVac

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC 47 CFR Part 15 ,Subpart B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,,11, ,

Alight industry level

Others

Weight

0.45Kg

Size

300*32*20mm (L*W*H)

packing

330*270*160mm/   30pcs /CTN

Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.



Triac dimmable led driver
dali led power supply
0-10v led driver
slim size led driver

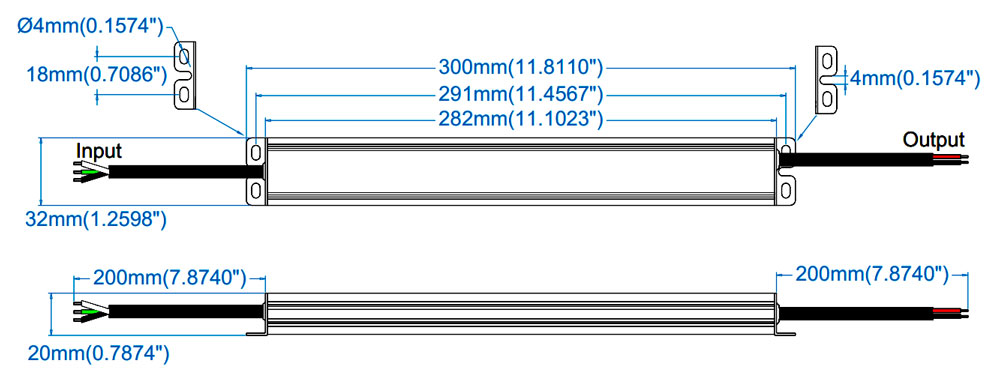

Mechanical Specification



waterproof led power supply


Ø Input cable 3*18AWG,the green cable to (FG) "Black" to L ,and "White" to N of Mains AC

Ø Output cable 2*18AWG,Red" (+) to LED Positive side (+) , "Black"(-)  to LED Negative side (-).

Ø Dimming cable 2*18AWG,DIM (+) Purple  to 0/1-10V dimmer signal(+ ),DIM (-) Grey to 0/1-10V dimmer signal (-)

Ø Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.

Ø Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

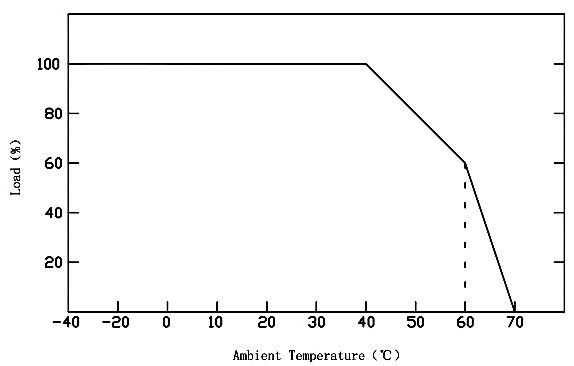

 Derating Curve

waterproof led power supply

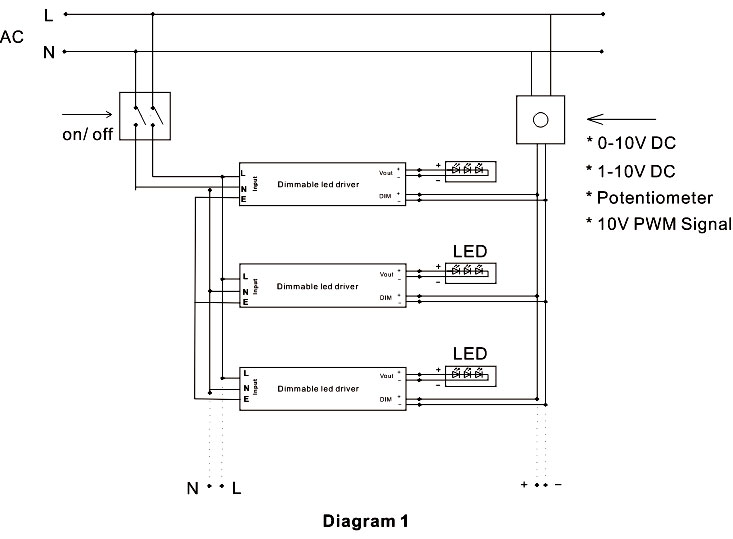

 Connecting Diagram

waterproof led power supply

waterproof led power supply


waterproof led power supply
