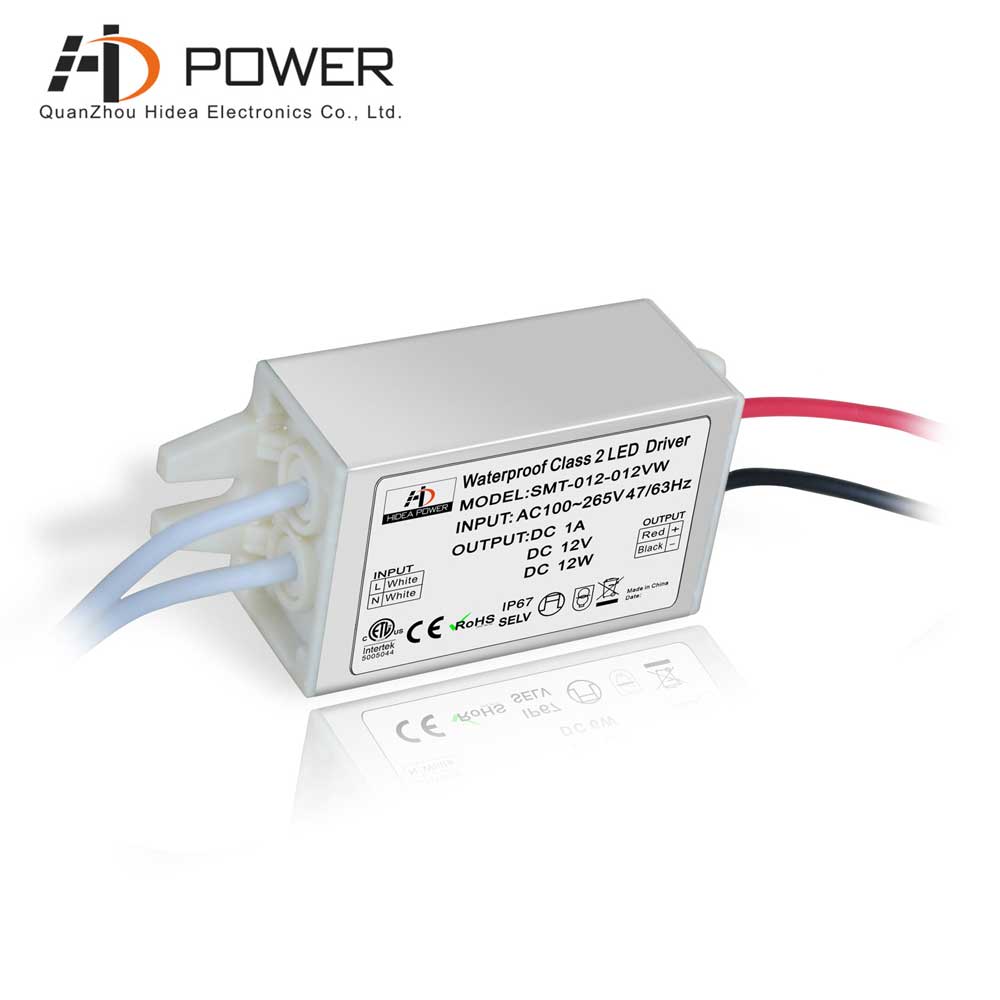

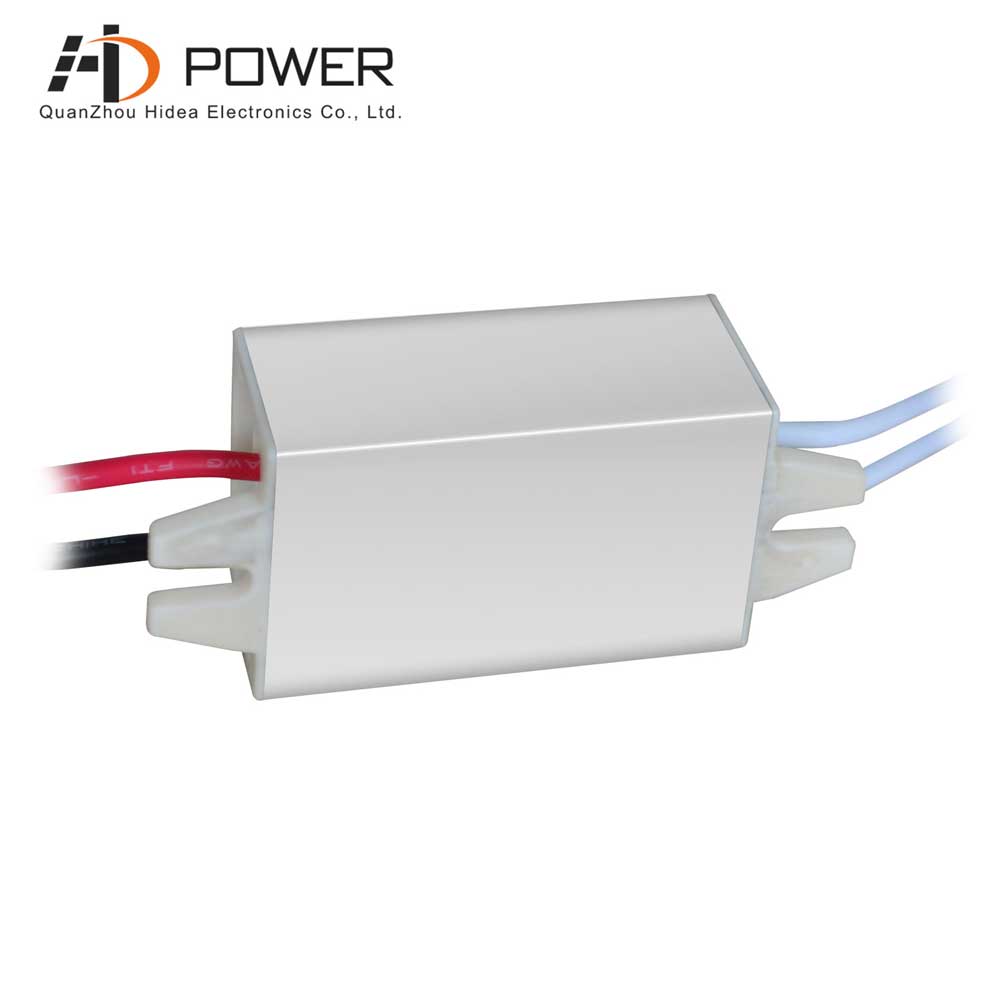

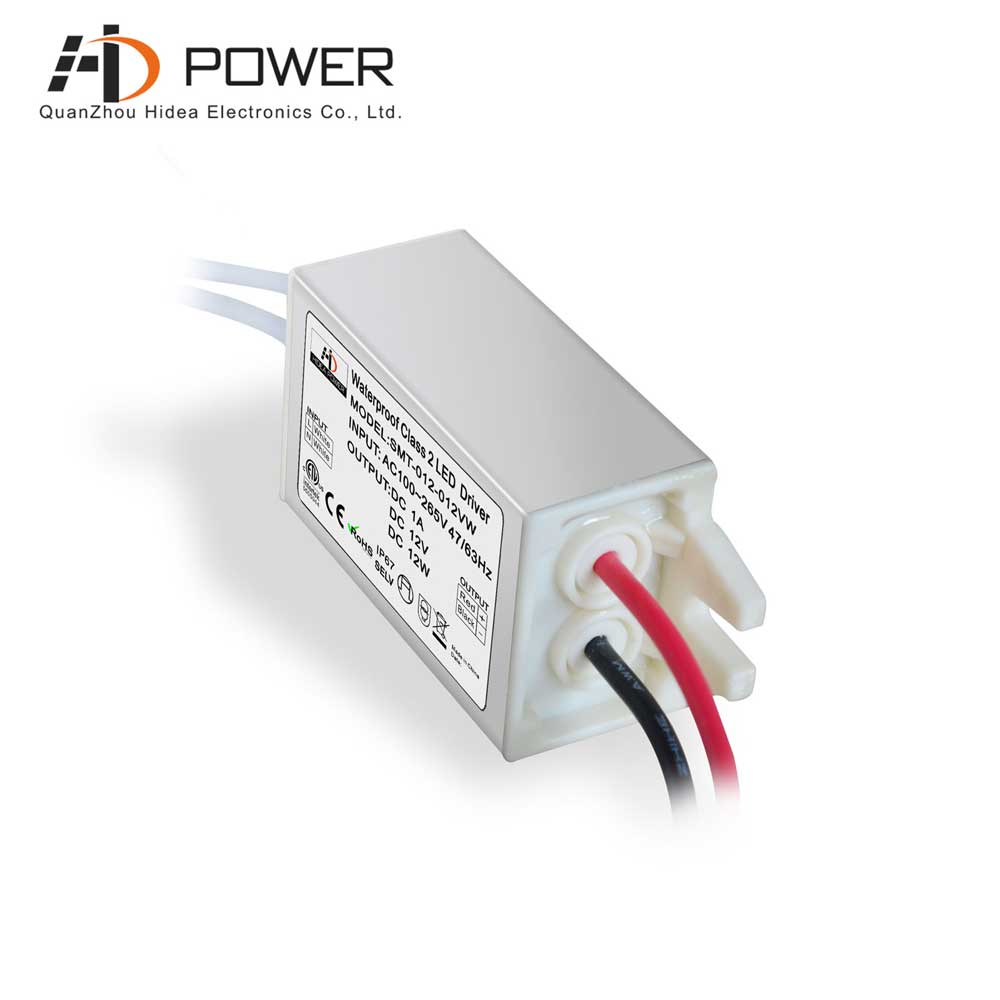

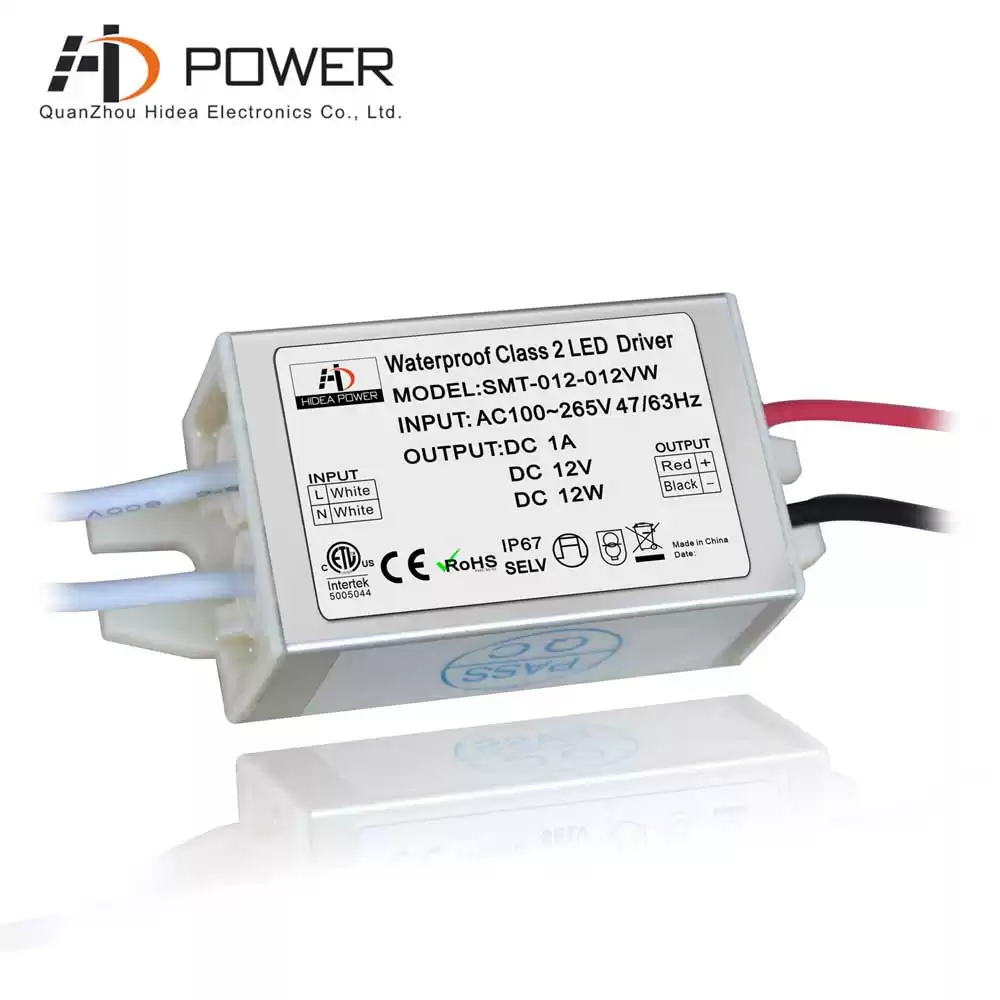

Hideapowertech produces SMT-012-012VW It is a compact size mini led driver ETL listed. The design and certification of Class 2 12v 12w non dimmable led driver allow direct wiring into the 120V input or 220V input. It can also match good well with KICHER led tape lights.
Specification
|
MODEL
|
SMT-012-012VW
|
SMT-024-012VW
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
1A
|
0.5A
|
|
CURRENT RANGE
|
0~1A
|
0~0.5A
|
|
RATED POWER
|
12W
|
12W
|
|
RIPPLE&NOISE(max)
|
<700mV
|
<400mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
±0.5V
|
|
INPUT
|
VOLTAGE RANGE
|
90~265VAC
|
|
FREQUENCY RANGE
|
47~63Hz
|
|
POWER FACTOR(Typ.)
|
|
|
EFFICIENCY(Typ.)
|
>81%
|
>81%
|
|
AC CURRENT(Typ.)
|
0.20A @110VAC / 0.099A@220VAC
|
|
PROTECTION
|
Short circuit
|
Protection type:recovers automatically after condition is removed
|
|
Overload
|
overload protected@145-160% above peak rating
|
|
Over temperature
|
Protection type:Shut down o/p voltage,re-power on to removed
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
INGRESS PROTECTION
|
IP67 design for indoor or outdoor installations
|
|
STORAGE TEMP
|
-40~+80℃
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13;SELV;IP67 UL, CE, ROHS approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 110V~220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|
Compatible Light Type
hideapowertech manufactures ETL CE ROSH approval waterproof IP67 non dimmable 12v 12w led driver. it is designed to perform safely with led strips lights to the shelving in your great room, such as MIRRORS & MARBEL.
Related Products
|

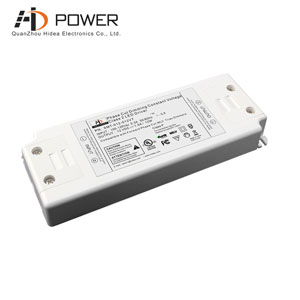

 Class 2 UL SAA CE ROSH approval 12W 12v triac dimmable led power supply with 5 years warranty
