Clincher 60mm Deep 700C carbon rims

Type:60mm Deep clincher rim

Appearance:3K/UD/12K or customized
Brake:Disc/V Brake

250°C high TG braking temperature700C new design Carbon Clincher Rims

U shape 25mm wide design

High quality bicycle rims manufacturer

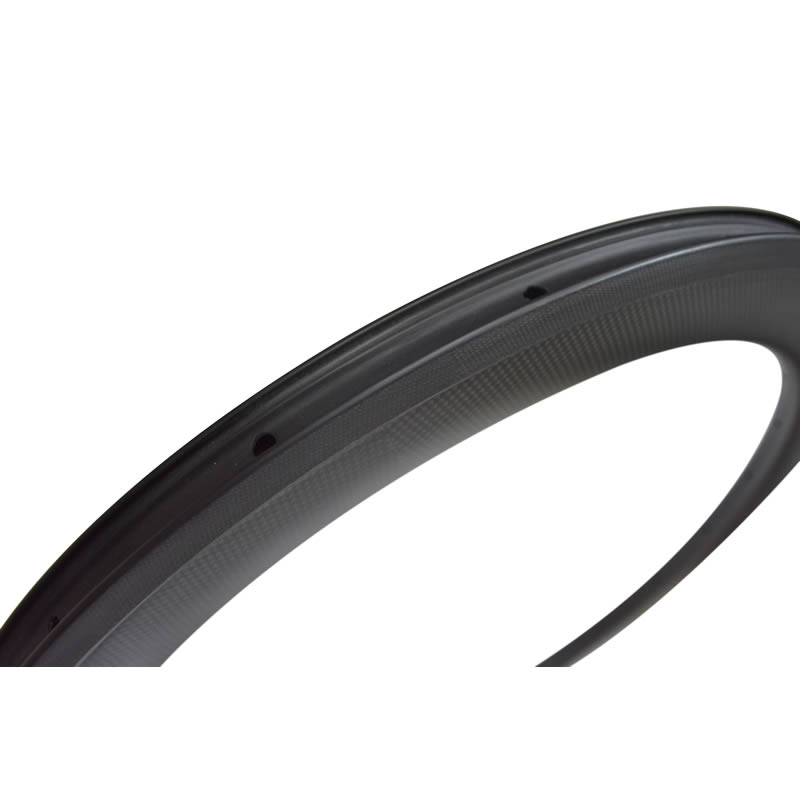

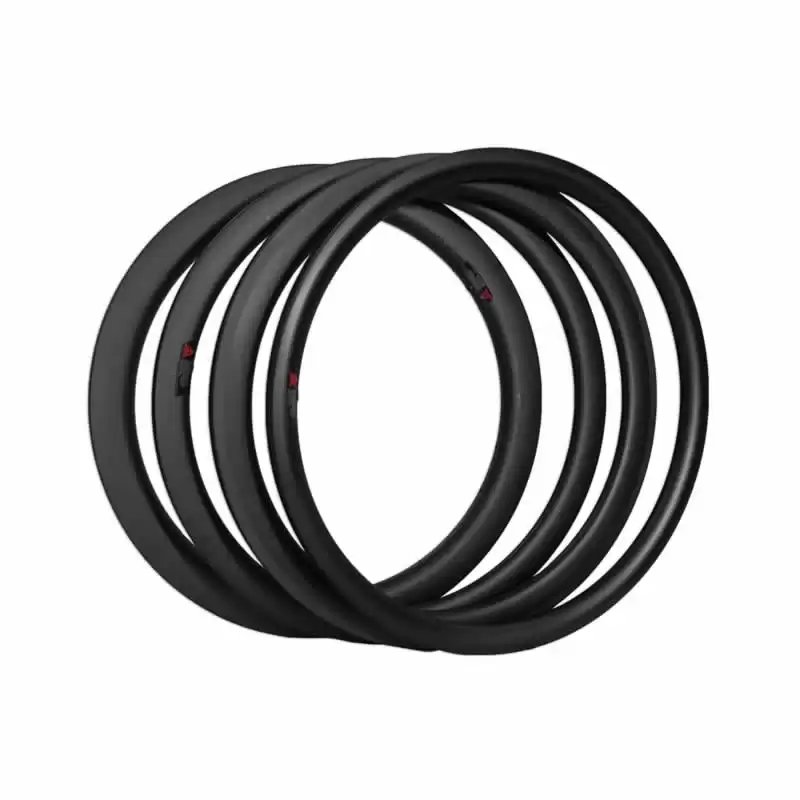

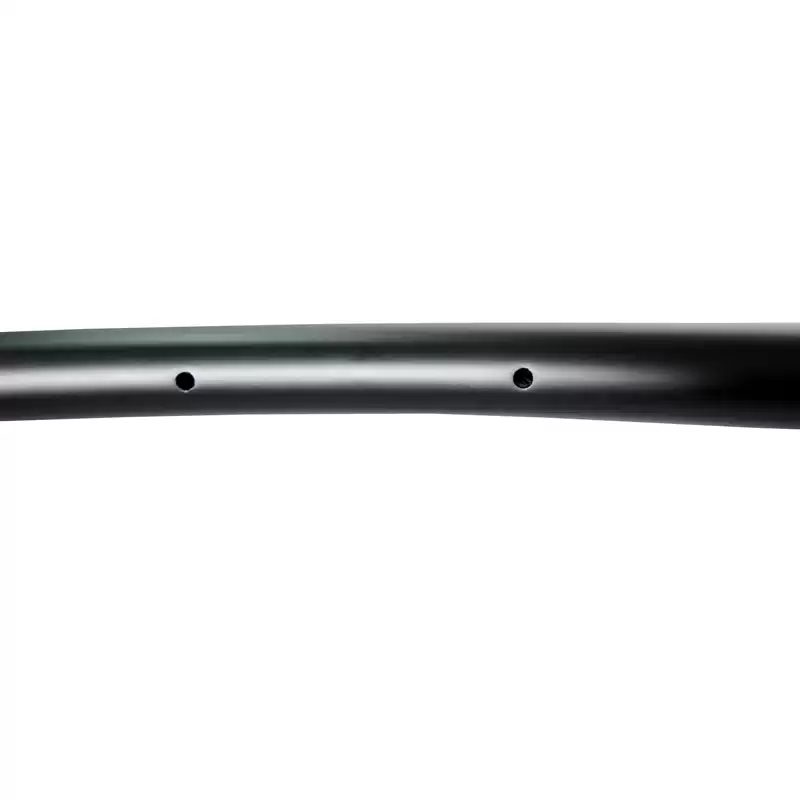

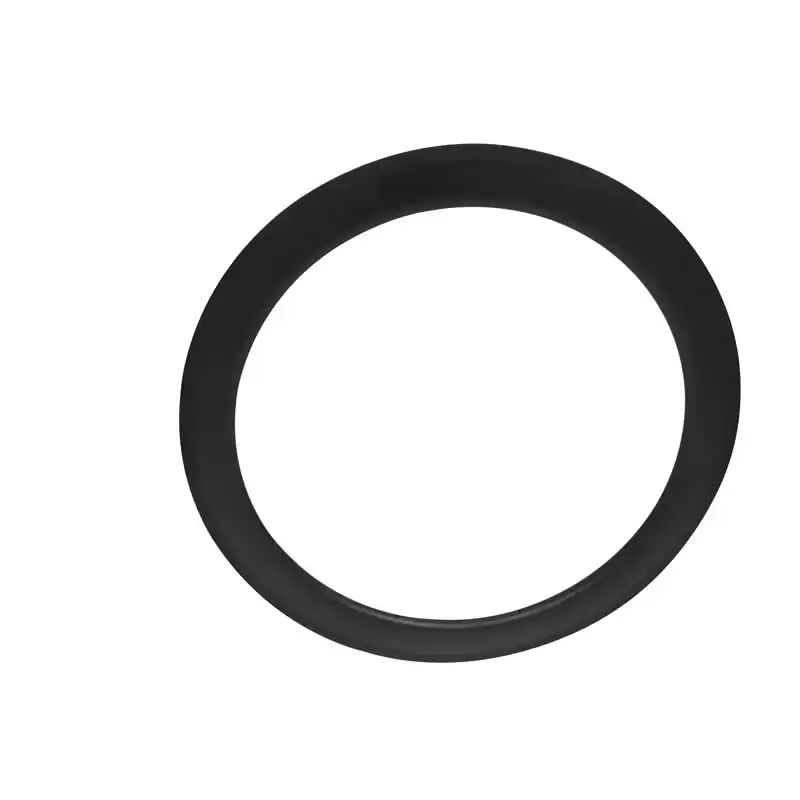

Product Model:60mm Deep 700C Clincher carbon rims

The 25mm wider carbon rims U shape Lightwight bicycle rims offers improved aerodynamics.better handing in crosswinds condition and faster riding.

Road bike clincher rims with250°C high TG resin system.better for braking sysytem.stable brake surface,low braking failure rate.

All carbon wheels made of Toray T700 and T800 carbon fiber.better for the stiffness and strength.

High quality carbon clincher rims with the wholesale price,specially designed,good service and fast delivery.





Features:

1.High quality carbon rims with 250°C high TG resin system, better for the braking system.

2.Super lightweight rims product with Full Toray T700 & T800 carbon fiber, high quality wheels.
3.U shape wider rim design offers improved aerodynamics.better handing in crosswinds condition and faster riding.

4.25mm width with U-shape,better strong and stiff.

5.We offer decal and painting service for OEM your brands.

6.We can customized Different patterns of brake surface.

7.Strong technical force,good service and fast delivery.

8.5 years warranty


Specification:

Model

R60C-21

R60C-23

R60C-25

Size

700C

700C

700C

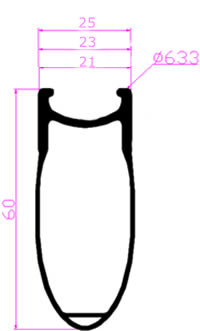

Sectional Drawing

60mm clincher rim

21mm wide clincher rim

25mm carbon rim

Material

Toray T700 & T800

Toray T700 & T800

Toray T700 & T800

Depth

60mm

60mm

60mm

Wide

21mm

23mm

25mm

Weight

520+/-15g

540+/-15g

550+/-15g

Appearance

3K/UD OrCustomized

3K/UD OrCustomized

3K/UD OrCustomized

Spokes holes

18-36#Customized

18-36#Customized

18-36#Customized

ERD

520mm

520mm

520mm

Assembly Hole Dia.

7.6mm

7.6mm

7.6mm

Spokes hole Dia

4.2mm

4.2mm

4.2mm

Valve hole Dia.

6.6mm

6.6mm

6.6mm

Flatness

<0.25mm

<0.25mm

<0.25mm

Roundness

<0.5mm

<0.5mm

<0.5mm

Max Spoke Tension

>300kg

>300kg

>300kg

Ultimate Strength

>300kg

>300kg

>300kg

Torsion Strength

>50kg

>50kg

>50kg

Tire Size Recommended

700*21-23c

700*25-28c

700*25-28c

Max Tire Pressure

125psi/8.6bar

125psi/8.6bar

125psi/8.6bar


Factory production manufacture

customication carbon wheel


100% Quality Inspection:

Our rims are made of 100% Full carbon fiber material to ensure the high quality of the goods. Each carbon rim by us has its unique serial ID number, which follow every step of the product. And confirm every rim to ensure the best after-sale service.

5 years warranty:

The warranty covers five years form the initial pruchase of the product.

The warranty applies to the original purchaser and the assignmnet is invalid.

The warranty requires proof of pruchase,product serial number and defect picture.

Please keep your proof of purchase for any future warranty problems.

This warranty does not cover:

1. Normal wear and tear and depreciation.

2. Any man-made damage caused by accident,misuse,etc.

3. Improper installation,maintenance or other conduct by an unauthorized technician.
