Closed profiled steel sheets for floor support

A variety of models can be selected, and different rib distances and thicknesses are suitable for different working conditions. The bearing capacity is very good.MOQ:500M2






  • Red 18Y
  • Red 17Y

Closed profiled steel sheets forfloor support

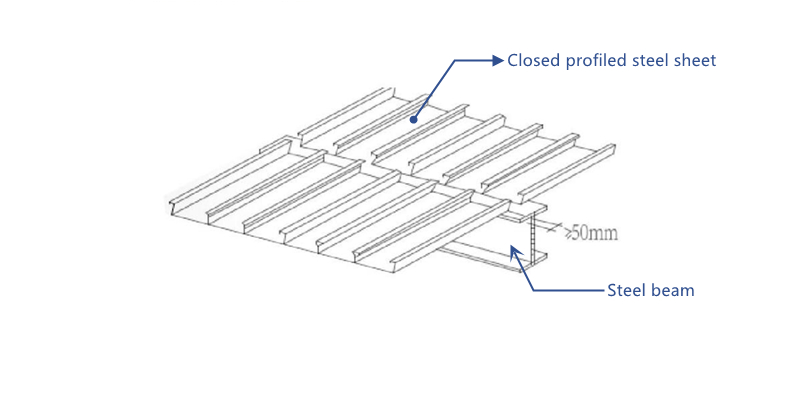

Closed profiled steel sheet is a more advanced combined floor support plate system. It has been verified that it has stronger bearing capacity and shear resistance than open floor bearing plate. The special design of closed rib makes the plate rib of floor bearing plate completely wrapped by concrete, so it can give better play to its characteristics and has excellent fire resistance.

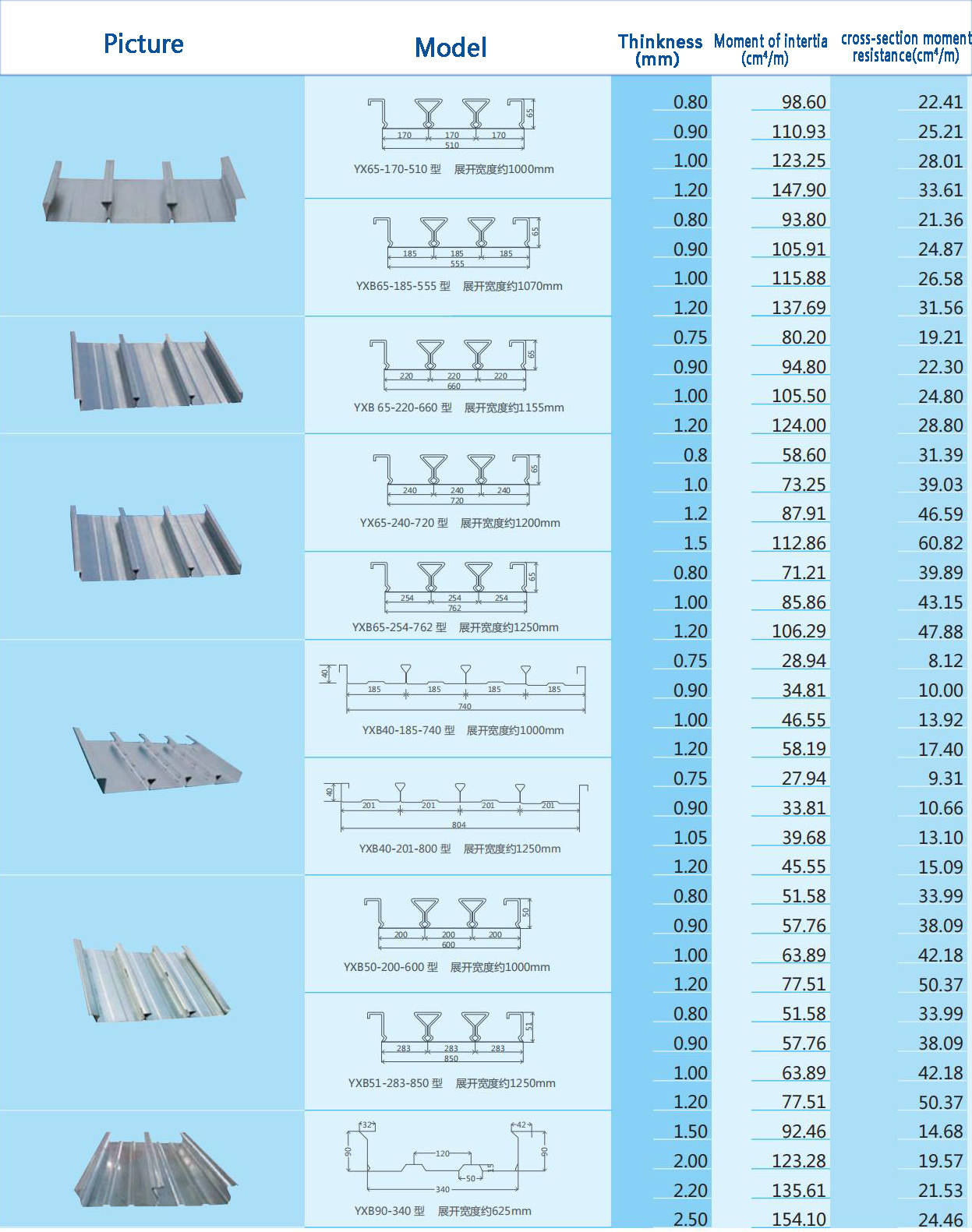

Product Specification

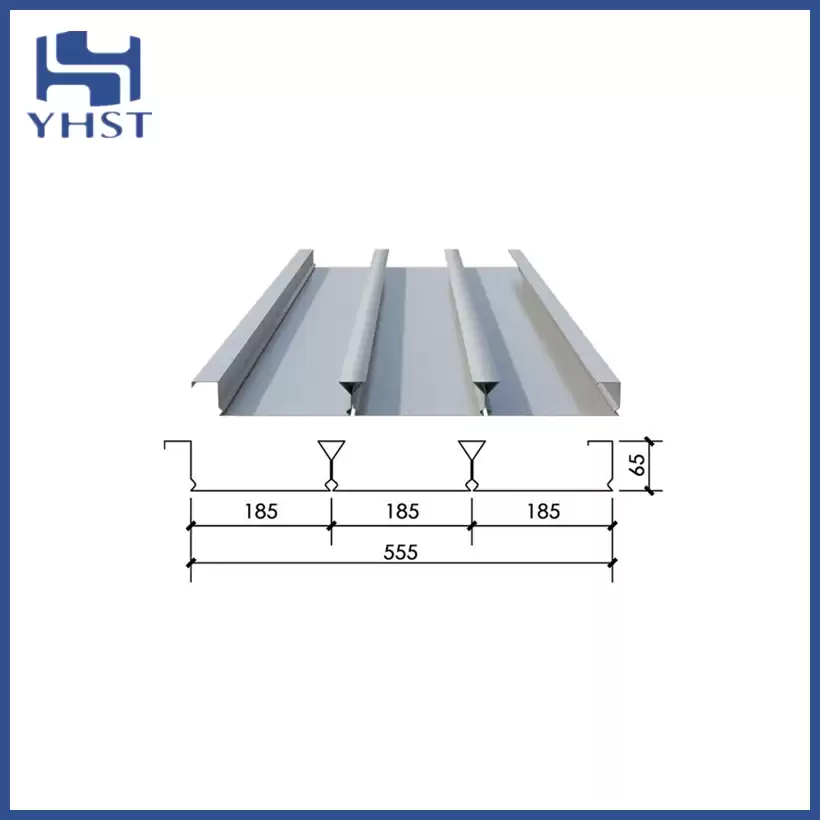

Closed profiled steel sheet

Rib height

65mm

Rib distance

185mm

Modular width

555mm

Feeding width

1055mm

Available Thickness

0.3mm-1.2mm

Length

20FT/40FT

Material

Galvanized sheets

Surface Treatment

Original pre-coating

MOQ

500m2 per color&size

Delivery time

10--20days


Steel deck type

Closed profiled steel sheet

Features

Characteristics of closed profiled steel plate: the strength is higher than that of open profiled steel plate, which can provide great bearing capacity. High fire rating, convenient suspension system. Reduce the on-site reinforcement production, reduce manpower investment and speed up the construction speed.

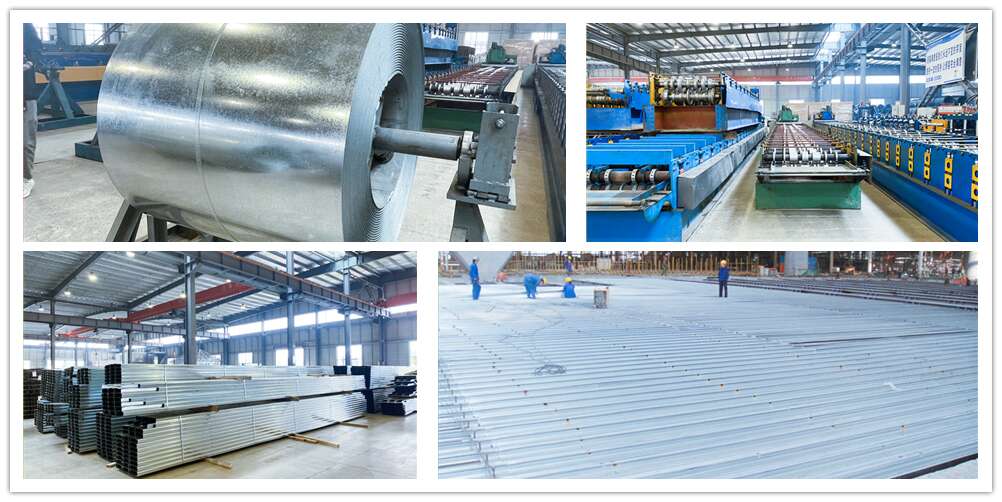

Product display


Packing & Delivery

Packing:

Seaworthy packing standards:

Packed in stack with steel strips,and then loaded in containers.

If you have special packing requirements,please feel free to discuss with us,thank you.

Delivery:

Delivery time for small order with stock material: 7-10 days;

Delivery time for special requirements and thickness: 15-20 days;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customers or accept appointed forwarder from customers.



Product Tags Profiled steel sheet for floor support          Low price building materials          Closed floor bearing plate          steel deck slab
