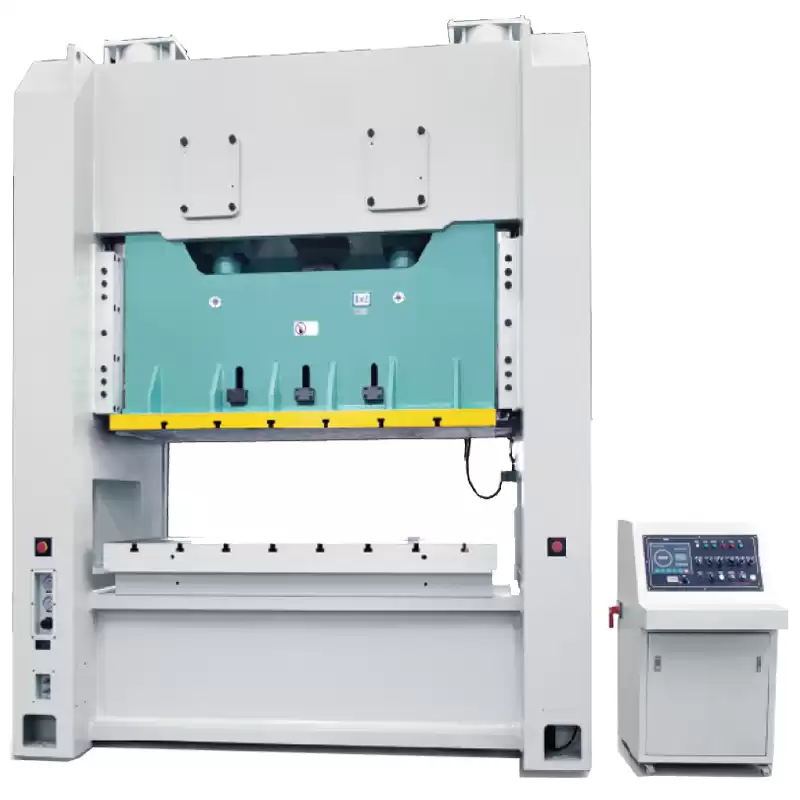

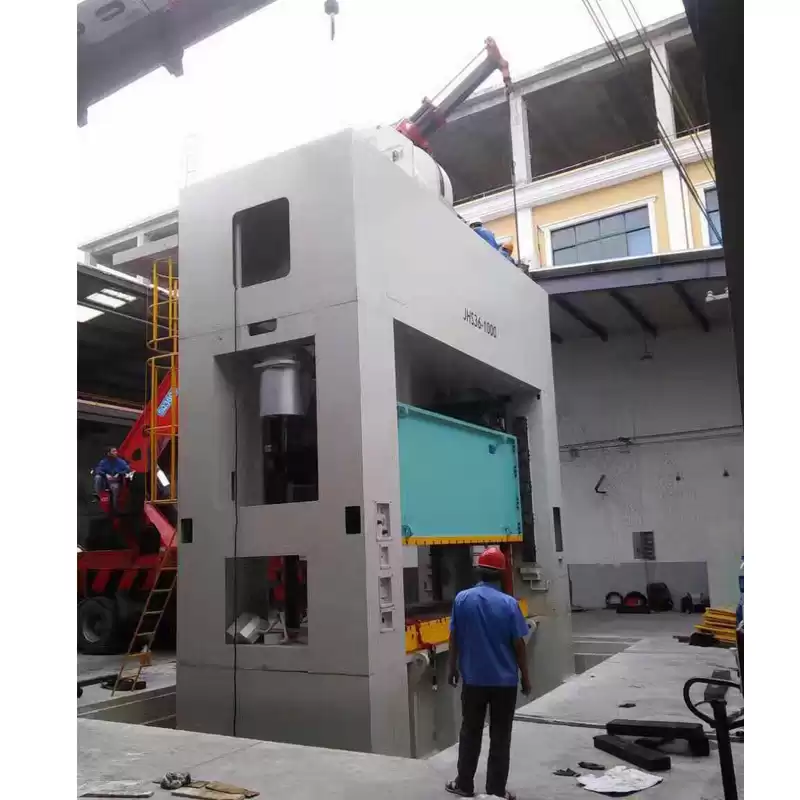

Two. Machine accessories parts
|
|
|
|
S.No
|
Items
|
Quantity
|
Unit
|
Remark
|
|
1.
|
Front moveable style worktable
|
Null
|
Set
|
Optional part
|
|
· Loading
|
Null
|
|
|
|
·Moving distance
|
Null
|
|
|
|
·Moving speed
|
Null
|
|
|
|
2.
|
Clutch brake
|
1
|
Set
|
|
|
Pneumatic dry clutch and brake
|
|
|
|
|
3.
|
Hydraulic overload protection device
|
1
|
Set
|
|
|
·Protective stroke ： 20 mm
|
|
|
|
|
·Automatic recovery time: within 120 seconds
|
|
|
|
|
·The overloading pressure is set at 105% of the capacity of the press, which can be relieved automatically or manually
|
|
|
|
|
4.
|
Electric slide adjusting mechanism
|
1
|
Set
|
|
|
·Adjusting speed:50 mm/min
|
|
|
|
|
·Die mounting height display accuracy on slide ±0.1mm
|
|
|
|
|
|
|
|
|
|
·Slide position automatic adjusting with manual adjusting
|
|
|
|
|
5.
|
Controller (colorful screen)
|
1
|
Set
|
Taiwan Delta
|
|
·Style: Separated electric cabinet
|
|
|
|
|
·Main operating panel includes these parts,as below:
|
|
|
|
|
PLC, Delta brand
|
|
|
|
|
Crankshaft Angle Indicator (Electronic)
|
|
|
|
|
Main motor galvanometer
|
|
|
|
|
Stroke times indicator(electric style)
|
|
|
|
|
Lower dead position indicator
|
|
|
|
|
Padlocked toggle switch
|
|
|
|
|
·Position：Right front side wall of machine
|
|
|
|
|
·Adjusting CAM control
|
|
|
|
|
Clutch、breaker air pressure detector
|
|
|
|
|
Double circuit exit brake control and detector
|
|
|
|
|
Safety grating detection loop is reserved
|
|
|
|
|
The second drop detection device
|
|
|
|
|
Double circuit emergency stop control
|
|
|
|
|
Safety stop block and pin locker
|
|
|
|
|
Monitoring of solenoid valves for clutch and brake
|
|
|
|
|
Emergency stop lock
|
|
|
|
|
6.
|
Safety device
|
|
|
|
|
·Ladder ensuring switch and main machine lock
|
1
|
Set
|
|
|
·Emergency stop
|
5
|
Pieces
|
|
|
.Laser safety guard
|
2
|
Pieces
|
|
|
Position:each piece on Machine left and front,left and backside, right and front side, right and back side and T style operating panel;
|
|
|
|
|
·safety block and safety pin
|
2
|
pieces
|
|
|
7.
|
Flywheel brakes
|
1
|
set
|
|
|
·Braking time: within 120 seconds
|
|
|
|
|
8.
|
Machine lubrication system
|
1
|
Set
|
|
|
·Thin oil circulating lubrication system
|
|
|
|
|
Lubrication point: press drive shaft, gear, slide guide, bearing
|
|
|
|
|
·Intermittent electric thin oil lubrication system:
|
|
|
|
|
Lubrication point : balancer
|
滑
|
|
|
|
.Thin oil circulating lubrication system:
|
|
|
|
|
|
|
10.
|
Air outlet（1/2B）
|
2
|
Group
|
|
|
|
|
|
|
|
11.
|
Blowing outlet （1/2B）
|
2
|
Group
|
|
|
·Adjustable CAM control
|
|
|
|
|
·
|
|
|
|
|
12.
|
Quick changing die position
|
|
Set
|
Optional parts
|
|
Die moving arm
|
|
|
|
|
Die lifting device
|
|
|
|
|
Die clamping device
|
|
|
|
|
13.
|
Moveable T style operating Console
|
1
|
Group
|
|
|
·Quantity ： one group
|
|
|
|
|
·Position： Right front side and back side of the machine
|
|
|
|
|
·Button function：
|
|
|
|
|
Two hands button
|
|
|
|
|
Emergency stop button
|
|
|
|
|
Up dead position stop button
|
|
|
|
|
Reset button
|
|
|
|
