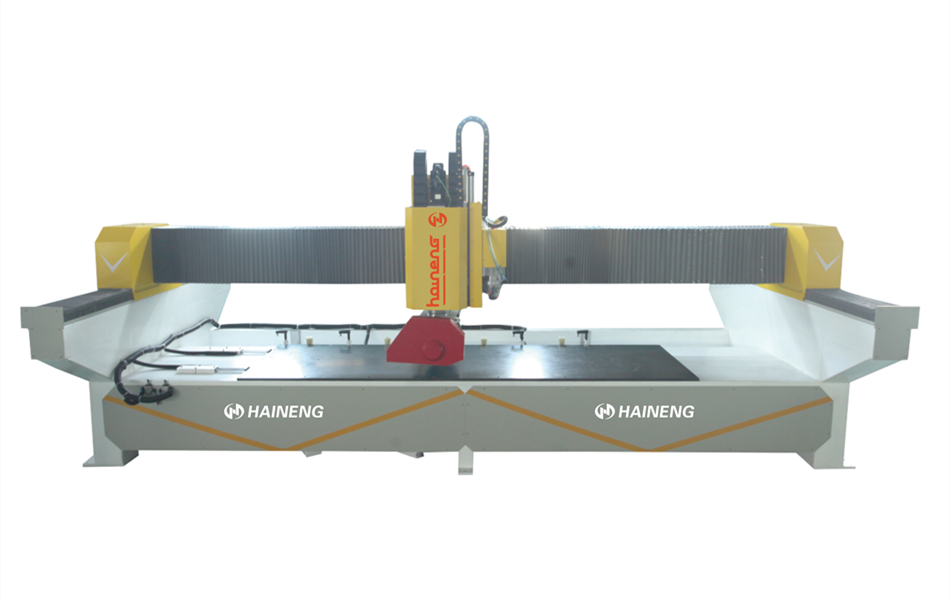

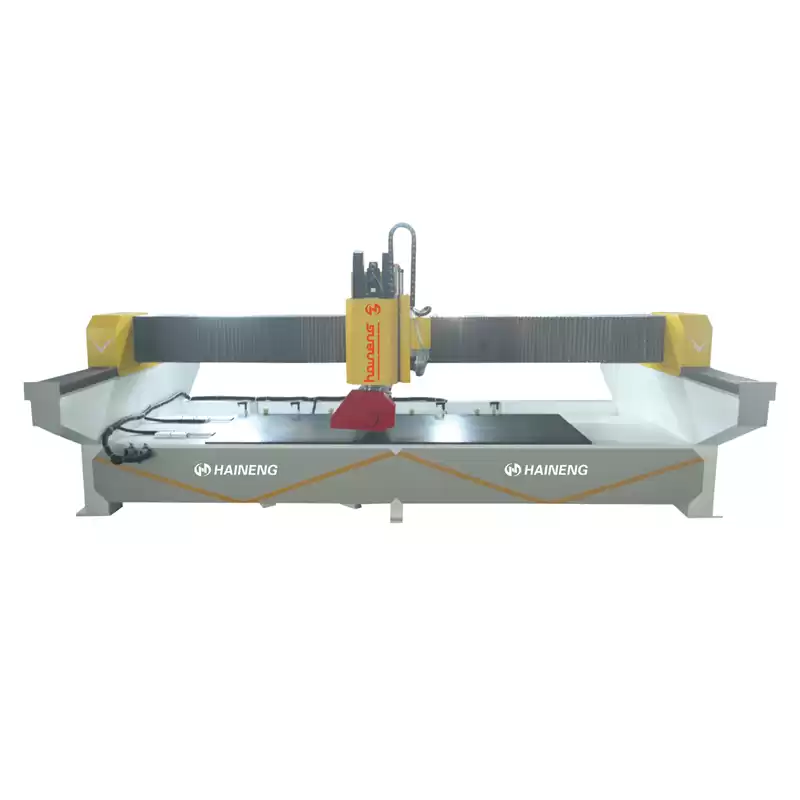

CNC Four-Axis Cutting Machine

It is a smart choice for high-end zero-single table processing plants!




Product Introduction

Application: High-performance automatic feeding equipment developed for the table processing industry.

Equipment function: table cutting, opening, cutting angle and other materials processing.

Basic processing: The CNC Four-Axis Cutting Machine adopts integrated steel pipe welding and annealing treatment. The processing machine is a Japanese Mazak five-axis CNC gantry milling machine, which effectively guarantees the equipment's service life and processing accuracy.

Configuration and selection: All core machinery and electrical components are imported or domestic first-tier brands, which effectively guarantees the stability and quality of the equipment.

Fool-type operation: The control system is independently developed by Longhan's own software department, and the equipment can achieve fool-type operation, which effectively avoids the problem of high entry barriers caused by the low quality of employees.

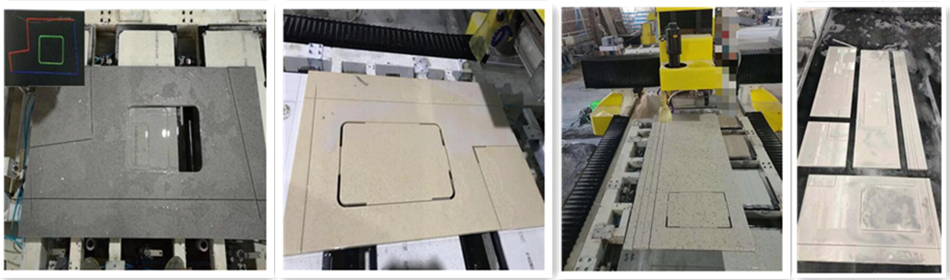

Processing quality assurance: This equipment has complete opening functions and one machine for multiple uses. It completely replaces some of the processing technology of infrared table cutters, hole cutters, and waterjets in ordinary table processing plants, effectively solving the cutting work of artificial angle grinders.

It is a smart choice for high-end zero-single table processing plants!

CNC Four-Axis Cutting Machine

Technical Parameters

CNC Four-Axis Cutting Machine

Type

unit

Q407-2T

Shape width

mm

2400

Shape Length

mm

5200

Shape Height

mm

2000

Size Width of Machinable Plate

mm

900-2000

Size Length of Machinable plate

mm

3100

Size Height of Machinable Plate

mm

0-30

Airway velocity parameters

mm/min

12000

Machining speed parameters

mm/min

1000-6000

Total Power Parameters

kw

15

Operating Voltage Parameters

v

AC380

Motor

/

Customized 11KW Motor

Motor speed

rpm/min

3000

Control system

/

Longhan Q4 Special Edition

Available blade diameter

mm

350

Control cabinet

/

Independent cabinet

Frequency conversion type

/

Customized Vector Frequency Converter

Driver type

/

Customized Full Servo System

Cutting direction

/

Arbitrary Angle

CNC Four-Axis Cutting Machine
