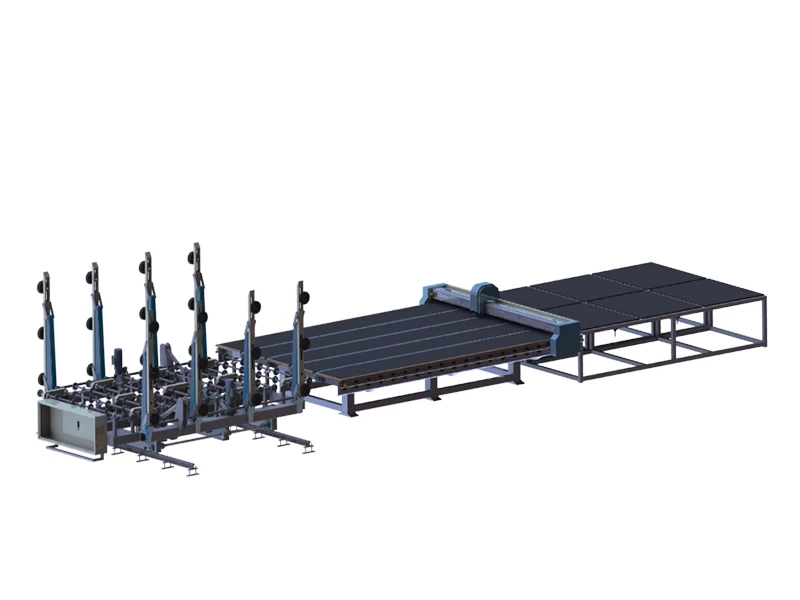

SY-4228 Single side single arms loading machine (could do customized )
Equipment main frame / equipment walking system / equipment transmission system / vacuum suction system / mechanical overturn system
Mechanical configuration:
1). flip sprocket chain: special high-precision enhanced shape.
2). transmission wheel: imported PU material
3). vacuum cups: NBR material inlet (double suction structure)
4). transmission / flip motor: Taiwan Bang Chung motor
5). vacuum pump: China-Germany joint venture
Electrical components
1). PLC controller: Panasonic
2). Frequency converter: Delta
3). Photoelectric switch:SONON
4). Control cable: flexible shielded cable.
5). Control electric Lam: imported flexible shield electric Lam
6). Contactor: Si Yan technology.
7). Positive and negative pressure sensor: Japan SMC
Technical parameters
1). The loading glass size scope:Min.: 1500*1500mm Max.: 4200*2800mm
2). Loading thickness: 3~19mm
3). Loading speed: 40-90s/pc (adjustable）
4). Transmission speed: 0~40m/min（adjustable）
5). Maximum suction depth: 650mm
6). Largest on the film attached to the charge: 900KG
7). Arms quantity: Four arms
8). Sucker quantity in single arm: 3 pieces
9). Arm flip: single.
10). Flip station: Single
11). Voltage: 380V/50HZ（Could do customized）
12). Power: 8KW
13). Compressed air:0.3Mpa-0.5Mpa
14). vacuum pressure: -70~ -90Kpa（adjustable according to glass thickness ）
SY-4028 Full-auto glass cutting machine
Basic performance
Equipment specifications
Maximum glass cutting size:4200*2800mm
Workbench table: 900±30mm.
Machine weight: 2.5T.
Cutting thickness:3~19mm
Cutting parameters
Straight line parallelism:≤±0.25mm/m
Diagonal accuracy: ≤±0.30mm/m（The above precision is subject to the cutting line accuracy）
Cutter speed: 0~180m/min.（adjustable）
Cutter acceleration ≥3.0m/s²
Cutter holder speed ≥180m/min
Cutter holder acceleration ≥6.0m/s²
The Speed of the conveyor belt≥40m/min
Cutting head positioning accuracy error ≤±0.2 mm
Voltage Power
Installed Power requirements: 380V/50HZ
The actual power of the equipment: 8KW
Compressed air: 0.6MPA
Mechanical Part
Platen: the use of waterproof board. (Flatness ≤ ± 0.20mm / m).
Rack: Japan KHK.
Drive belt / pulley: Italy
Wheel / wheel clip: Germany Boller.
Electrical parts
Use of industrial IPC directly to control, Microsoft Windows interface.
Voltage:380V/50HZ. Equipment with transformer device.
Motor:Japan Yaskawa servo motor.
Proximity switch : SONON
Control card: US imports, Galil
Main electrical components: Japan Izumi relay.
Pneumatic proportional valve: Japan SMC
SY-4028 Air Floating glass breaking table
Technical parameters
Workbench size: 4200×2800mm
Workbench height: 900±30mm (customized accepted)
Fan quantity: 1 set (independent switch control)
Main configuration
Table cover: black fiber felt.
Table board: High density fiber board
Ejector rod: crosswise one piece, lengthways one piece
