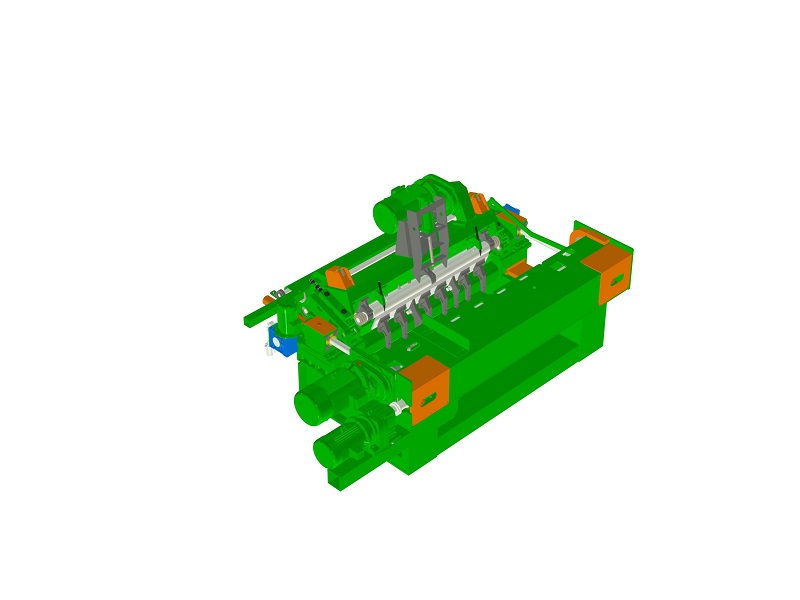

Product Name:1300mm Spindleless veneer lathe machine veneer peeling cutting making machine

Major Technical Parameters

Model : BQ1813/G5GS-J

Length of Veneer Log: 900-1400mm

Diameter of Veneer Log: Φ32-Φ550mm

Length of Peeling Knife: 1500mm

Thickness of Veneer: 0.8-4.5mm

Width of Veneer: 500-1300

Linear Speed of Veneer Peeling Line:  60-80 m/min

Total Power:  37.5KW

Total Weight:  5500kg

Overall Dimensions: 4000*2600*1700

Main Features:

1. The servo motor can guarantee stable peeling speed and machine running to make accurate thickness veneer.

2. The feeding screw and nut is made by special steel and cooper which can have long service life.

3. All peeling rollers of Sammu Sansen veneer peeling machines are quenched and electroplating treatment to make the rigidity and flexibility better.

4. All Sammu Sansen veneer peeling machine uses advanced PLC control system.
