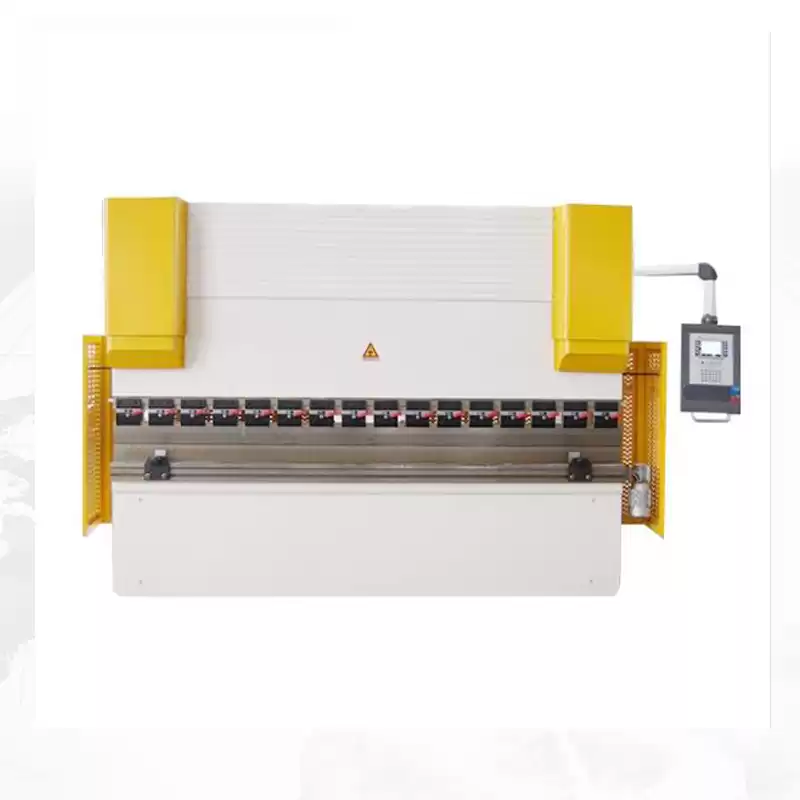

Product Item：CNC Hydraulic Torsion Servo Metal Sheet Folding Machine

The structural features:

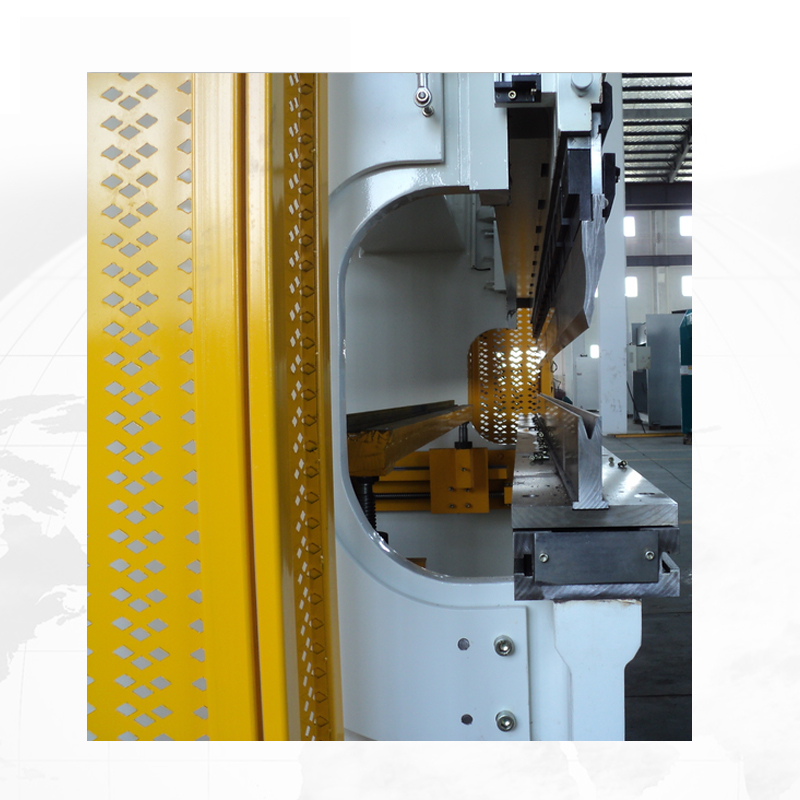

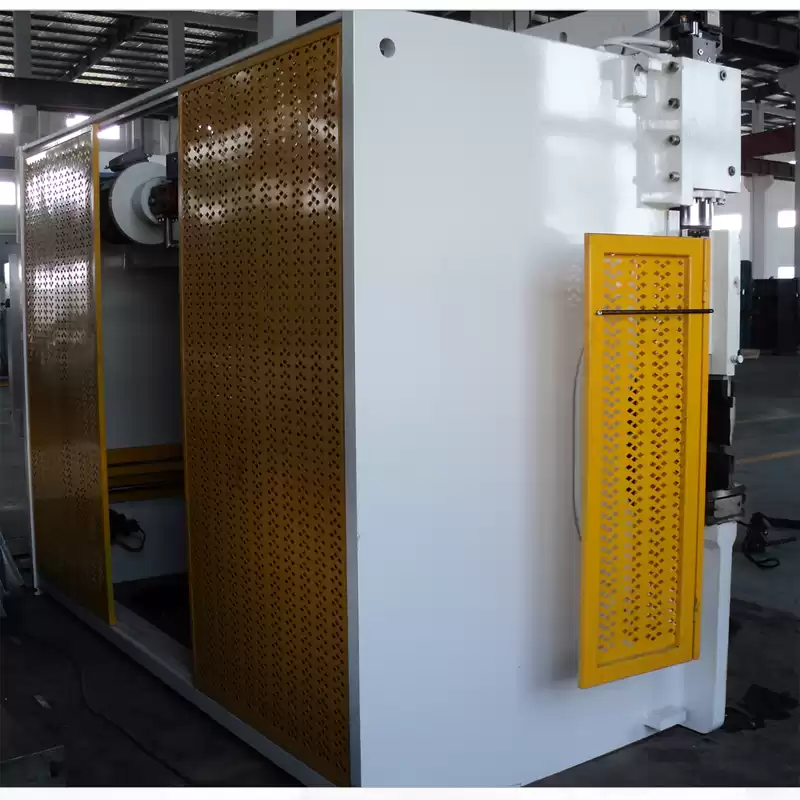

The whole steel plate is welded, the stress is eliminated by the vibration after tempering

Sandblasted and sprayed with anti-rust paint; the machine frame is processed by imported CNC three-dimensional processing center, which ensures the parallelism and verticality of each installation.

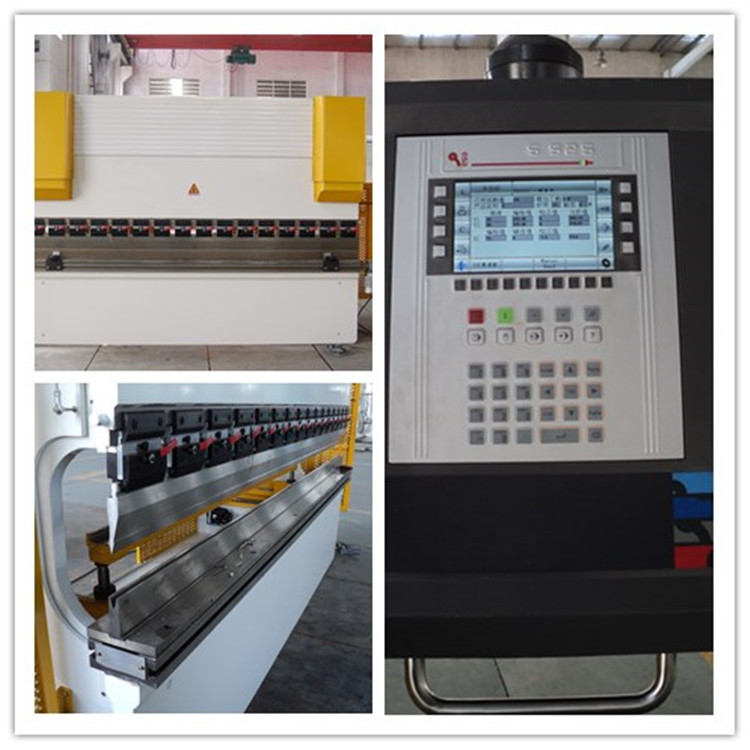

Y1,Y2 control numerical axis of oil cylinder on both sides; X controls back gauge to move front and back; R controls back gauge to move up and down, V for oil cylinder compensation, Z refers to backgauge fingers move left and right. Z axis can choose motorized control or PC control.

Hydraulic System:

The hydraulic press brake adopts integrated hydraulic control system which limits the quantity of pipe connections, thus being more reliable and easy for maintenance.

Snychro Control System:

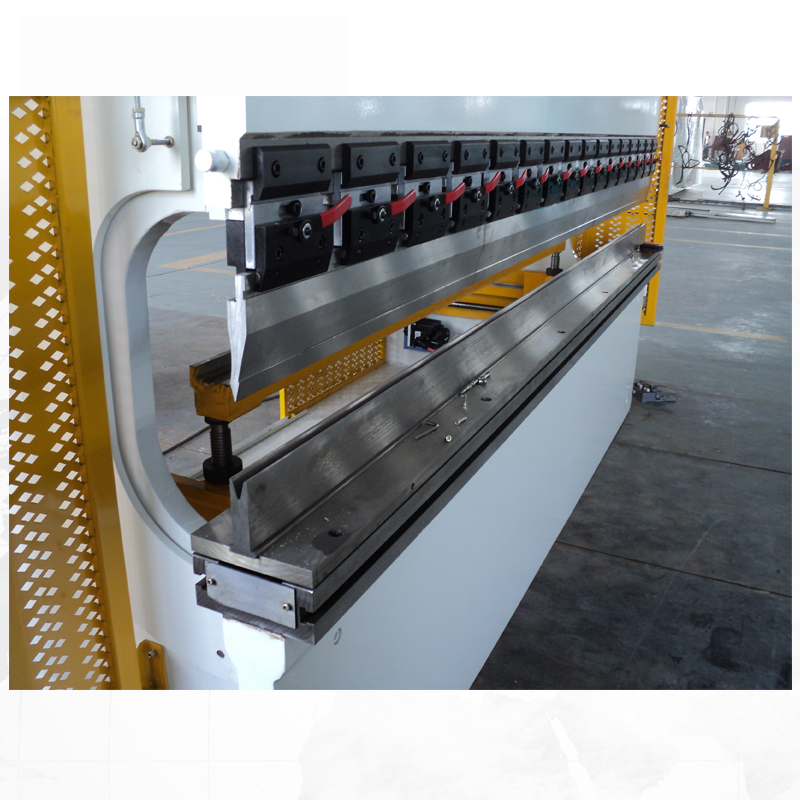

It also adopts steel torsion bar synchro system with very simple structure but very high accuracy. At both ends of the sliding block, there are 2 synchro folks which make the sliding block movement always parallel to working table. This structure highlights a balanced movement effect during operation. Upper die compensation is used to improve the brake precision.

Advanced Technology and procedure:

Hydraulic press brake comes with a torsion bar synchronous system, and it is the third generation of Hydraulic Bending Machine. It supports electronic control as well as manual micro-adjustment on the back gauge and sliding block stroke, and the stroke is digitally displayed.

Advanced hydraulic integrated valve block is employed, and the pipeline connection is minimized in a compact structure, to enhance the system reliability and maintainability. Also, the machine features a wide speed adjustment range.
