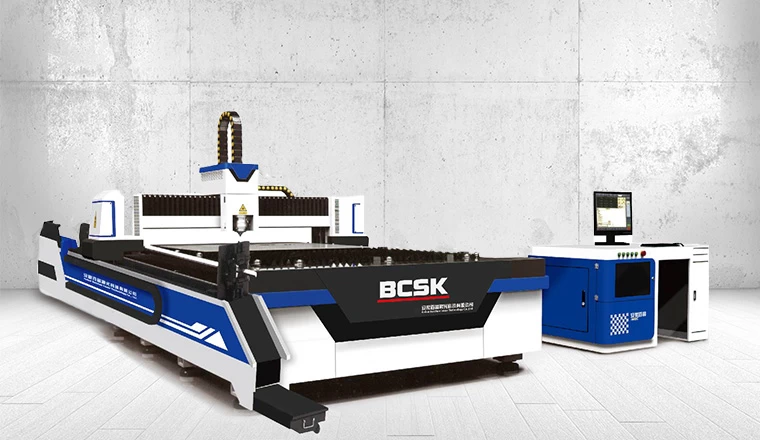

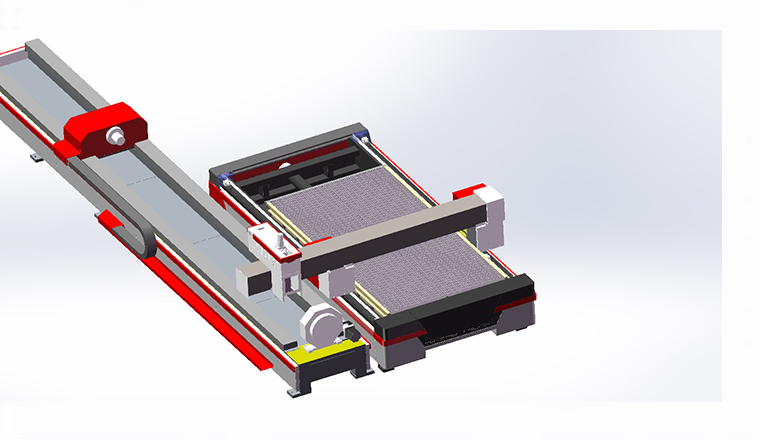

CNC Laser cutting machine for metal plate&metal tube

Adopting Cyptube cutting software,it can directly accept the drawings from 3-Dimension drawing software,The drawings can be directly displayed in the computer,which is more convenient and direct;

Unique holding and scratching design enables fast adjustment of different pipes,thus high-precision products can be made during processing;

Unique pipes supporting device can ensure little swing in the middle when cutting 6 meter long pipes and ensure stable running;



CNC Fiber laser cutting machine for metal plate &metal tube


Characteristics of our laser cutting machine:
1. Fiber laser tube cutting T model, a professional machine designed for tube processing, has a max cutting length as 9000mm and max cutting diameter as 200mm.
2. Electric servo motor-driven chucks at both front and rear ends, with clamping diameter ranging from 20mm-200mm, are designed with extra-long mechanic claw to reduce material waste.
3. The machine is applicable for the processing of round, square, rectangular, ellipse tubes and tubes with various shapes.
4. The front material collector is designed to collect finished products for further sorting.

5. Can cut lines and holes with different diameters from different directions on the pipe,and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.
6. Can cut column Crossed Lines at the end of branch pipe,and meet centrifugal and non-centrifugal vertical intersection condition for branch and main pipe axis.
7. Can cut inclined section at the end section of the pipe.
8. Can cut branch pipe intersected with the main circular pipe.
9.To realised angel groove face,square hole,waist-shaped holes cutting.


Description

  Specification

    Parameter

Qty(pcs)

  Manufactor

Beam

Holistic steel plate welding



1

BCSK

Fuselage structure

Holistic steel plate welding



1

BCSK

Laser generator




1

IPG/nLIGHT/MAX/Raycus

X, Y, Z axis servo motor




4

Japan Yaskawa

Laser cutting head




1

Raytools

X, Y, Z axis drag chain




1

Cangzhou Hebei

X,Y axis gear and rack

M2

Grinding din6 grade precision

3 sets

Taiwan YYC

Reducer

VRTZ-090-5

3 arc precision  flange connection

3

Japan Shimpo

X axis linear guide rail

HGH30CA2R

H level precision

2

Taiwan Hiwin

Y axis linear guide rail

HGH25CA2R

H level precision

2

Taiwan Hiwin

Gas path

SMC



1

Japan

Electrical components




1

Schneider and SIEMENS

Cutting system




1

Cyptube

Computer


 Memory 4G, solid state hard disk 120G

1

ASUS

Oilway

Automatic oil injection



1

Nanjing

Cooling-water machine




1

Tongfei Sanhe

Air conditioner




1

Tongfei Sanhe


Appicable Industry and Cutting Samples:

This machine is widely used in various industries such as advertising decoration,kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis,air-conditioner manufacturing,metal plate cutting,etc

Delivery and Payment Terms
1. Validity: The price is valid in 30 days.
2.Price term: EXW  Maanshan or FOB Shanghai
3.Terms of payment: fiber laser machine: 30% deposit, 40% after acceptauce and full payment before delivery; CO2 laser machine: 60% deposit, and full payment before delivery.(May be further negotiated
4.Delivery time: 25-60 Working days after getting your deposit
5.Shipment: by sea.
