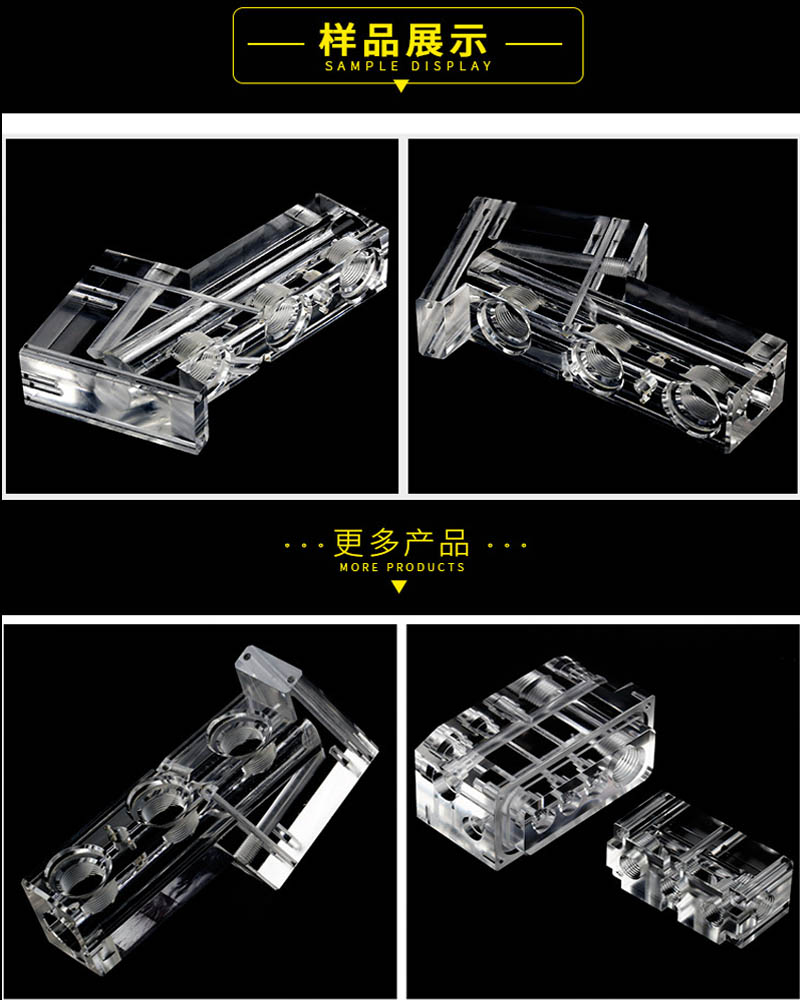

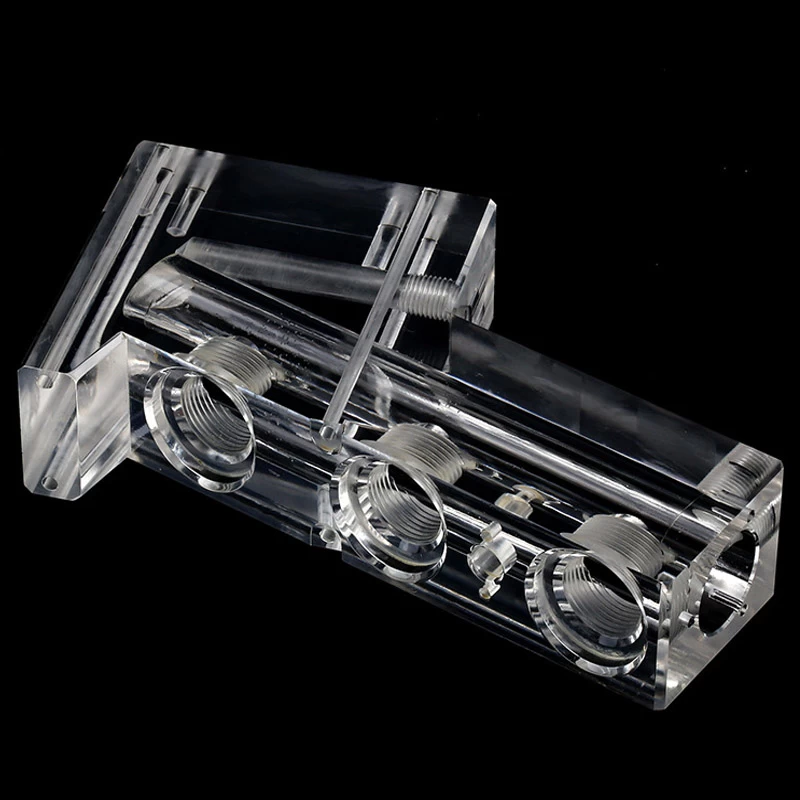

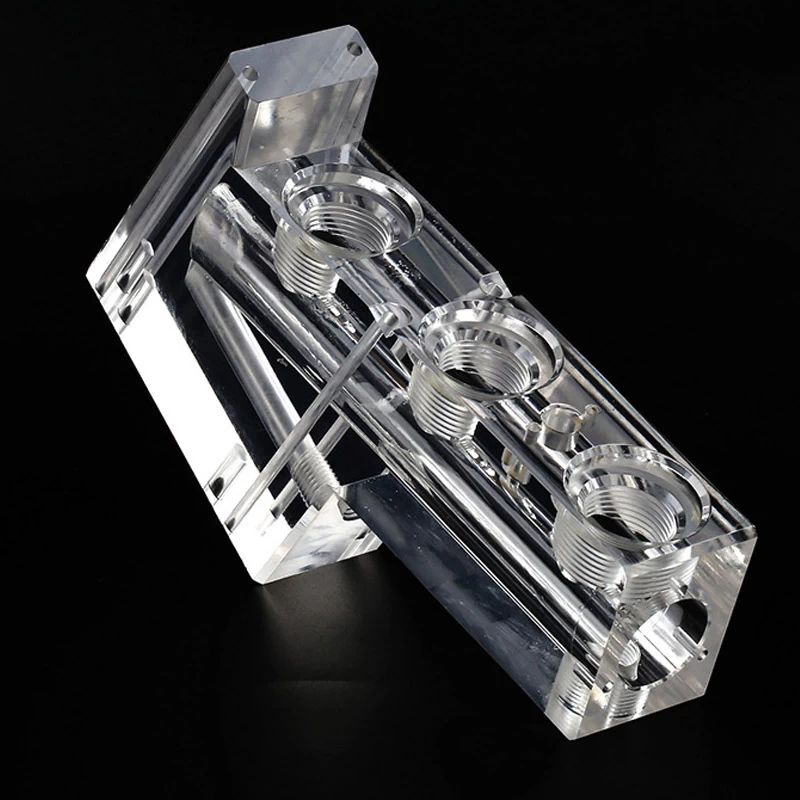

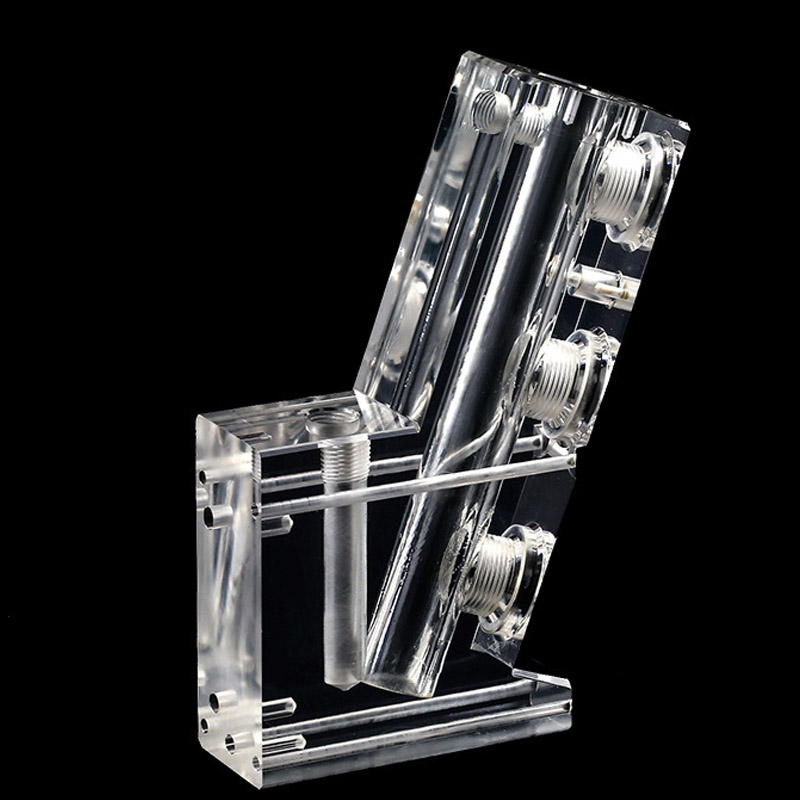

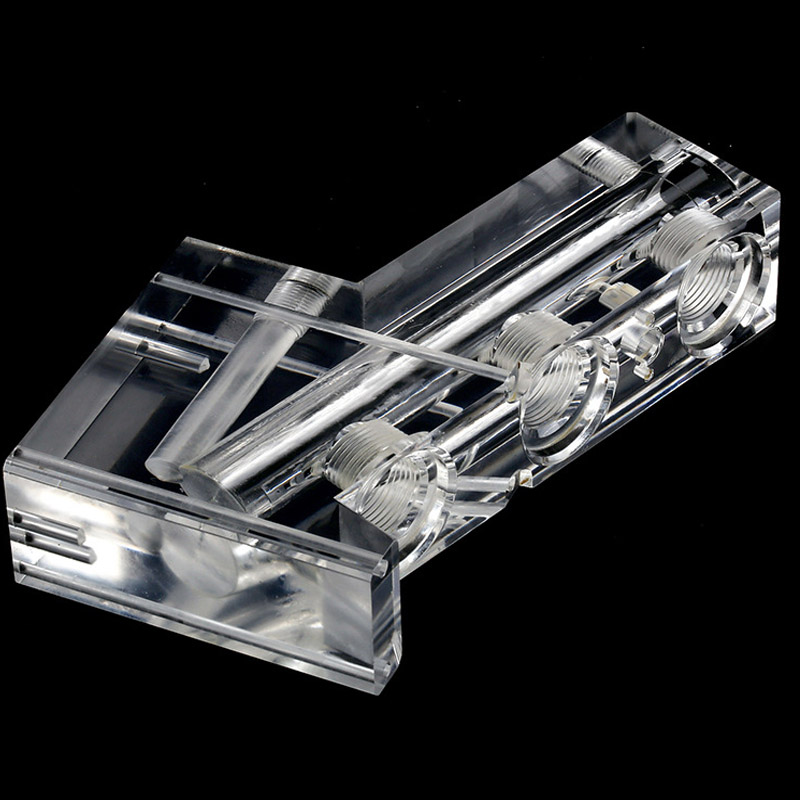

CNC milled precision machined acrylic diffusion bonded medical manifold

Custom acrylic precision machined plastic medical devices micro Fluidic diffusion bonded medical manifolds


  • Delivery time(Prototype)
  • Monthly capacity
  • Minimum Tolerance
  • Max.part size
  • Spindle speed
  • Surface Treatment
  • Inspector reporter

JY Machinery provides a variety of CNC machining processes, ranging from complex contouring and 3-D milling to rapid machining, thread milling, and helical interpolation. We can meet tolerances as high as (+ -) .001 inches on all dimensional features. Equipped with advanced multi-axis machining centers, we have capabilities to extend to a larger 20X40X14 inch work envelope, which can produce an even larger part capacity via indexing.

We have vast knowledge and experience in the development, manufacturing and fabrication of Microfludics & Microfluidic devices.  Many of the applications range from clinical chemistry, medical, life sciences, biotech, point of care devices.
We precision develop and manufacture microfluidics devices and chips in acrylic/PMMA material.
For High Accuracy Diffusion Bonded (HADB) microfluidic devices and chips, we typically use PMMA for more aggressive chemicals or higher temp applications.

Our services include CAD design and engineering. Complex components are easily manufactured through the direct import of files from most CAD systems for precision machining. JY Machinery provides expert material analysis and design recommendations.but is not limited to the following plastic materials: Acrylic, ABS,Lexan,Lucite, PET,Plexiglas,PVC. We also specialize in machining soft metals; aluminum, brass alloys, and copper.



Technical Parameters:



• Weather resisting: Strong surface hardness and good weather resisting property.
• Transparency: Perfect transparency and the light transmittance with 93%.
• Electrical insulation : Excellent electrical insulation, very light in weight

• Plasticity: High plasticity, processing and shaping easier


Specific gravity

1.19-1.20

Hardness

M-100

Water Absorbtion - 24 hours

0.30%

Tension

Coefficient of rupture

700kg/cm2

Coefficient of elasticity

2800kg/cm2

Bending

Coefficient of rupture

1.5kg/cm2

Coefficient of elasticity

2800kg/cm2

Transmission of Light



Transmission(parallel rays)

92%

Transmission(full rays)

93%

Other



Heat distortion temperature

100°C

Coefficient of linear expansion

6*10-5cm/cm°C

Temperature of continuous operation

80°C

Thermoforming Temperature range

140-180°C

Insulating strength

20kv/mm

Applications:



1.Construction: show window, doors, telephone booth

2.Advertisement: lamphouse,signboard,indicator,display rack.

3.Transportation: door and window of car and train or others.

4.Medical: infant incubator, many kinds of medical apparatus.

5.Civilian goods: bath room, art work, cosmetics, bracket, desk

6.Lighting: daylight lamp, ceiling lamp, lamp-chimney,Light diffusion.

7.Product design:engraving, making gift items,stationery rack



More acrylic and plastic parts:





Our Factory:




Package & Shipping:





FAQ:



Q:Are you a manufacturer or a trading company?
A:We are direct manufacturer with over 10 years'export experience for machinery parts, welcome to visit us.

Q:What do you do for quality control of my order?
A:Raw material inspection--Semi-finished products inspection before surface treatment--finished products inspection before packing. Inspection report available to you!

Q:How do you pack the goods? Can I have my packaging customized?
A:We pack every item by EPE, then have them packed by carton box or wooden box according to your request. Of course we support customized packaging. Please contact us to discuss it now!

Q:How to do if I receive the unsatisfied goods?
A:We make the product according to your requests and drawings confirmed before production. If anything we have done wrong, we remake for you free of charge!

Q:How can I get the quotation?
A:We will submit the quotation in 8 hours if getting detailed information during working days.
In order to quote for you earlier, please provide us the following information together with your inquiry.
1). Detailed drawings (CAD/PDF/DWG/IGS/STEP/JPG)
2). Material requirement
3). Surface treatment
4). Quantity (per order/per month/annual)
5). Any special demands or requirements, such as packing, labels,delivery,etc.
