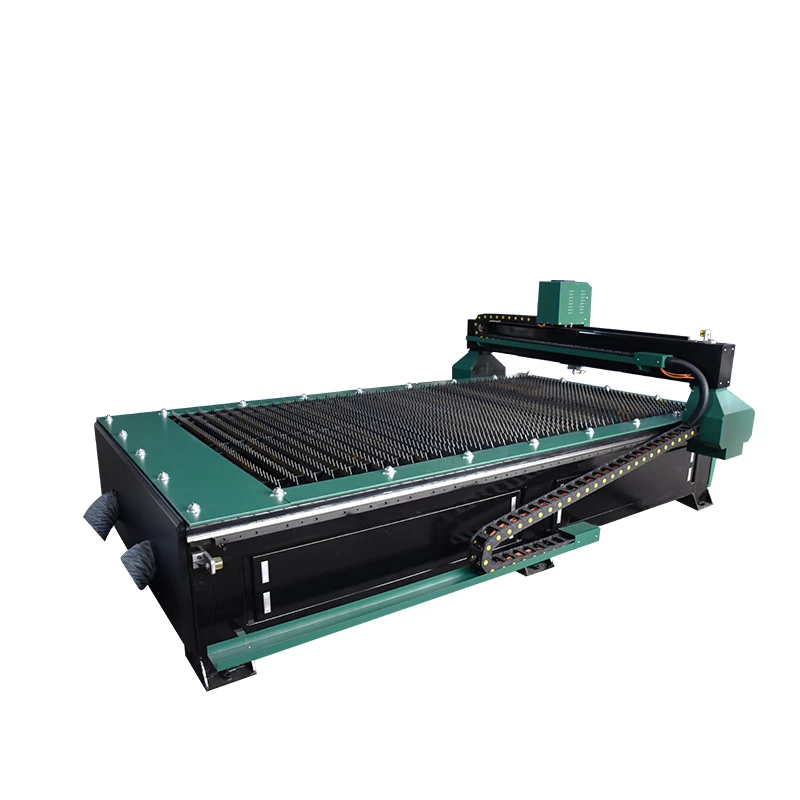

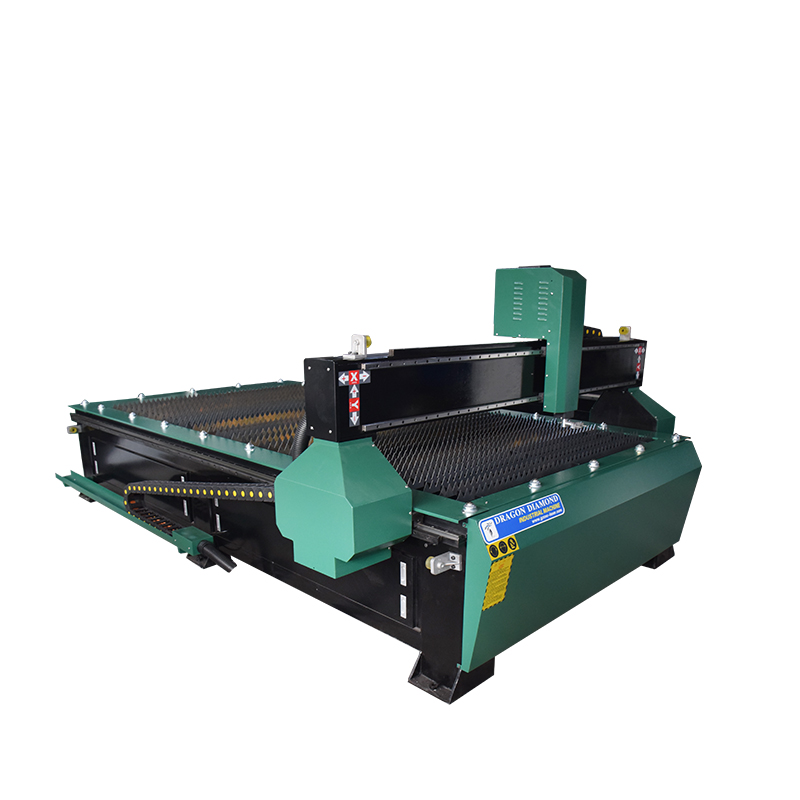

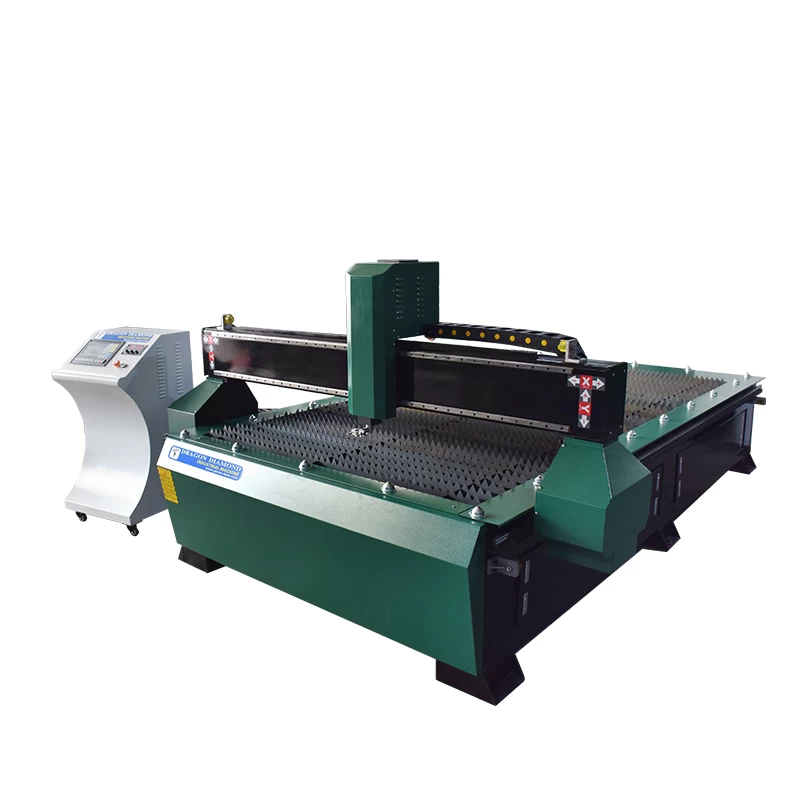

CNC Plasma Metal Stainless Steel Cutting Machine

1300*2500mm Plasma CNC Machine For Metal Cutting.



CNC Plasma Metal Stainless Steel Cutting Machine


Plasma Cutting MachineCNC Plasma Cutting Machine Metal

PRODUCT DESCRIPTION

●Professional design for cutting metal materials, such as Stainless Steel, Aluminum, Brass, etc.
●High configuration, high cutting speed and precision.
●Control system: DSP control, with USB interface.
●Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.
●File format: G-code.
●Editing Software: Fastcam


PRODUCT PARAMETER

NO.

Model

Plasma-1325

1

Working Area

1300x2500x200mm

2

Packing Size

2150x3250x1500mm

3

Working Table

Water Surface Cutting Table

4

Plasma Sorce

60A-200A (Optional)

5

Application Maximum cutting

0.5-30mm(Depends on the material)

6

Guider

Taiwan HIWIN linear guider, 20mm thickness

7

Transimission type
X, Y:  Taiwan HIWIN square linear guide , Rack driving

Z:  ball screw and Hiwin square linear rail 20mm

8

Gas Pressure
Acetylene Gas or Propane Gas Max 0.1Mpa

9

Control System
FLCNC- F2100B

10

Torch Height Control Style
Plasma THC

11

Motor

Leadshine Stepper motor

12

Software
StarCAM

13

Machine Power
<3000w

14

Arc Mode
Arc Pressure Adjuster

15

Max. Rapid Travel Rate

15m/min

16

Max. Working Speed

10mm/min

17

Reposition Accuracy

0.1mm

18

Command code

G code, DXF, *.mmg,*.plt, HPGL,BMP

19

Voltage

AC220V/110V,50HZ/60HZ

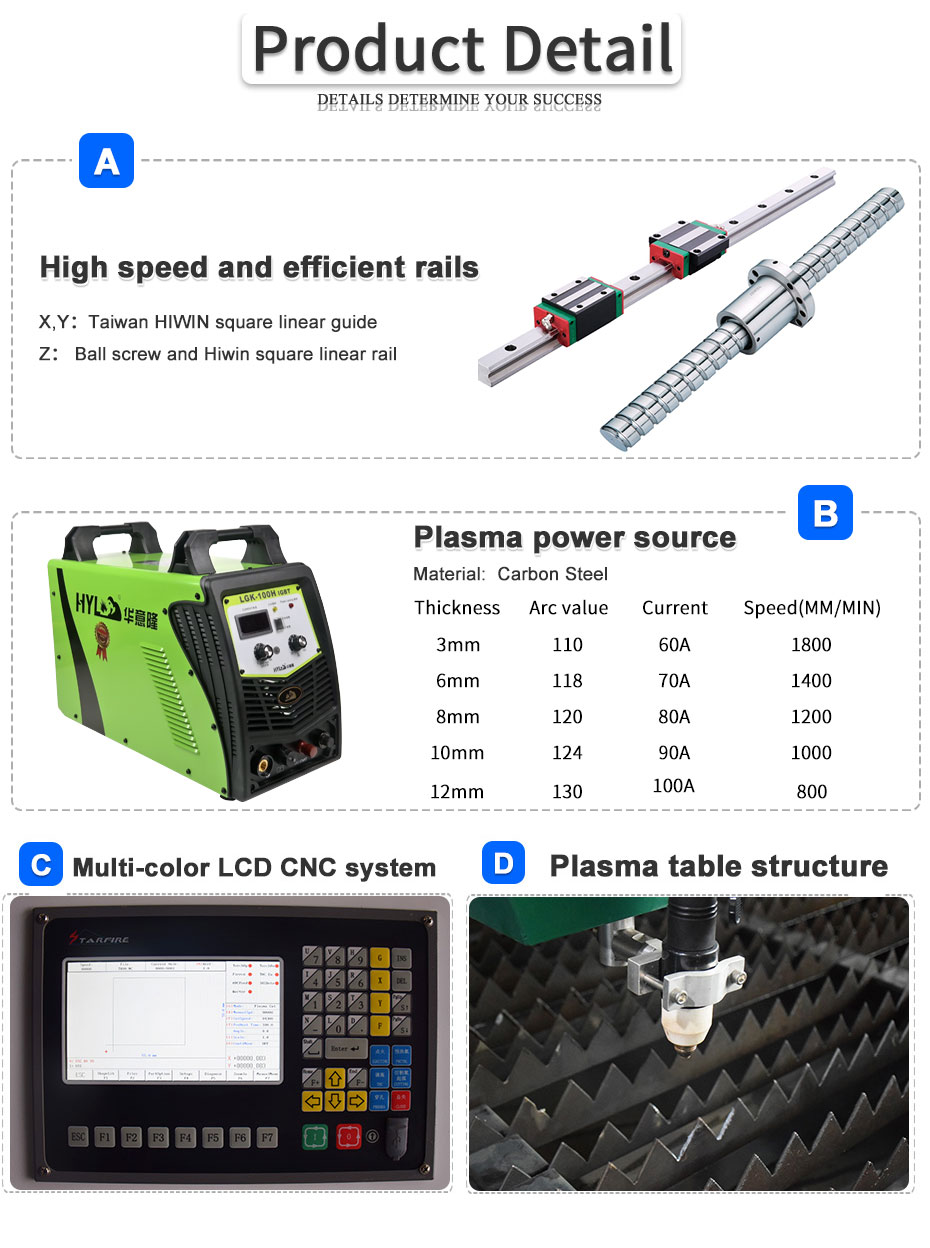

PRODUCT DETAILS

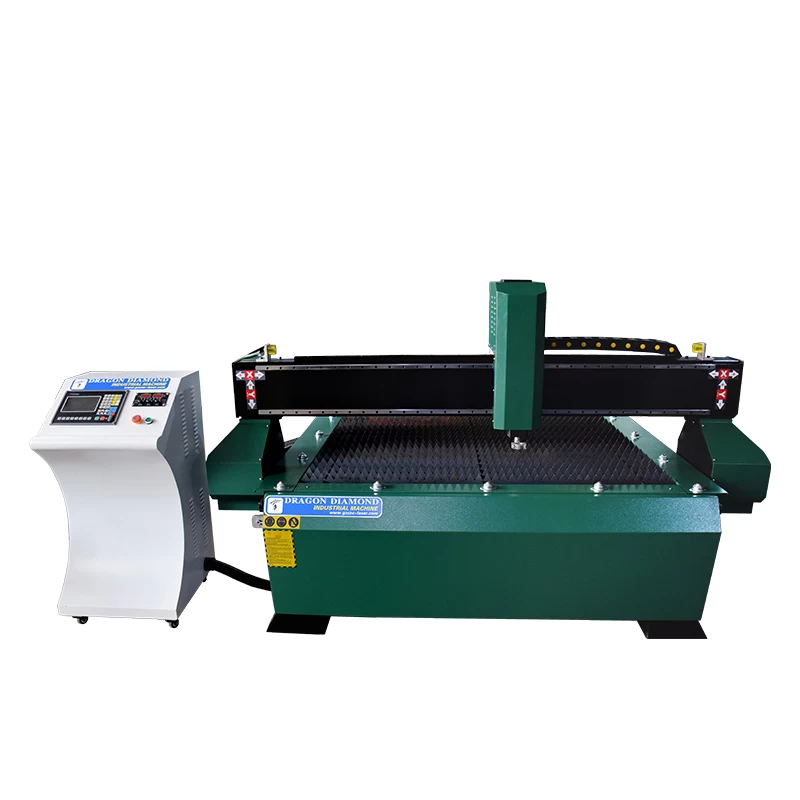

Metal Plasma Cutting Machine

C.Multi-color LCD CNC System

The control system is independently designed and developed with optimized programming, easy to learn and operate.

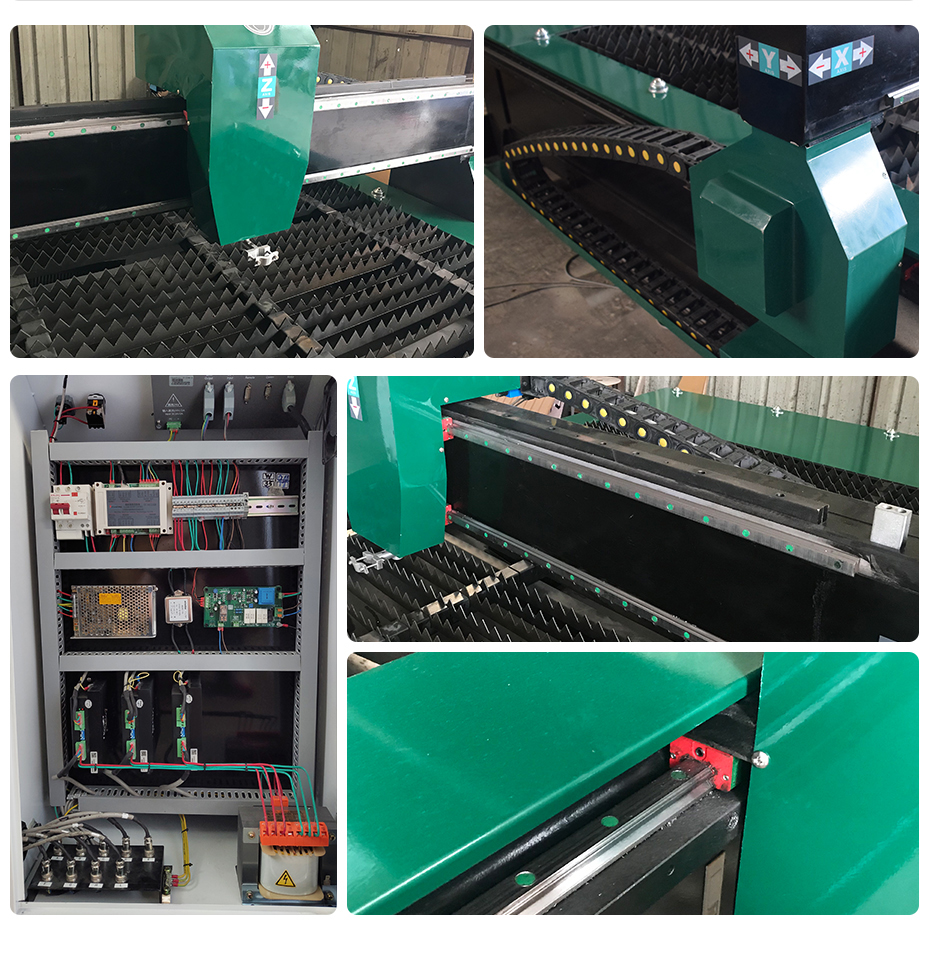

D.Plasma table structure

The whole machine bed adopts welded steel structureand then precision-machined, whole tempering, fully eliminate welding stress, stable and reliable performance. Gantry and end beam adopts cast aluminum and then precision-machined, moving performance is good.

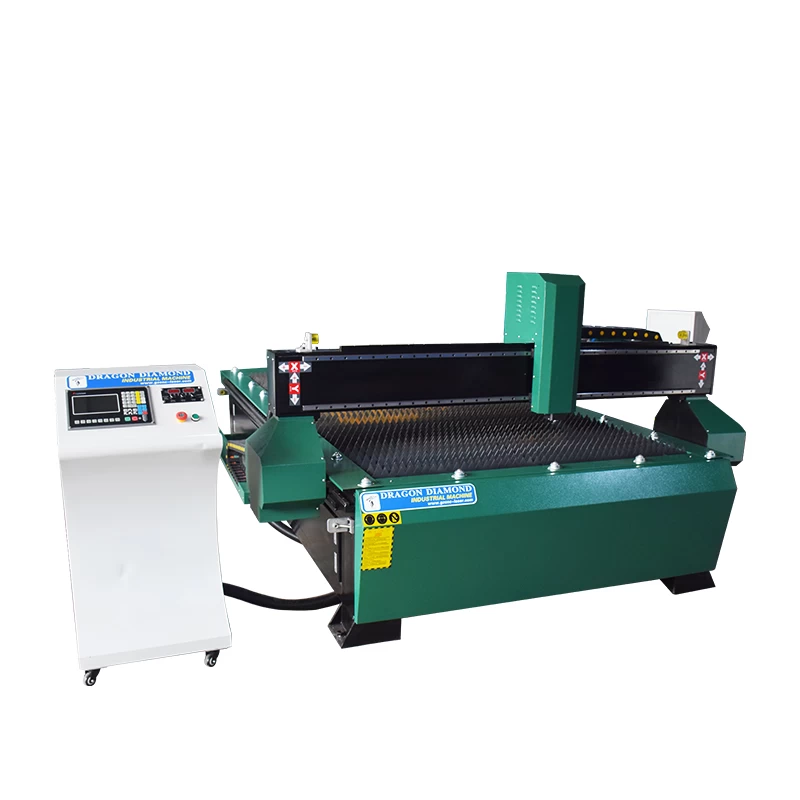

Plasma Cutting Stainless Steel Machine
