CNC Router Wood Cutter Vacuum Table Furniture Cutting Machine

2000*4000mm Customized Absoring Function CNC Router With Vacuum Table.



CNC Router Wood Cutter Vacuum Table Furniture Cutting Machine



PRODUCT PARAMETER

NO.

Model

Lz-2040B

1

Working Area

2000x4000x200mm

2

Machine Size

2300x4300mm

3

Working Table

Vacuum Table

4

Spindle Power

3KW Water cooling Spindle

5

Cooling System

Water cooling

6

Control System

NC Studio

7

Inverter

Sunfar

8

Transmission

X,Y Rack,Z-ball screw

9

Guide Rail

Taiwan Square rail

10

Ball Screw

TBI ball screw from Taiwan

11

Drive System

Leadshine driving system and stepper motor

12

Body

Welded steel T type structure as a whole

13

Spindle Speed

24000RPM

14

Control Software

Artcam/Type3,other CAD/CAM

15

Traveling Speed

10m/min

16

Working Speed

8m/min

17

Reposition Accuracy

0.03mm

18

Command Code

G Code*.u00*.mmg*.plt

19

Voltage

AC220V/380V,50HZ/60HZ




PRODUCT DESCRIPTION

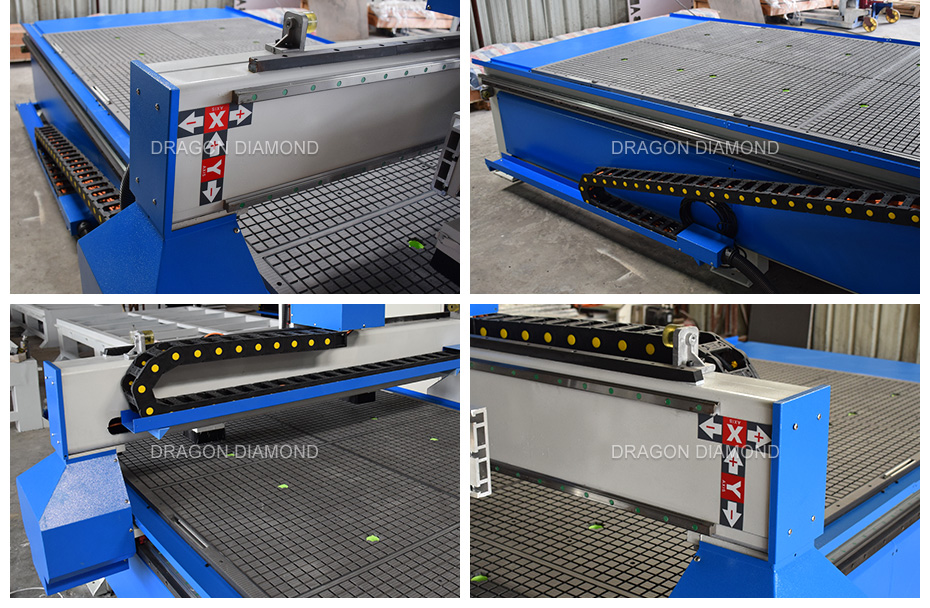

1.Stronger Machine Frame Design

Welded steel T type structure as a whole, six-legged heavy-duty body,large bearing capacity with vibration temper aging treatment ensures no deformation for long time, avoid broken knife, more stable, durable.


2.Guide Rail

Imported Hiwin, Taiwan linear squareguide rail with ball bearing slide block-which ensure high weight capacity,high.precision, smooth and steady running. Adopt iported precision ball screws, tools feeded with more accuracy.


3.XYZ Transmission Way

Rack gear transmission for X and Y axis,higher running speed and efficiency,saving cost. Z- axis with precision ball screw, high precision and more durable.


4.Spindle Motor and Inverter

Large power 3.0kw water cooling spindle which is with stable performance, lower noise,powerful and high torquematched with high-performance frequency inverter.


5.Y axis Transmission Mode

The Y axis transmission mode for stepping two-way drive, more efficient, simplified carpentry and maintenance of the processing of the maintenance work.


6.NC Studio

More functions, more efficient operating system


7.Motor and Driver

China famous 86BYGH450B stepper motor and driver for XYZ-axis, high precision, fast speed and more stable,dual motor driver Y axis with traveling speed up to more than 25000 mm/min.
