CNC Stone Cutting Machine For Sale

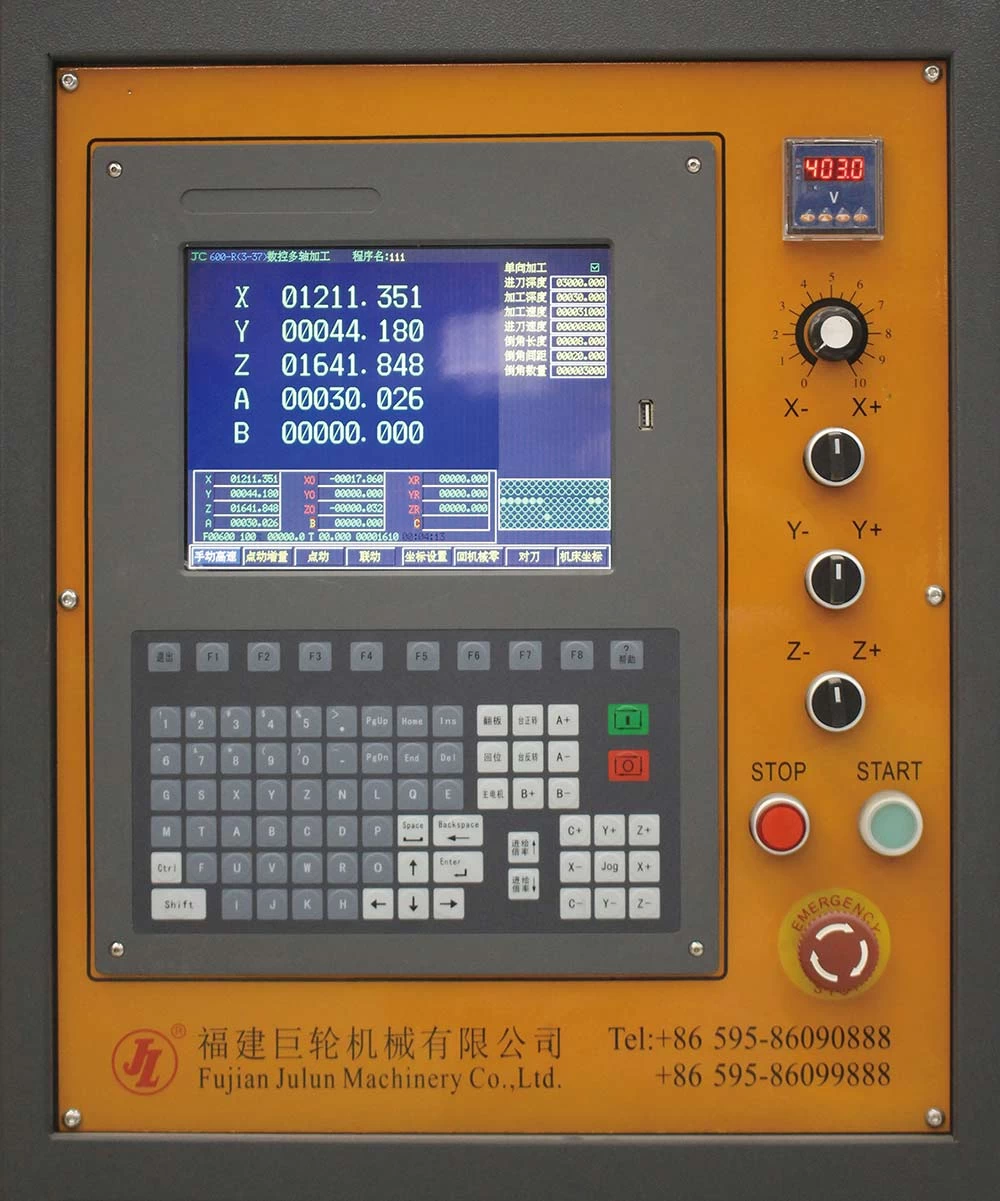

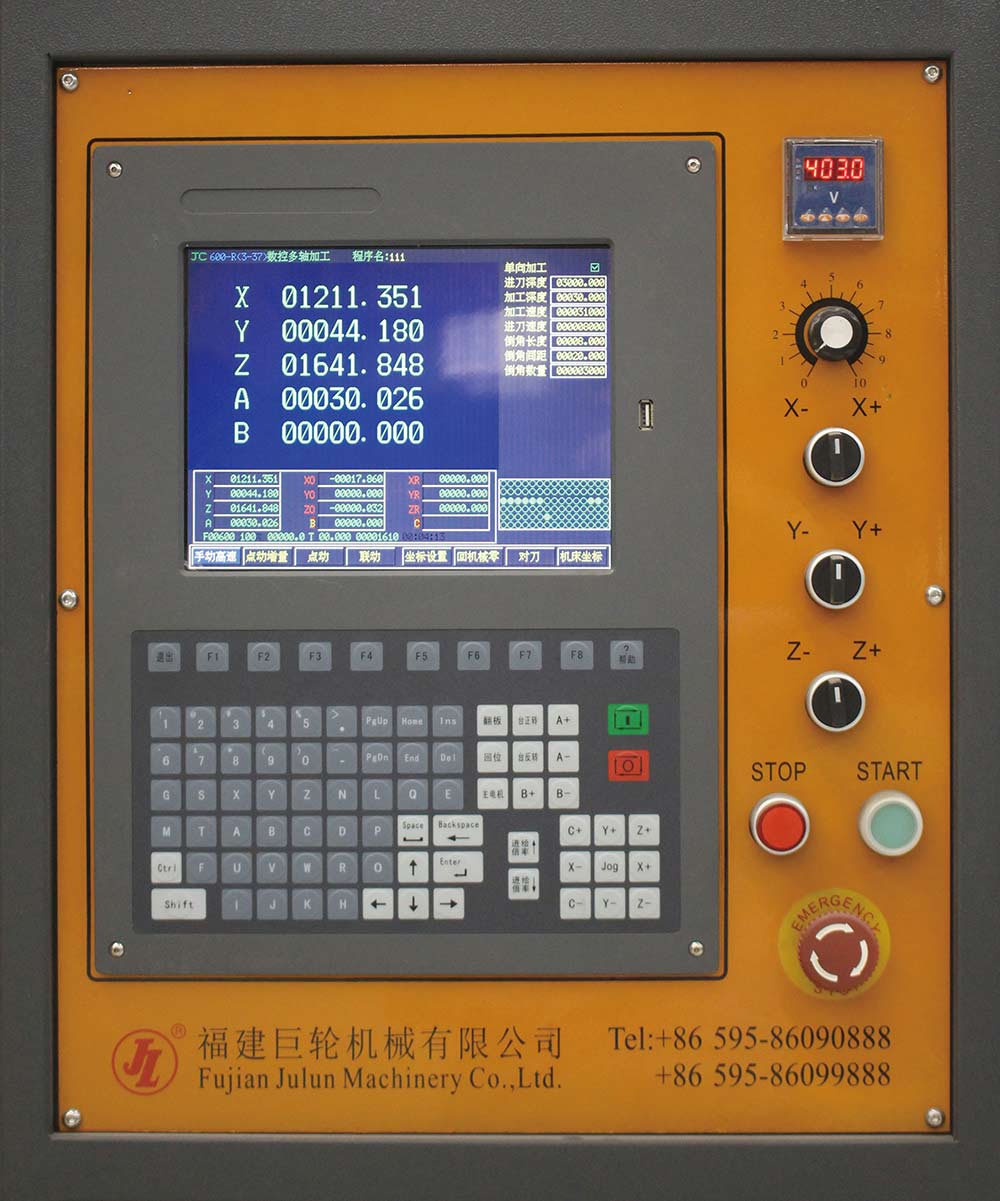

1. CNC marble granite cutting machine'system was developed with Italy company,uses industrial flat computer,resistance type 15 Inch embedded touch screen Human-interface industrial one machine support installation with Windows XP system,has good opening,compact structure,high integration and convenient operation and maintenance;
2.The cross-beam and side-beam use liner rails,driven by servo motor,built-in high precision rotation encoder,can adjust the speed and position according to the stone materials,with high precision;with steel stand to easy installation and make sure the machine using efficiency;Lifting system uses hydraulic lifting system,main parts adopt imported good-quality materials.
3.Thus the whole machine is featured with high cutting efficiency,high cutting precision,high stability,easy-operating to suit granite and marble with high value and big size,and special-shaped cutting.
Specification
|
Appellation
|
Unit
|
CNC600-5
|
|
Max.blade diameter
|
mm
|
Φ600
|
|
Max.processing length
|
mm
|
500
|
|
Left-right movement stroke(X axis)
|
mm
|
3260
|
|
Forward-backward movement stroke(Y axis)
|
mm
|
2080
|
|
Max.lifting stroke(Z axis)
|
mm
|
420
|
|
Blade rotation(C axis)
|
°
|
0°-360°
|
|
Blade rotation(A axis)
|
°
|
0°-90°
|
|
Worktable size
|
Mm
|
3200×2000
|
|
Worktable turn-over degree
|
°
|
0°-85°
|
|
Water consumption
|
m3/h
|
2
|
Power of main motor
|
kw
|
15
|
|
Total power
|
kw
|
22
|
Dimension(L*W*H)
|
mm
|
5700*3300*3250
|
|
Weight
|
kg
|
5500
|

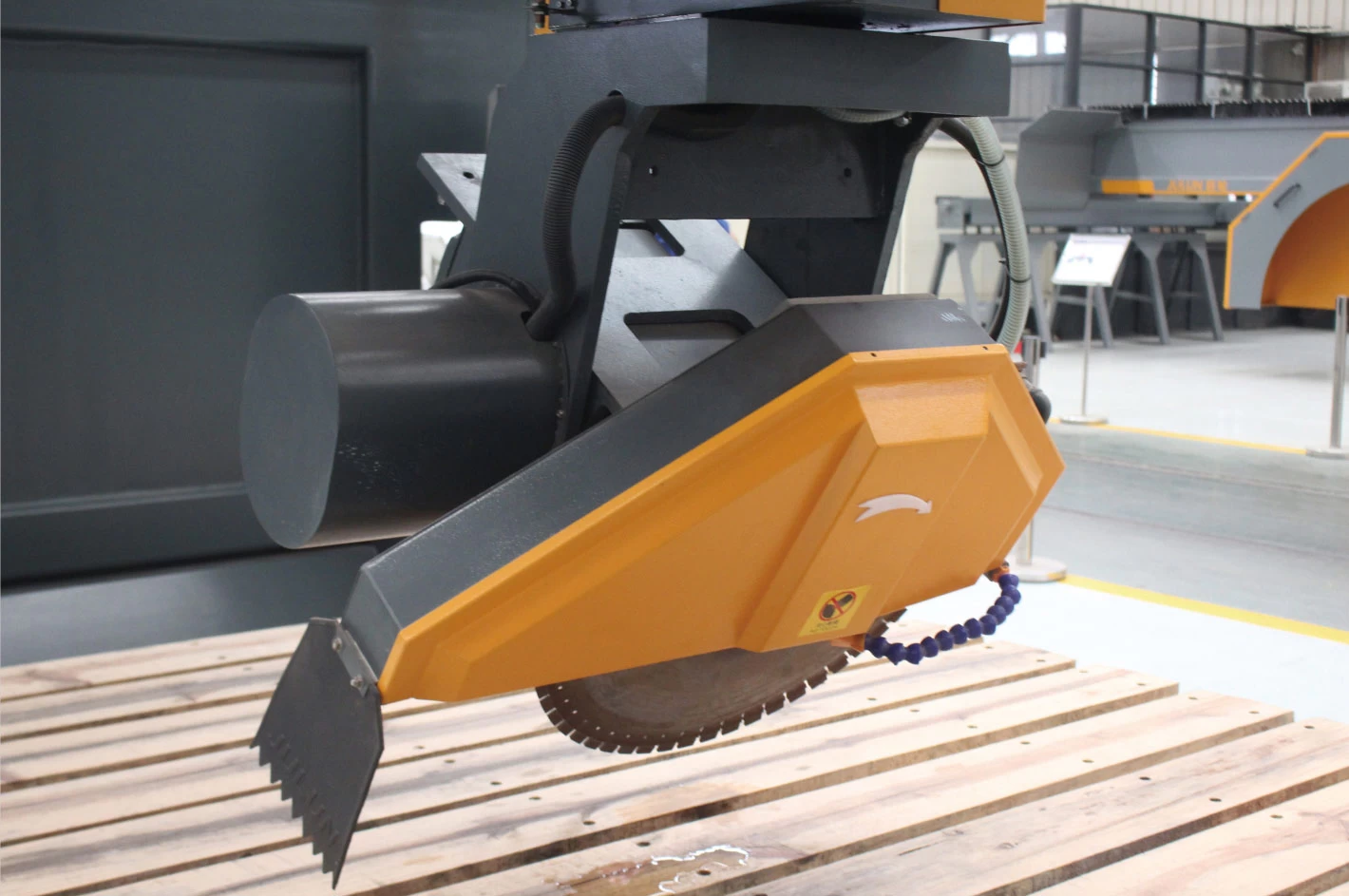

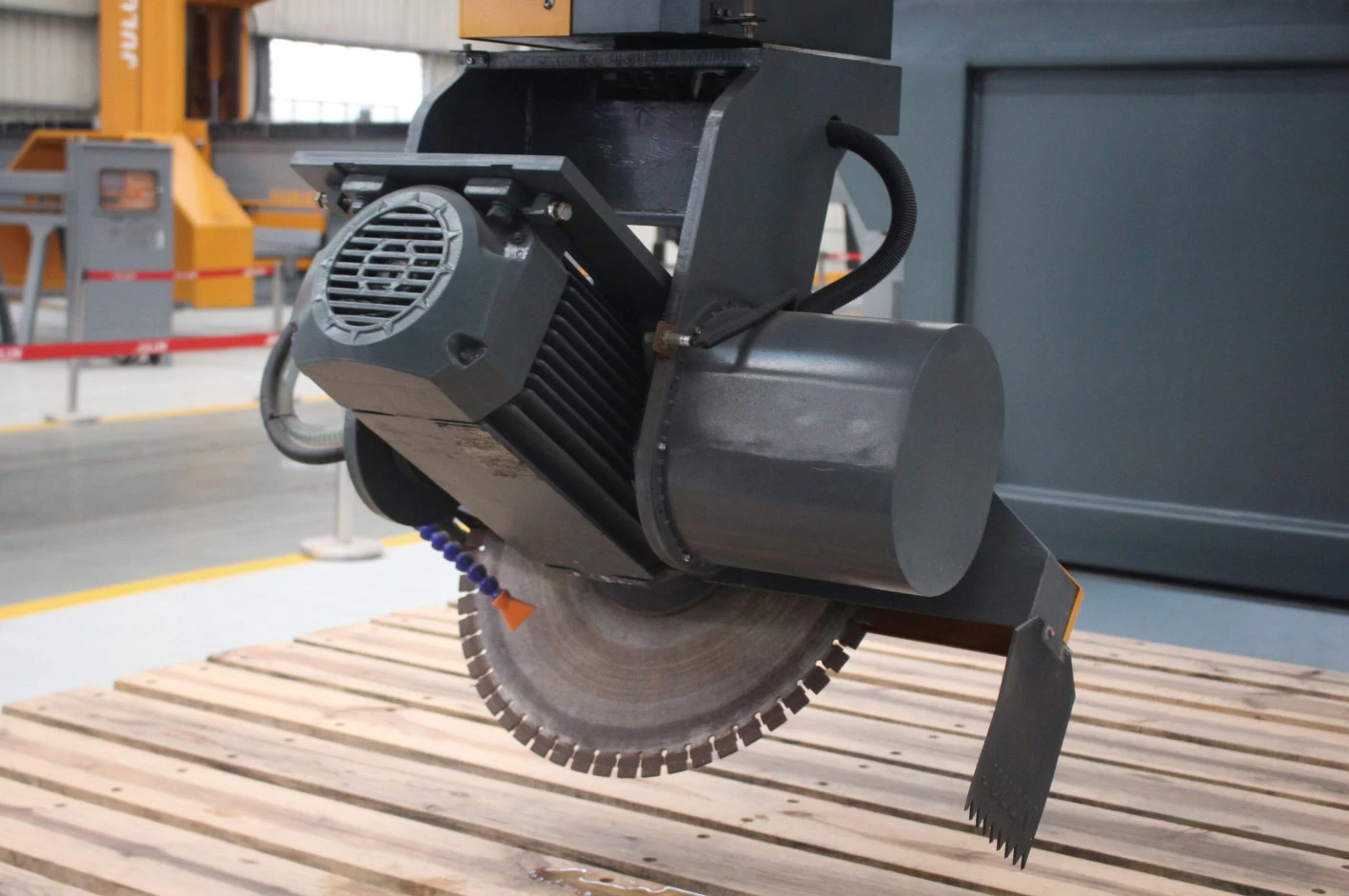

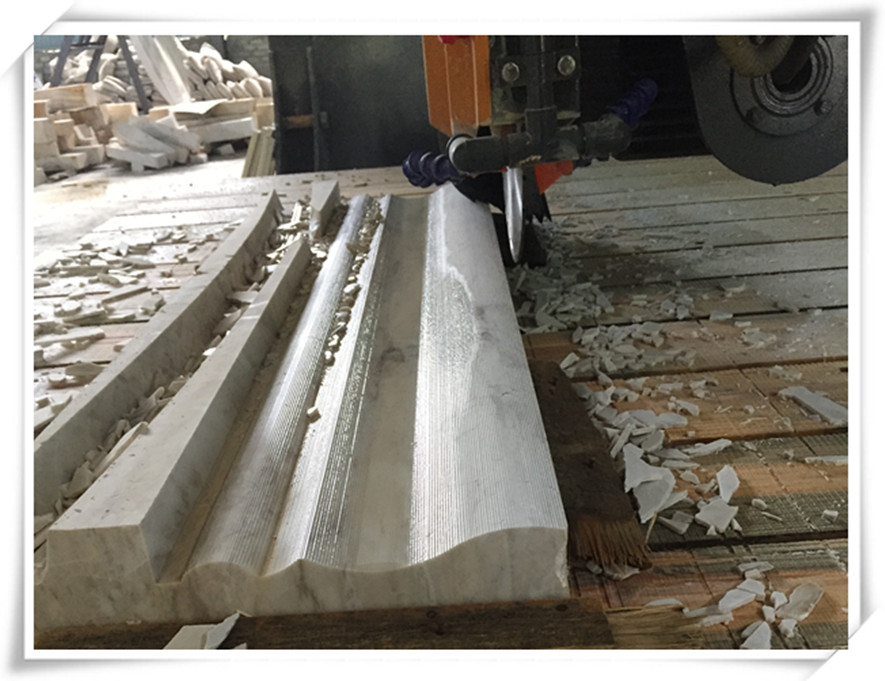

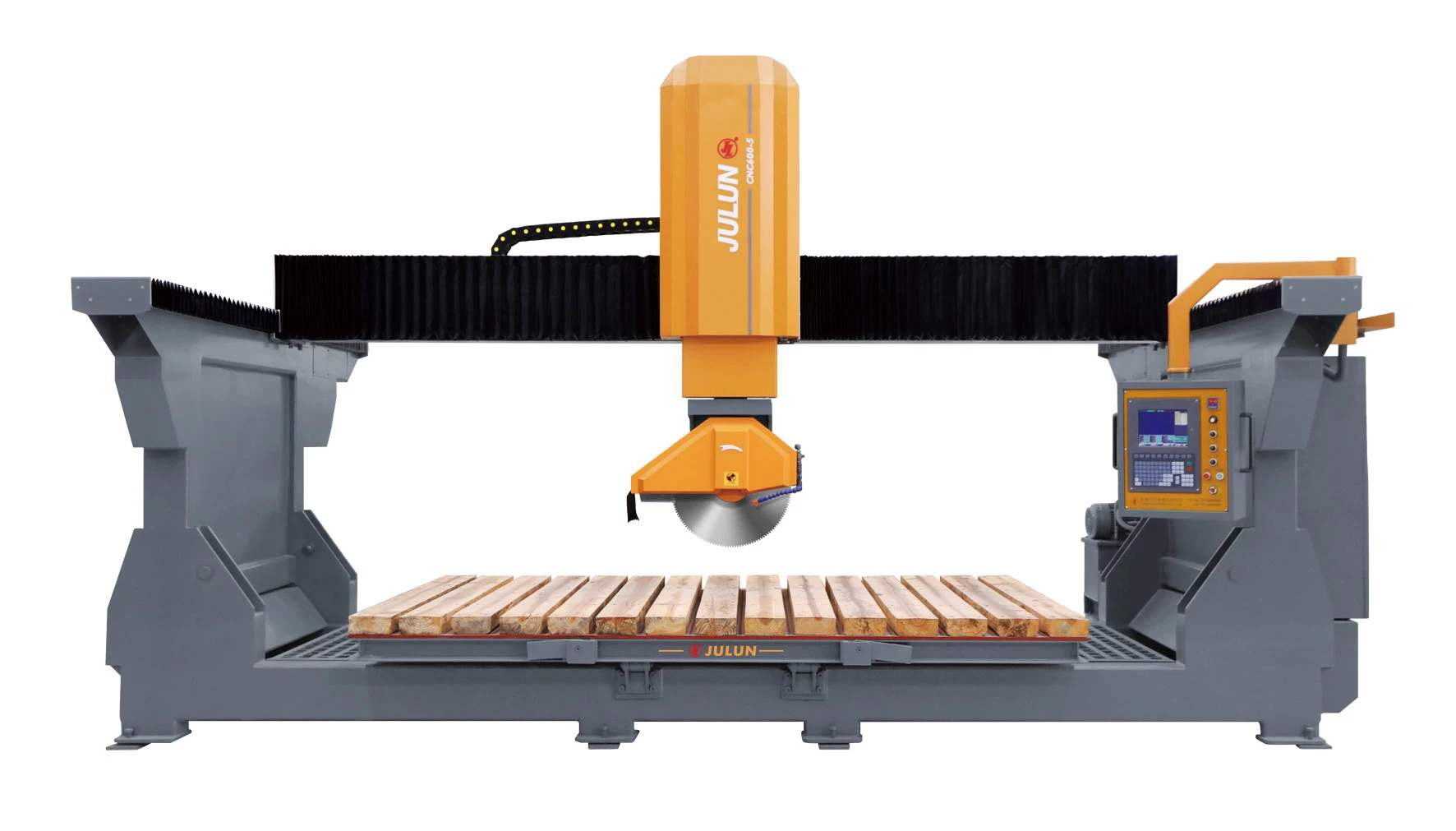

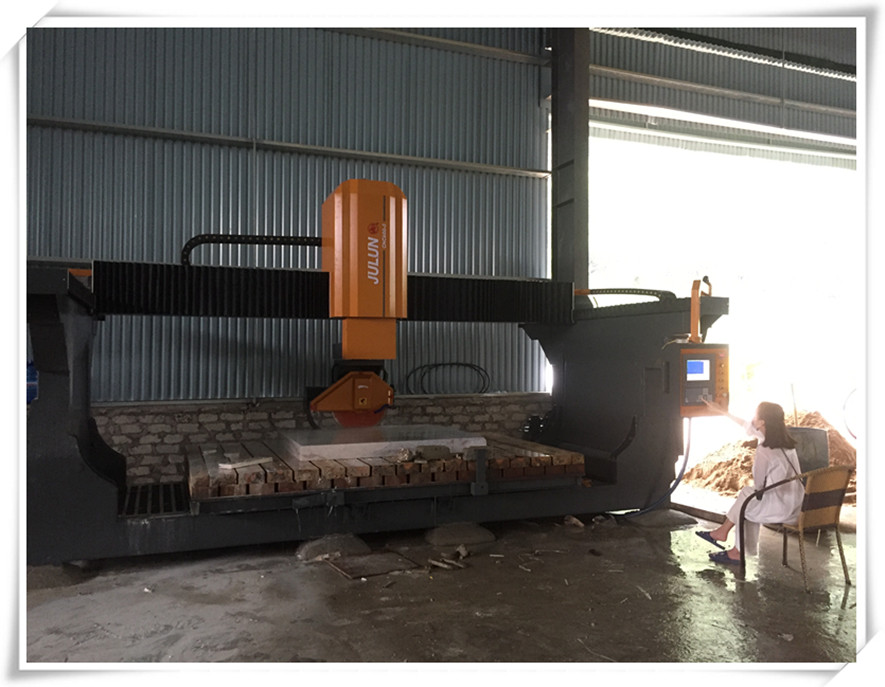

Photos
