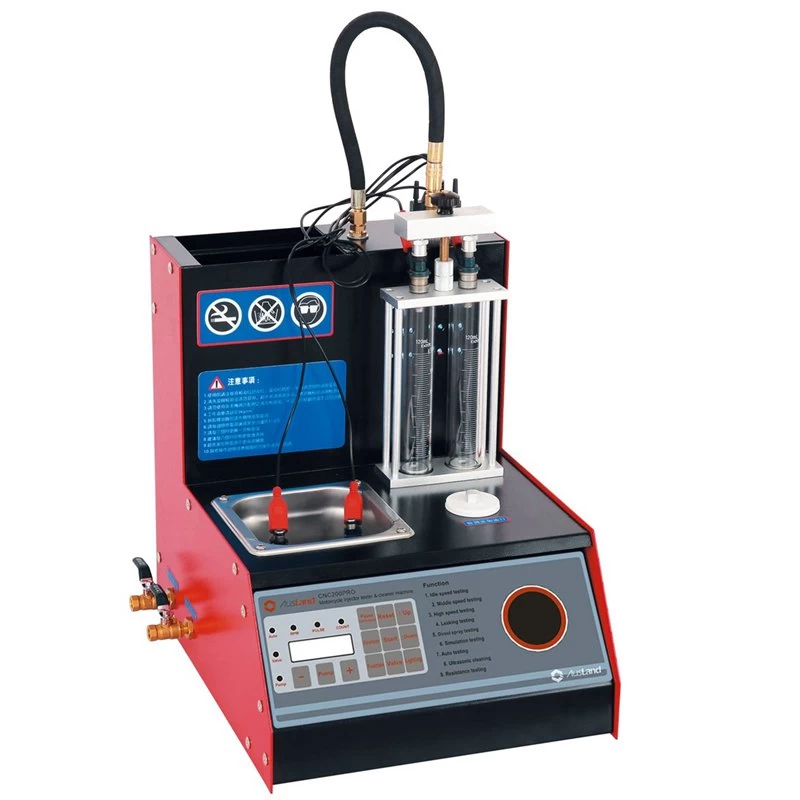

CNC200 PRO INJECTOR CLEANER TECHNICAL PARAMETER
Dimensions: 545mm(L)* 495mm(W)* 565mm(H)
Weight: 19kg
Test cylinder: 2 (max)
Test tube capacity: 120cc
Power: 85-132vac/170-264vac 47-63Hz
Fuel tank capacity: 2.2L
Rotate speed：0-9975r/min, step:
25r/min
Pulse width: 0-30ms, step:0.1ms
Count: 0-9975r, step: 25r
Time: 0-9975s, step: 5s
System pressure: 0-6.2kg/cm²(variable
regulated)
System flow: 4L/min
Ultrasonic wave frequency: 40KHz
Ultrasonic wave power: 100W
CNC200 PRO INJECTOR CLEANER FUNCTION:
1.To test injector
resitance ( one by one ), and display the data ( NEW ).
2.Use PWM ( pulse width
modulation ) to control and adjust fuel pressure( NEW ).
3.The special software
for motorcycle injector ( NEW ).
4.To test the injecting angle and atomizing,
to test the injector dribbling, to test the injector uniformity.
5.To test conduct the physical and chemical
cleaning of the blocked or trouble injector, ultrasonic cleaning , test
cleaning and on-vehicle cleaning.
6.To test and analyze the injector of
operating mode and quality.
7.Can clean the Motorcycle engine without
dismantling ( choose matched connector).
8.Can operate the auto static test, dynamic
test and selective test with the injecting dribbling, angles, atomization,
uniformity of one or more(1-2) injectors, can simulate any state of the vehicle
to observe the complete process of injectors.
