Description:

CNG mother station is used to fill large volumes of CNG into mobile tube trailers The CNG is then transported via a virtual pipeline. Process system consists of: Metering & pressure regulating equipment, desulfurizing and dewatering equipment, natural gas compressor, CNG filling equipment, safety protection equipment, electrical equipment, CNG pipelines and accessories etc.

Features:
1、Safety and Reliability—All wearing parts are those made by famous company, and service life can be reached 600-8000 hours.
2、Environmental Protection and Energy Conservation—Small vibration, low noise, economical operating cost.
3、Structural Diversity—V type, W type and C type etc.
4 、High Automation—Siemens PLC, ABB soft starter (or frequency conversion), Acousto-optic alarm with system stop when the fault happens.

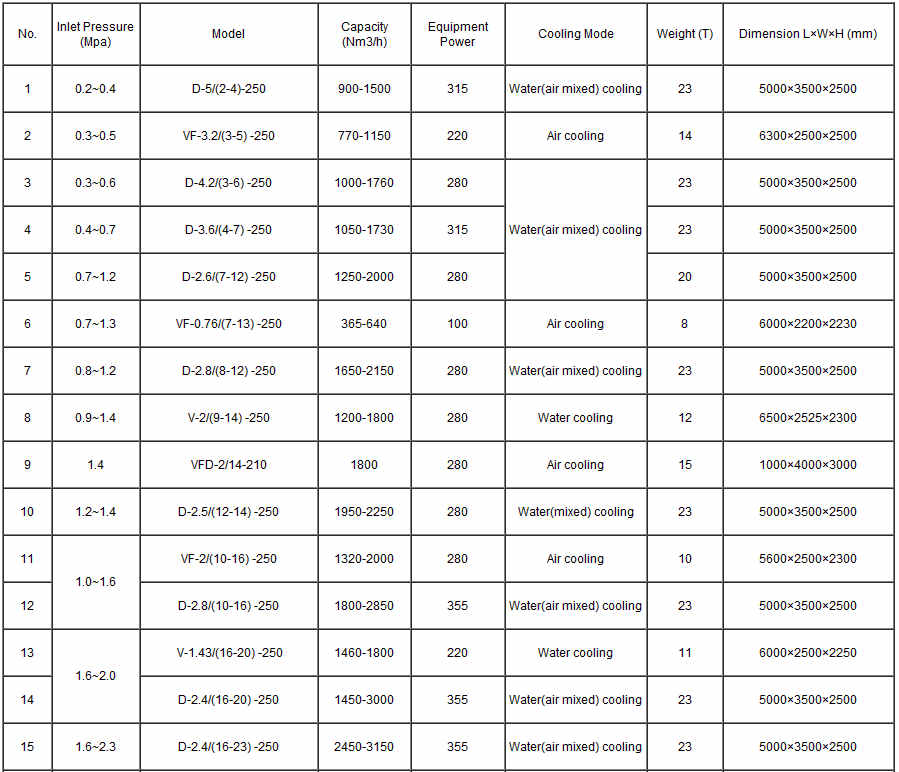

Technical Parameters:

Optional configurations:

pressure regulating equipment, desulfurizing and dewatering equipment, natural gas compressor, CNG filling equipment, safety protection equipment, electrical equipment, CNG pipelines and accessories etc.

Flow Chart:

Application:
1、One Set Capacity: 100~6000Nm3/h
2、Driving Power: 45~400KW; Driving mode: Electrical motor, natural gas engine
3、Inlet Pressure: 0.2~8Mpa
4 、Power Supply: Voltage: 380/220V 6/10KV
5 、Medium: Natural gas (comply with the standard of GB17820-Class Ⅱ)
