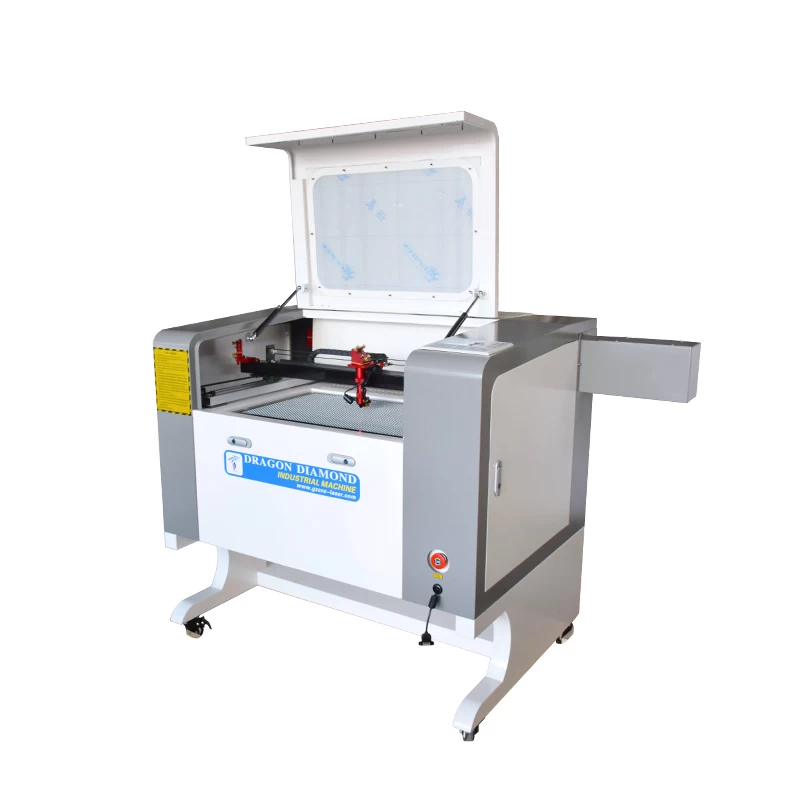

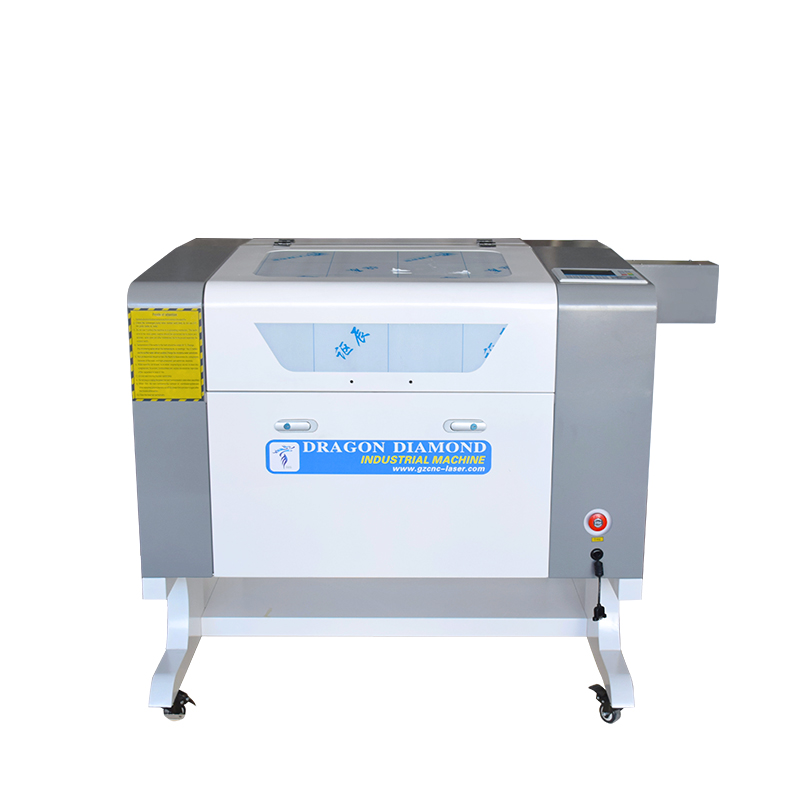

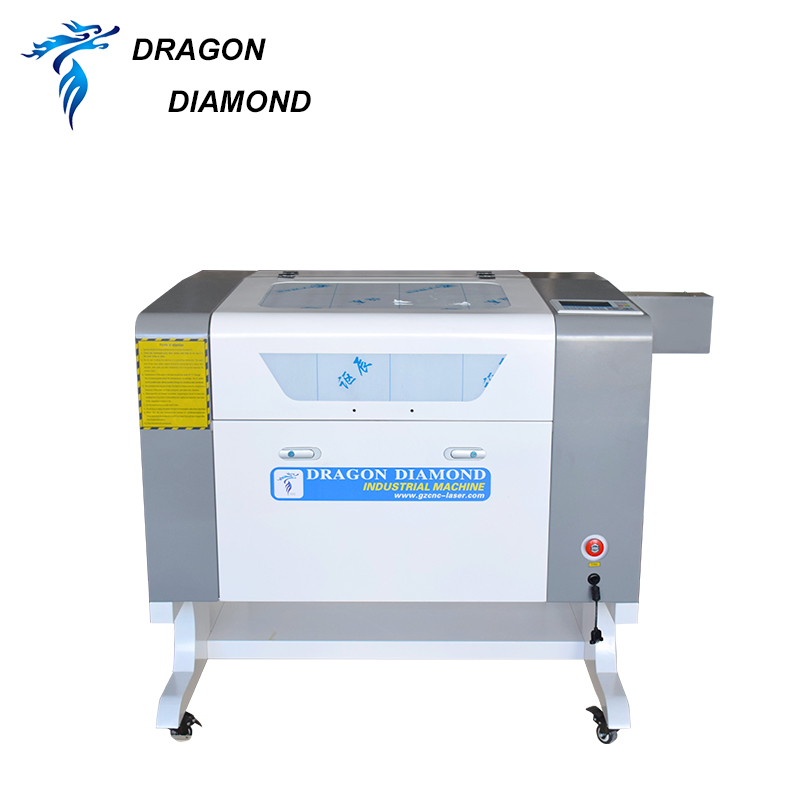

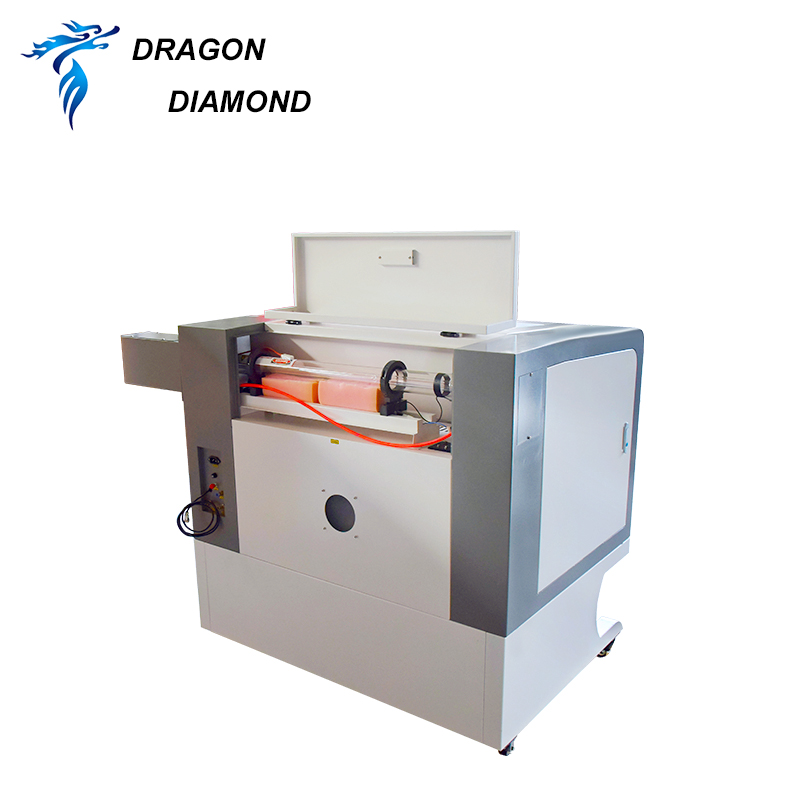

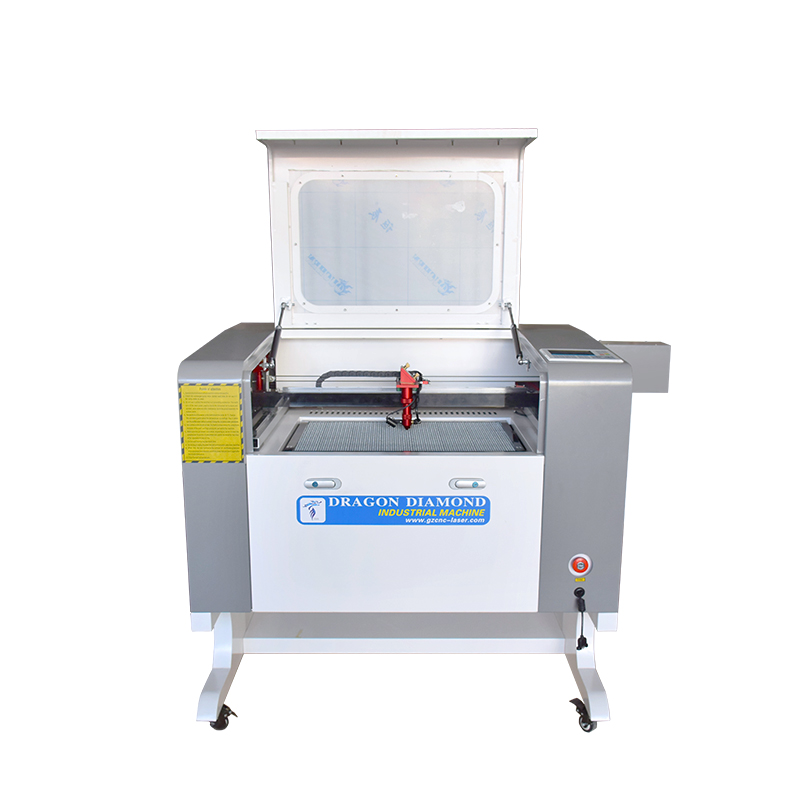

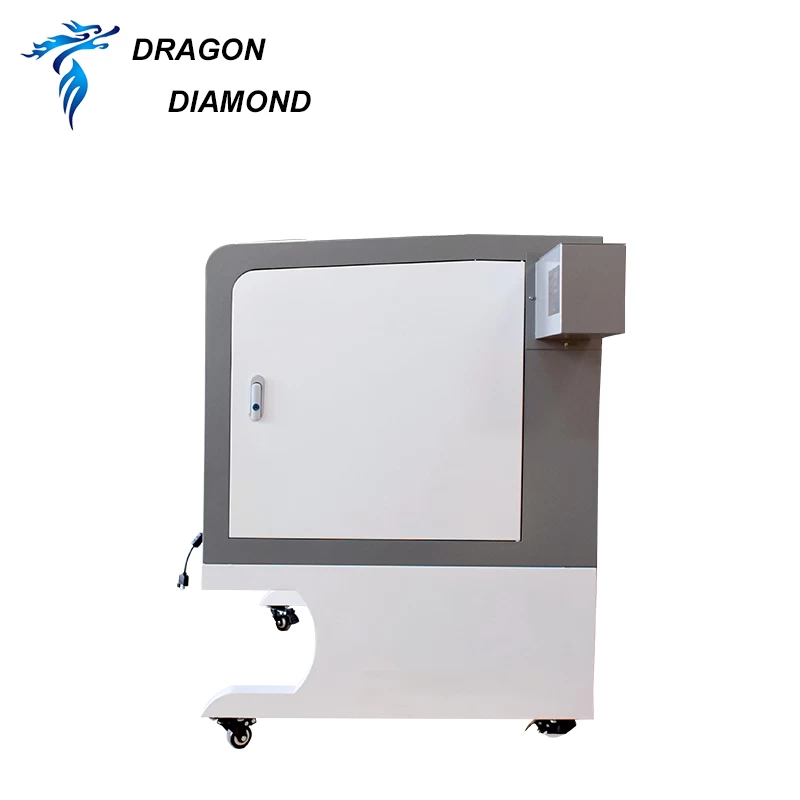

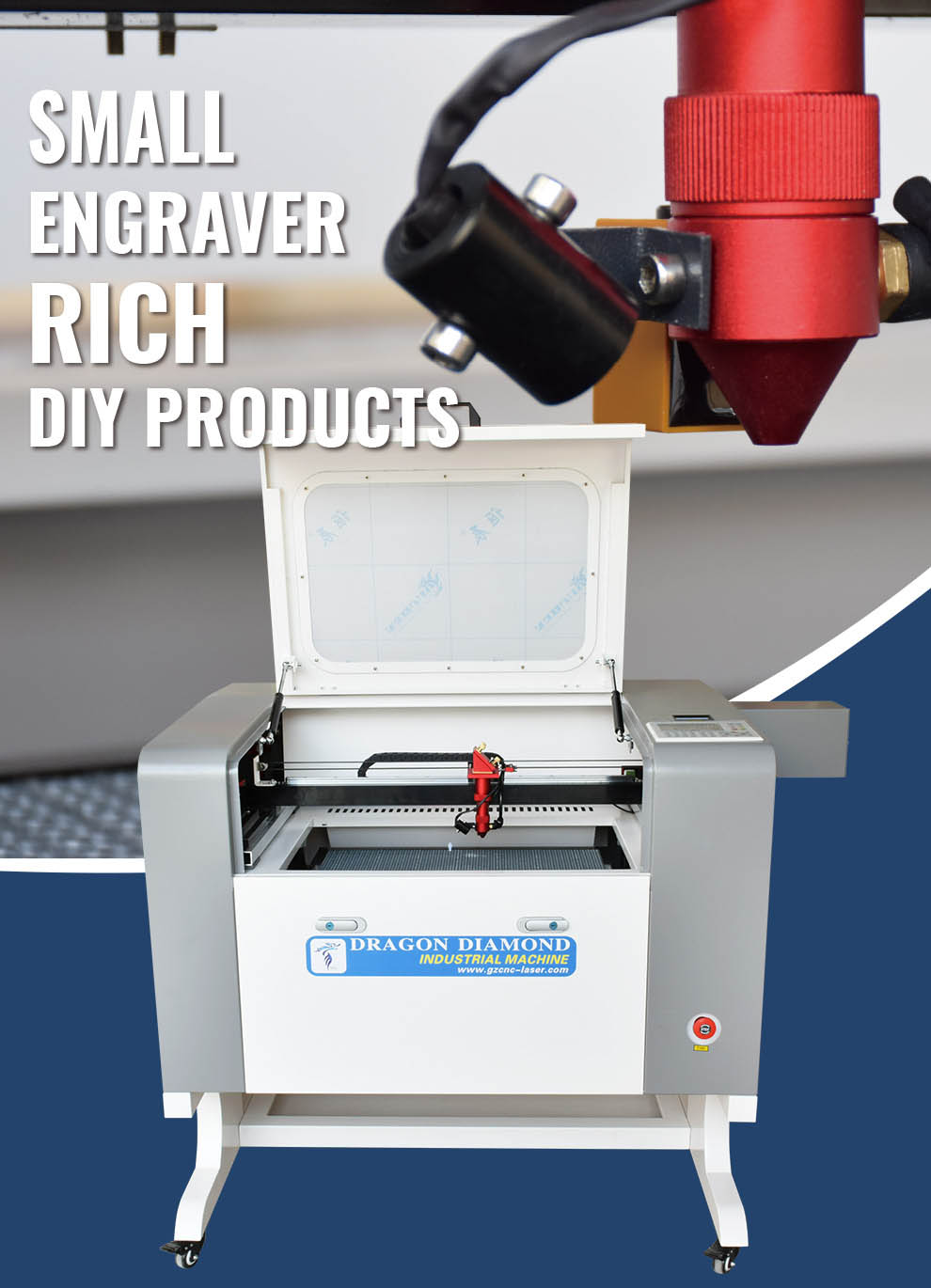

Co2 Laser Wood Glass Acrylic Engraving Machine

60*40cm Nc-studio Controller Laser Engraving Machine.



Co2 Laser Wood Glass Acrylic Engraving Machine


6040 Laser Machine


PRODUCT PARAMETER



NO.

Model

LZ-6040LS

1

Working Area

600x400mm

2

Packing Size

1470x900x1200mm

3

Working Table

HoneyComb With Lifting Table

4

Laser tube type

CO2 sealed laser tube

5

Cooling System

Water Pump / Water Chiller

6

Laser Head

1 pc Lens 20*50.8mm & 3 pcs Mirror 25mm

7

Software

RD works

8

Compatible Software

CorelDraw, AutoCAD, etc

9

File output mode

USB Interface

10

Laser power

60W / 80W

11

Motor

Stepper Motor

12

Cutting Thickness

0-20mm(depends on different material)

13

System Supported

Win 7 / 8 / 10 , 32 / 64bit

14

Guide Rail

Square Guide Rail

15

Resolution ratio

≤1000dpi

16

Engraving Speed

0-500mm/s

17

Range of Electric Up-down (Z)

0-250mm

18

Graphic Format Supported

BMP/JPG/JPEG/WMF/EMF/PLT/DXF

19

Voltage

AC220V / 380V,50Hz / 60Hz

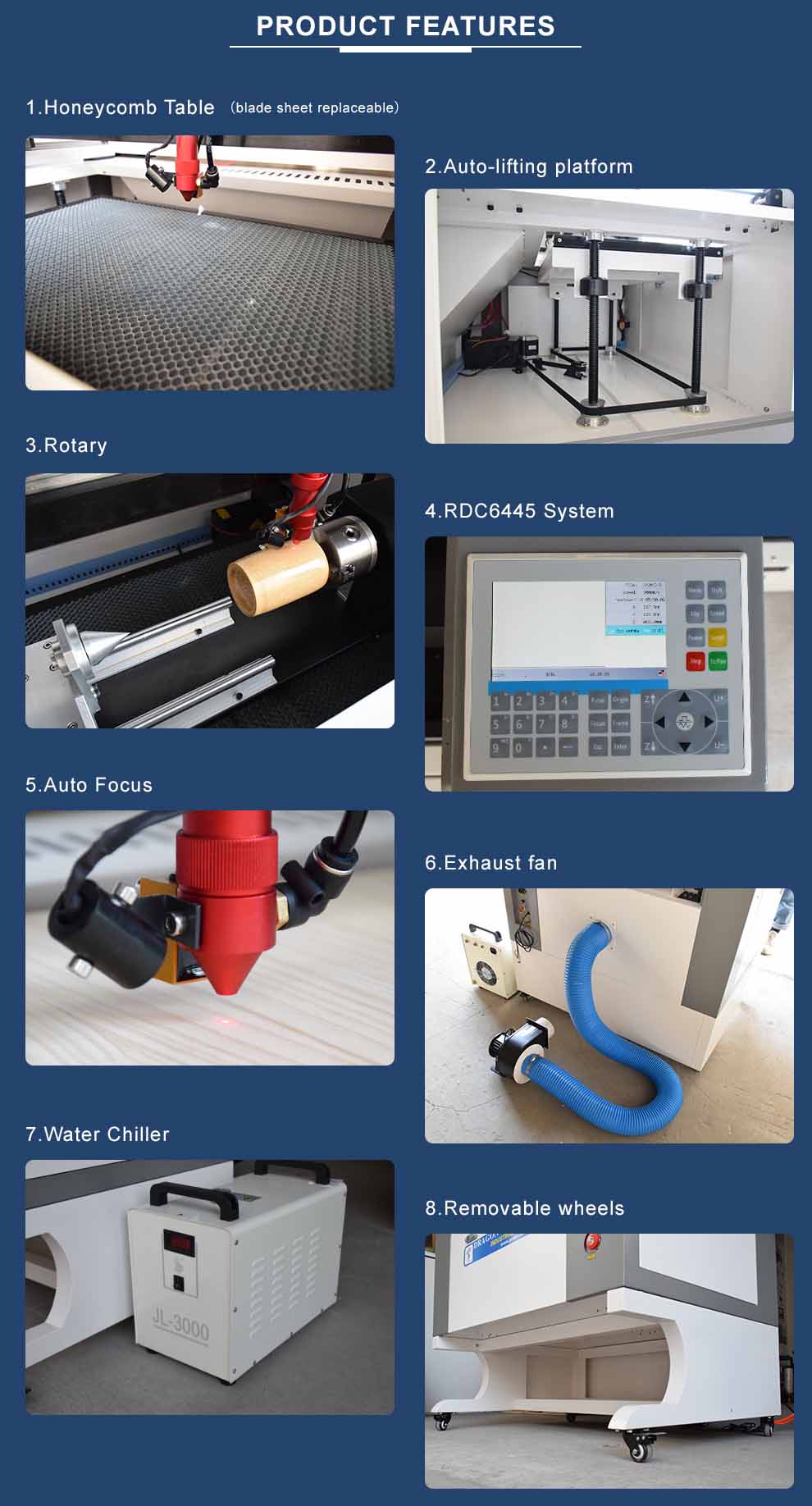

PRODUCT DETAILS
1.Iron Structure & Aluminum Structure
Other cheaper machines are use the iron structure,which is easyily rusting while using,and easyily out of shape by the working temperature.
Our machine's structure is made by aluminum,won't have above problems.

2.Machine Table
Our machine will equip honeycomb table and up down function.Cheaper machine won't equip these two fuction table.


3.Laser Head
Laser head is upgraded to use 18mm which can be supported more bigger laser power:80~100w.

4.Machine Body
Our machine body is more thicker than other cheaper machine.which ensure the high working performance.


5.The Lens

Our machine use the import lens,the quality and lifetime is better.Other cheaper machines used the native lens which has lower performance while working.


6.Tool Box
We will equip a whole tool box,include all the tools for machine using.

7.Storage Card
Our machine has storage card with 16G,some cheaper machine only has CD.

8.Power Supply
Our machine will equip one independent swithching power supply for the power.The cheaper machine might use the laser power supply to supply the power directly,which will affects the stability of machine.



Applicable materials:

Wood work, paper, leather, cloth, organic, glass, resin, acrylic, wool, plastic, rubber, ceramics, crystal, jade,stone, bamboo and other non-metallic materials.

Applicable industry:

Carving and cutting of paper, fabrics, plastics, non-woven fabrics in the apparel and toy industry, also includes precise cutting of non-metallic materials, such as handbags, glove molds, advertising, acrylic and MDF boards in the electrical and plastic industries.
