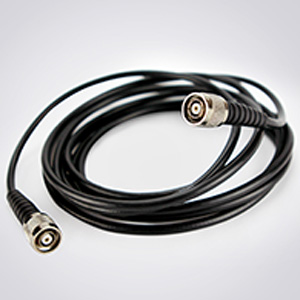

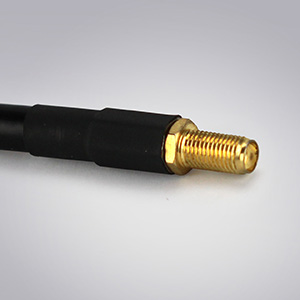

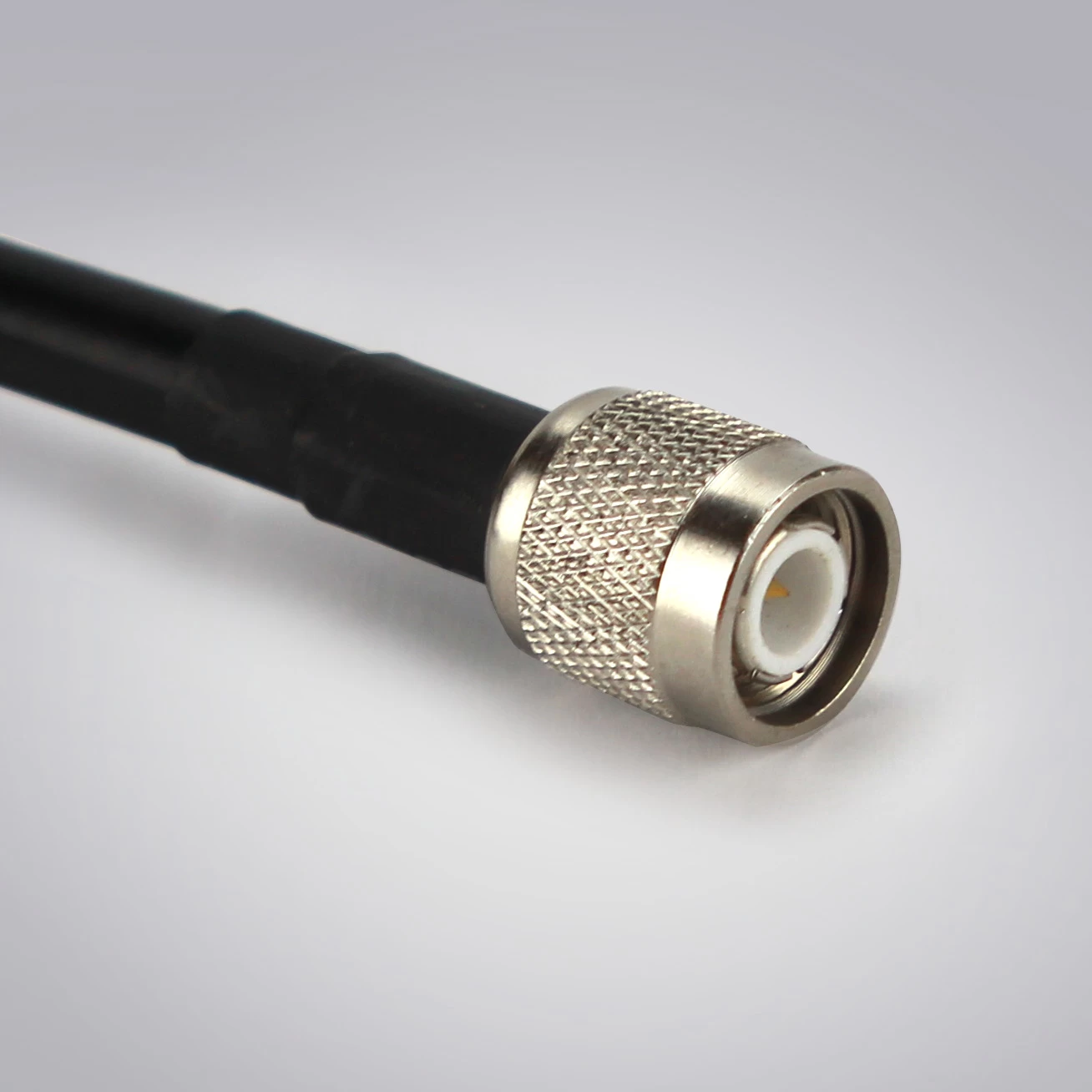

Coaxial feeder cable for
RFID reader antenna connecting
1m 3m 6m 12m 15m optional
100m/rool optional
|
Cable Construction
|
|
No
|
Material
|
Dimensions
|
|
1、Inner Conductor
|
Bare Copper
|
Ф1.40±0.01mm
|
|
2、Dielectric
|
PE
|
Ф4.80±0.10mm
|
|
3、Braid）
|
CCA(16*8*0.12/25)mm
|
Ф5.35±0.10mm
|
|
4、Jacket）
|
Polyvinyl chloride PVC
|
Ф7.20±0.15mm
|
|
( Mechanical Characteristics and electrical
performance parameter )
|
|
1、Impedance
|
50±2Ω（Ohms）
|
|
2、Capacitance
|
96±2PF/M
|
|
3、Velocity
|
66%
|
|
4、Peak Power
|
1.8KW
|
|
5、Jacket spark (V,RMS)
|
3000V
|
|
6、Inner Conductor Dc resistance
|
≯27.11ohms/1000m
|
|
7、OuterConductor Dc resistance
|
≯25ohms/1000m
|
|
8、(GHz)cutoff
Frequency
|
15G
|
|
9、OperatingTemperature ºC
|
-20～70ºC
|
|
10、Min Bend Radius
|
50mm
|
|
11、Pull strength of the insulation
）
|
3～6lb/in
|
|
12、Sheath of the drawing force
|
3～8lb/in
|
|
13、jacket-Marking
|
SYV-50.5 coaxial cable 001m
|
|
14、Reel Length
|
200M/axis
|
|
15、(>dB)(Screening
attenuation)
|
90
|
|
16、VSWR
|
5～3000MHZ
|
<1.2
|
|
Typical attenuation of sea level at 20 °C
|
|
Frequeney
|
Attenuation(dB/100m)
|
|
100
|
9.03
|
|
400
|
18.9
|
|
900
|
22
|
|
1500
|
29.2
|
|
1800
|
39.6
|
|
2500
|
44.6
|
|
3000
|
53.2
|
 |
|
