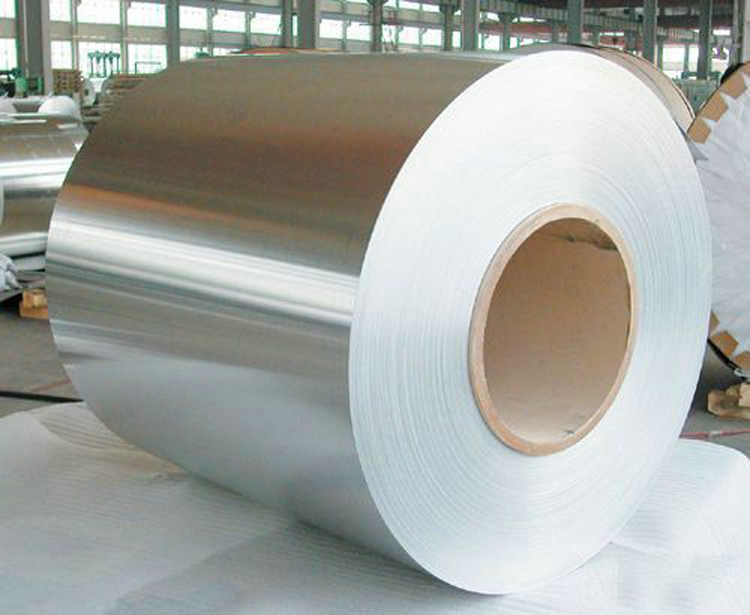

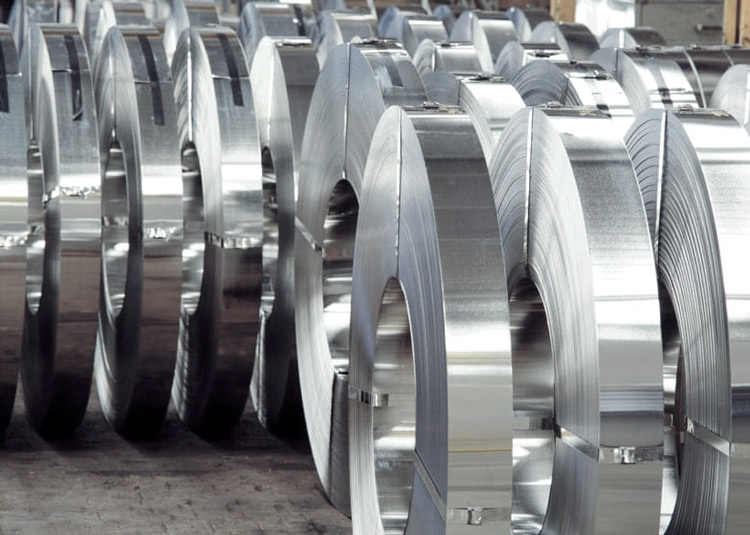

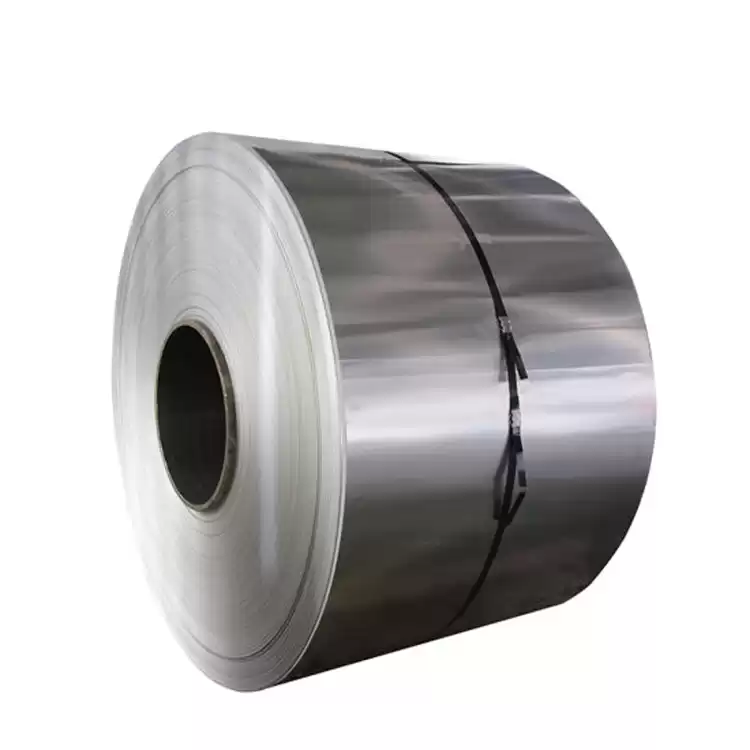

Cold Rolled ss316L 316 Stainless Steel Metal Plate
WanJuan Steel can supply an extensive assortment of stainless steel products to meet customer needs. Our value-added service capabilities for stainless steel sheet and coil include slitting, shearing, stretcher leveling, blanking and metallurgical support.
Chemical Composition: ASTM A240, A666
|
Element
|
Type 316
|
Type 316L
|
|
Carbon
|
0.08 max.
|
0.030 max.
|
|
Manganese
|
2.00 max.
|
2.00 max.
|
|
Sulfur
|
0.030 max.
|
0.030 max.
|
|
Phosphorus
|
0.045 max.
|
0.045 max.
|
|
Silicon
|
0.75 max.
|
0.75 max.
|
|
Chromium
|
16.0 – 18.0
|
16.0 – 18.0
|
|
Nickel
|
10.00 – 14.00
|
10.00 – 14.00
|
|
Molybdenum
|
2.00 – 3.00
|
2.00 – 3.00
|
|
Nitrogen
|
0.10 max.
|
0.10 max.
|
Mechanical Properties: ASTM a240
|
Type
|
Yield Strength 0.2% offset (KSI)
|
Tensile Strength (KSI)
|
% Elongation (2″ Gauge length)
|
|
316
|
30 min.
|
75 min.
|
40 min.
|
|
316L
|
25 min.
|
70 min.
|
40 min.
|
Physical Properties
|
Density (lb./ in^2) @ RT
|
|
0.29
|
|
Modulus of Elasticity in Tension (psi x 10^6)
|
|
28.0
|
|
Specific Heat (BTU/o F/lb.)
|
32 to 212 oF
|
0.12
|
|
Thermal Conductivity (BTU/hr/ft^2/ft)
|
212oF
|
9.4
|
|
|
932oF
|
12.4
|
|
Mean Coefficient of Thermal Expansion (in. x 10^-6 per o F)
|
32 to 212oF
|
8.9
|
|
|
32 to 600oF
|
9.0
|
|
|
32 to 1,000oF
|
9.7
|
|
|
32 to 1,200oF
|
10.3
|
|
Electrical Resistivity (micro ohms – cm)
|
at 70oF
|
29.4
|
|
Melting Point Range (oF)
|
|
2500 – 2550
|
Advantages to choose us
-
We partner with leading manufacturers to provide cold-rolled, hot-rolled, galvanized, pre-painted, coated and stainless steel for major home appliances.
-
Quality assured products at competitive price;
-
High quality assured & competitive price;
-
Customized service to meet your special requirements;
Our Service
-
Heavy Gauge Slitting
-
Steel Coil Slitting
-
Steel Sheet Cut-to-Length
-
Electro cold Rolled & Hot Dipped Coating
-
Steel Sheet & Plate Painting
-
Finishing Services
