Attractive metal wall cladding characteristics
☆ More valuable to your property;
☆ Light & easy for you to handle & install it;
☆ With high strength, and durable; Suits for traditional & contemporary building design;
☆ With high strength, durable performance, and flexibility of design;
☆ There have available in a wide varirty of colours.
Color steel sheets for wall/roof system application
Due to the material of corrugated metal wall panel can be GI/PPGI/PPGL/Alu-zinc steel/Aluminum alloy metal sheets, there have a wide range applications, eg. commercial and industrial buildings, individual recidence, office constructure, cubby house, 4S car stores,large exhibition centers,roof claddings of steel villas,steel sheds,steel barns,fencing of residential buildings,road enclosure,etc.

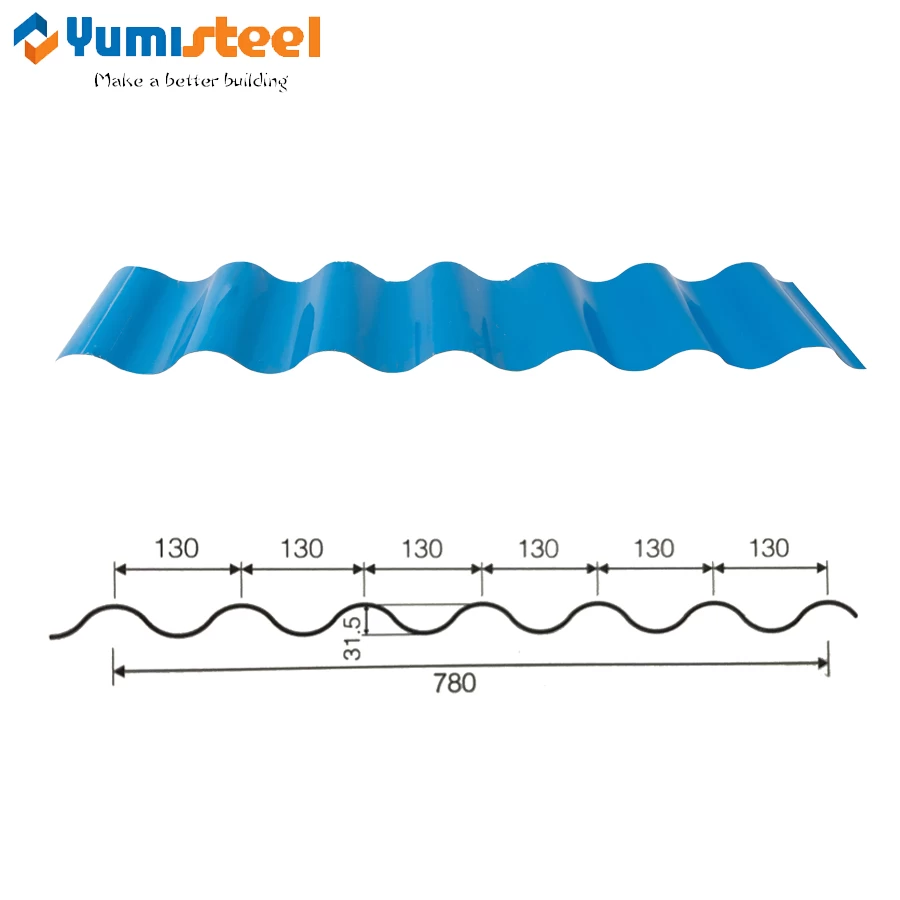

Wall / roof color sheets specifications
|
Model NO. :
|
YX31.5-780
|
|
Rib height :
|
31.5 mm
|
|
Rib distance :
|
130 mm
|
|
Modular width :
|
780 mm
|
|
Feeding width :
|
1000 mm
|
|
Available thickness :
|
AL-MG-MN alloy metal sheets:0.7 - 1.2mm;
PPGI /PPGL steel sheets:0.30 - 0.75mm;
Galvanized steel sheets:0.30 - 0.80mm;
Alu-zinc steel sheets:0.30 - 0.80mm;
Aluminum color sheets:0.6 - 1.2mm.
|
|
Available length :
|
20FT container: ≤ 5.95m
40FT container: ≤ 11.95m
|
|
Available material :
|
PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets
|
|
Surface treatment :
|
Original pre-painted color or original zinc color
|
|
Coating type :
|
PE, PVDF, HDP, SMP, etc.
|
Prepaint metal wall dimensions tolerance
|
Pitch
|
Rib distance
|
Effective width
|
Thickness
|
Panel length
|
|
±1mm
|
±2mm
|
N/A
|
±0.03mm
|
±5mm
|

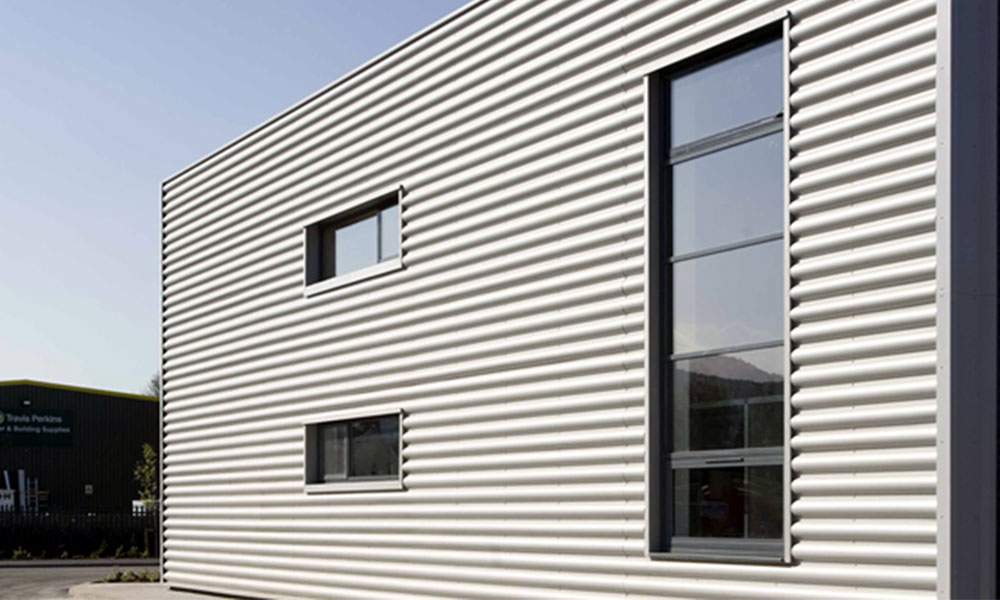

Flexibility design metal cladding rendering
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
1)Normal packing:
Packed with moisture-proof kraft paper.
2)Premium packing:
Packed with steel box.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customers or accept appointed forwarder from customers.
