| Product name |
Color Steel Non-rail Metal Tile Solar Bracket Roof Mounting System |
| Model Number |
EG-TR02 |
| Installation Site |
roof mounting system |
| Surface Treatment |
Sanblasted |
| Wind Load |
60m/s |
| Snow load |
1.2KN/M² |
| Warranty |
25 YEARS |
| Specification |
Normal, customize |
| OEM Service |
Avaliable |
Product Description
Color steel tile trackless bracket can be used for the installation of color steel tile roof of solar photovoltaic power station. Different roof types use different fixtures without damaging the roof, providing a more convenient, economical and safe installation solution for solar photovoltaic power plants.

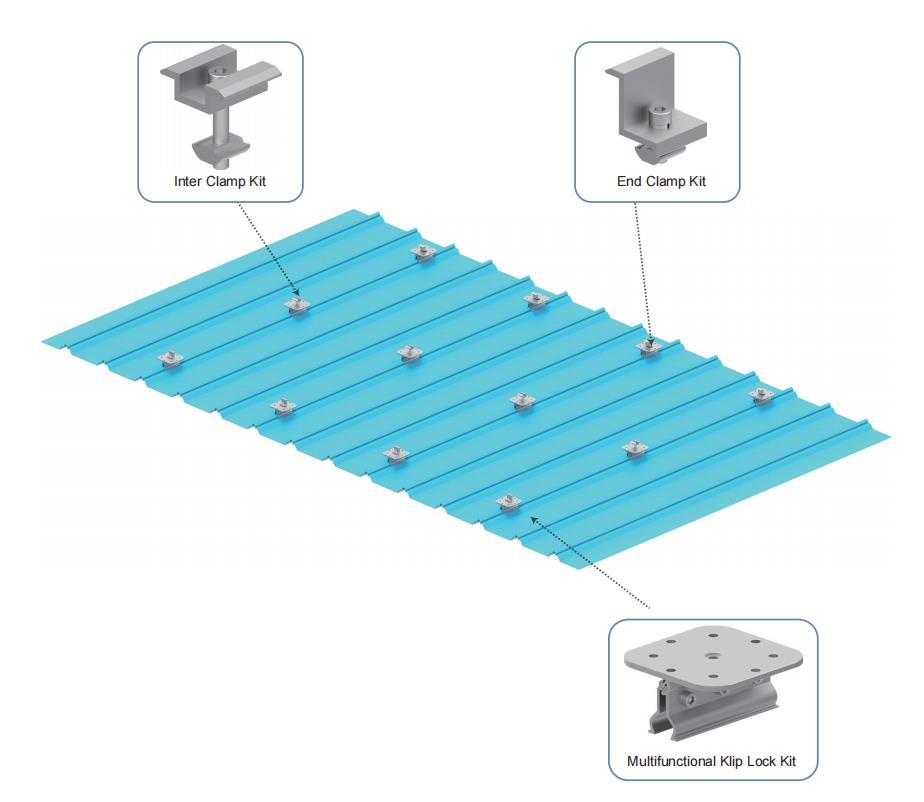

Exploded View

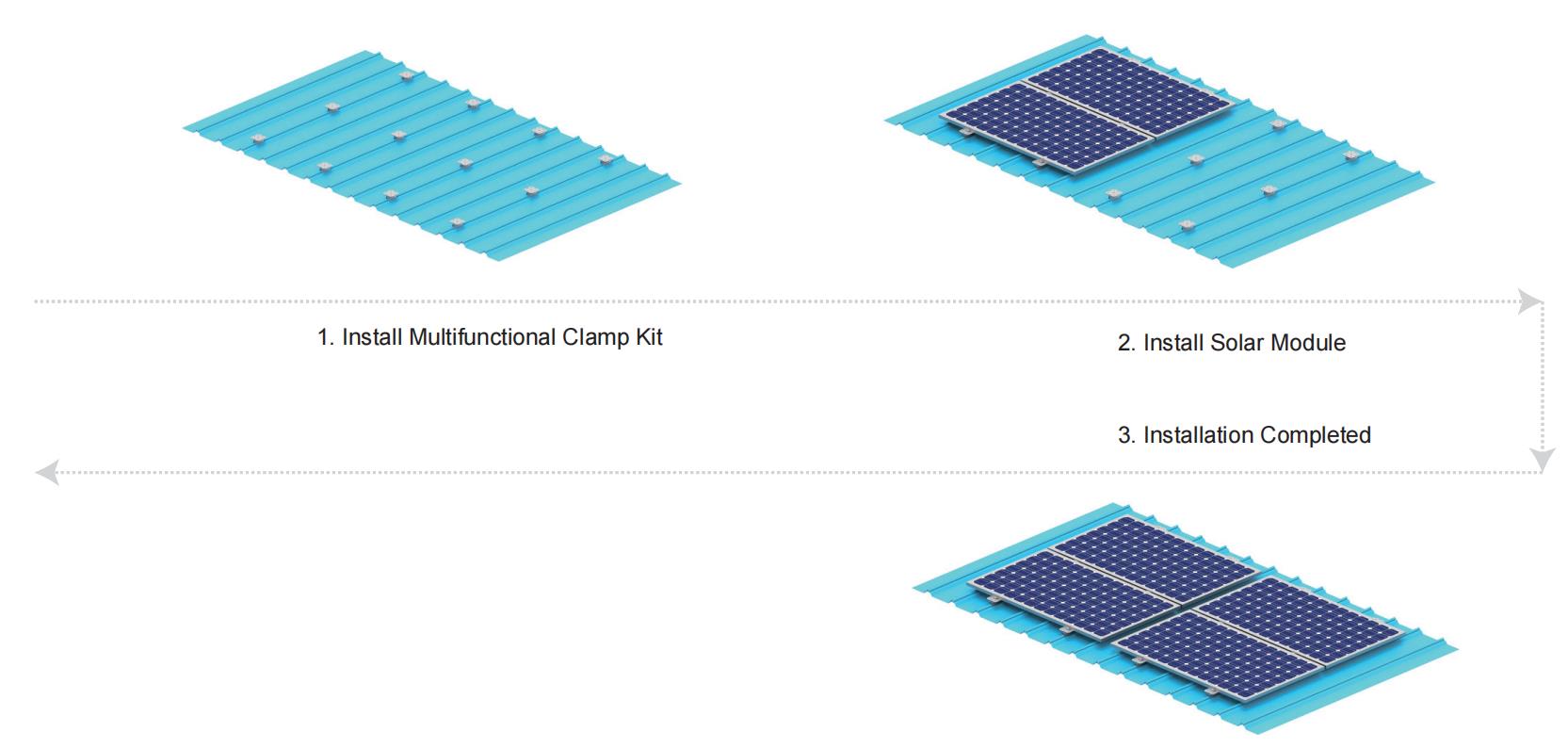

Installation Steps
FAQ
1.The information of the solar panel:L:______mm,W:______mm,T:_____mm;Power:______w,Frame or Frameless?Panel array:row______column______
2.Wind Load:______m/s 3.Snow Load:______cm 4.Installation Angle:______degree,Portrait or Landscape? 5.Where is Solar panel installed? Salinity control or not?
1)Ground
Structure Type:Common Ground,Carport or Solar Farm?
Foundation:Concrete,Ground Screw,C Pile or U Pile?
Minimum Ground Clearance:______mm
Earth report or not
2)Roof
Roof Type:Tin Roof,Tile Roof or Concrete?
Fixed Solution:Hook,L foot,Clamp,Ballast or Tripod?
Purlin Span:______mm
