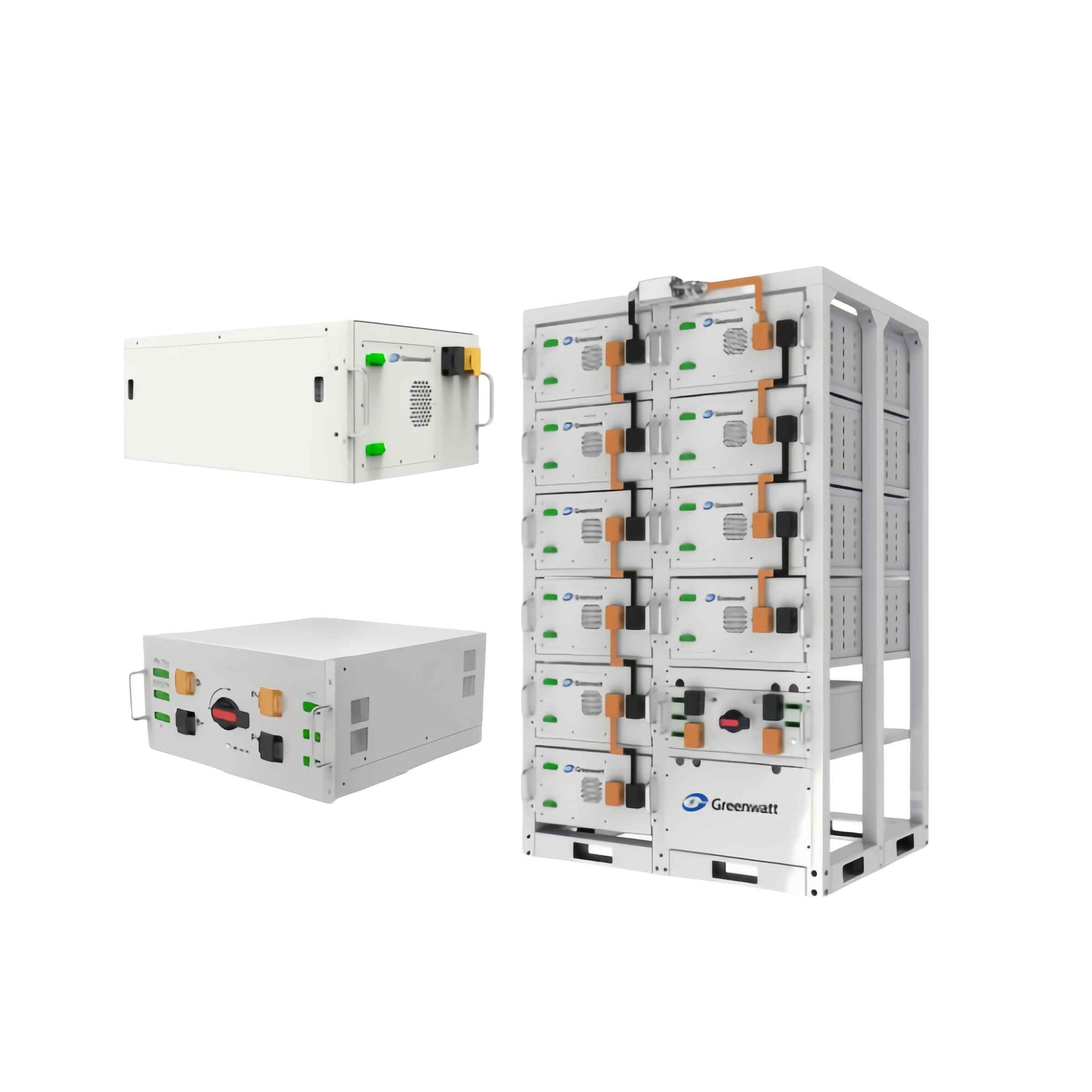

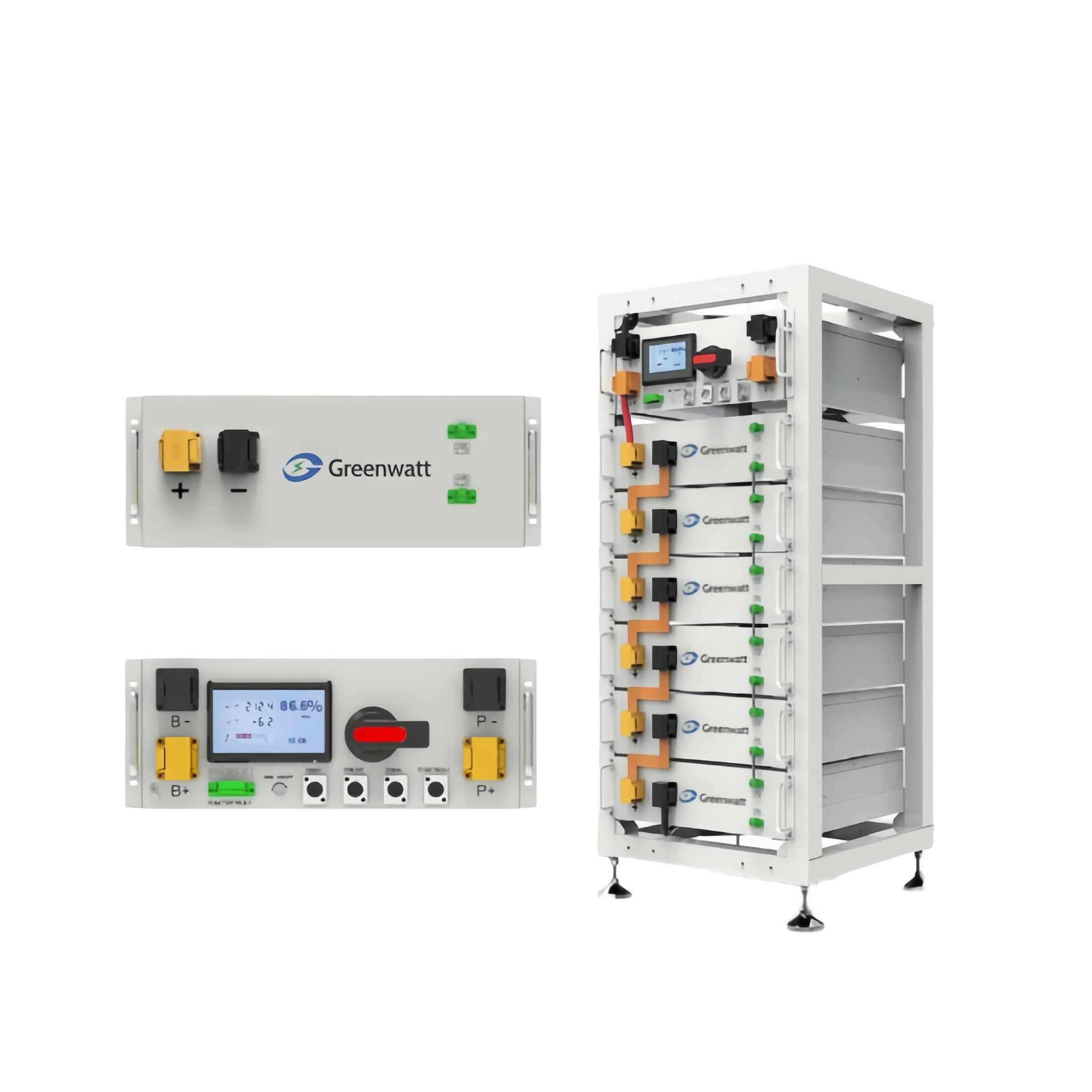

High-voltage energy storage systems feature high energy density for superior power storage efficiency and extended lifecycle durability. Equipped with intelligent thermal management and multi-layer safety mechanisms, they ensure stable operation while prioritizing user safety. Their modular wall-mounted design offers space-saving installation flexibility, making them ideal for both industrial and large-scale residential applications
| Specification |
| Model |
GWB-50H |
GWB-100H |
GWB-200H |
GWB-500H |
GWB-1000H |
| Battery Type |
liFePO4(LFP) |
liFePO4(LFP) |
liFePO4(LFP) |
liFePO4(LFP) |
liFePO4(LFP) |
| Battery Module Data |
|
| Nominal Voltage(V) |
51.2V |
51.2V |
51.2V |
51.2V |
51.2V |
| Nominal Capacity(Ah) |
100Ah |
280Ah |
280Ah |
314Ah |
314Ah |
| Nominal Energy |

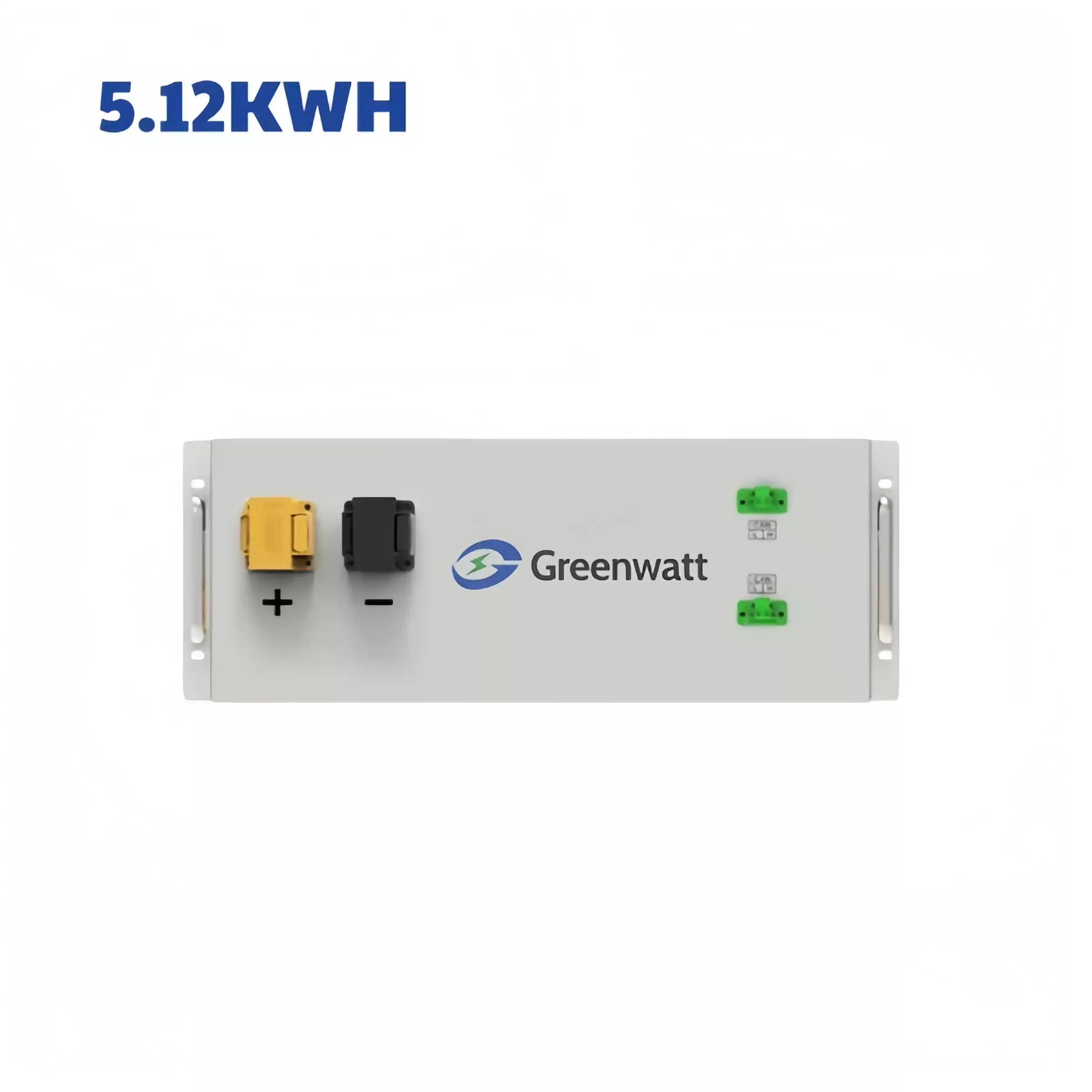

5.12KWh |

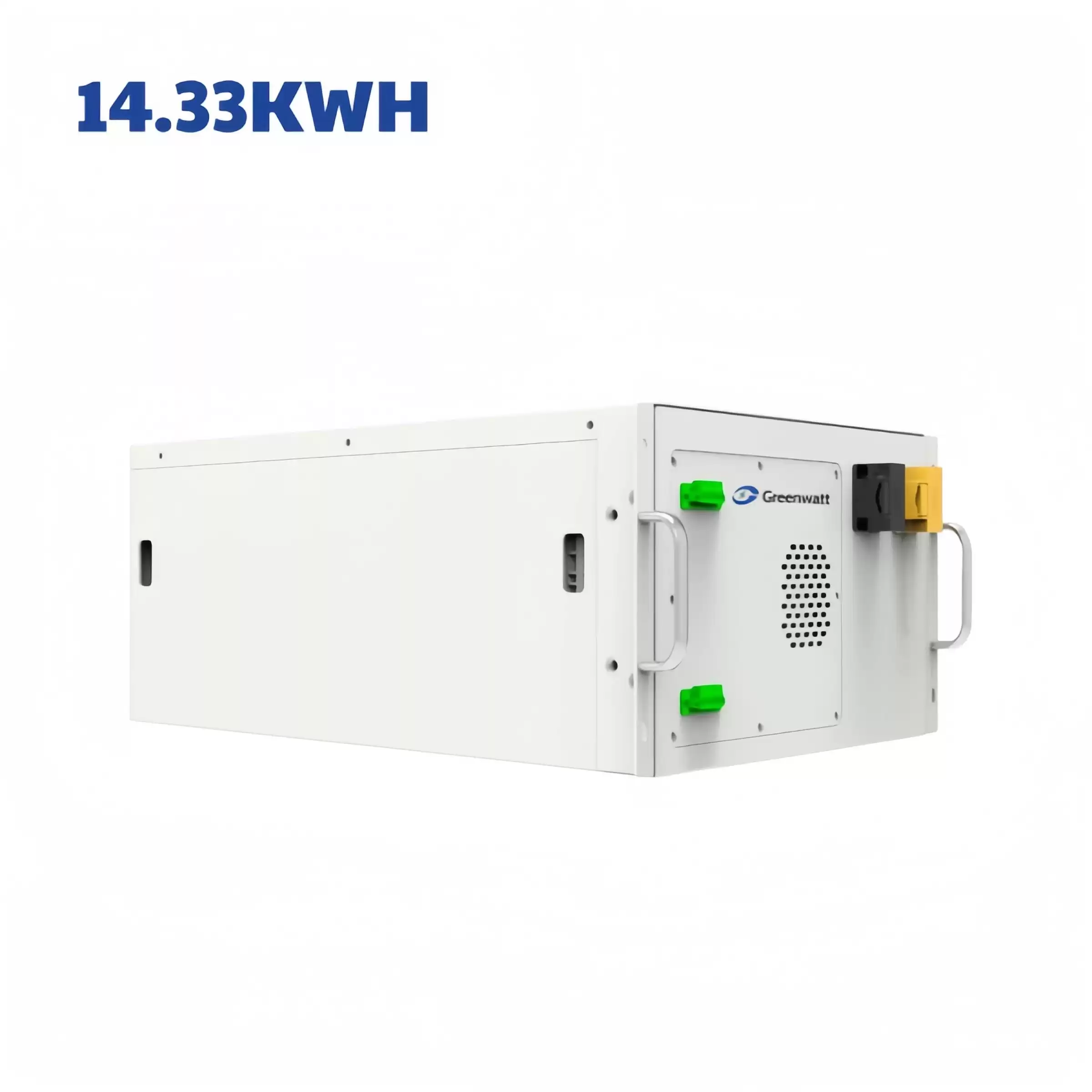

14.33KWh |
14.33KWh |
16.07KWh |
16.07KWh |
| Dimension(mm) |
440*442*179mm |
435*800*234mm |
435*800*234mm |
435*800*234mm |
435*800*234mm |
| Battery System Data |
|

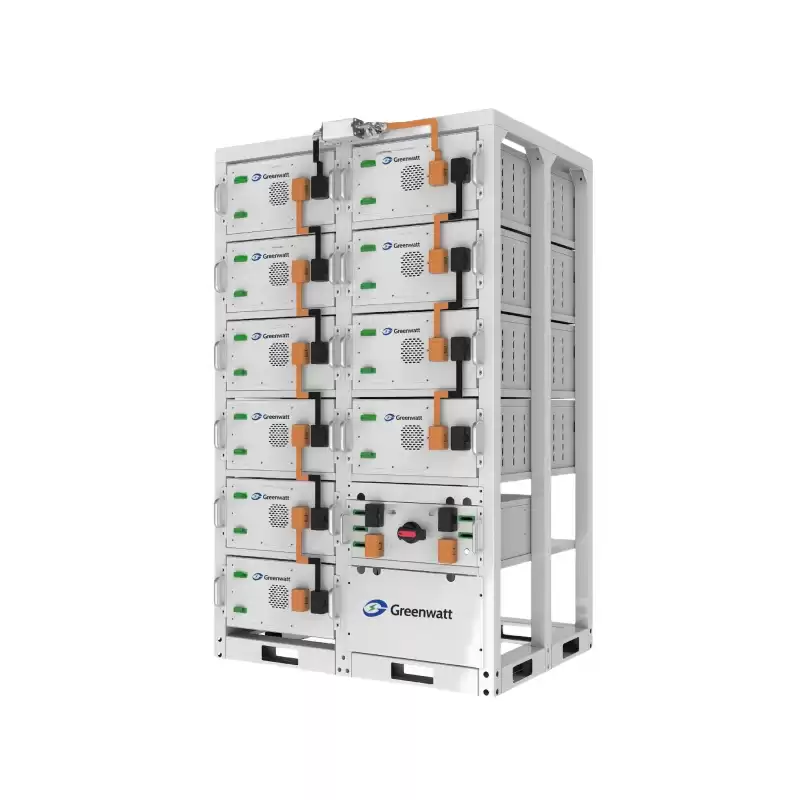

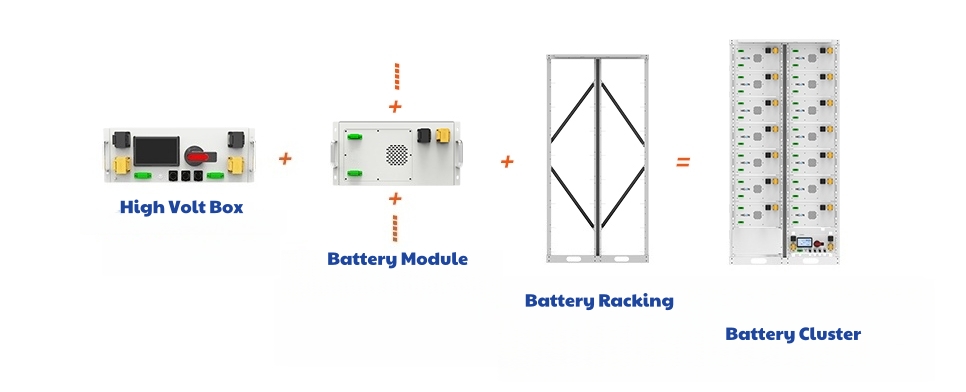

| Module Qty&Configuration |
10pcs in one cluster |
7pcs in one cluster |
14pcs in one cluster |
11pcs in one cluster, 3 clusters in parallel |
11pcs in one cluster, 6 clusters in parallel |
| Nominal Voltage(V) |
512V |
358.4V |
716.8V |
563.2V |
563.2V |
| Battery System Energy |
51.2KWH |
100.31KWH |
200.72KWH |
530.31KWH |
1.06MWH |
| System Usable Energy(90%) D0D |
46.08KWH |
90.28KWH |
180.65KWH |
477.28KWH |
954KWH |
| Operating Voltage Range |
448-576V |
313.6-403.2V |
627.2-806.4V |
492.8-633.6 |
492.8-633.6 |
| Dimension(W*D*H) |
625*800*2200mm |
525*820*2200 |
1050*820*2200mm |
2*1050*820*1700mm |
4*1050*820*1700mm |
| Weight |
535 Kg |
865kg |
1730Kg |
4600Kg |
9200Kg |
| Max.charge current |
100A |
140A |
140A |
157A |
157A |
| Max.discharge current |
100A |
140A |
140A |
157A |
157A |
| IP grade |
IP20 |
IP20 |
IP20 |
IP20 |
IP20 |
| Discharge temp |
-20℃~45℃ |
-20℃~45℃ |
-20℃~45 ℃ |
-20℃~45 ℃ |
-20℃~45 ℃ |
| Charge temp |
0C~45℃ |
| Humidity |
10% - 95% (No Condensing) |
| Design Life |
15Years+ |
| Cycle Life |
>6000Cycles，25℃
|
Compatiable Inverter List
