Commercial Space Frame Tensile Structure Roof Design
Location
|
Nanchang city,Jiangxi Province
|
|
Project Size
|
2500Square meters
|
|
Fabric Material
|
PTFE
|
|
Completion Date
|
2011
|
|
Structure Type
|
Light Steel Structure
|
|
Warranty
|
1Year
|
Project Summary:

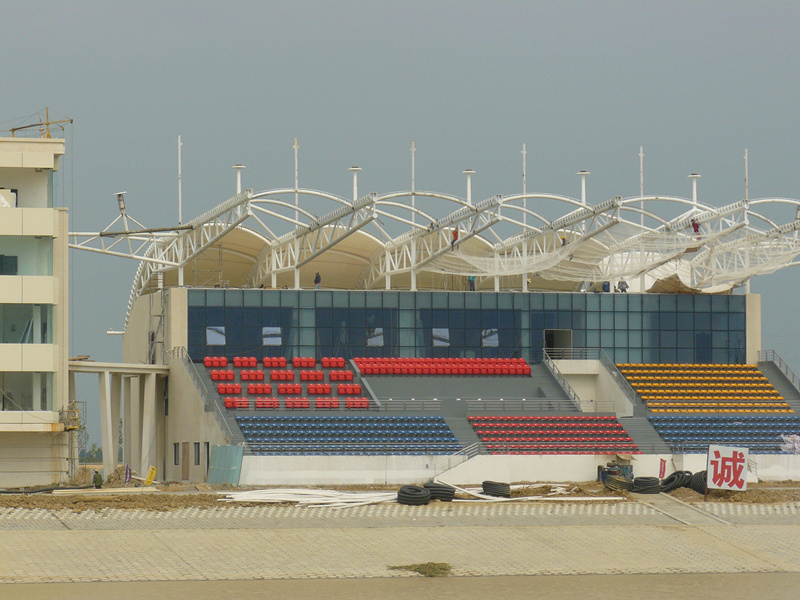

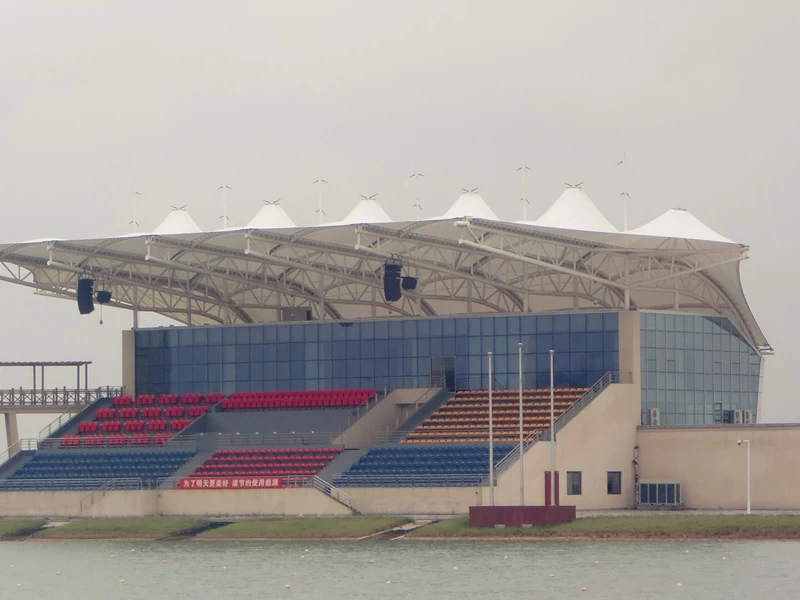

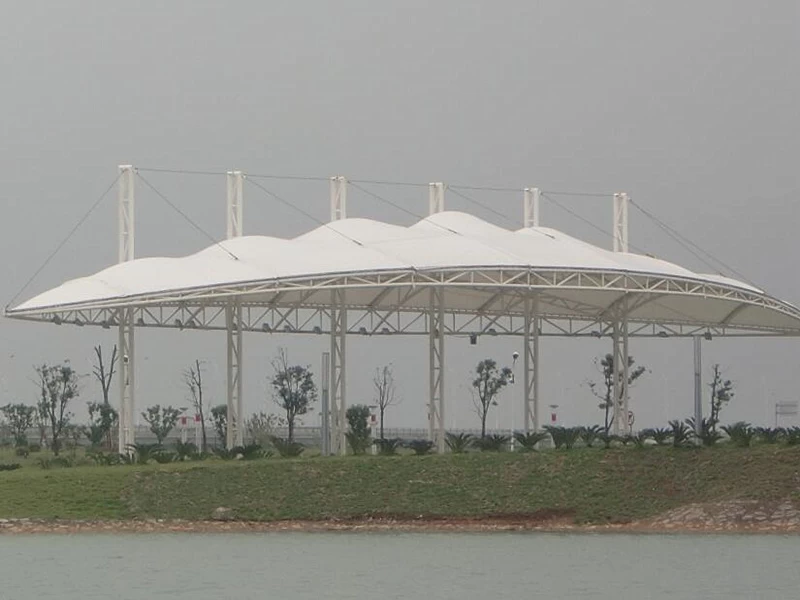

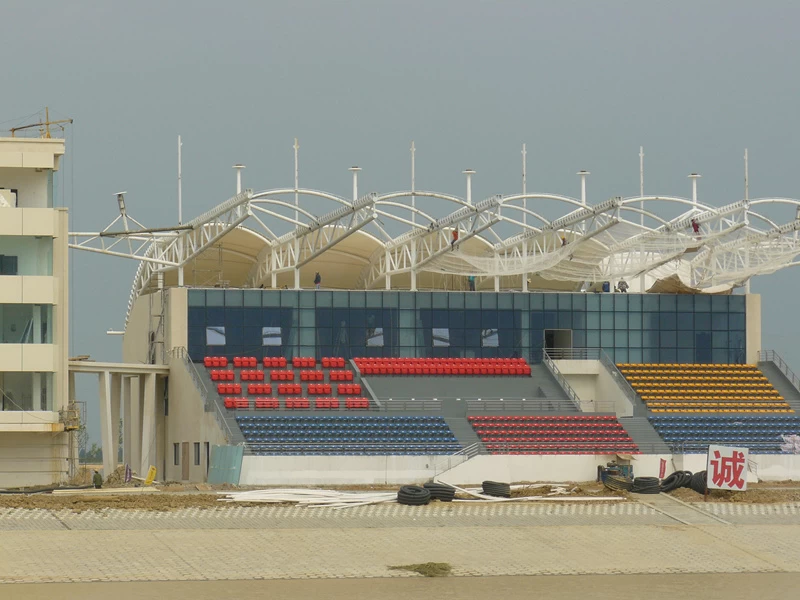

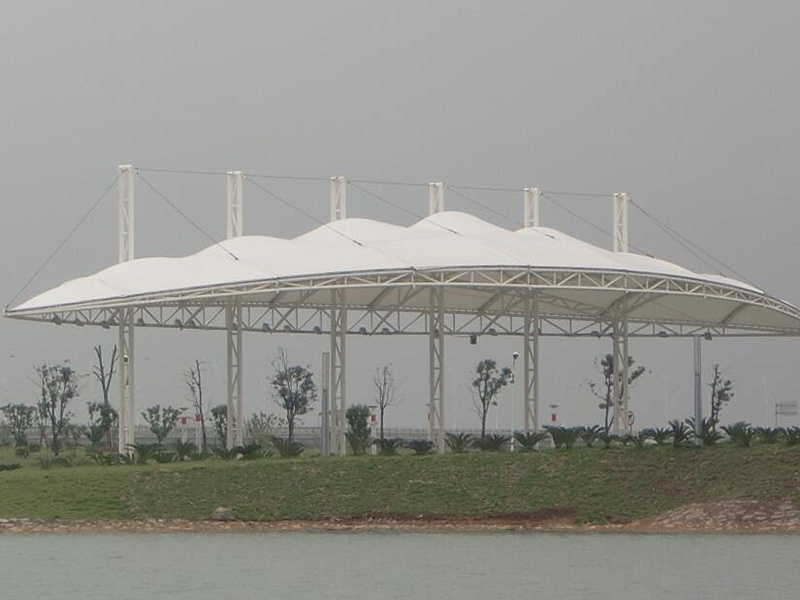

It is one the key projects of the State Sports General Administration and Jiangxi Provincial Government, also is one of the main venues for the Seventh Ctiy Games. The project is a covering pipetruss structure with construction area reaching 4500 rrf. And the cantilever for a single steeltruss structure reaches 35 meters.
1. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs;
2. Short Construction time: Half time is saved compared to the traditional buildings;
3.Various Shape: Changeful supporting structure can make lots of different shapes of membrane structure with flexible membrane;
4.Security: Membrane Structure can keep the good stability under the action of horizontal load such as earthquake;
5.Self-Cleaning: The rain getinto water to down on the surface of membrane and clean itself;
6.Fireproof: Fireproof performance of membrane structure can fill the requirements of US ,French,Germany ,Japan and other contries;
7.Large Span:The largest span of Tension membrane structures can exceed to 200m.
