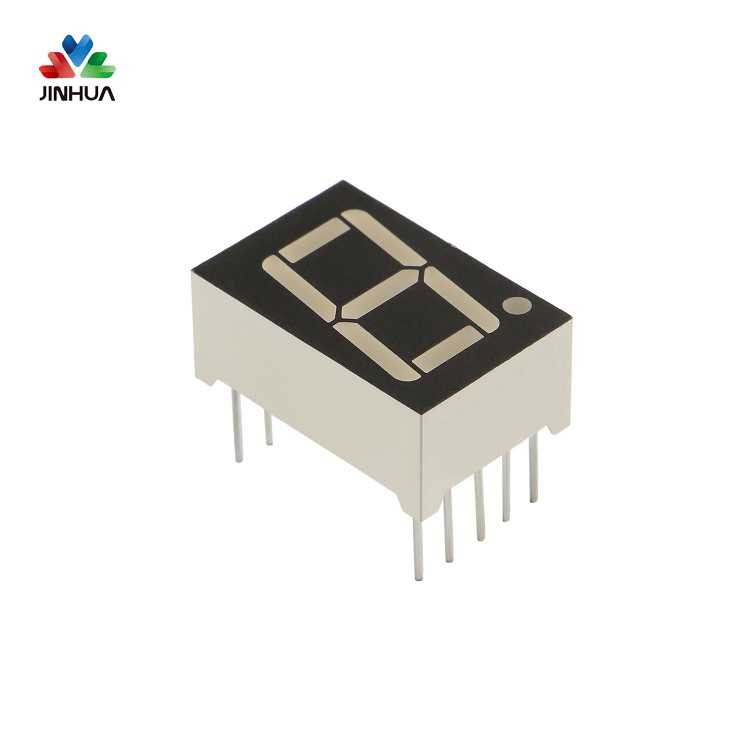

Common Anode 7 Segment Display 2.3 Inch LED Hot Sale
It is a common anode 7 segment display, and it has advantages such as high intensity and reliability, high quality, low power requirement and low cost, IC compatible and easy assembly, etc.
Here in Jinhua Electronics, all kinds of LED segment screen module meet RoHS requirement.
Small Size Seven Segment LED
Product Parameters
| Digit height |
2.3 inch (0.28 inch ~ 4 inch available) |

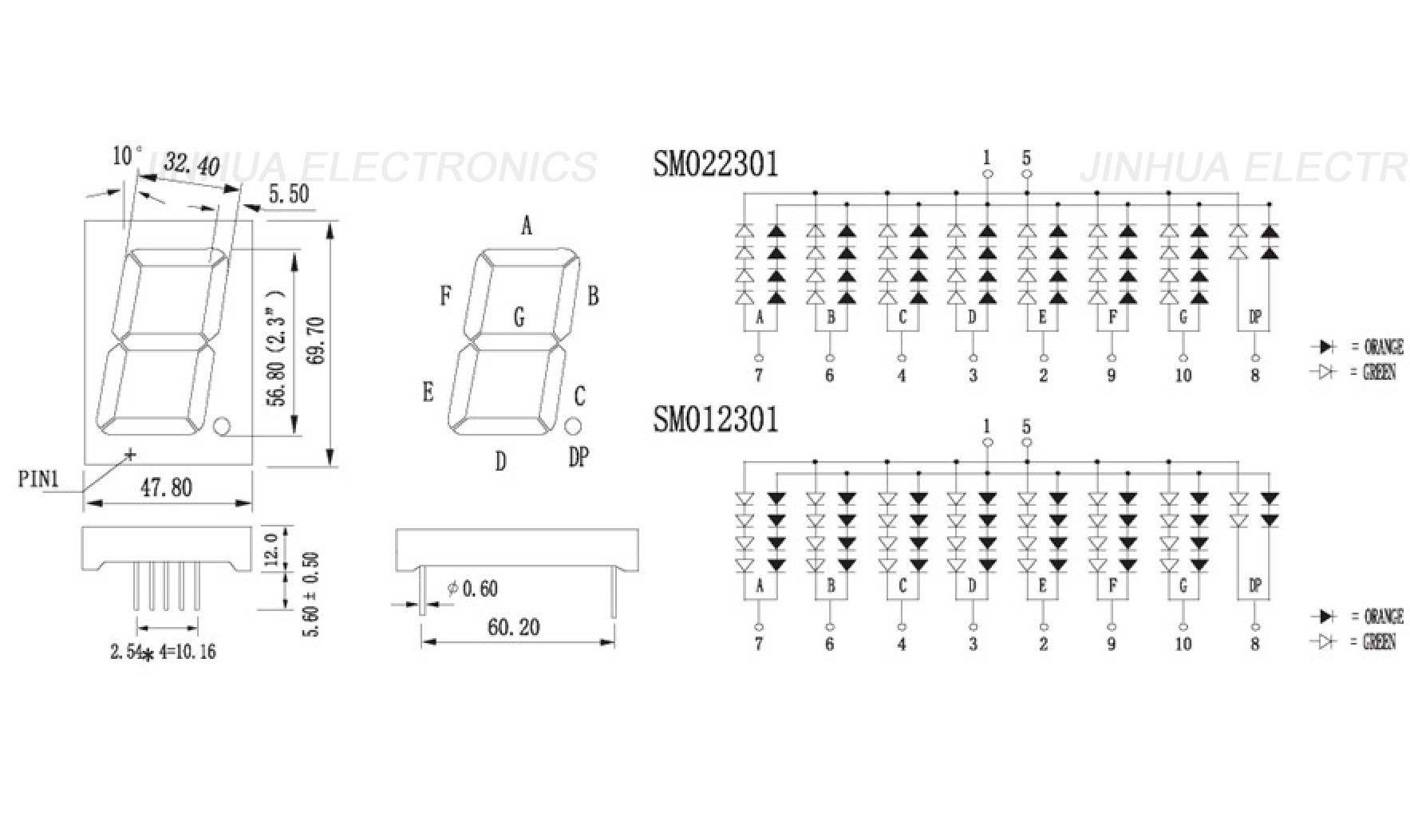

| Dimensions |
69.7 x 47.8 x 12mm |
| Digit quantity |
1 Digit |
| Available Emitting Color |
Red/Yellow Green/Yellow/Amber/Blue/White/Pure Green |
| Surface Color |
Black/Gray (white epoxy) |
| Epoxy Colors |
Red, Milky, Blue, Green and more |
| Polarity |
Common Anode/Common Cathode |
| Connector |
Pin |
| Operating Temperature |
-20-80°C |
| Requirements On Environmental Protection |
ROHS HSF |

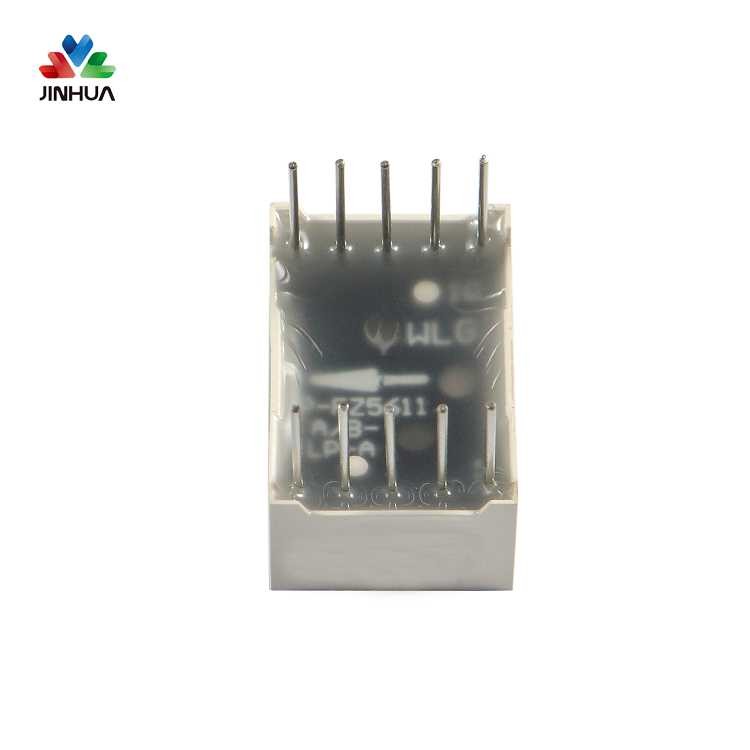

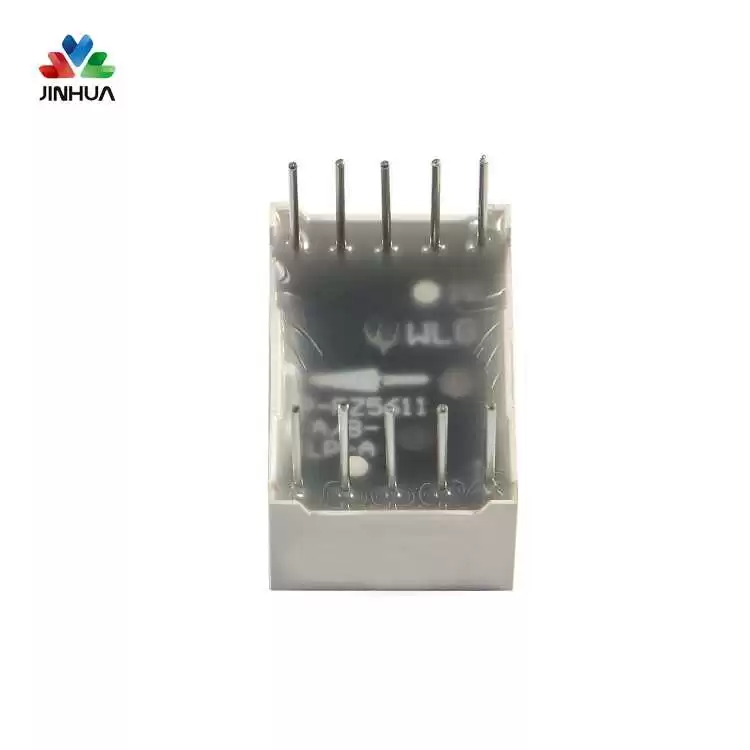

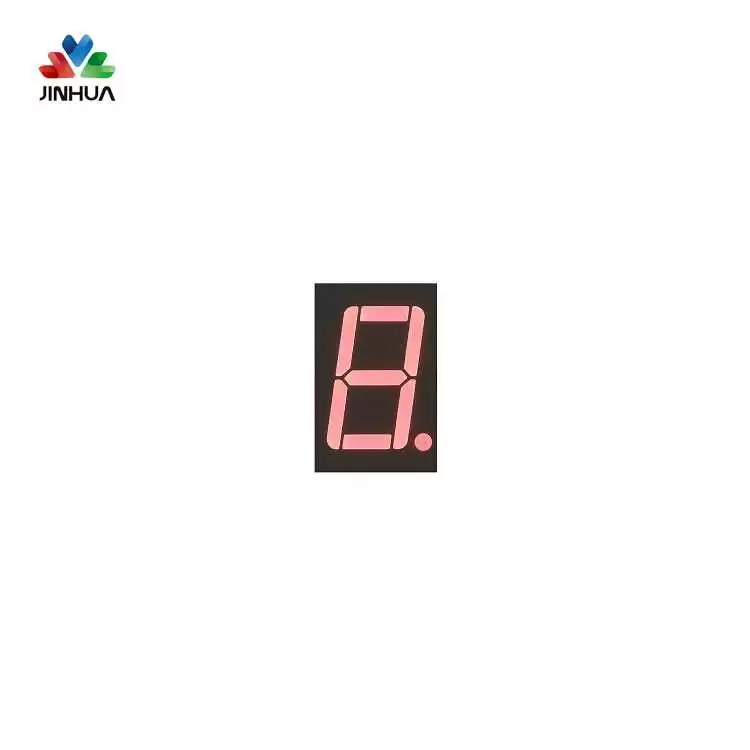

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Seven Segment LED Display is extensively used in many applications such as smart electric cooker, smart home control system, refregirator, laundry machine, smart water meter, etc.
