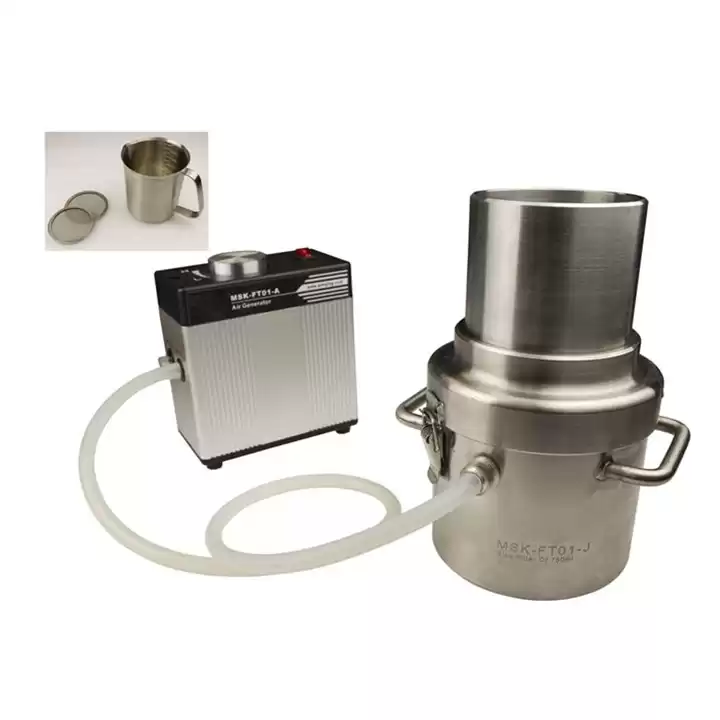

Compact Filtration/Sieving System (750mL) For Electrode Slurry
MSK-FT01 slurry filtration system is designed for use with the preparation of battery electrode slurries. It comes with two filters for removing particle sizes with dia. >120 or >100 micrometer. A SS304 slurry container together with a compact design allows for ease of operation and maximum flexibility in laboratory settings.
SPECIFICATIONS
|
Power Requirements
|
· Input: 100 - 240V AC; 50/60 Hz
· Output: DC12V, 0.4A
· Power plug configured for US electrical sockets (CE Certified) is included; plugs for other countries can be found
|
|
Structure
|
Made of SS304
|
|
Pump Flow Rate
|
3L/min
|
|
Absolute Vacuum Level
|
65kPa
|
|
Capacity
|
750mL
|
|
Filtration
|
· 2 Filters included
· Filtration Pore Sizes: 100 mesh & 120 mesh
|
|
Measuring Cup
|
· One stainless steel cup is included for measuring slurry up to 700ml or 24oz
· Scribe lines on the inside facilitate the measurement
|
|
Filter Container Dimensions
|
140mm x 70mm x150mm
|
|
Air Generator Dimensions
|
150mm x 150mm x 200mm
|
|
Net Weight
|
5kg
|
|
Warranty
|
· One year limited with lifetime support
|
