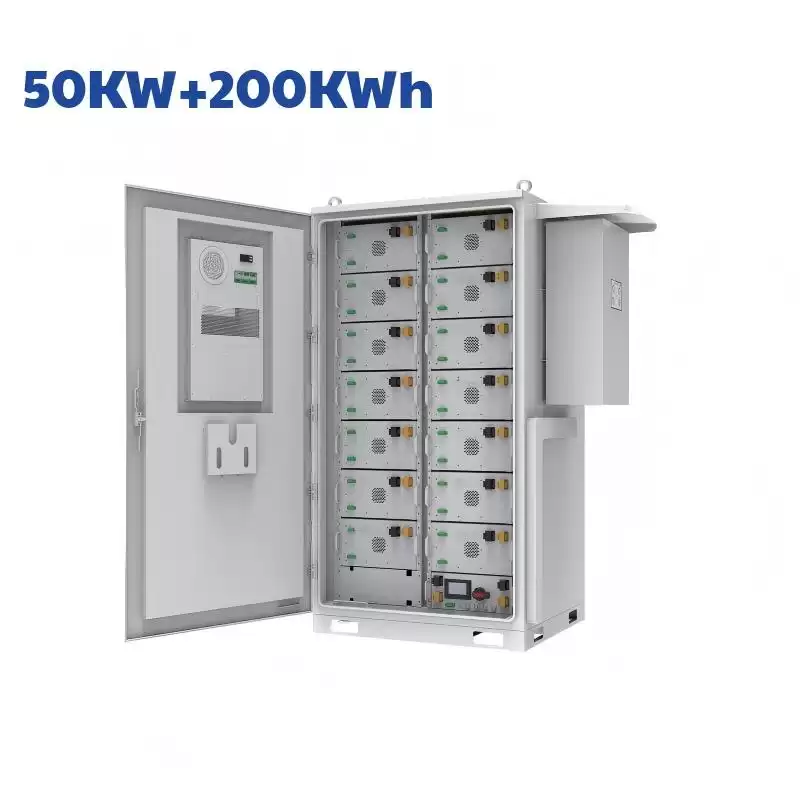

GW-F200
All-in-One Integrated System
Outdoor Cabinet to fullfill C&I Application
PV Input Optional(it can connect with or without pv panels)
Ultra-high energy density,small size,easy installation and transportation
Lithium Iron Phosphate(LFP) Battery with smart BMS,safe and reliable
The battery pack and system adopt an aerosol fire extinguishing solution
Supports battery expansion to meet various demand
EMS,PCS and BMS integrated technology,power supply redundancy design,support black start function,Off grid operation,etc
100% unbalanced output,each phase;Max.output up to 50% rated power
Multiple communication methods support remote upgrade
| Technical Specifications |
| System Specification |
|
| Nominal Output Power |
50KW |
| AC Output Frequency and Voltage |
50/60Hz; 3L/N/PE 220/380, 230/400Vac |
| Grid Type |
Three Phase |
| AC Output Rated Current |
75.8A |
| System Energy |
200.48 KWH |
| Battery Chemistry |
LiFePO4 |
| Battery System Nominal Voltage |
716.8Vdc |
| Battery Operating Voltage |
627.2-806.4Vdc |
| Max. charging/discharging efficiency |
140A |
| Dimension (W x D x H,mm) |
1626*1245*2175mm |
| Installation Site |
Outdoor |
| Communication port |
CAN |
| Air conditioner, Firefighting aerosol |
Included |
| Integrated Lighting, Smoke detector |
Included |
| IP Rating of Enclosure |
IP55 |
| Operation Temperature Range |
-30β ~ +50β |
| Operation Humidity Range |
0~95%(NO Condensing) |
| Altitude |
≤3000m |
| PV Input Data |
|
| Max. DC Input Power |
65KW |
| Max. DC Input Voltage |
1000VDC |
| MPPT Range |
450-850VDC |
| PV Input Current |
36A +36A +36A +36A |
| No.of MPP Trackers |
4 |
| No.of Strings per MPP Tracker |
2 |
| AC Specification(ON GRID) |
|
| Rated AC Power |
50KW |
| Rated AC Output Voltage& Frequency |
400Vac, 50/60HZ |
| Grid Type |
Three Phase |
| AC Output Rated Current |
72.5A |
| Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
| Total Harmonic Distortion (THD) |
<3% (of nominal power) |
| AC Specificaton(OFF GRID) |
|
| Rated AC Power |
50KW |
| Rated AC Output Voltage& Frequency |
400Vac, 50/60HZ |
| Grid Type |
Three Phase |
| Peak Power (Off Grid) |
1.5 time of rated power, 10 S |
| Total Harmonic Distortion (THD) |
<3% (of nominal power) |
| Battery Module Specification |
|
| Nominal Voltage |
51.2V |
| Nominal Energy |
14.33KWH |
| Max. charging/discharging efficiency |
140A |
| Size |
418 × 770 × 235 mm |
| Weight |
110kg |

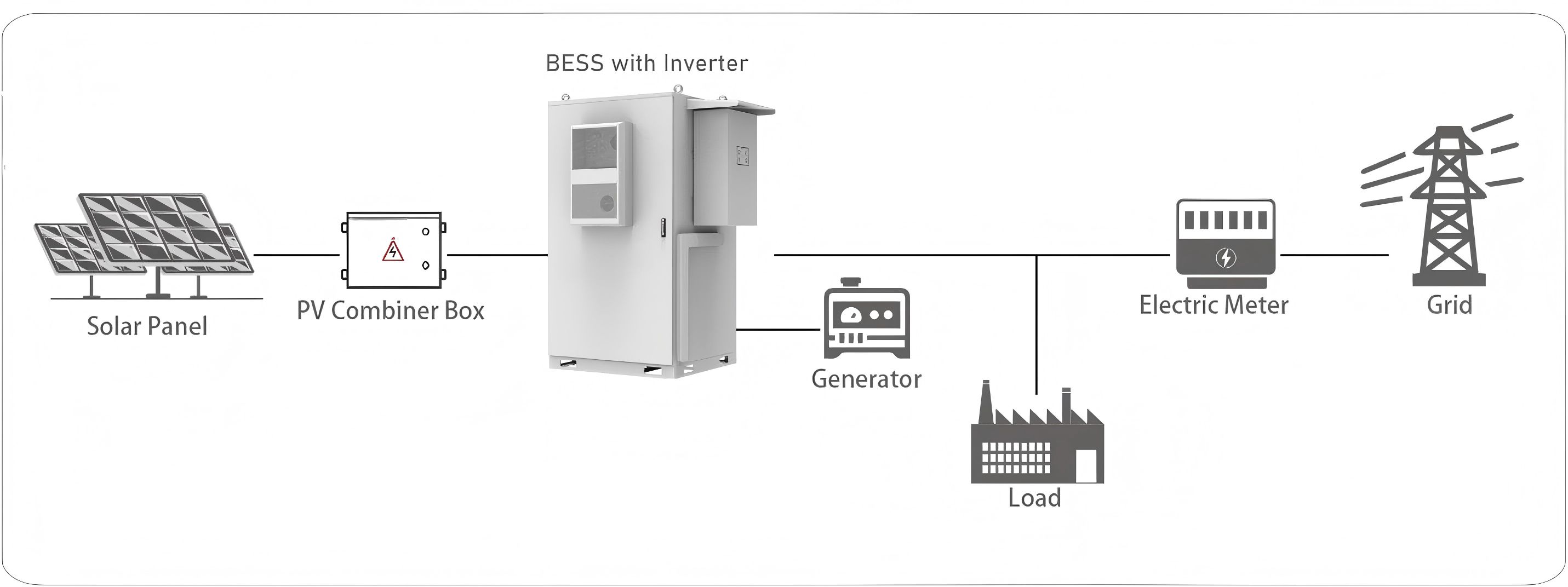

Product Topology

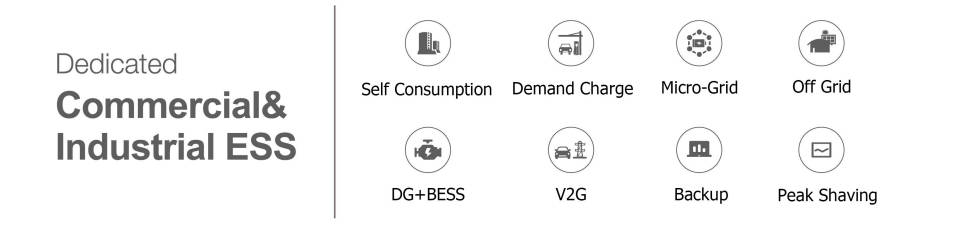

Application Senario

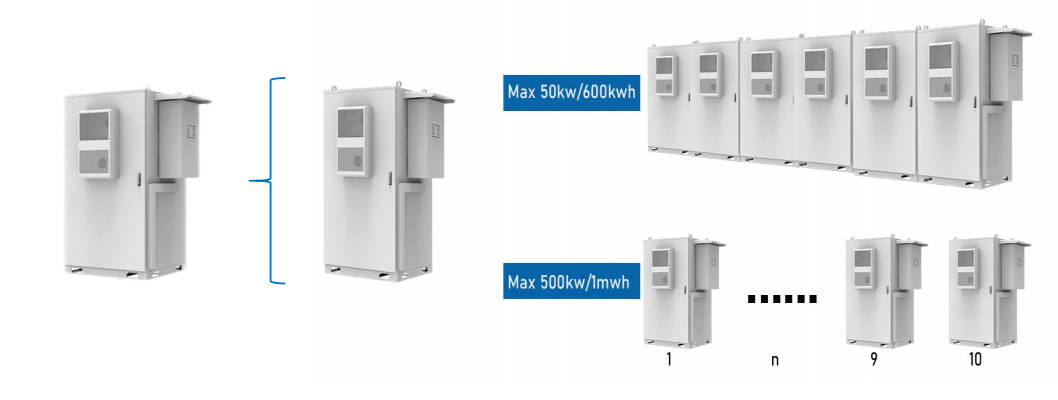

Easy Expansion
