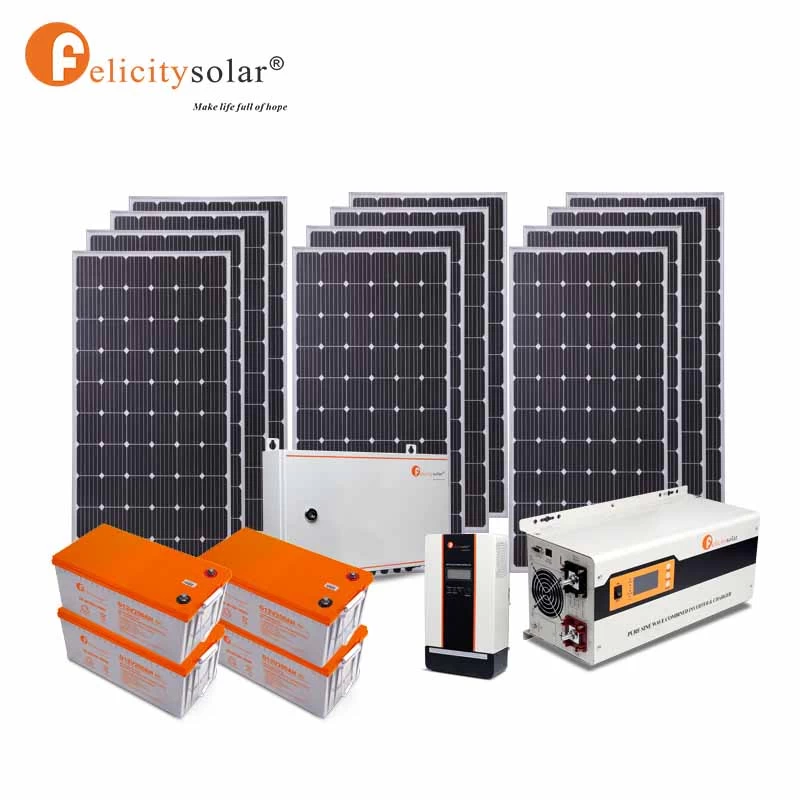

3500va Solar Energy System
Whether you’re a homeowner, business, or nonprofit, electricity costs can make up a large portion of your monthly expenses. With a solar energy system, you’ll generate free power for your system’s entire 25+ year lifecycle.
More importantly, the solar power system is not a cost, it's one of the best ways to invest. Due to a large amount of electricity bills saved, you pay for solar systems in 7 to 8 years, with a return on investment of 20% or higher.
Data Sheet
|
Model
|
FL-POWER-3500VA 48VA
|
|

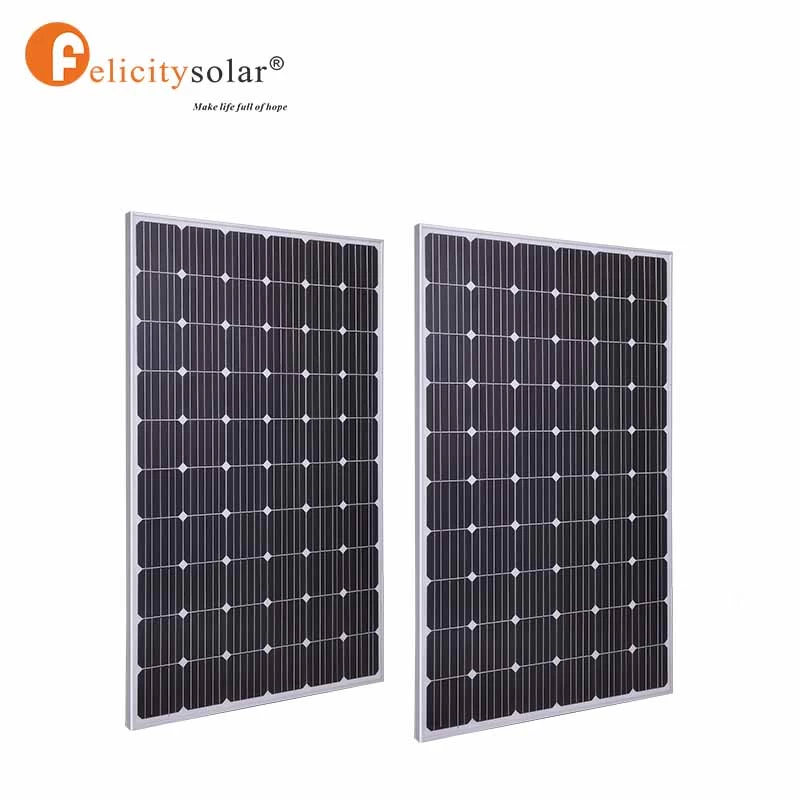

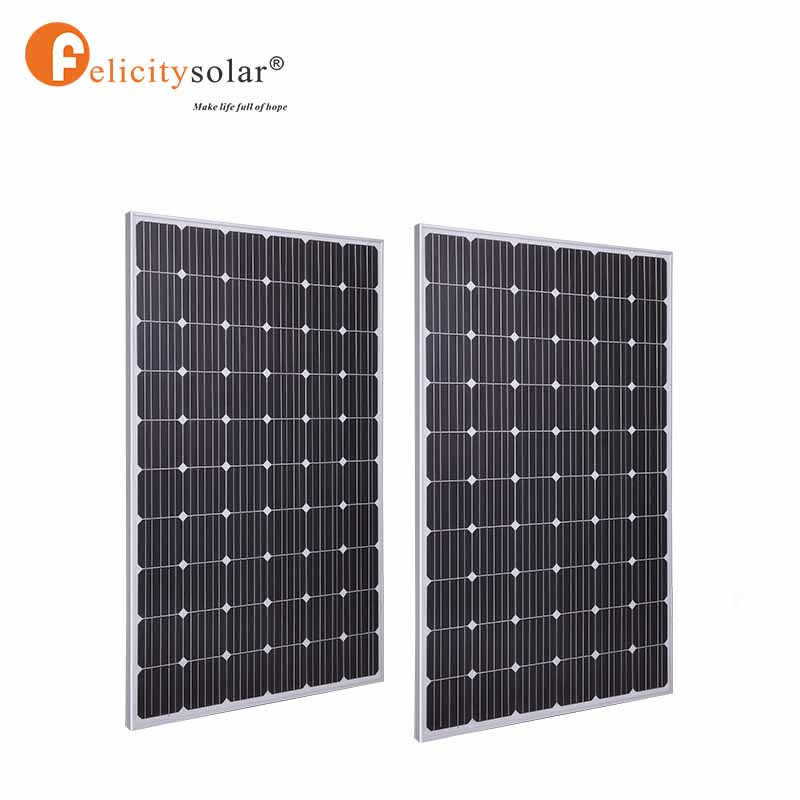

Solar Power
|
Mono 260w/30v * 12PCS
|
|

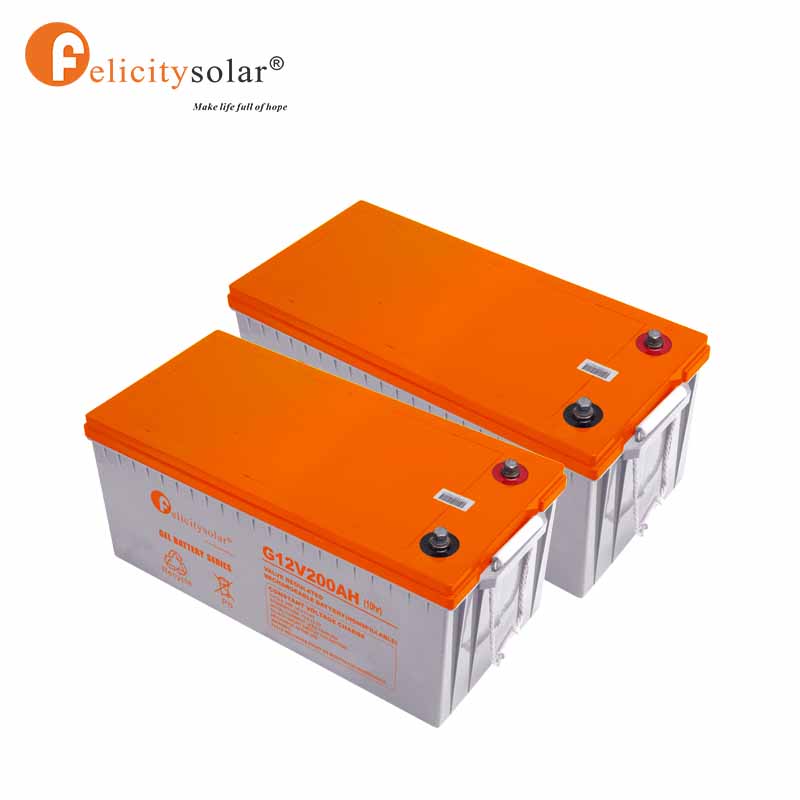

GEL Deep Cycle Battery
|
200AH/12V * 4PCS
|
|

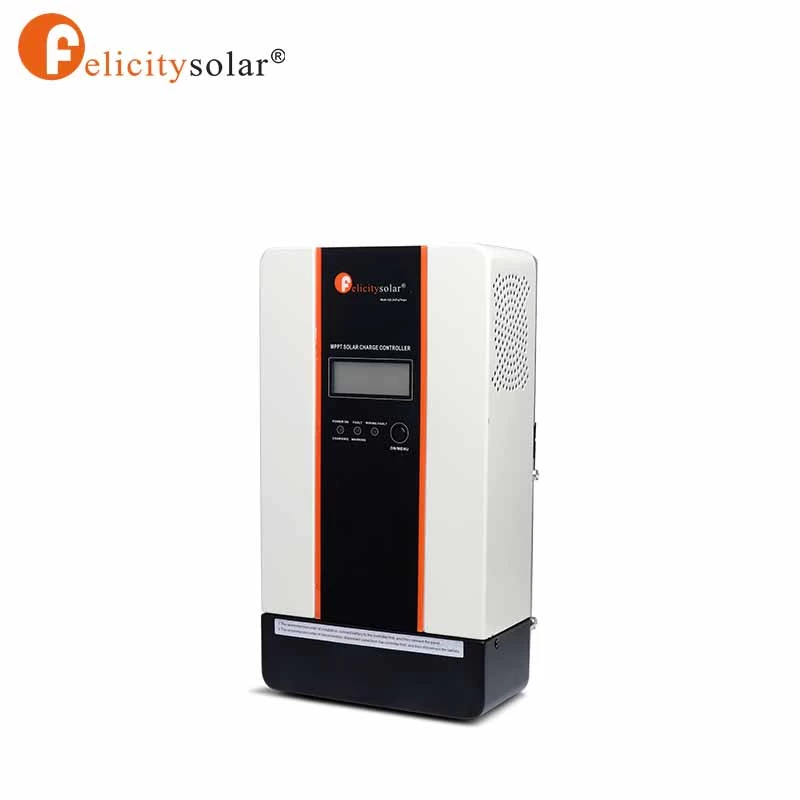

Controller
|
MPPT charge controller 60A DC12/24V/48V with LCD * 1PCS
|
|

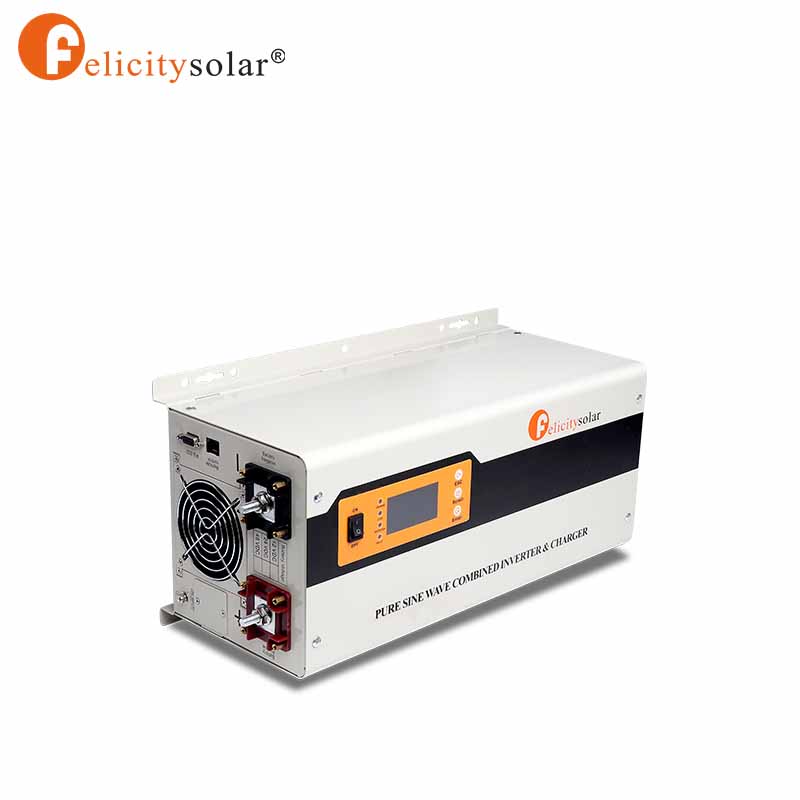

Inverter
|
Pure Sine Wave Inverter 3500VA 48V * 1PCS
|
|

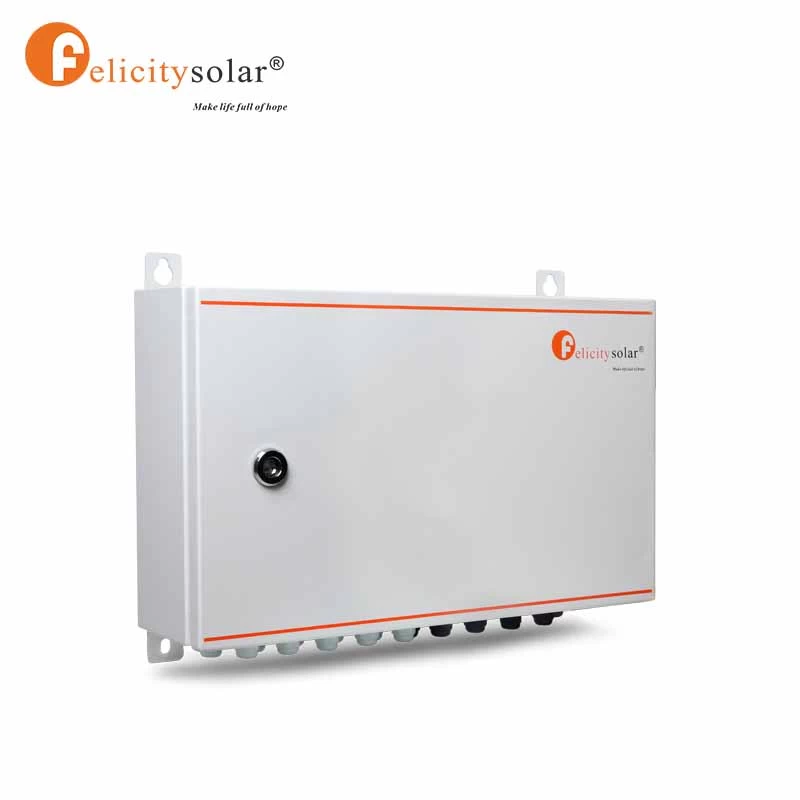

Photovoltaic Box
|
6 Combine 1 Photovoltaic Box* 1PCS
|
|
Battery Box
|
4PCS battery in 1 battery Box
|
|
PV Copper Wire
|
FL-POWER-3500VA 48V:
6MM² 10M 2 pcs; 6MM² 1M 2pcs; 16MM² 0.8M 3 pcs
|

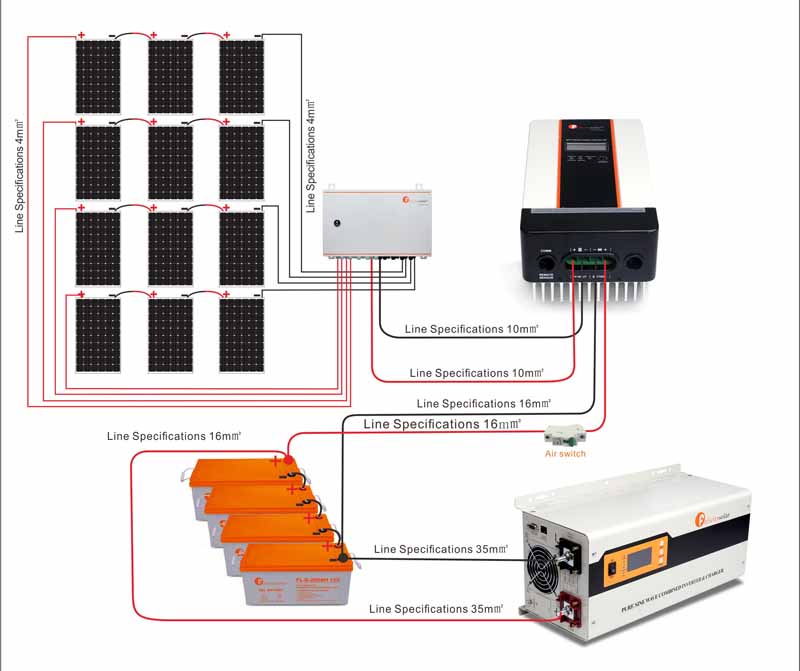

System Connection Diagram
Panel： 3 in series 4 in parallel
battery：4 pcs in series

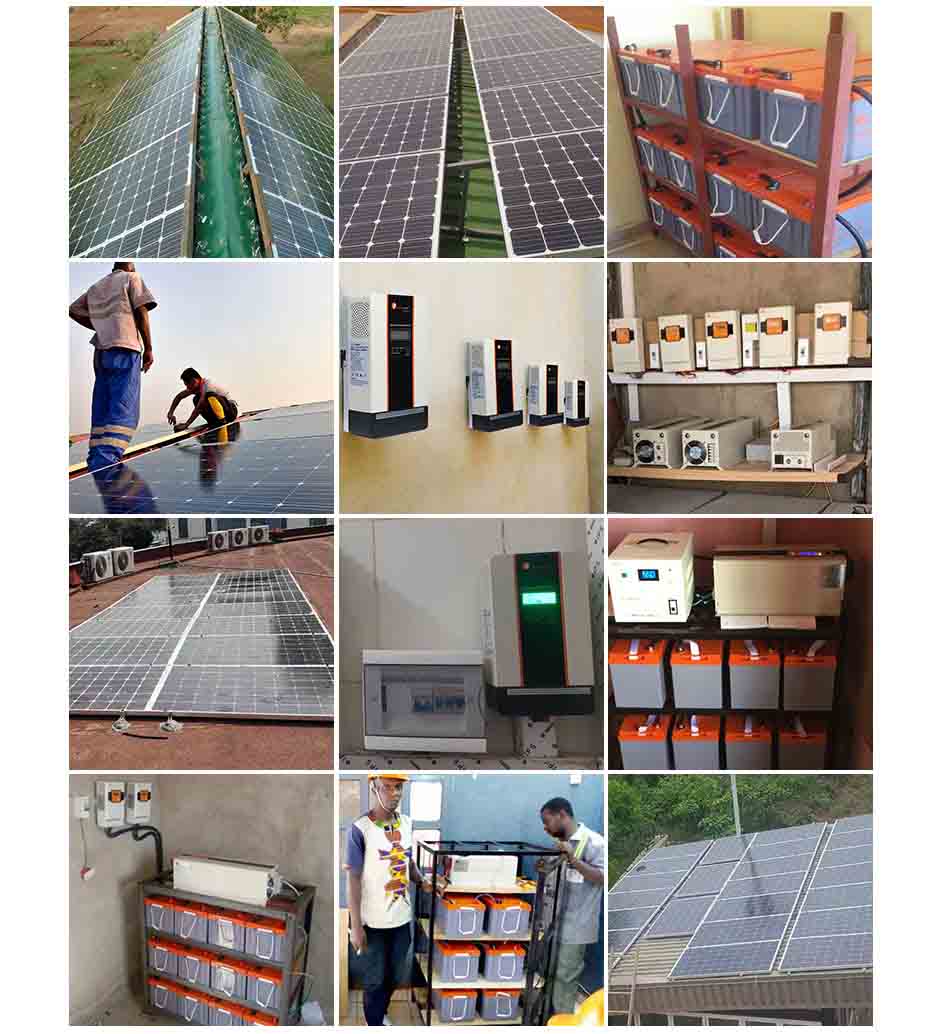

Project Case
