Composite structural steel deck for concrete slab of Multi-tall building

The metal deck and concrete slab are combined as composite deck,to form an integral unit that plays upon the concretes compressive strength and the steel decks high tensile strength. MOQ:500M²/Size


  • galvalume steel color- YumisteelY
  • Galvanized steel color- YumisteelY

Steel profile decking highlights

☆ Easy & Fast installation: It's as simple as installing as a roof deck, the concrete can be poured quickly;

☆ Economical cost: Compared to traditional deck profiles,relatively low cost and concrete use;

☆ Fireproof performance: Galvanized steel decking with concrete slab has fire resistance up to 120 mins;

☆ Neat and nice appearance: Classic W shaped steel deck can add color coating in the back,and directly use as ceiling panels.


Floor decking sheets application

The bondek products are widely used in power plants, power equipment companies, automobile exhibition halls, steel structure factory buildings, steel structure offices, airport terminal buildings, railway stations, stadiums, concert halls, grand theaters, large supermarkets, logistics centers, Olympic stadiums and gymnasiums and other steel structures.

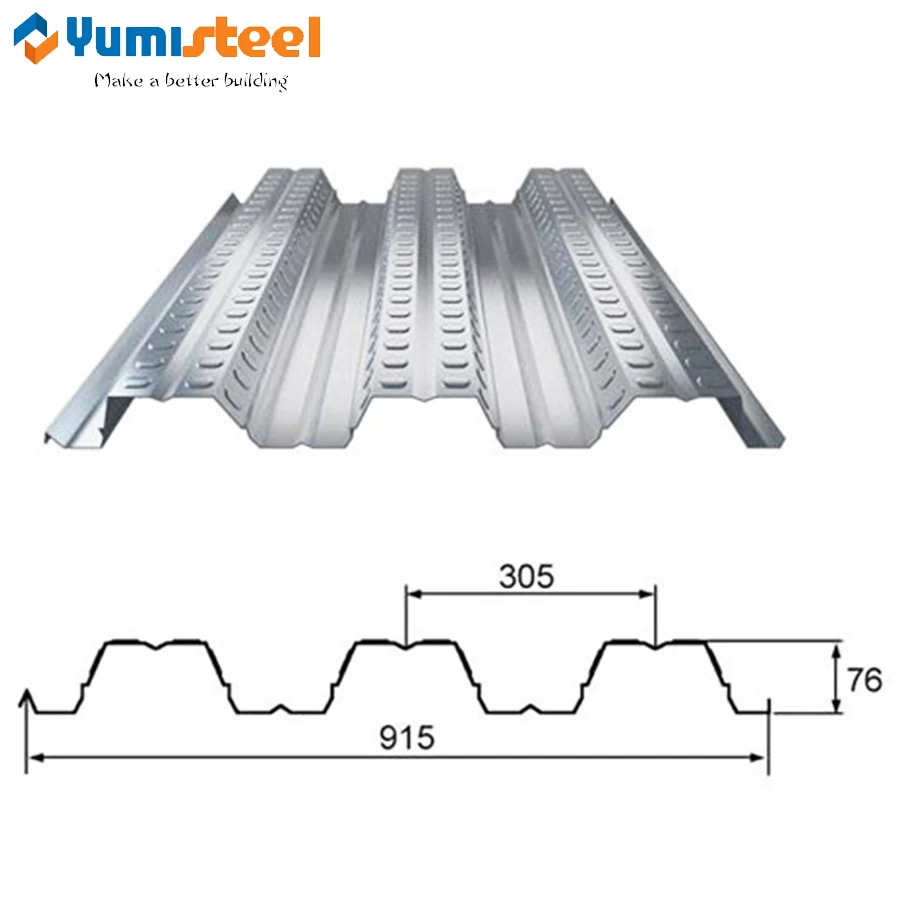

Composite deck boards specifications

Model NO.

YX76-305-915

Rib height

76 mm

Rib distance

305 mm

Modular width

915 mm

Feeding width

1220 mm

Material

Galvanized / Galvalume steel

Thickness

0.75 ~ 1.50 mm

Steel material

High strength galvanized steel sheets

Material standards

Q235, Q345, Q355, G550

Zinc coating

120 ~ 275 g/m²

Length

Max 5.95 meters for 20FT container;



Max 11.95 meters for 40FT container.


Galvanized steel deck technical data

☆ Sectional properties:

Thickness
(mm)

Yield strength
(Mpa)

Weight
(KG/M²)

I (cm4/m)

I  (cm3/m)

0.75

345

7.96

51.90

16.02

0.90

345

9.52

63.50

21.34

1.20

345

12.55

82.10

28.76

1.50

345

15.67

102.70

36.02

Note:This is calculated by standards Q345,we can also calculated by other standards.


☆ Span tables:

Deflection Limited = L/180

Material standards

Q235

Q345

Bondek THK(mm)

Slab THK(mm)

Span data(mm)

Span data(mm)

Single spans(mm)

Two spans(mm)

Single spans(mm)

Two spans(mm)

0.75

130

2200

2700

2800

3200

0.90

2600

3000

3100

3700

1.00

3000

3400

3200

4100

1.20

3200

3600

3400

4400

0.75

140

2200

2600

2700

3200

0.90

2500

3000

3000

3600

1.00

2900

3300

3100

4000

1.20

3100

3500

3300

4300

0.75

150

2100

2600

2600

3100

0.90

2500

2900

2900

3500

1.00

2800

3200

3100

3900

1.20

3000

3500

3200

4200

For more technical data,you can download our catalog.Thank you.

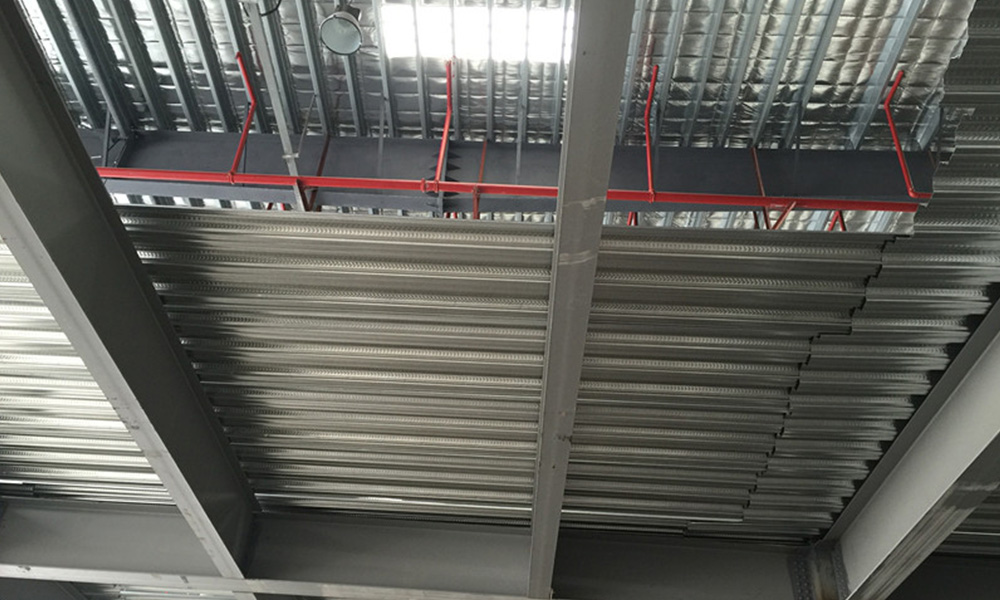

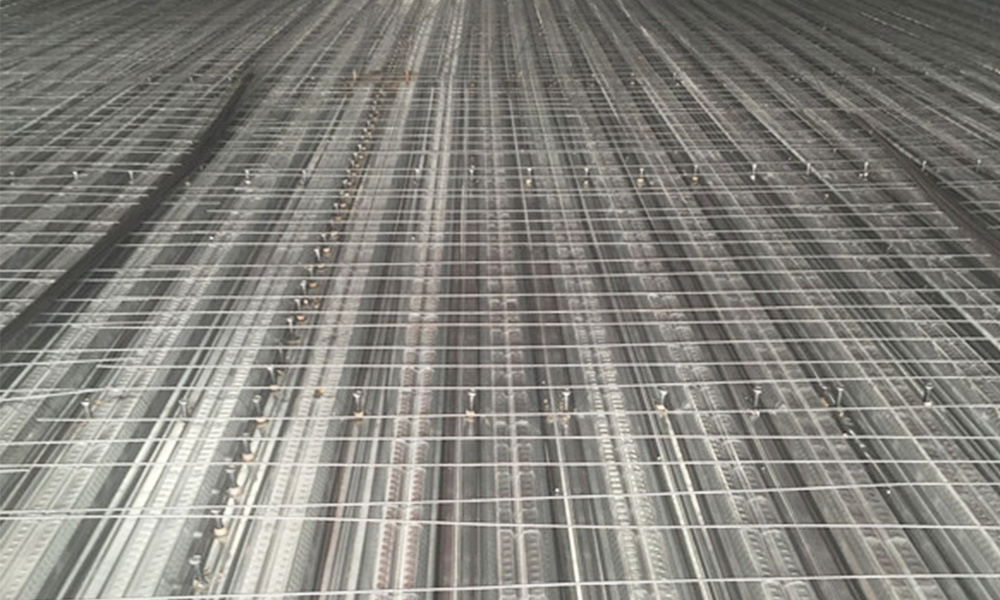

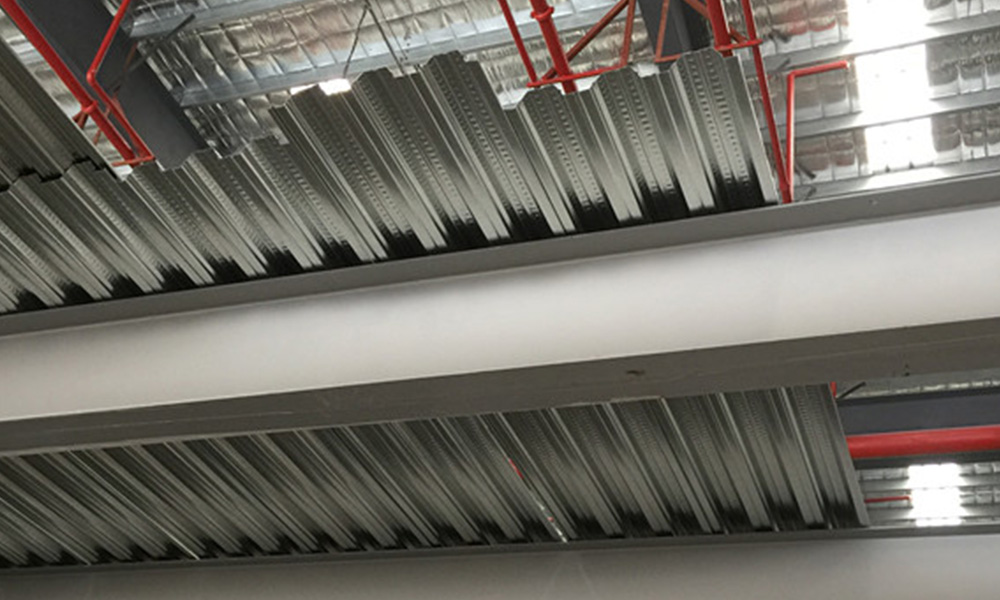

Speed deck products renderings

buy composite floor deck

canam steel deck supplier

Cheap composite decking for sales


Packing & Delivery:

☆ Packing:

Seaworthy packing standards:

Packed with moisture-proof kraft paper.



☆ Delivery:

Delivery time for small order with stock material: 7-10 days ;

Delivery time for special requirement,coating types and thickness: 15-25 day;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customers or accept appointed forwarder from customers.
