Concrete Truck Mixer Drum Kit

Concrete mixer drum kit, also called as transit mixer drum, hydraulic concrete truck mixer drum kit, cement mixer body, concrete mixer up structure,

Facebook Twitter Pinterest LinkedIn 分享

 Concrete Mixer Drum Kit (3m3~18m3)

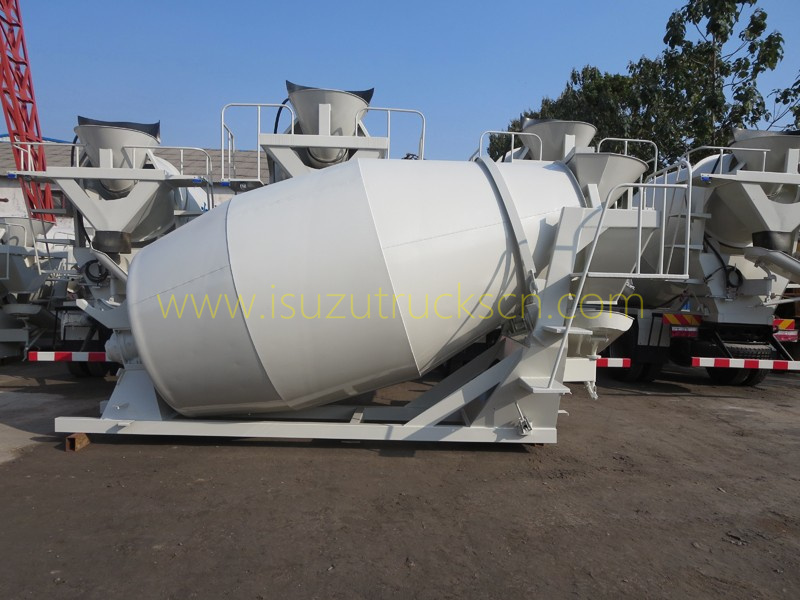

concrete mixer drum kit


Function:

Concrete Mixing Drum Kit (also called as Hydraulic transit mixer drum, cement mixer up structure, hydraulic concrete mixer,  mixer truck body structure, Hydraulic concrete tank, concrete agitator tank, for truck mounted transit mixer drum, diesel engine concrete mxing drum, reversing concrete mixer )  is suitable to install customer own truck chassis in their local.It's driven by chassis engine with the mechanical chain drive, which is simple in the structure and easy for installation and operation.


Concrete Mixing transportable drum, its main function is to transport ready mixed concrete and the raw concrete material to the specified destination in time, protect the concrete from segregating and premature soilifying, thus fully ensuring the concrete quality.


MAIN SPEC:

Mixing capacity: 3~18 m3

Feeding speed: ≥3 m3/min

Mixing speed: 0~14 r/min

Discharge residue rate: ≤ 0.5%

Capacity of water tank: 150~450 L

Control Panel: English or appointed language

Water supply method: Pneumatic

Multi types of Chassis Matched: 100% custom-made

Features:

---- Mixing tank adopt high performance material, superior performance.
---- High qualtiy of hydraulic system
---- The design of low angle of inclination
---- Very simple operation and useful applicatioin

---- Mulit types of chassis Matched (ISUZU, HINO, NISSAN, SINOTRUK, DFM-Dongfeng, JAC, FAW, SHACMAN)


Specifications:

Parameters Unit 4m3 5m3 6m3 7m3 8m3 9m3 10m3 12m3 14m3 15m3 16m3 18m3
Drum leaning angle ° 16 16 16 16 15 15 15 15 15 15 15 15
Geometric volume of drum m3 7.6 8.8 9.3 12.6 13.3 14.7 16 19.6 21.9 23.8 25.3 26.4
Mixing capacity m3 4 5 6 7 8 9 10 12 14 15 16 18
Feeding speed m3/min ≥2 ≥2 ≥2 ≥2 ≥3 ≥3 ≥3 ≥3 ≥3 ≥3 ≥3 ≥3
Discharging speed m3/min ≥1.5 ≥1.5 ≥1.5 ≥1.5 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2 ≥2
Mixing speed r/min 0~9 0~9 0~9 0~9 0~14 0~14 0~14 0~14 0~14 0~14 0~14 0~14
Discharge residue rate % ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5
Slump range mm 70~260 70~260 70~260 70~260 70~260 70~260 70~260 70~260 70~260 70~260 70~260 70~260
Capacity of water tank L 150 150 150 150 450 450 450 450 450 450 450 450
Water supply method   Pneumatic

Standard Brand
Hydraulic pump Eaton/Rexroth/High-Tech Italian ARK/Sauer/Rexroth/Germany ZF
Hydraulic motor
Reducer High-Tech Germany ZF/ Italian PMP/Eaton

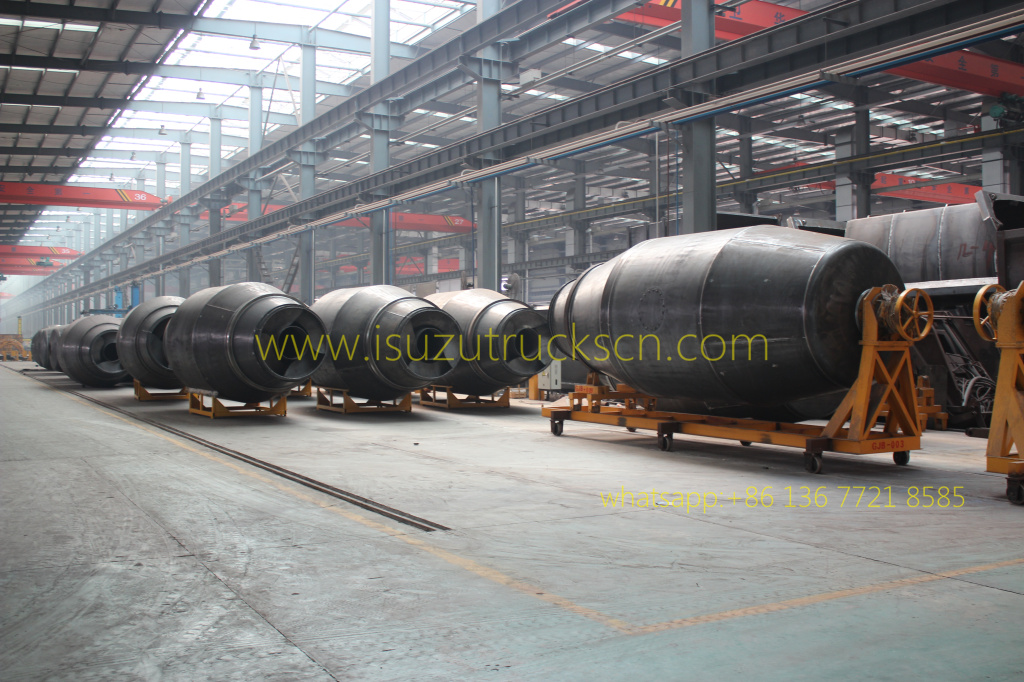

Workshop for Drum:

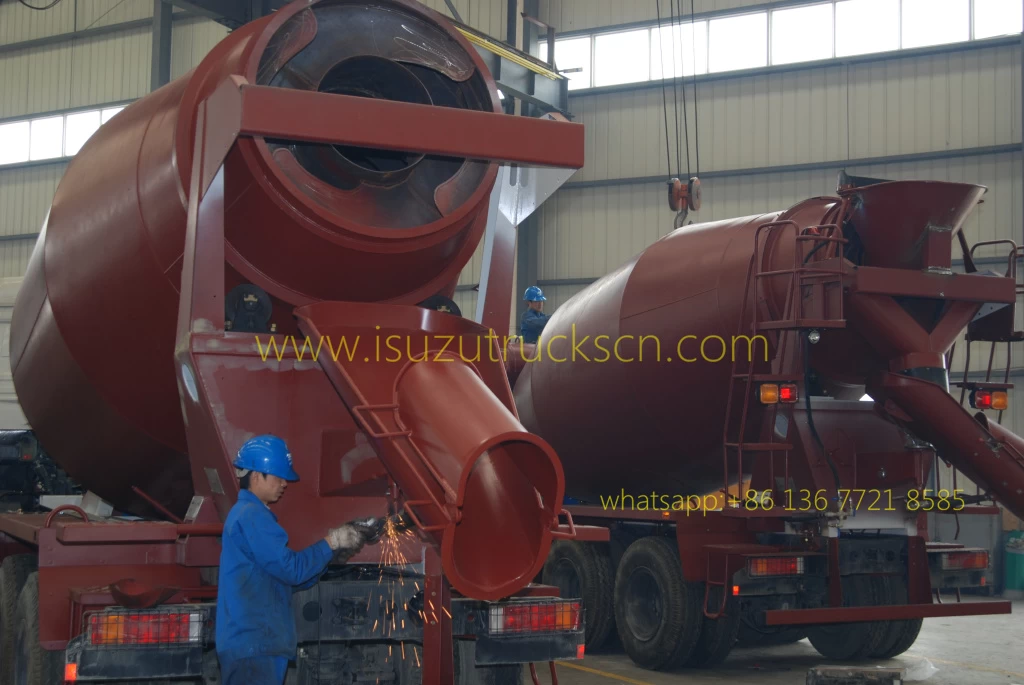

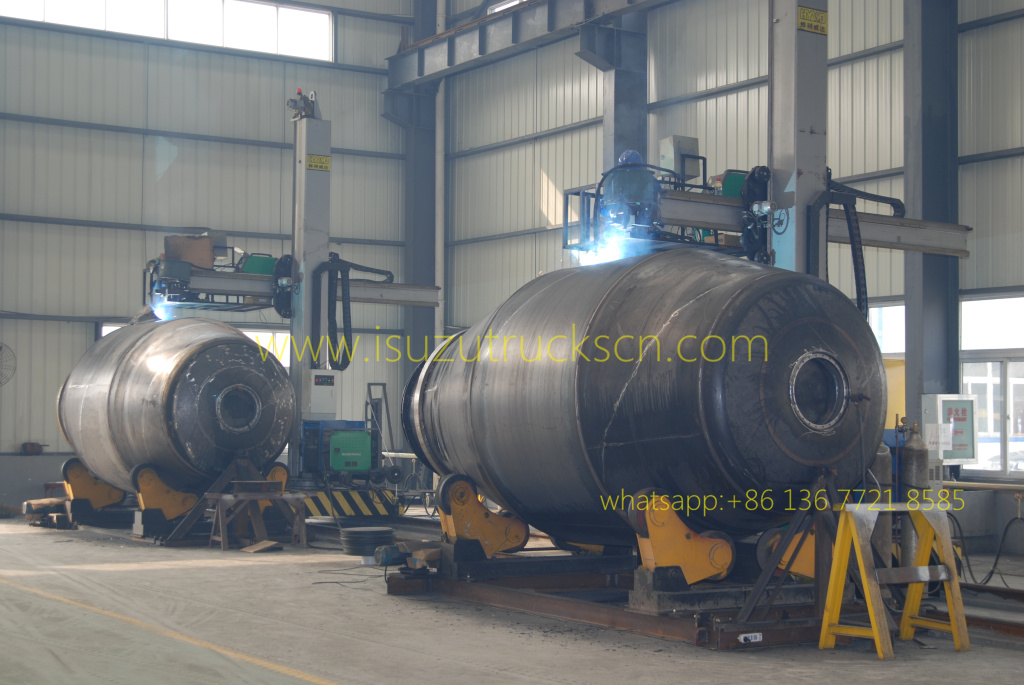

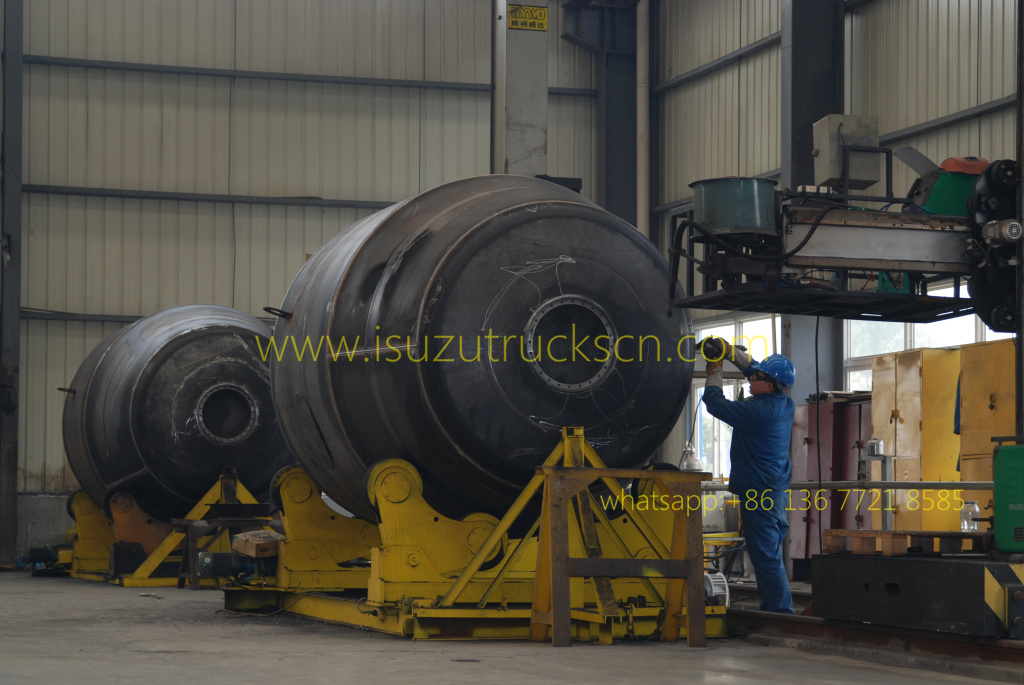

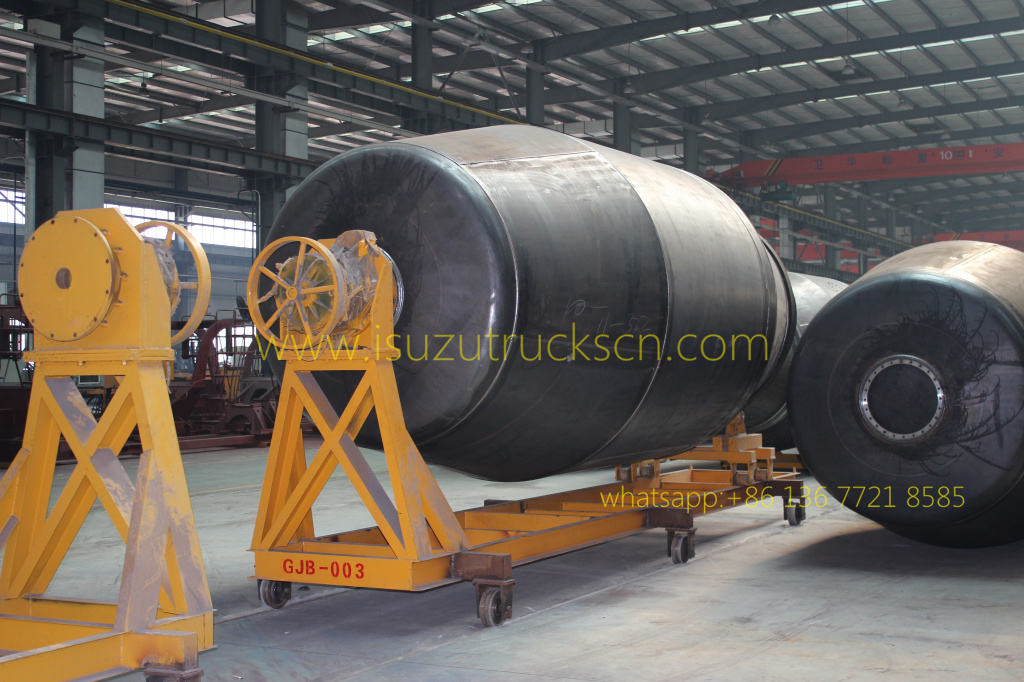

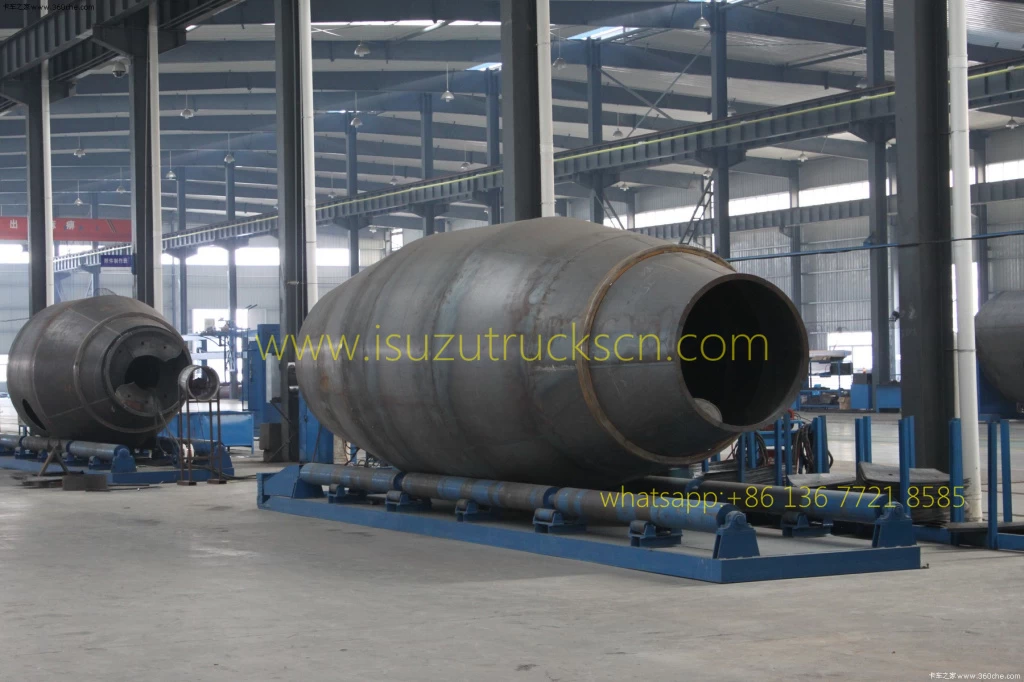

workshop for Concrete mixer drum


workshop for Concrete mixer drum


workshop for Concrete mixer drum


workshop for Concrete mixer drum

Detail pictures:

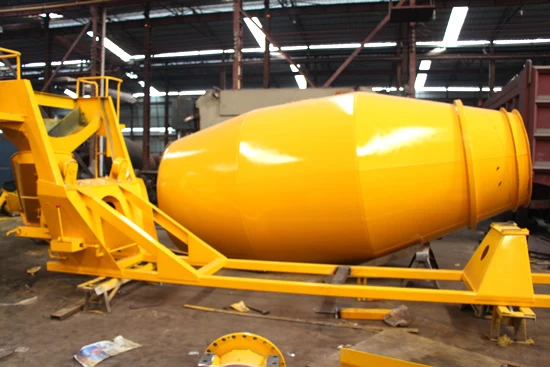

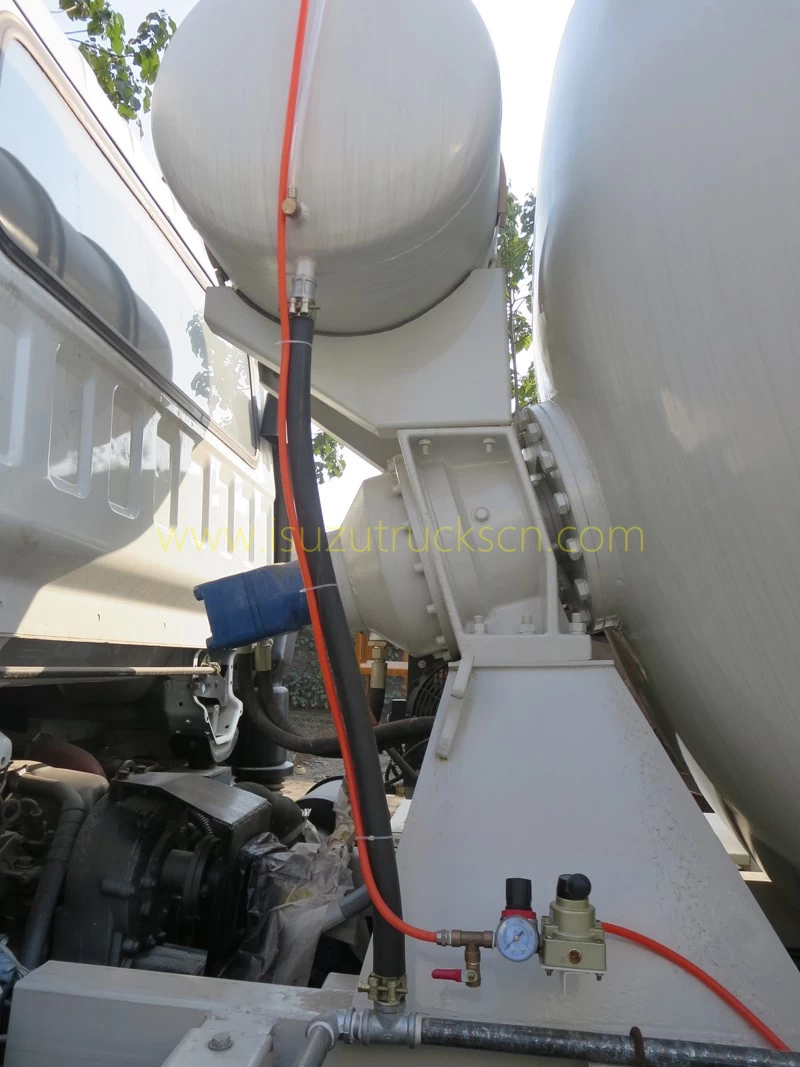

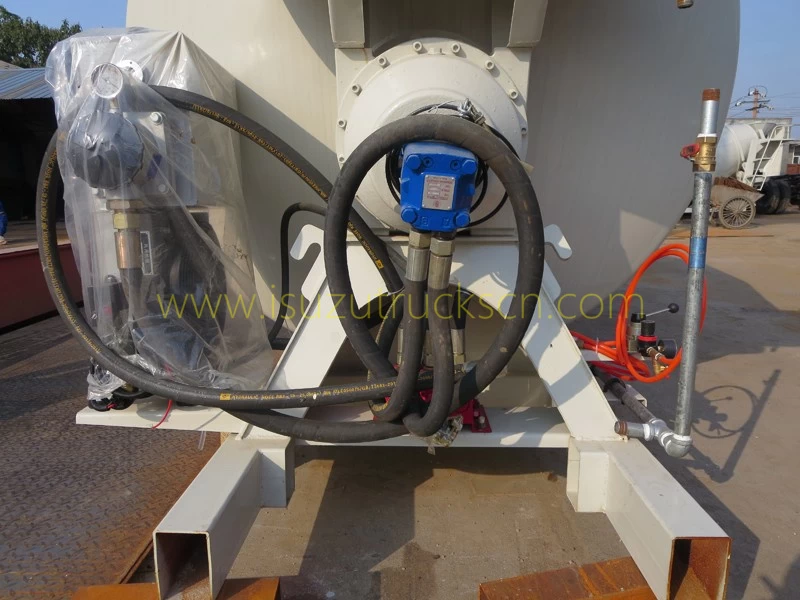

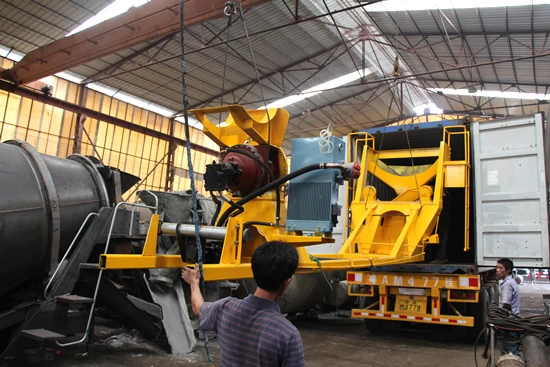

concrete agitator drum kit Hydraulic 6m3 concrete mixer machine structure


concrete agitator drum kit Hydraulic 6m3 concrete mixer machine structure


concrete agitator drum kit Hydraulic 6m3 concrete mixer machine structure


concrete agitator drum kit Hydraulic 6m3 concrete mixer machine structure


concrete agitator drum kit Hydraulic 6m3 concrete mixer machine structure


concrete agitator drum kit Hydraulic 6m3 concrete mixer machine structure


concrete agitator drum kit Hydraulic 6m3 concrete mixer machine structure


concrete agitator drum kit Hydraulic 6m3 concrete mixer machine structure

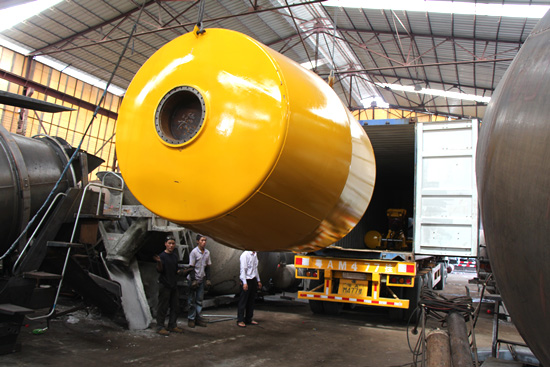

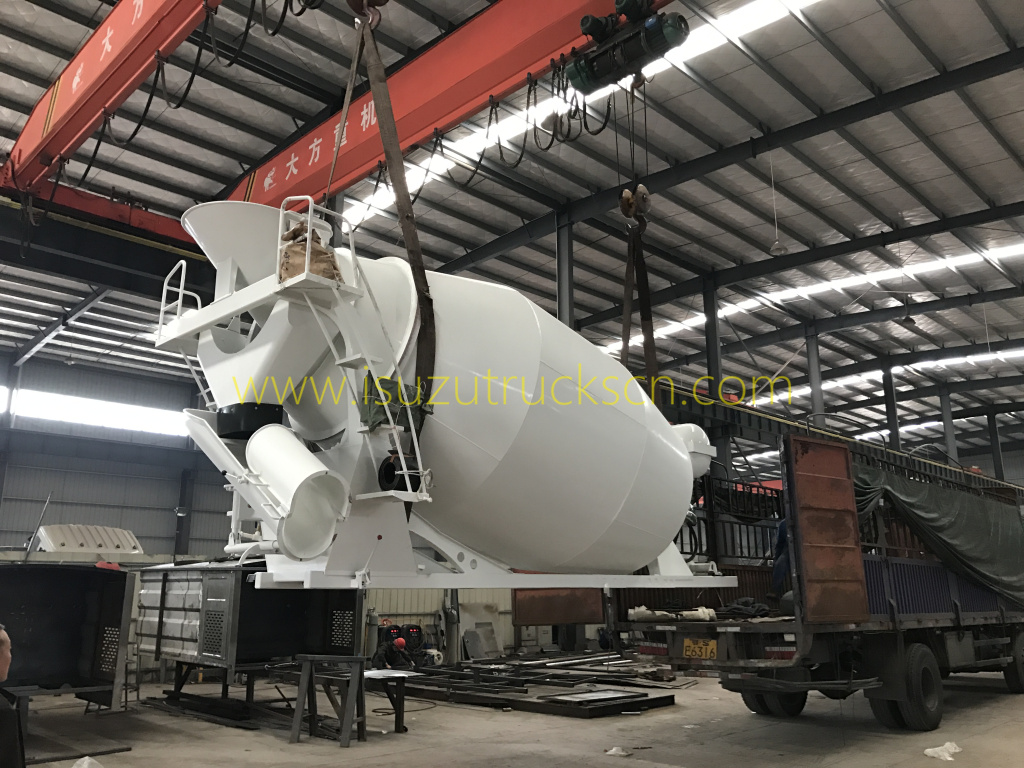

 packing the Hydraulic transit mixer drum from factory    packing the Hydraulic transit mixer drum from factory

 packing the Hydraulic transit mixer drum from factory    packing the Hydraulic transit mixer drum from factory

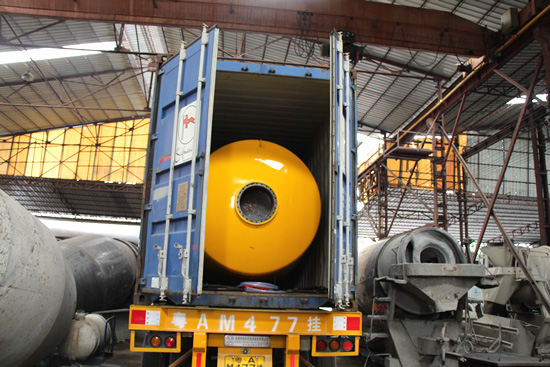

Shipment:

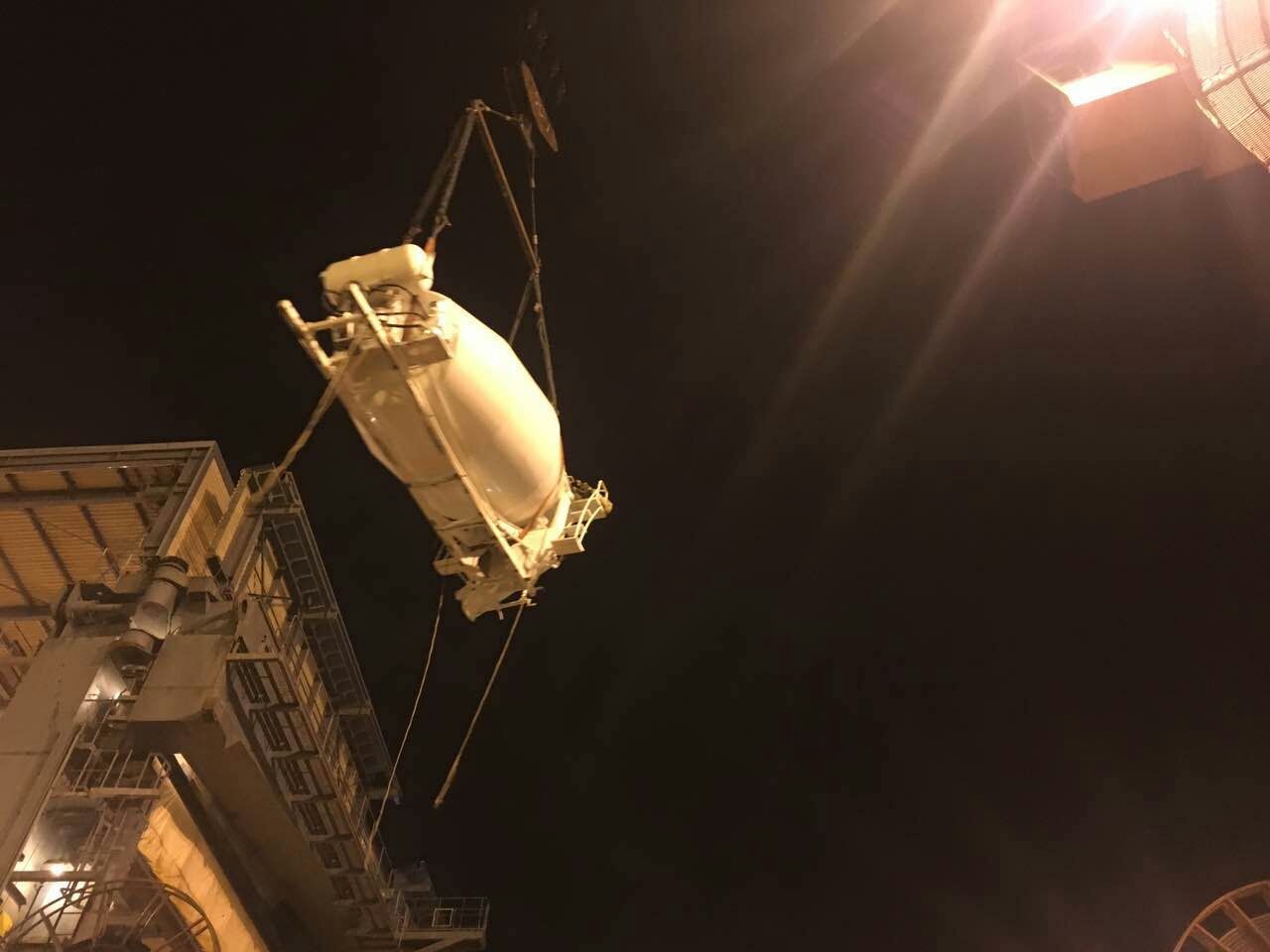

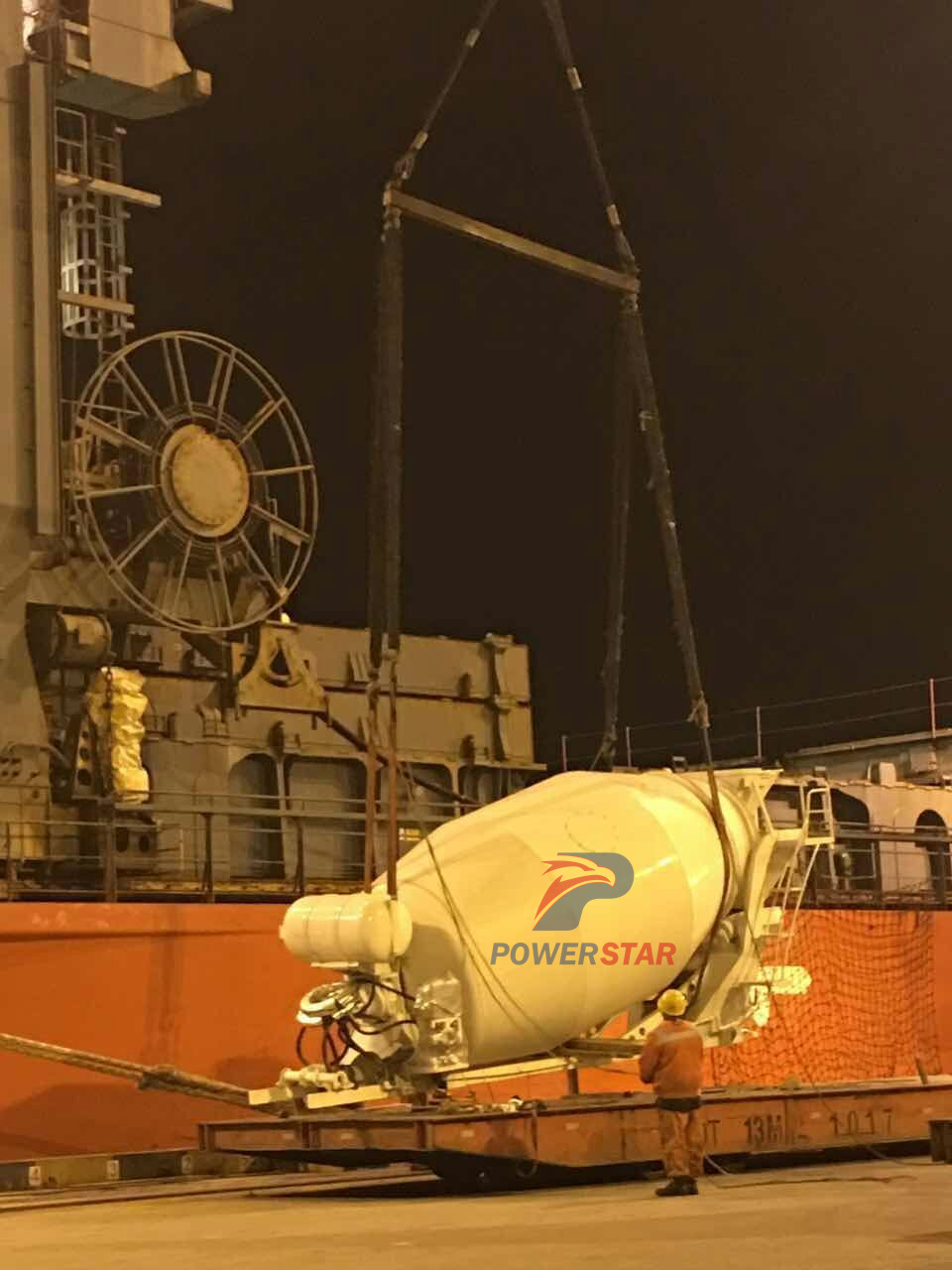

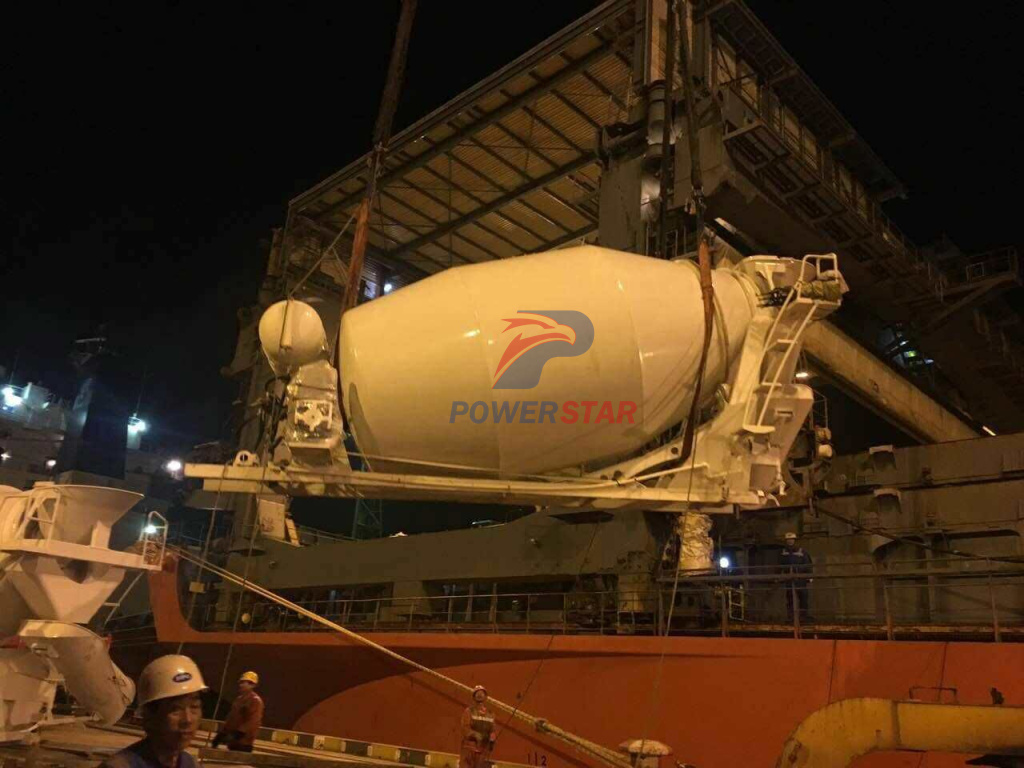

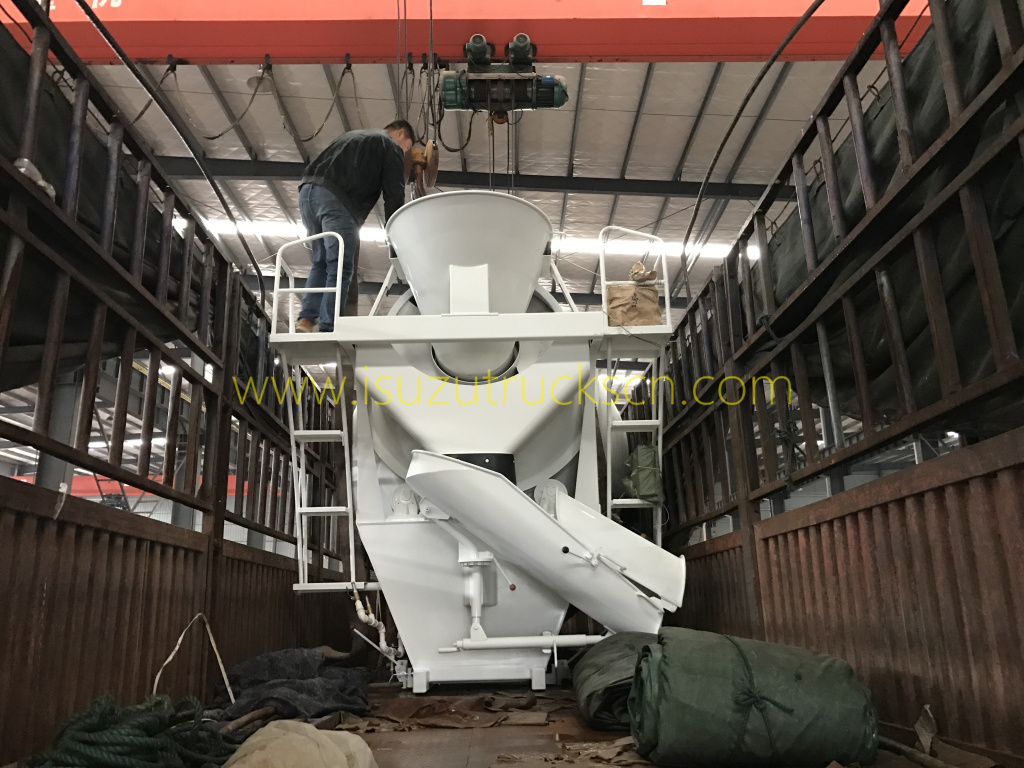

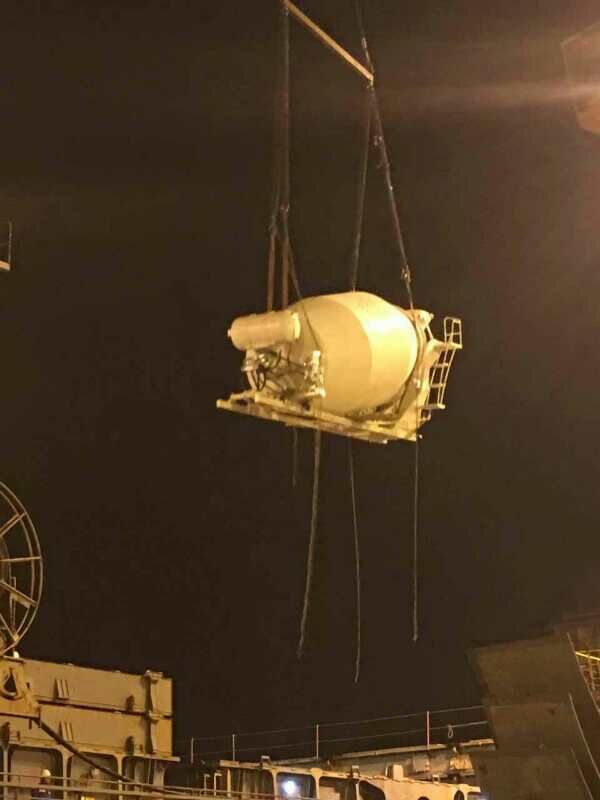

 shipment for 8m3 Concrete Mixing Drum Kit    shipment for 8m3 Concrete Mixing Drum Kit

 shipment for 8m3 Concrete Mixing Drum Kit    shipment for 8m3 Concrete Mixing Drum Kit

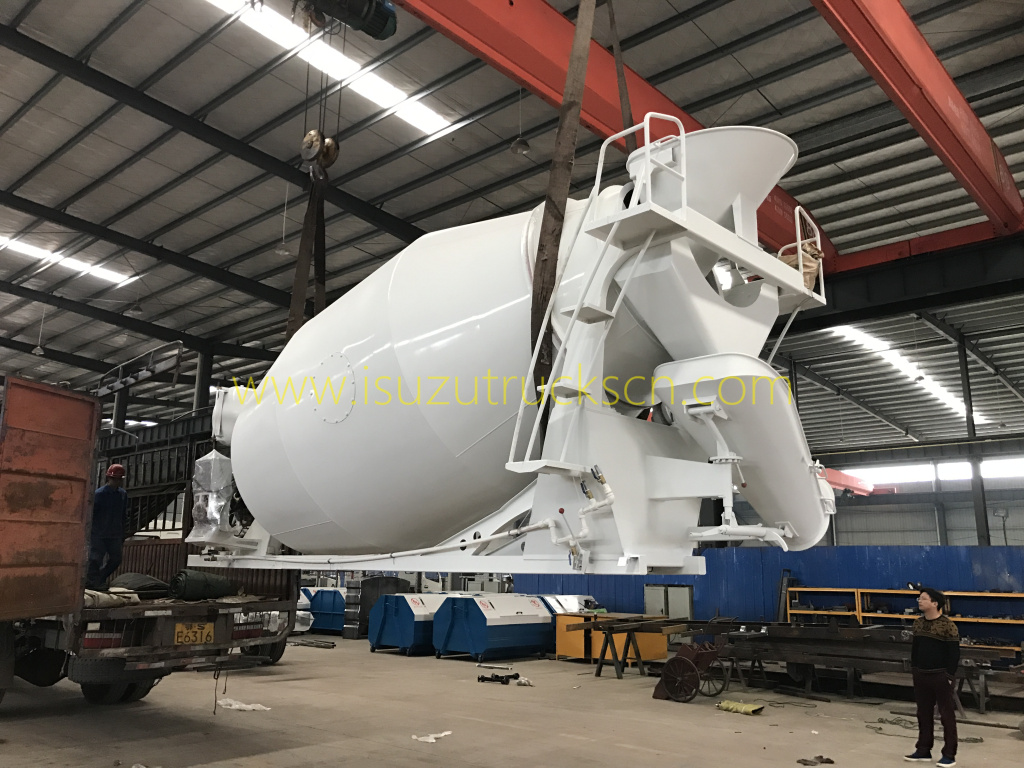

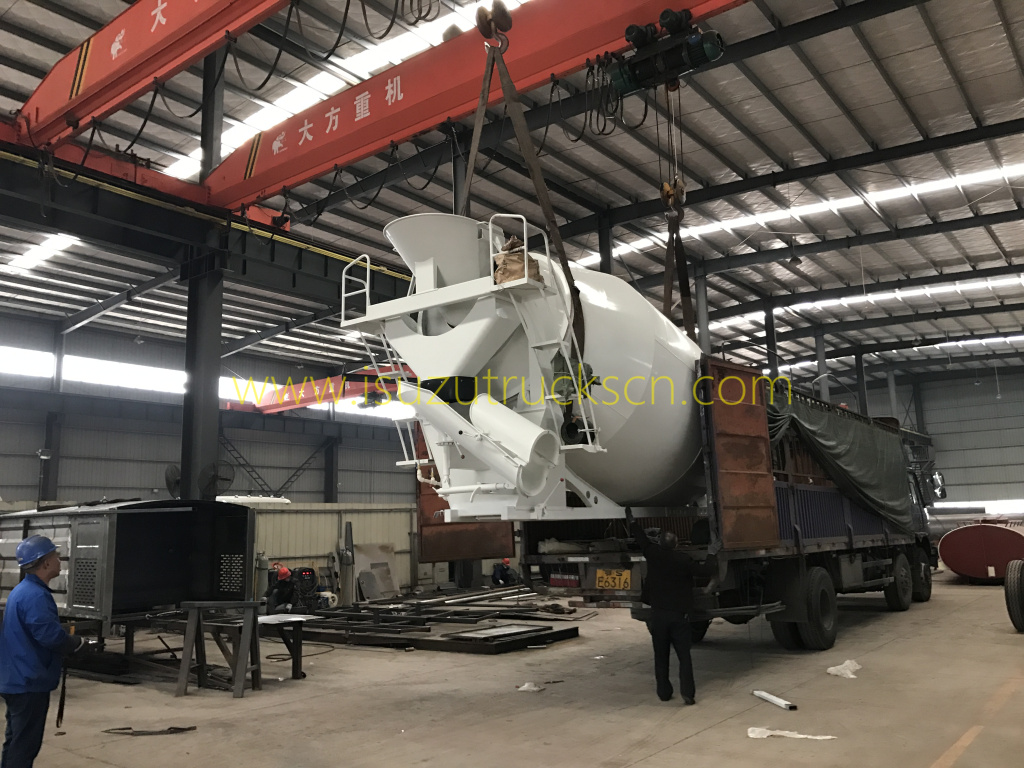

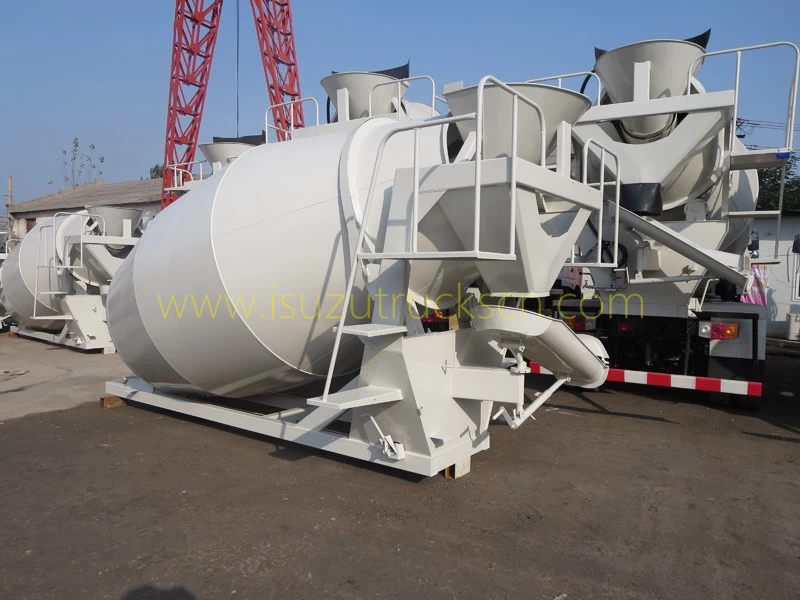

Mixer truck up structure Hydraulic transit mixer drum kit
