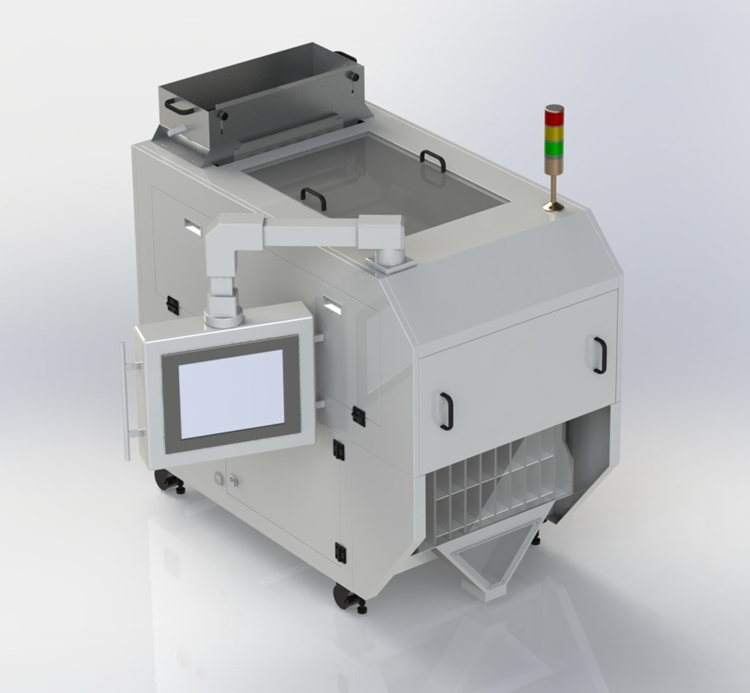

Automatic confectionery vision counting & packaging machine VX8
Confectionery vision counting & packing machine can count chewing gum,chocolate,lollipop, and other sweets for batch package by adopting high speed CCD image technology. Advantage of vision based bulk counting machine is precise and efficient to save money by eliminating the imprecision of most current weighing solutions and reducing labor force.
Working principle of confectionery vision counter machine:
High speed CCD camera scans objects that fall from vibrating chutes to obtain full projection images through optimized algorithm, machine will count number of falling objects so as to realize the batch package.
Advantage of candy Vision counting machine:
-
High efficiency: Vision based counter uses large track and scan falling objects , instead of using several narrow tracks to separate objects one by one.
-
99.99% accuracy for weight of each object is not exactly the same
-
Insensitive to dust
-
Fast changeover: One button operation for clearing to change objects
-
Self-learning software:Easy to calibrate for multiple objects counting
-
Extremely low maintenance
-
Reducing labor cost
-
Compacted design to save space
Technical characteristics and Specification:
-
High frequency CCD sensor, scanning frequency at 10,000 times per minutes,six million pixels optical lens with minimum recognition size of 0.2mm.
-
Advanced large capacity FPGA processing and control system, response time at 1 nanosecond.
-
Optimized algorithm software effectively identifies overlapping objects and micro impurity.
-
Industrial tablet computer with touch screen makes it easy to store program for different objects.
-
Intelligent alarming system for abnormal situation and shortage, screen will appear tips.
-
Patented self-learning technology can achieve to count different objects easily.
-
One button clearing function.
-
Connectable to ERP system.
-
Tailing materials collecting channel is optional.
Notes: production capacity will vary for different particle size and way of packaging.
|
Model
|
VB82-1
|
VB224-2
|
VC303-2
|
VF3-223-2
|
|
Dimension
|
Ø1.2-30 mm
|
Ø2-100 mm
|
Ø2-100 mm
|
Ø4-100 mm
|
|
Production Capacity
|
12000 pcs/minute
|
18000 pcs/minute
|
18000 pcs/minute
|
50000 pcs/minute
|
|
Vibrating chutes
|
80+20 mm
|
220+40 mm
|
300+30 mm
|
220+30 mm
|
|
CCD camera
|
scanning frequency at 10,000 times/second
|
|
Accuracy
|
0-1‰ no negative deviation
|
|
Power supply
|
AC 220±10% 50/60 HZ
|
|
Power consumption
|
0.7 KW
|
0.9 KW
|
1.5 KW
|
1.5 KW
|
|
Weight
|
70KG
|
120KG
|
225
|
500
|
|
Packing dimension
|
880*600*950mm
|
1300*660*1050mm
|
1300*720*1450mm
|
1350*1270*1300mm
|
Customized production is available based on requirement of customer.
