Constant current dali dimmable 15w led driver 300ma for led Light strip

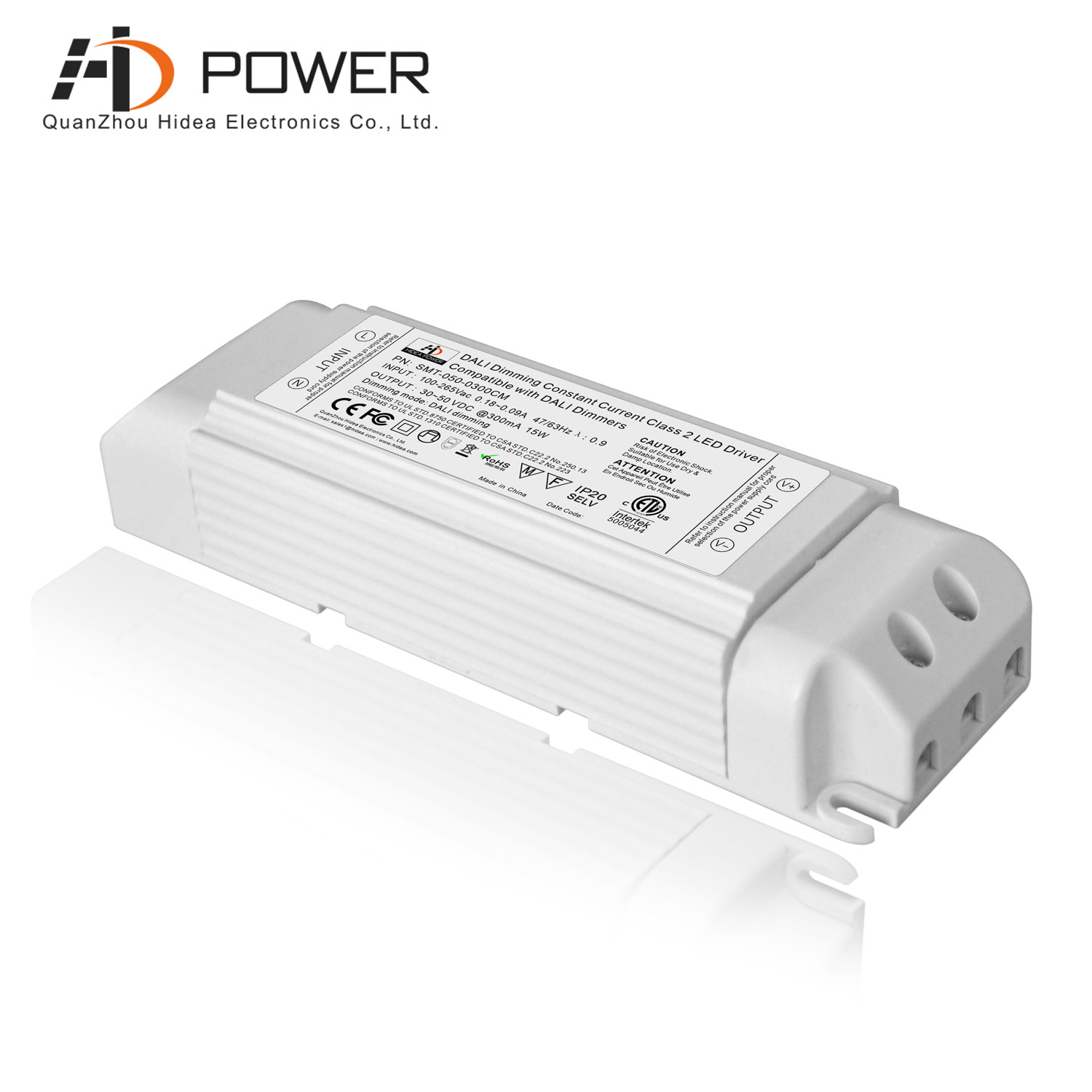

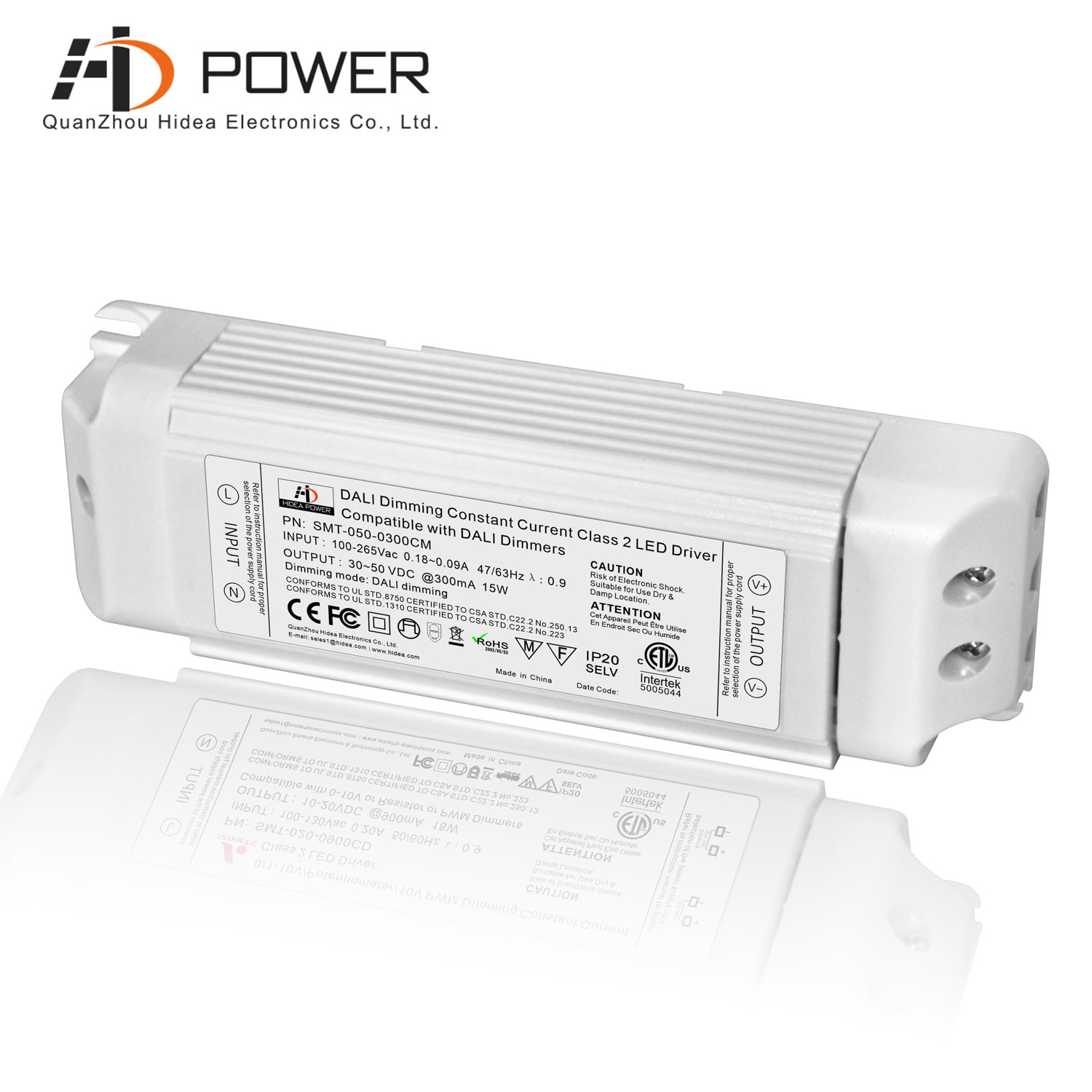

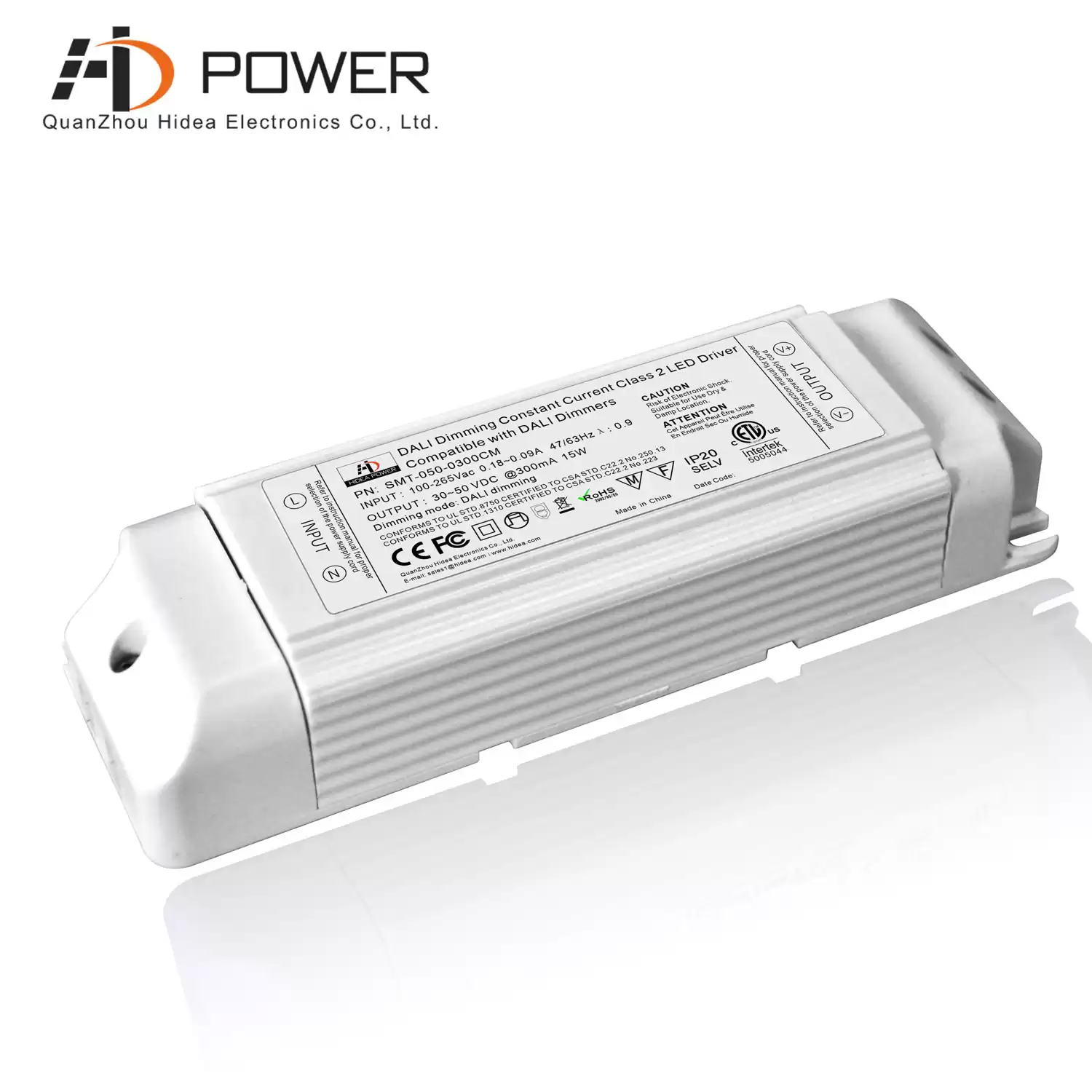

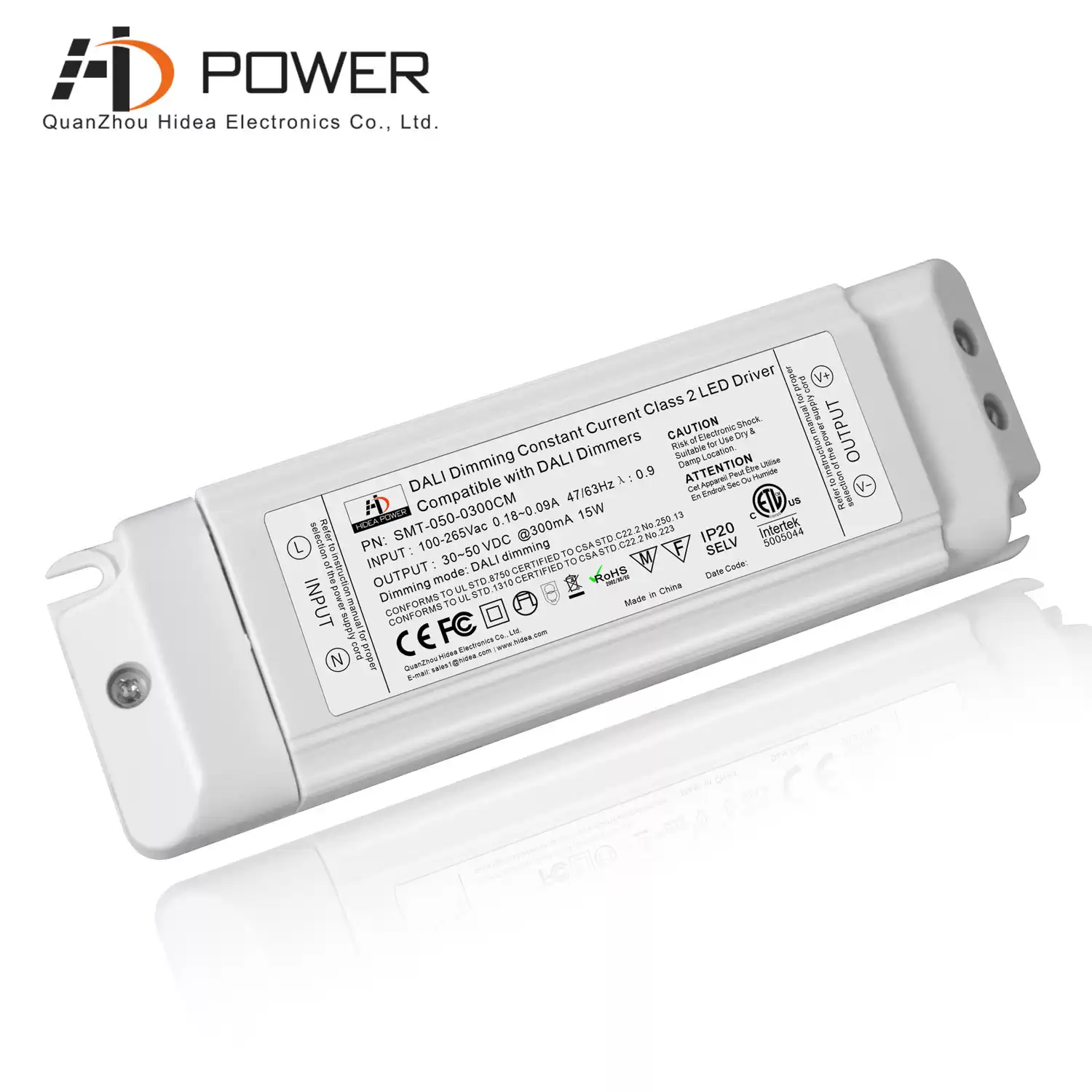

SMT-050-0300CM is 15w led driver Plastic shell, waterproof grade is ip20, suitable for installation in small indoor space
Specification
|
Model
|
SMT-050-0300CM
|
SMT-050-0350CM
|
SMT-030-0500CM
|
SMT-025-0700CM
|
SMT-020-0900CM
|
|
Output
|
DC Voltage
|
30-50V
|
35-50V
|
15-30V
|
10-25V
|
10-20V
|
|
VoltageAccuracy
|
±0.3V
|
|
Rated current
|
0~300MA
|
0~350MA
|
0~500MA
|
0~700MA
|
0~900MA
|
|
Rated power
|
15.0W
|
17.5W
|
15W
|
17.5W
|
18W
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
FrequencyRange
|
47~63HZ
|
|
Power Factor ( Typ.)
|
PF≧0.9/220V
|
|
Full Load Efficiency(Typ.)
|
>86%(110,220V)
|
>86%(110,220V)
|
>85%(110,220V)
|
>85%(110,220V)
|
>85%(110,220V)
|
|
AC Current(Typ.)
|
0.96A(110,220V)
|
0.96A(110,220V)
|
1.042A(110,220V)
|
1.031A(110,220V)
|
1.031A(110,220V)
|
|
Leakage current
|
﹤0.35mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over Current
|
≦1.4*Iout
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40~+50℃
|
|
Working Humidity
|
20~95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP20
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)
|
|
Others
|
Weight
|
0.15Kg
|
|
Size
|
140*45*28mm(L*W*H)
|
|
packing
|
324*298*188(50PCS)CTN 145*47*35 mm for inner box
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|

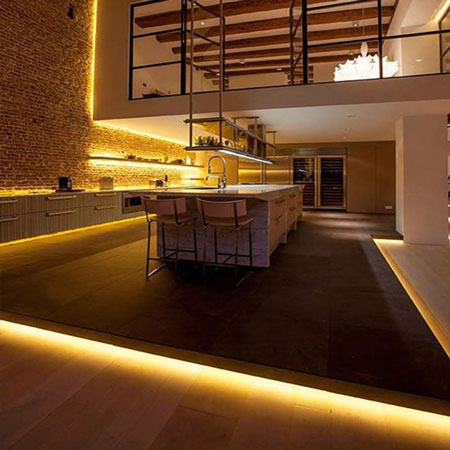

Compatible Light Type
SMT-050-0300CM led driver 300ma has passed CE, ETL certifications and has complete certificates to meet various market needs. This power supply can also be used with our company's dali series dimmers to achieve better dimming effects
