7” LCD controller with English interface
-
Inner made of SUS#304 stainless steel material
-
Meet all requirements for extreme testing and low temperature alternating
-
Working hours up to 4,320 hours testing without downtime
-
One access port (Dia.60mm)on the left side of chamber
-
USB date store and optional RS232
-
Viewing window
-
Sample holder
-
Water tank:1pc;
-
Weather cotton for humdity:1pc;
-
Castor:4pcs
|
Model
|
OLT-80B
|
OLT-150B
|
OLT-225B
|
OLT-408B
|
OLT-800B
|
OLT-1000B
|
|
Inner Size(cm)
(W x D x H)
|
40×50 ×40
|
50×60×50
|
50×75×60
|
60×85×80
|
80×100×100
|
100×100×100
|
|
Outer Size(cm)
(W x D x H)
|
70x95x150
|
105x110x170
|
105x120x185
|
115x140x195
|
155x140x210
|
155x160x210
|
|
Weight(kg)
|
160kg
|
220kg
|
300kg
|
550kg
|
960kg
|
1100kg
|
|
Standard parameter
|
Temp.control method
|
PID temperature humdity balance control
|
|
Temp.Range
|
ModelA:0℃ ~150℃ Model B:-20℃ ~150℃;
Model C:-40℃ ~150℃ Model D:-70℃ ~150℃
|
|
Humid.Range
|
20%~98%RH
|
|
Temp.Uniformity
|
±2℃
|
|
Temp.Fluctuation
|
±0.5℃
|
|
Humid.Uniformity
|
±3%R·H
|
|
Heating Rate
|
≥3℃/min
|
|
Cooling Rate
|
≥1~1.5℃/min
|
|
Cooling Method
|
Air cooled
|
|
Material
|
Inner
|
SUS# 304 stainless steel 1.2mm
|
|
Outer
|
Cold-roll steel sheet with Electrostatic coating or SUS# 304 stainless steel
|
|
Insulation
|
Ultra-fine glass fiber insulation cotton / rigid polyurethane foam
|
|
Configuration
|
Heater
|
Ceramic heater
|
|
Humidifier
|
Stainless steel armour humidifier
|
|
Cooling
|
Mechnical single stage refrigeration
|
|
Compressor
|
Original improted French Tecumseh hermetic compressor
|
|
Other function
|
Running error ; self diagnosis ; breakdown tips ; auto-power off
|
|
Safety protection
|
Protection for compressor
|
Overload protection;overheat protection ; overpressure protection
|
|
Protection for chamber
|
dry burn alarm;water shortage alarm;electric leakage protection;
|
|
Portection for fan
|
Overload protection;phase sequence protection
|
|
Programmable
Controller
|
Brand
|
Standard TATO 7" LCD touch screen , optional Sanwon TEMI series
|
|
Language
|
Standard English interface, other language is opitonal
|
|
Resolution
|
Temperature:0.01℃;Humidity:0.1%R·H
|
|
Program capacity
|
269patterns/ 13450 segments
|
|
Running method
|
Fix mode & program mode
|

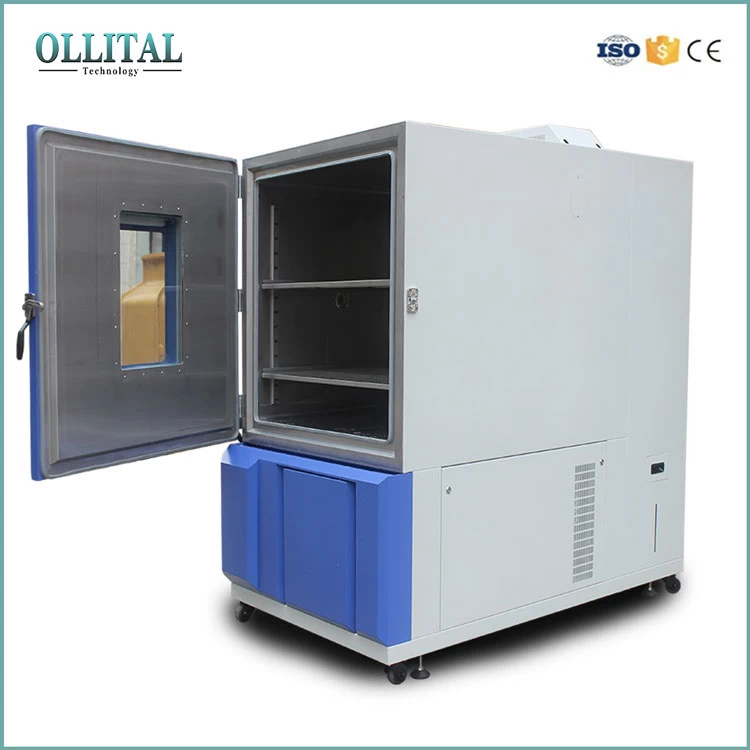

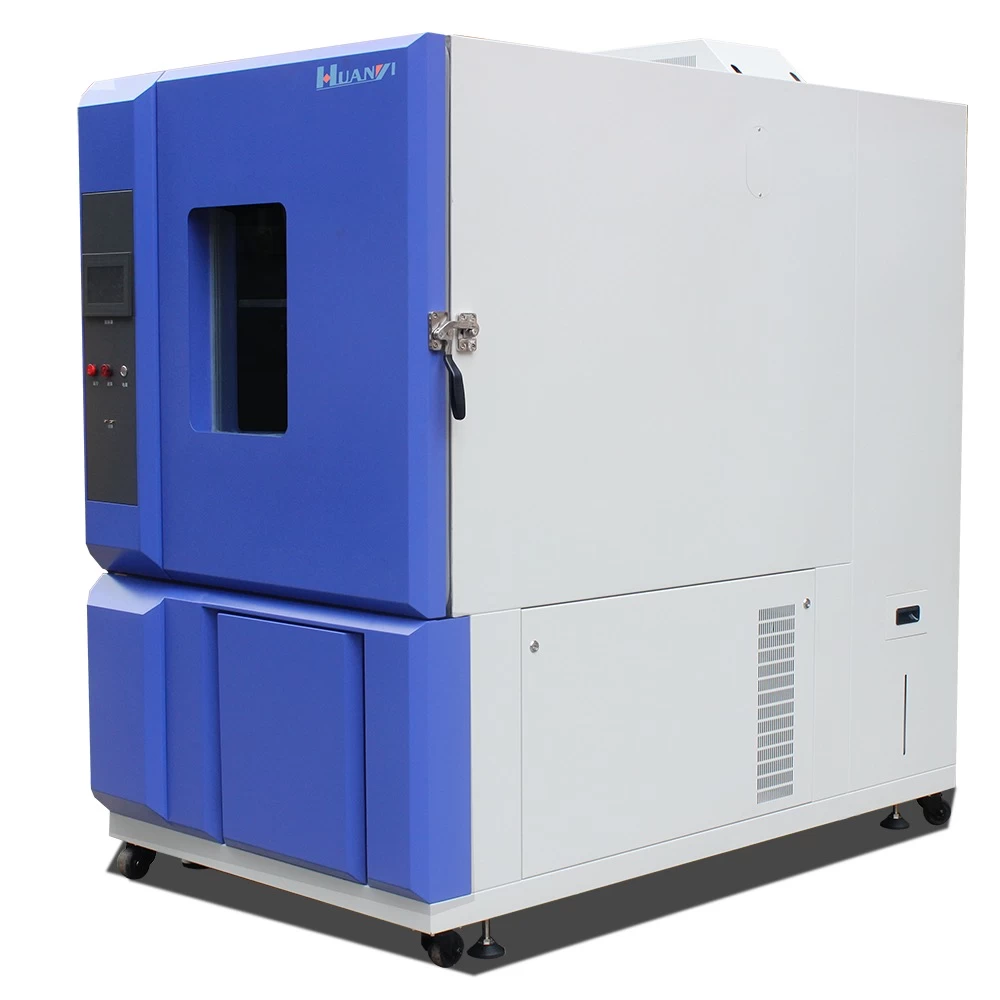

Climatic Chamber Used are widely used in testing various types of materials for their tolerances of heat, cold, dry and humidity. It is applicable for quality inspection for all types of electronic products, electric appliance, and products from communication ,instruction , automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries. Unique shape with high performance material, whether you’re testing aerospace products, electronic instrumentation, materials, electrical and electronic products and various electronic components, our High low alternating temperature. humidity test chamber can give you a perfect solution. It ables to simulate a wide range of temperature and humidity environments, that temperatures range from -20℃to +150℃,and humidity range is from 20% to 98% RH. can also offer you best solutions based on your own requirements.
1. Climatic Chamber Used evaporator does not frost when it operates at low temperature and humidity for a long time.
2. Power-saving of refrigerant requirement for automatic control system.
3. Test environment for high heat load specimens.
4. Achieve high temperature and humidity environment of 150℃ and 98%.
5.Control ability of ultra-low temperature range of -20℃ and 20%.
6. Multilingual choice: Chinese-English language switching, can also customize other language systems.
Warranty period: 1-year since from the date of acceptance.
The purchaser is in compliance with the conditions of custody, use and installation rules.We provide free parts replacement service for accessories with one year.
The following is out of warranty:
-
Natural disaster
-
Abnormal power
-
Improper use
-
Damage caused by improper maintenance
Due to the failure of the test box manufacturing quality problem, the supplier will send maintenance personnel to perform free maintenance according to the service commitment time after being notified.
On-site training can be carried out according to the contract requirements when installing and commissioning equipment for the user and putting it into use;
The user can be arranged to come to the company for on-site technical training during the factory commissioning, so that the customer can understand the performance of the equipment, train the correct use method, operation , routine maintenance, common fault detection and elimination, and reduce the malfunction caused by improper use of the equipment. Save maintenance costs for customers.
