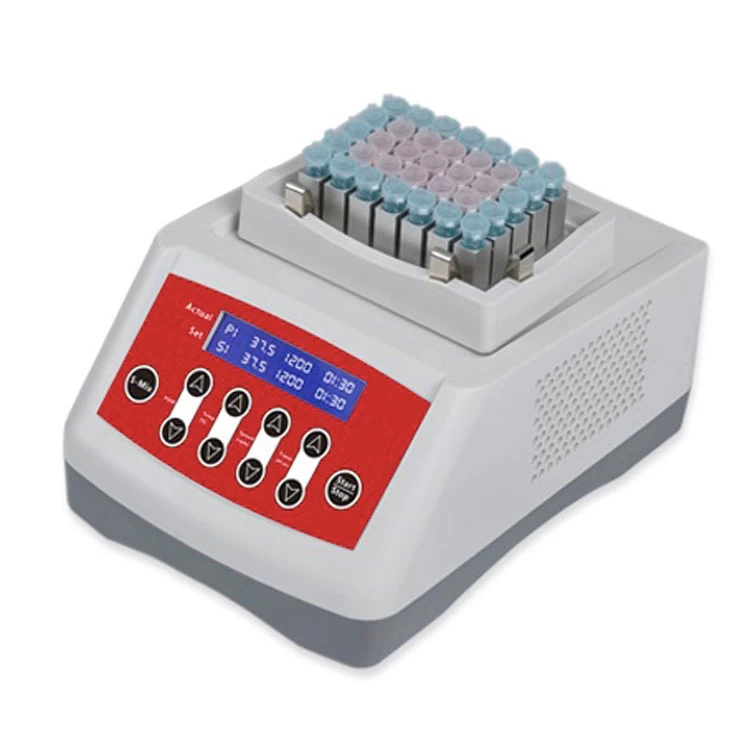

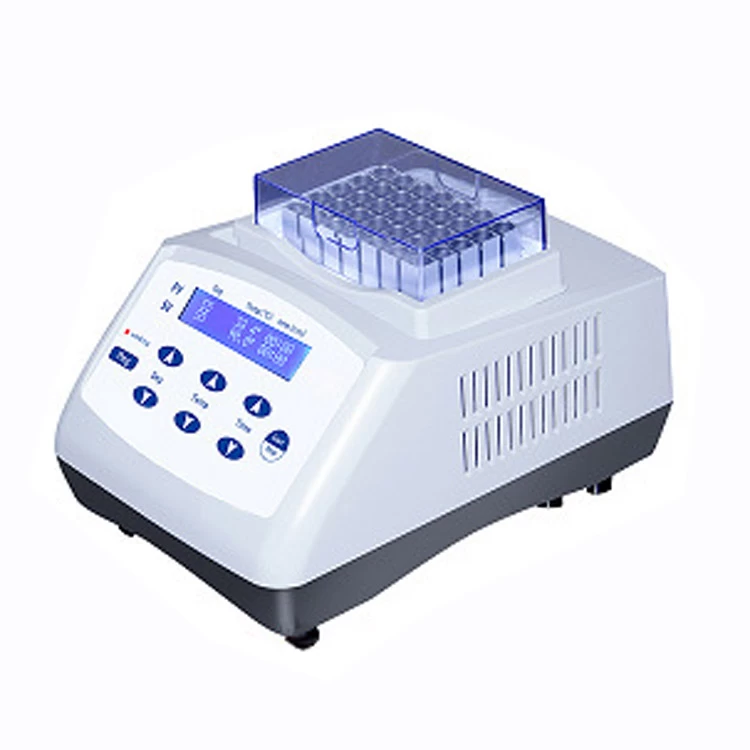

Constant temperature mixing instrument is a direct current brushless motor and PID intelligent temperature control technology combined with multi-purpose thermostatic oscillator. The integration of three functions mixed evenly, oscillation, incubation heating design concept into the intelligent operation, it can not only the mixing of various trace tube, PCR plate, deep plate and microplate etc. commonly used laboratory supplies, also has a heating incubation, for various catalytic functions, greatly shortening the experiment operation. Time. It is an ideal automation tool for the reaction process of sample incubation, catalysis, mixing and storage. The utility model has the functions of heating, oscillation, refrigeration, etc. the utility model can meet the needs of different users
> The use of metal modules, high temperature uniformity, easy replacement module；
> The instrument has the advantages of fast heating speed, uniform heating, accurate temperature control and high stability；
> The temperature control and mixing efficiency, with programmable function；
> The utility model has the function of power failure and restoration, and the instrument can automatically resume operation according to the original setting after the power is restored；
> Brushless DC motor, low noise, long life, maintenance free；
> LCD display, real-time display of current temperature, speed information；
> With the function of short oscillating point and temperature calibration；
> The oscillation speed is accurate and the fluctuation is small；
> End of the program, the alarm signal；
> The utility model can independently turn off or turn on the function of constant temperature, oscillation and timing to realize one machine with multiple functions and improve the utilization rate of equipment；
|
Model
|
OLT-CT-5
|
OLT-CT-6
|
|
Temperature range
|
RT+5 °C～100°C
|
0～100°C
|
|
Timing range
|
99h59min
|
|
Control accuracy
|
≤ ±0.3 °C
|
|
Display accuracy
|
0.1 °C
|
|
Temperature uniformity（100 °C）
|
≤ ±0.3 °C
|
|
Cooling time
|
/
|
≤25min
(down to room temperature below 20℃)
≤15min (100℃ to 20℃)
|
|
Heating time（40°C -100°C）
|
≤15 min
|
|
Oscillation amplitude and mode
|
level 3mm
|
|
Oscillating speed range
|
200-1500rpm
|
|
Module number
|
1
|
|
Outline dimension
|
260x195x150mm
|
|
Weight
|
7kg
|
|
Input power
|
150W
|
|
Power
|
220V 50Hz（Special voltage can be informed in advance to provide foreign voltage）
|
Constant temperature mixing instrument module
|
Number
|
Specifications
|
Tube number
|
Number
|
Specifications
|
Tube number
|
|
A
|
96x0.2ml
|
96
|
F
|
96x0.2ml
（ Microplate / Standard Edition）
|
96
|
|
B
|
54x0.5ml
|
54
|
G
|
5ml
|
24
|
|
C
|
35x1.5ml
|
35
|
H
|
10ml
|
15
|
|
D
|
35x2.0ml
|
35
|
I
|
15ml
|
12
|
|
E
|
15x0.5ml+20x1.5ml
|
|
J
|
50ml
|
6
|
Note: the instrument according to the host configuration module, host standard module 1, module module can be selected in the area, the standard module can be selected in A-G, modules need an extra charge, the former can contact customer service, custom modules required period, please confirm in advance!
