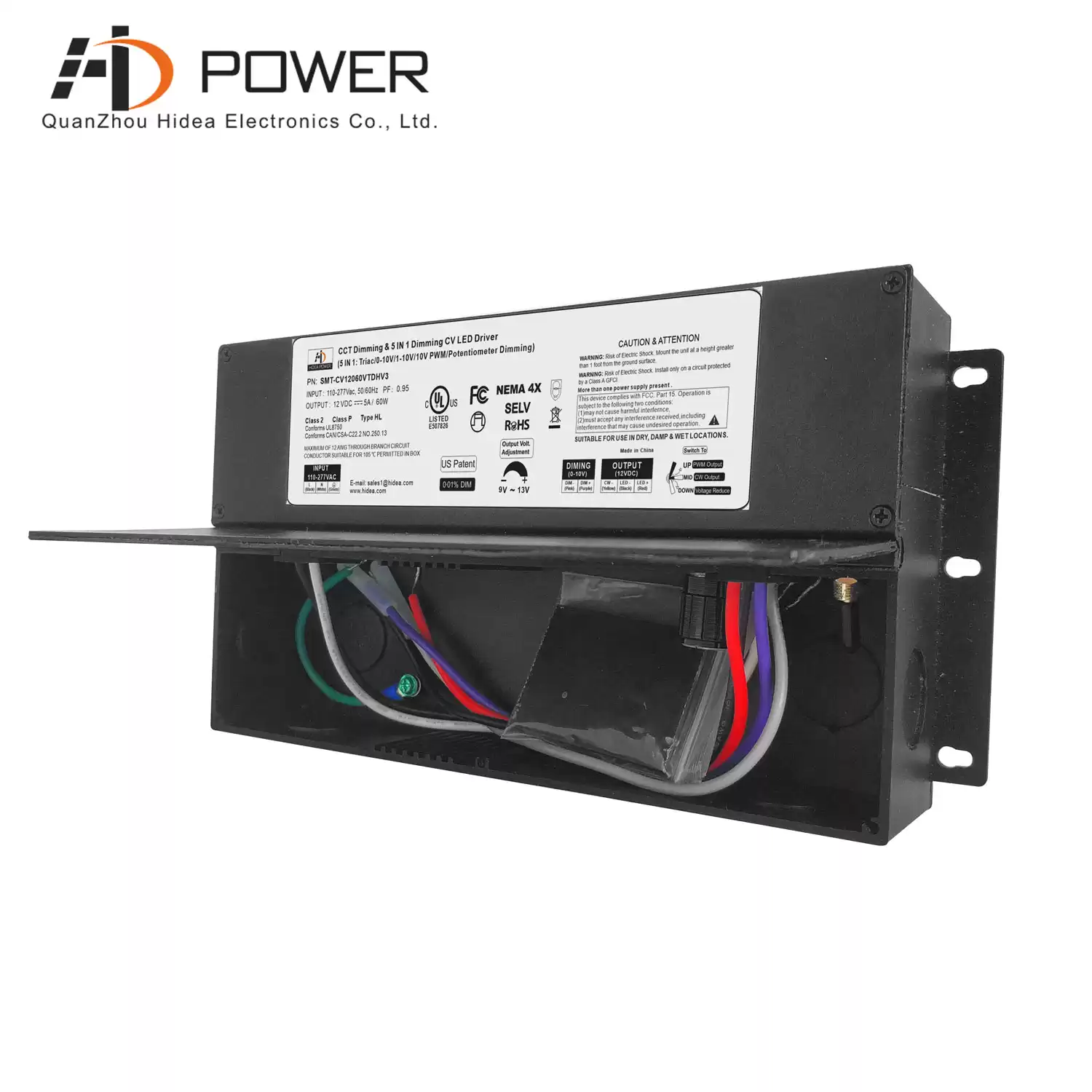

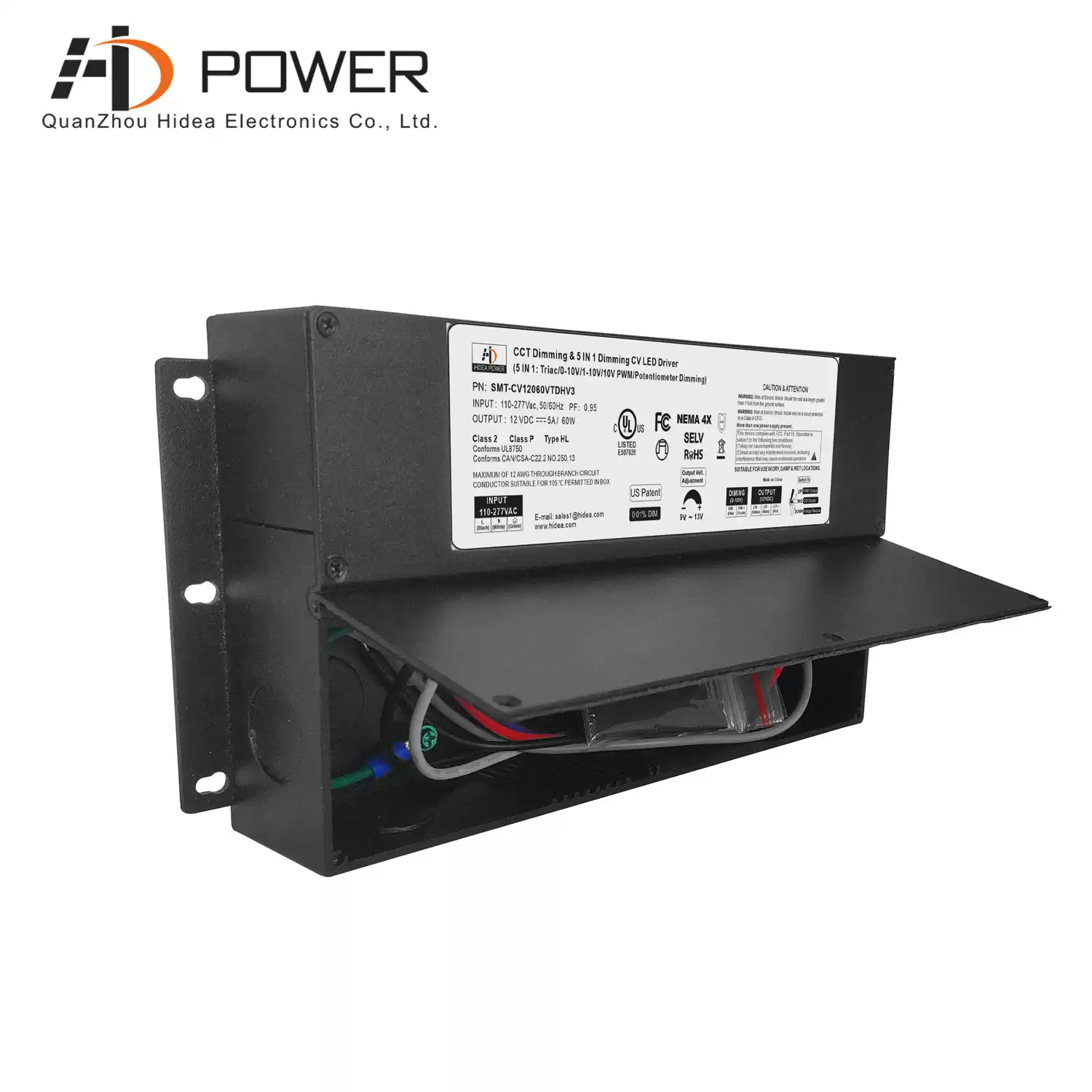

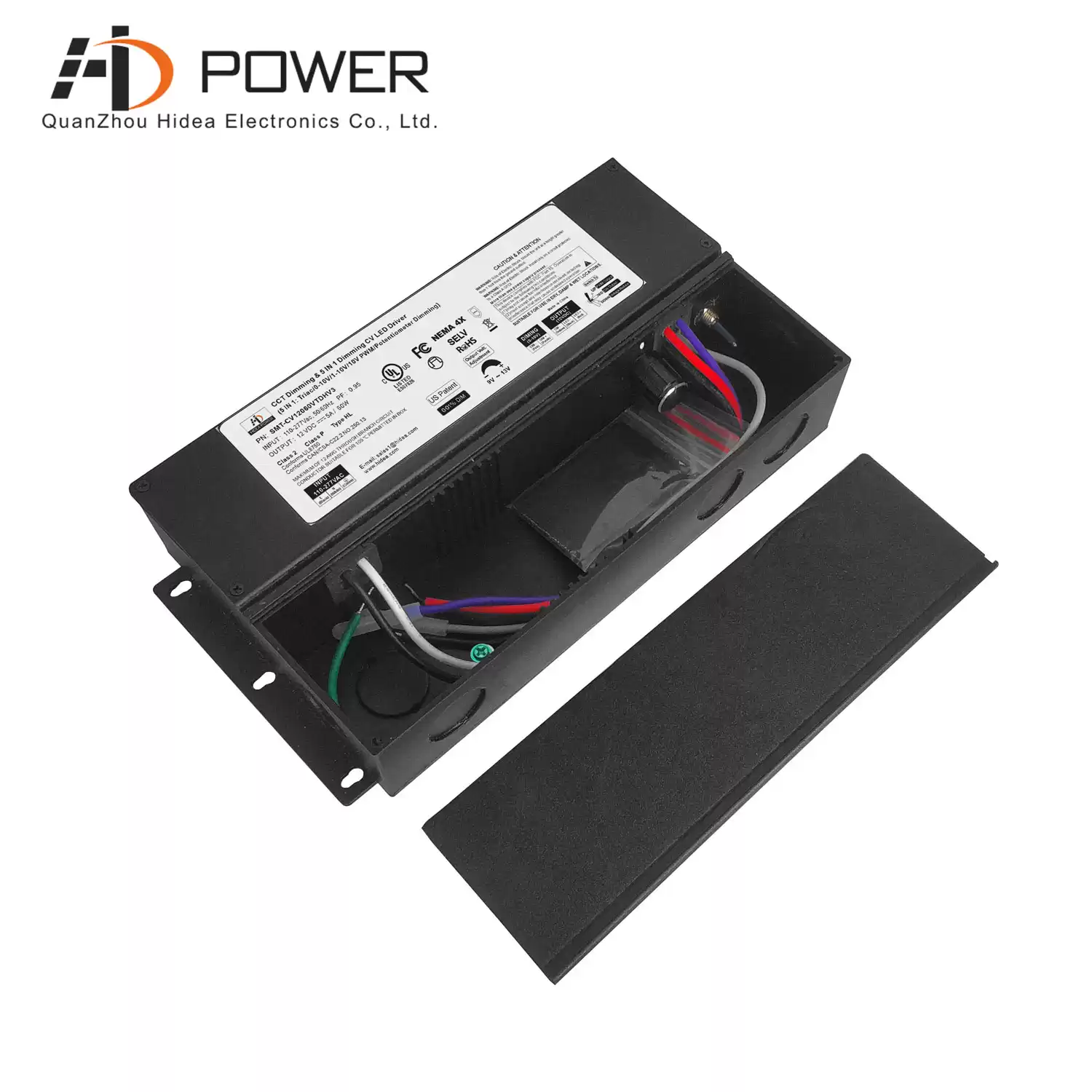

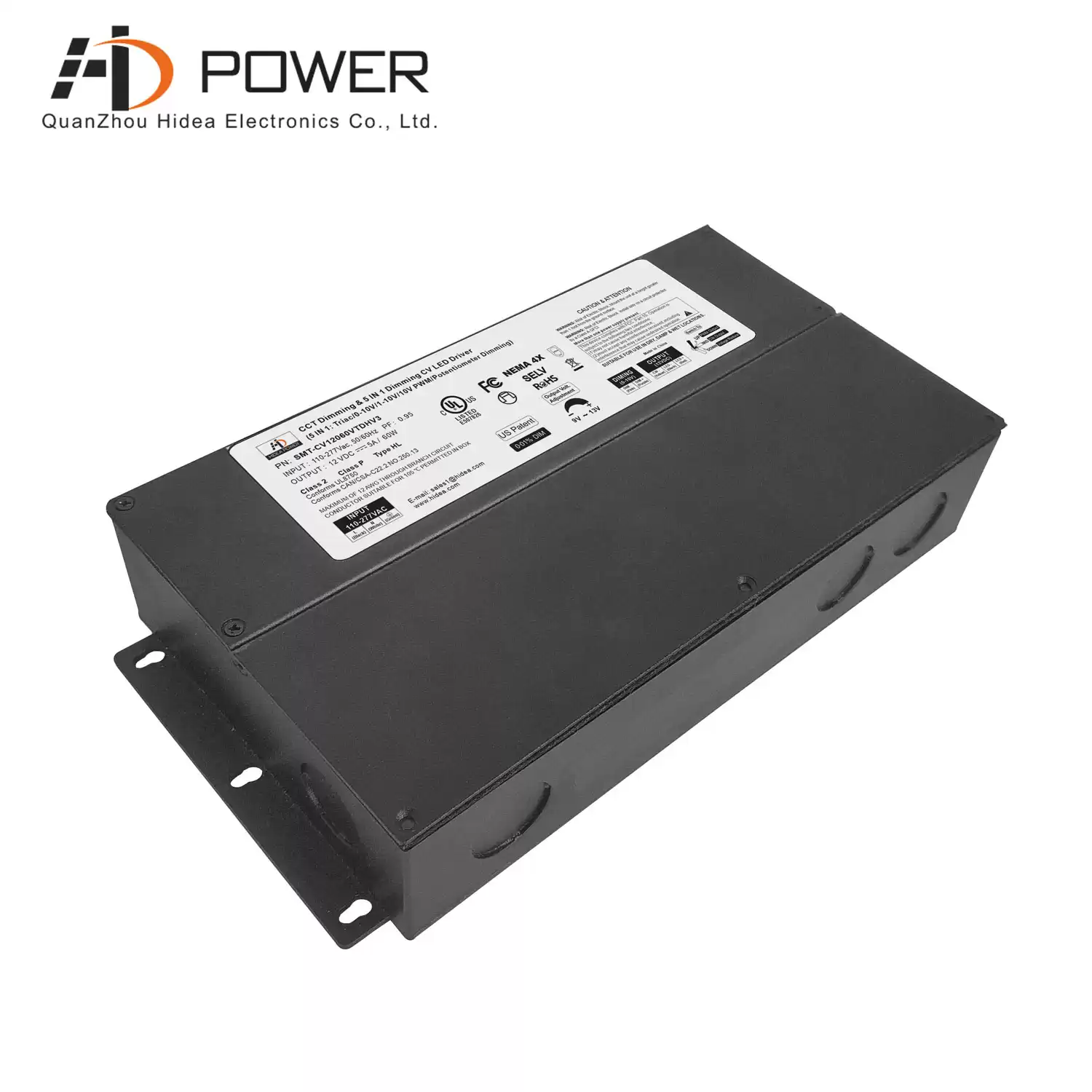

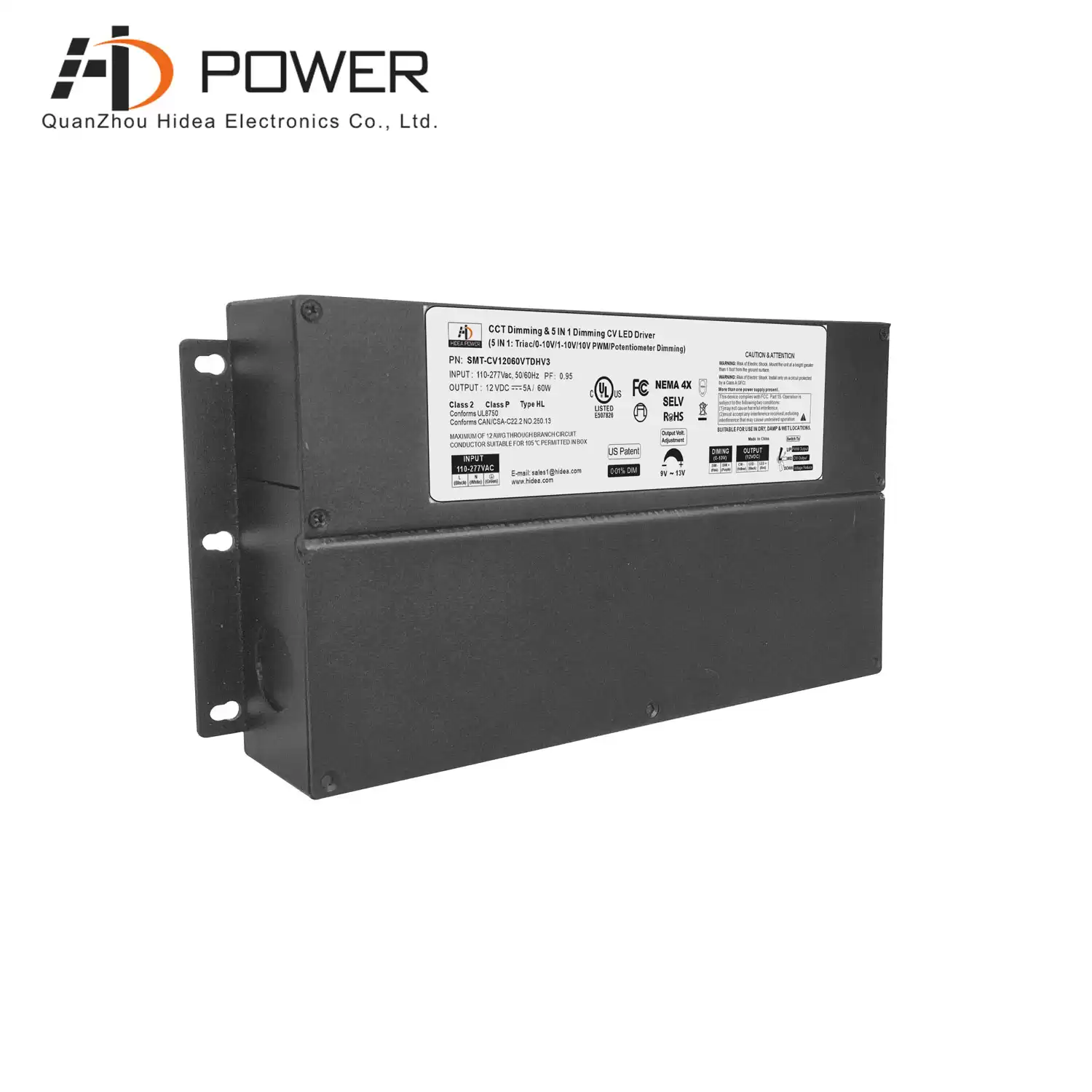

The constant voltage led driver has a dimming range
of 100%-0.01% Ultra Deep Amplitude, and Hidea power
provides it with a 7-year warranty and can fine-tune
the output voltage
|
|
Specification
|
Model Number
|
SMT-CV12060-VTDHV3
|
SMT-CV24060-VTDHV3
|
|
OUTPUT
|
|
Rated Power
|
60W
|
60W
|
|
Rated Voltage
|
12V
|
24V
|
|
Rated Current
|
5A, CW mode: 2.5A*2CH
|
2.5A, CW mode: 1.25A*2CH
|
|
Voltage Tolerance
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
|
|
INPUT
|
|
Voltage Range
|
110-277V
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(typ.)
|
0.98@120VAC 0.95@277VAC Full load
|
|
Total Harmonic Distortion
|
THD< 20%@120VC/277VAC;
|
|
Efficiency(Typ.)
|
83%@120VAC 84%@277VAC
|
84% @ 120VAC 85% @277VAC
|
|
AC Current(Typ.)
|
0.9A
|
|
Inrush Current(Typ.)
|
27A, 50%, 700us @120VAC; 15A, 50% , 550us @277VAC
|
|
Leakage Current
|
<0.5mA/ 120VAC
|
|
PROTECTION
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Load
|
≤120% shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Temperate
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
ENVIRONMENT
|
|
Working Temp.
|
Tcase=-40 ~ +60 ℃
|
|
Max. Case Temp.
|
Tcase=+90℃
|
|
Working humidity
|
20 ~ 95% RH non-condensing
|
|
Storage temp., Humidity
|
-40 ~ +90, 10 ~ 95% RH
|
|
Temp .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
SAFETY & EMC
|
|
Safety standards
|
UL8750, CSAC22.2 No. 250.0-08
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
|
|
EMC Emission
|
Compliance to FCC part 15 Subpart B
|
|
OTHERS
|
|
Dimension
|
226.5x117.5x42.5mm (L*W*H) N.W: 1kg
|
|
Packing
|
10pcs/CTN G.W:11.2KG SIZE:275*255*250mm
|
Compatible Light Type
This dimming power supply has built-in active PFC, typical power factor>0.95, THD<10%@120V Max, and also has short circuit, over temperature and overload protection. Can well protect the life of lamps and lanterns
Related Products
|

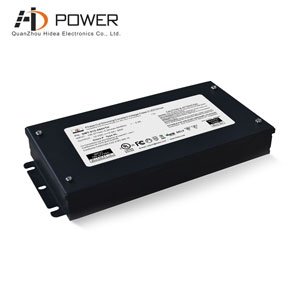

 constant voltage 60w triac dimmable led driver integrated in tin box
