constant voltage transformer 12v 36w triac dimmable led power supply

36w triac dimmable led driver; high stability dimmable driver; constant voltage transformer

Facebook Twitter Pinterest LinkedIn 分享

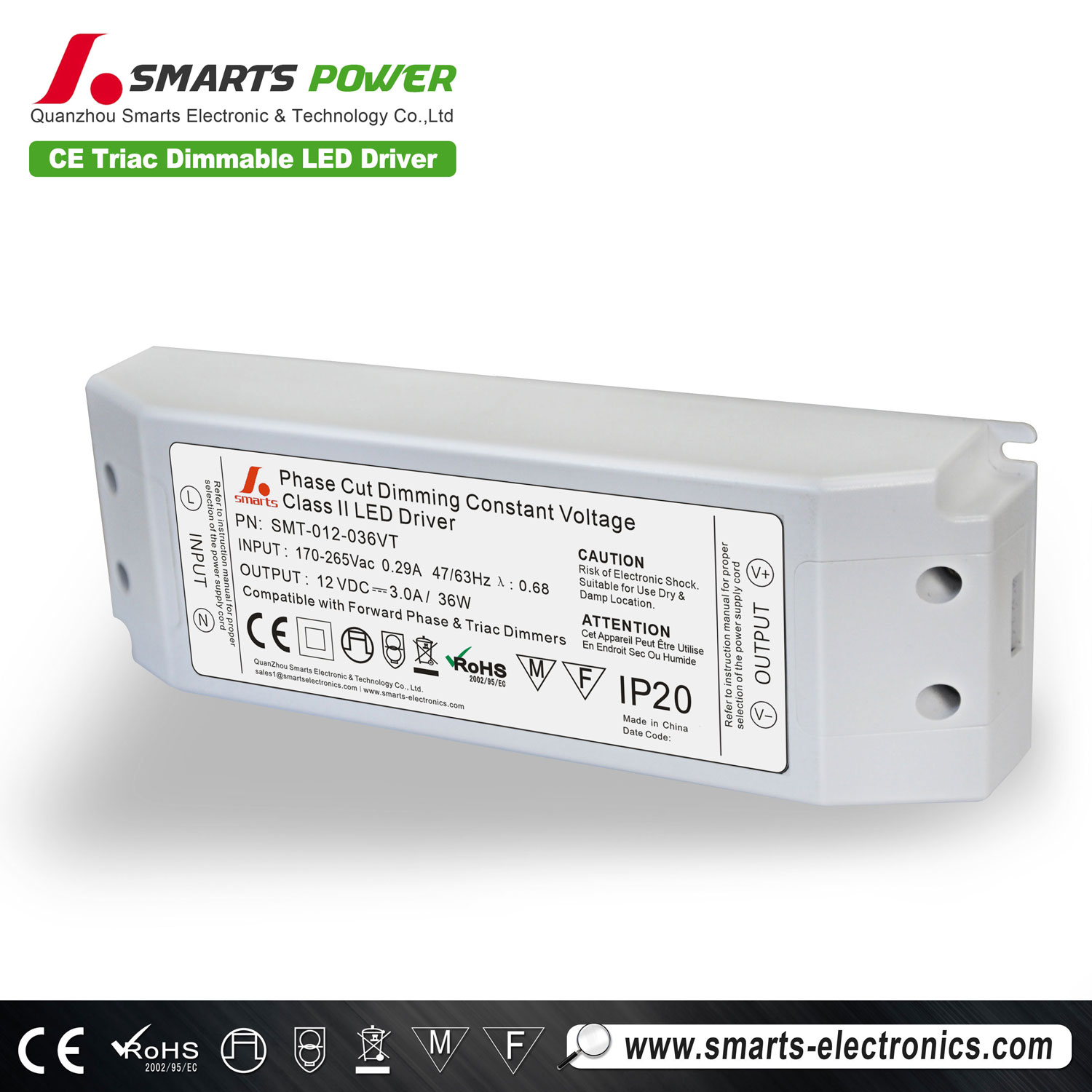

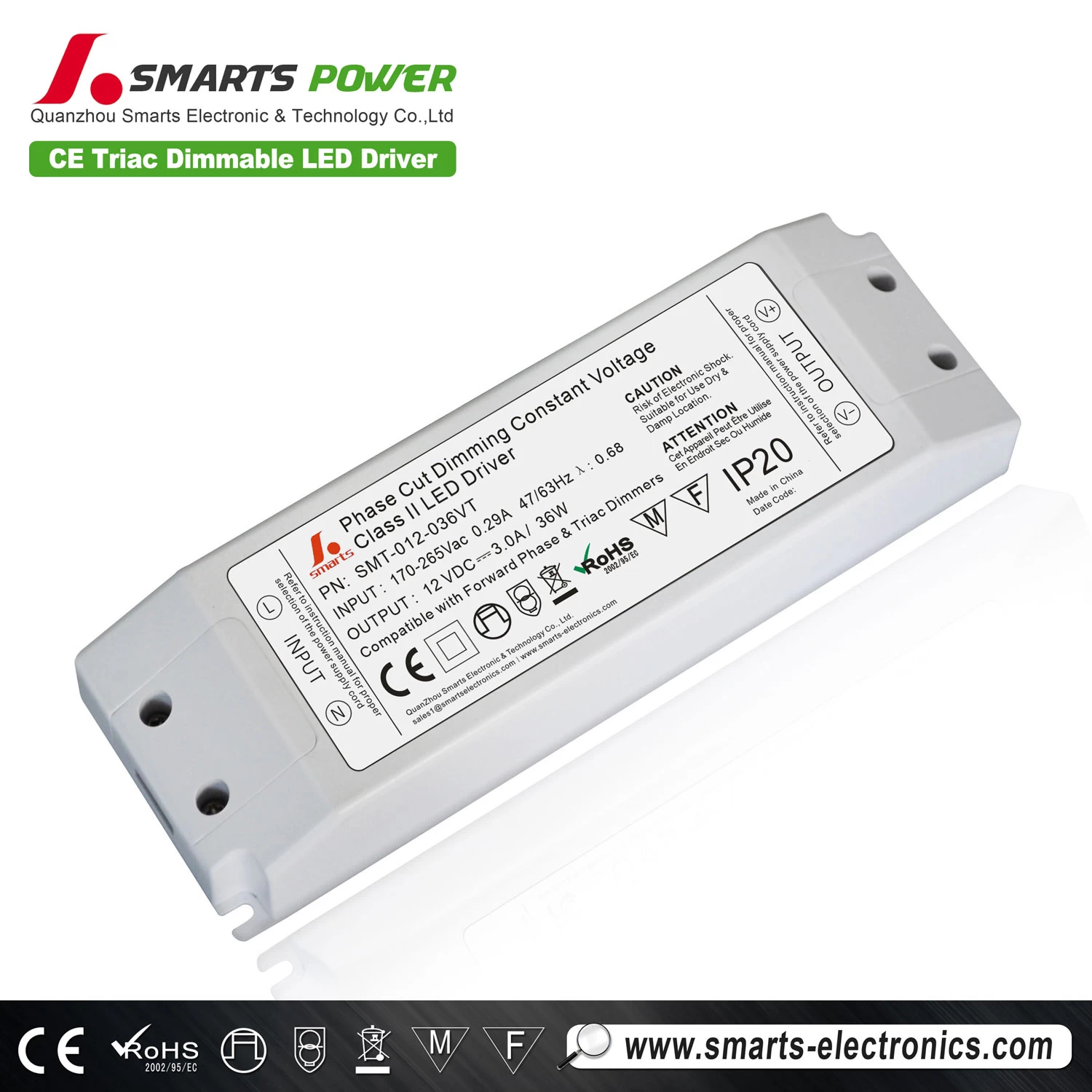

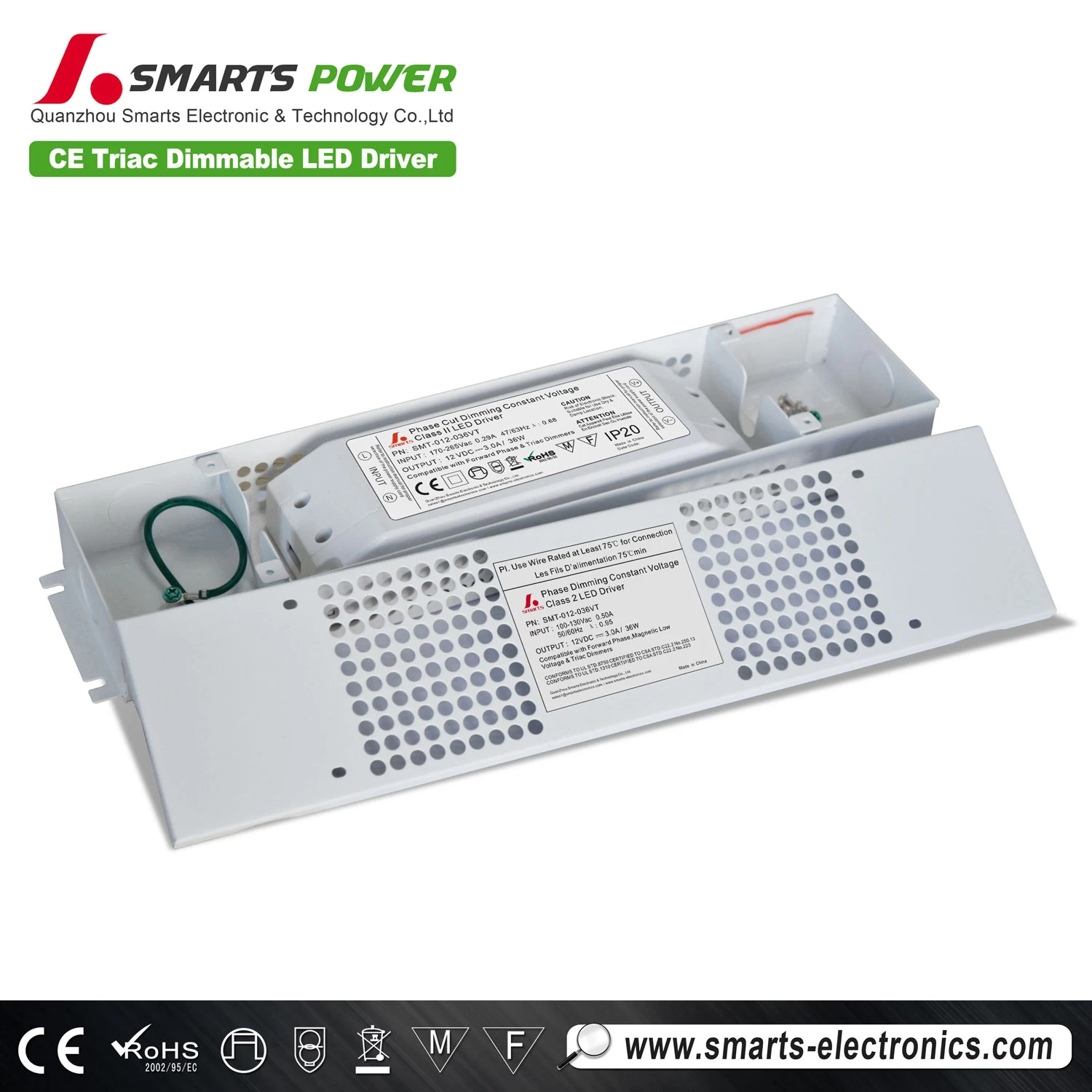

2220v AC to 12v DC 36w single output constant voltage triac dimmable LED driver

Product Description

Product parameters:

        Item No.

Input voltage(vAC)

Working Frequency
(Hz)

Output voltage
(vDC)

Output Current

power(Watt)

Working Temp.

IP rate

SMT-012-036VT

90-135vAC

170-265vAC

47~63Hz

12V

3A

36W

-25~50°C

IP40

SMT-024-036VT

90-135vAC

170-265vAC

47~63Hz

24V

1.5A

36W

-25~50°C

IP40



Specifications:

  • working mode: constant voltage
  • dimming mode: traic dimmable
  • Case material: plastic housing
  • Waterproof rate:  IP40
  • produt cord:connecting terminal(IP20) / 18AWG*20CM
  • 3 years warranty
  • (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Protections:Short circuit/Overload/Over temperature
  • Cooling by free air convection
  • 100% full load burn-in test.
  • Suitable for LED lighting

Safety :

  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC



Application:

  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

220v AC to 12v DC 36w single output constant voltage triac dimmable LED driver
