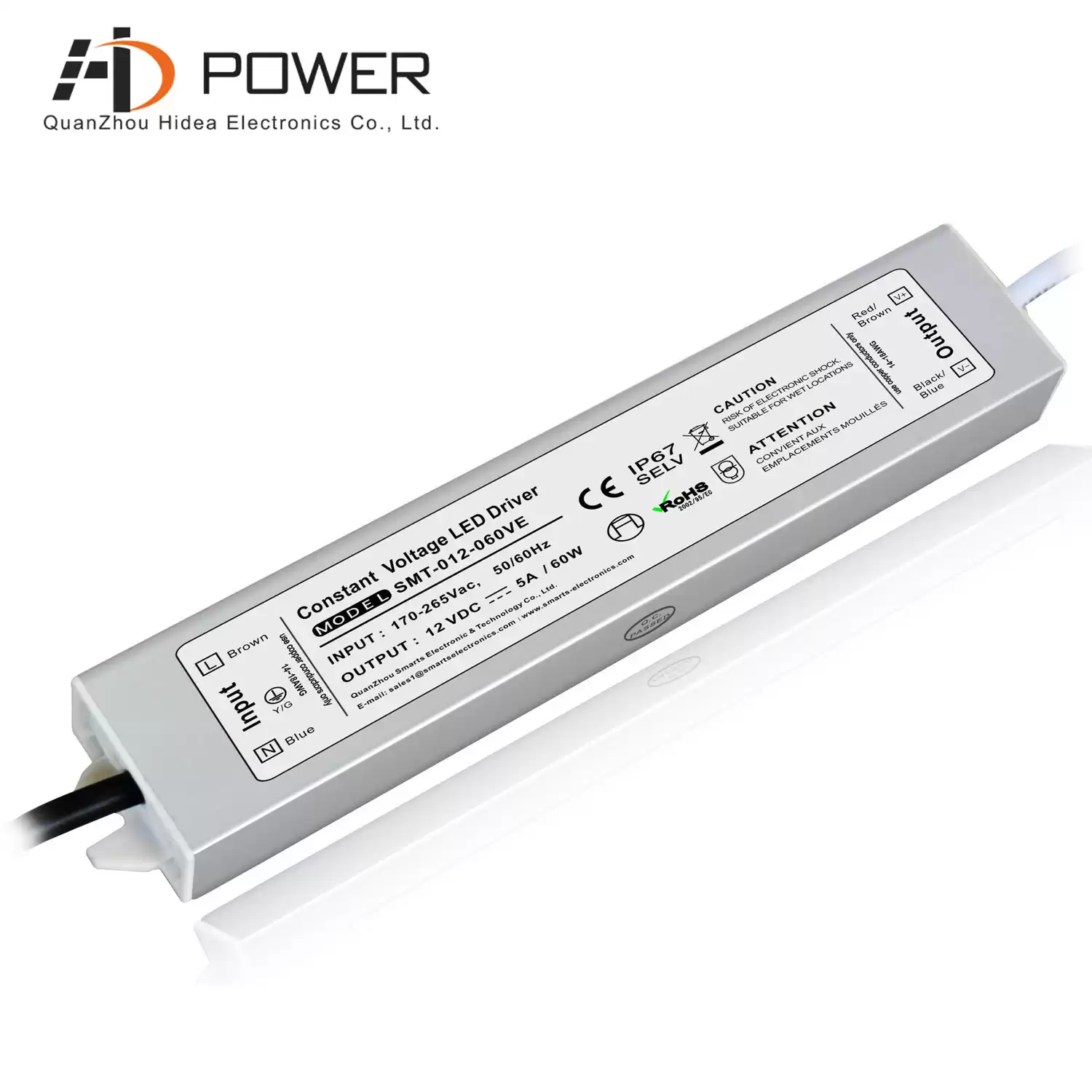

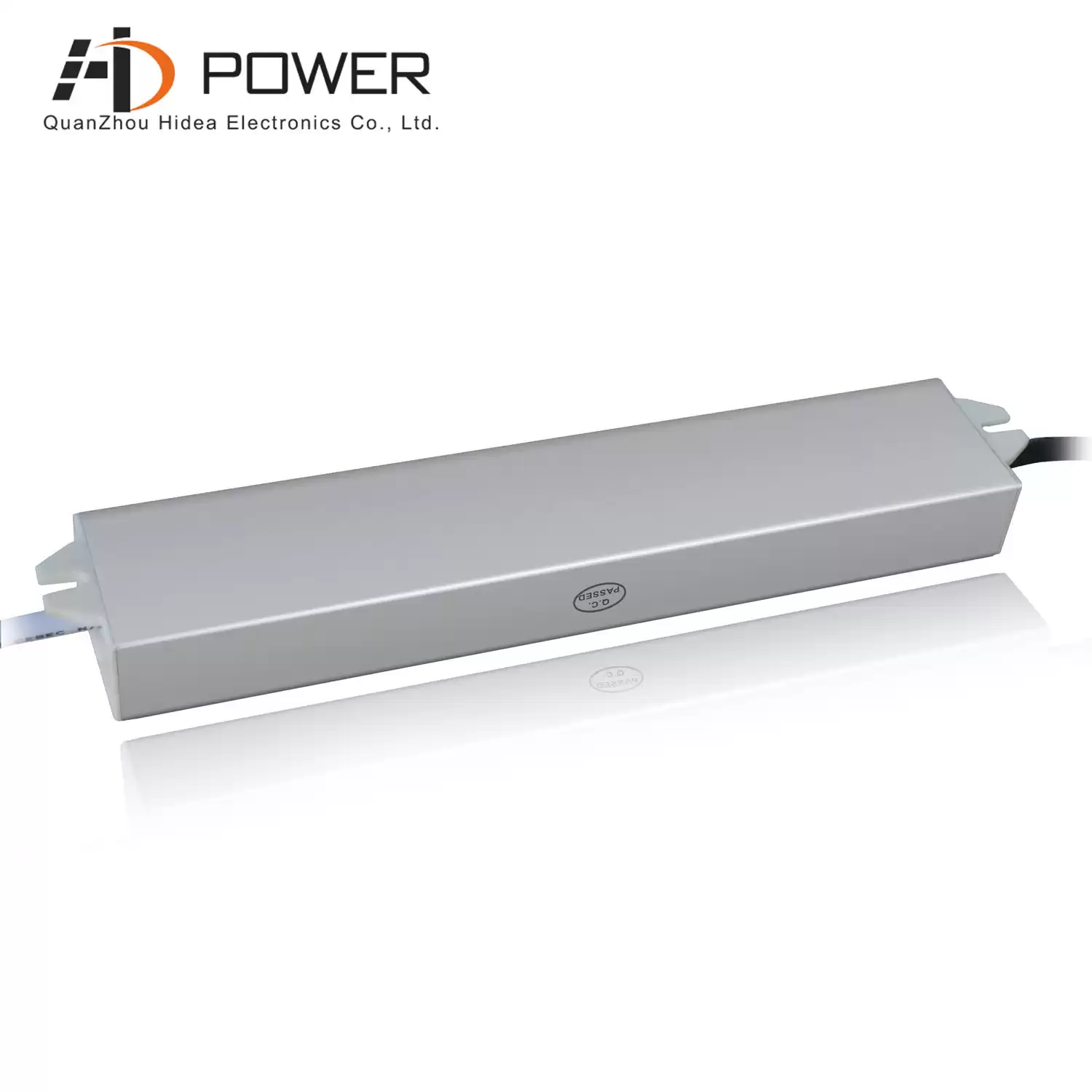

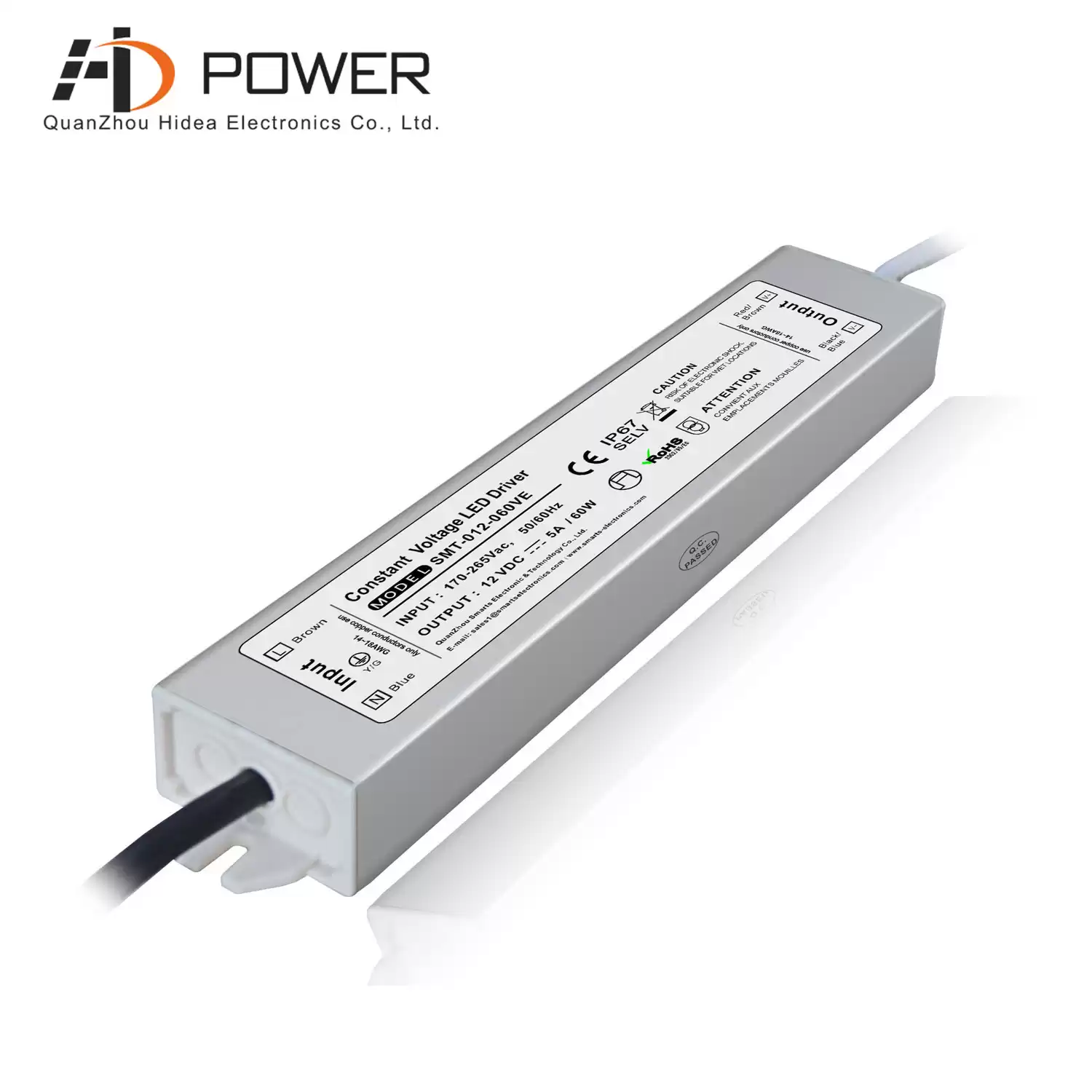

constant voltage waterproof 12v dc led power supply ip67 led transformer 60w
It is suitable for 60W Non-Dimmable Led Driver, which is suitable for constant voltage lamps, passed 100 % full load combustion test, 2 years of warranty, which can provide long-term protection for lamps with lamps.
Specification
|
MODEL
|
SMT-012-060VE
|

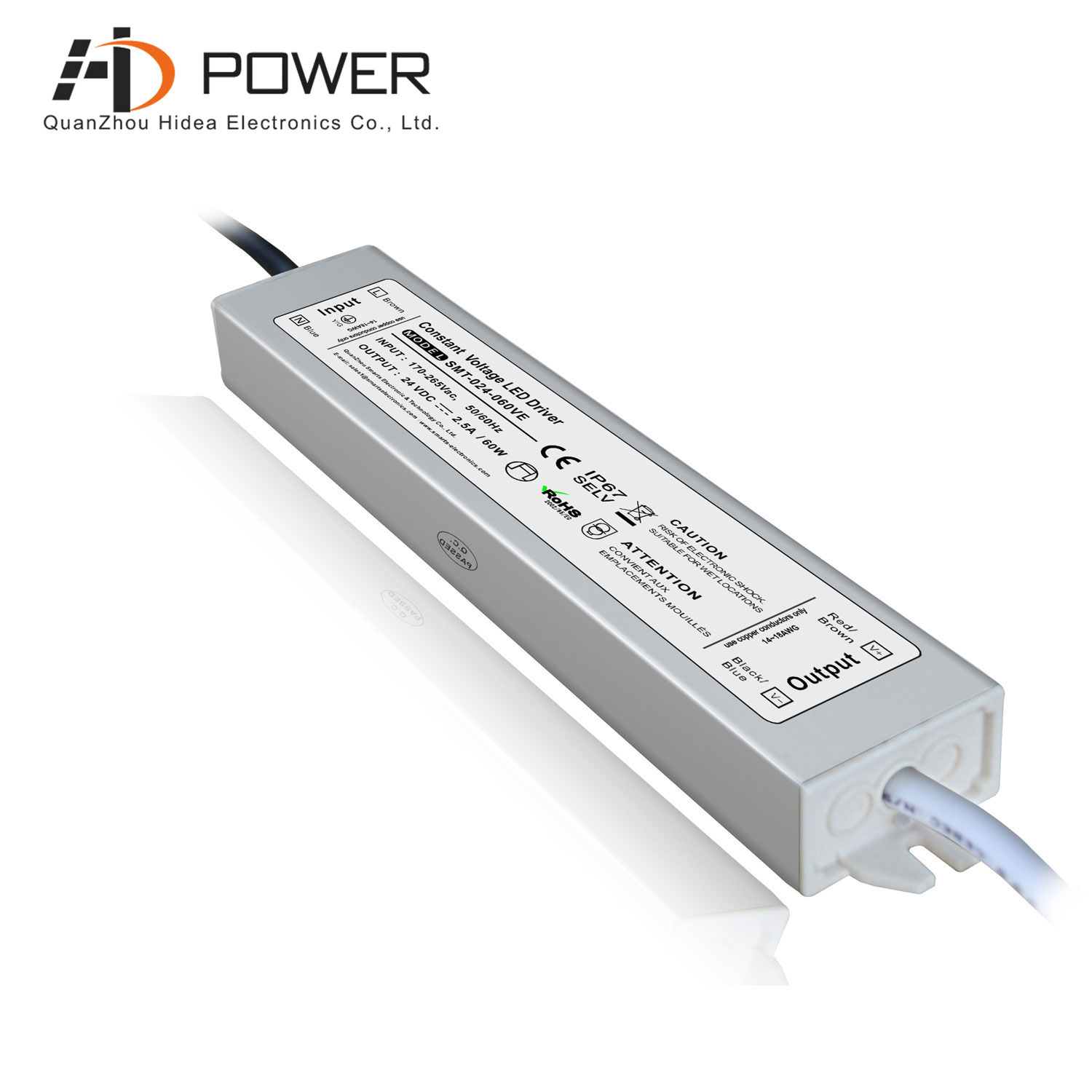

SMT-024-060VE
|
|
OUTPUT
|
DC VOLTAGE
|
12V
|
24V
|
|
RATED CURRENT
|
5.0A
|
2.5A
|
|
CURRENT RANGE
|
0-5.0A
|
0-2.5A
|
|
RATED POWER
|
60W
|
60W
|
|
RIPPLE&NOISE(max)
|
<400mV
|
|
VOLTAGE TOLERANCE
|
±0.5V
|
|
INPUT
|
VOLTAGE RANGE
|
170-265VAC
|
|
FREQUENCY RANGE
|
47-63Hz
|
|
POWER FACTOR(Typ.)
|
no PFC
|
|
EFFICIENCY(Typ.)
|
》86%
|
|
AC CURRENT(Typ.)
|
0.45A/220VAC
|
|
PROTECTION
|
Short circuit
|
Hiccpe mode,recovers automatically after condition is removed
|
|
Overload
|
5.55A
|
3.0A
|
|
ENVIRONMENT
|
WORKING TEMP.
|
-30~+50℃ (Refer to output load derating curve)
|
|
INGRESS PROTECTION
|
IP67 design for indoor or outdoor installations
|
|
STORAGE TEMP
|
-40~+80℃
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN61347-1;EN61347-2-13;SELV;IP67 approved
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
|
|
EMC Test Standards
|
|
|
NOTE
|
1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
|
|
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
|
|
3.Tolerance:includes set up tolerance,line regulation and load regulation.
|

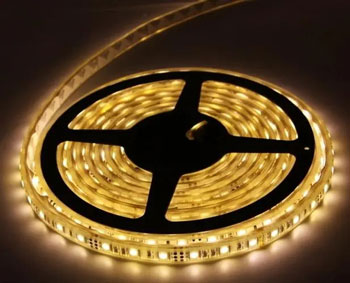

Compatible Low Voltage Device Type
Hidea Power hot-selling product 60W 12V constant voltage LED DRIVER IP67 waterproof design, CE authentication input voltage is 100-265VAC, suitable for indoor and outdoor lighting projects in Europe
Related Products
|

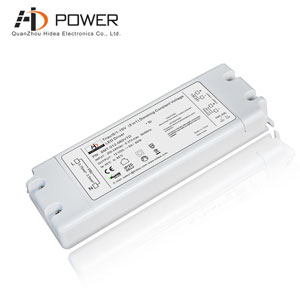

5 in 1 Dimmable led driver 12V 60W Plastic Shell Small size, suitable for installation in indoor stenosis
