Tools used in 3D panel building systems


Haosen offer not only EPS 3D panel production line, but also raw material -good quality galvanized wire, construction tools ,those are used in 3D panel building sytem. One -stop service to guarantee time-saving and cost saving.



These tools includes mortar sprayer, C-ring gun, mesh cutter, EPS hot knife cutter etc.We have regular orders and  become the agent of these tools, of course good quality and good price can be guaranteed!

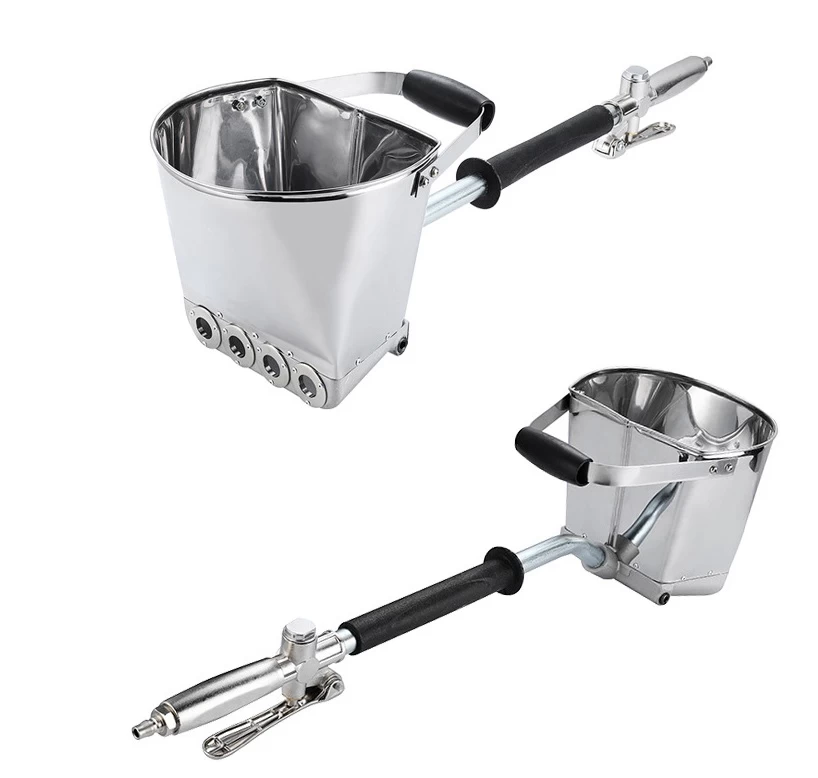

Mortar sprayer

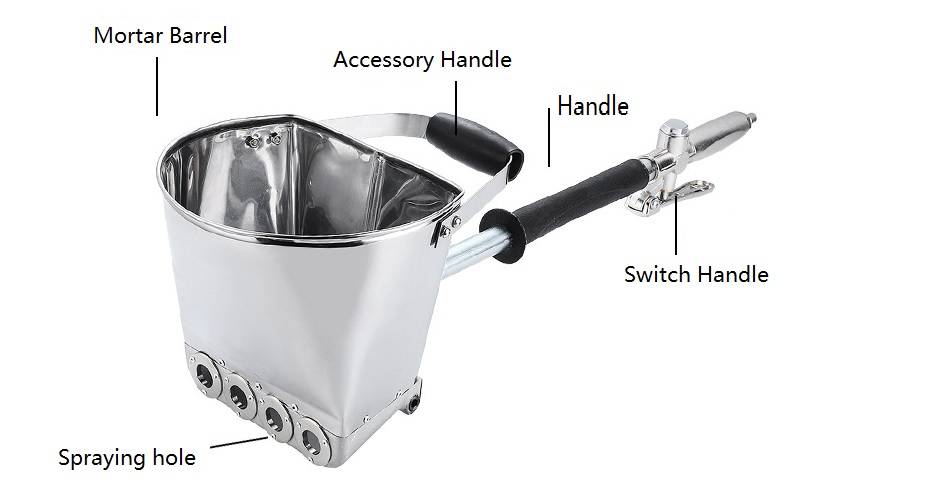

Mortar Sprayer Structure

4 hole spraing can rapid uniform spraying to the wall, ceiling and status.

Cement Sprayer

Simple operation ,save time and labor!

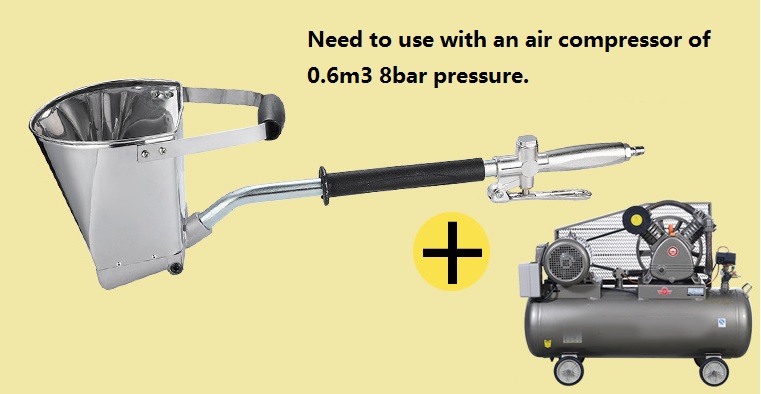

Need to use with an air compressor !

Stucco Sprayer Hopper Gun

Working pressure:6bar

Suggested air compressor :3Hp

Suggested air compresor exhause volume:0.6m/min

Model NO.

Pressure

Flow Rate

Size

Barrel volume

N.W.(KG)

HS-16A

8-10BAR

50ML

74*21.5*20

4L

2

HS-25A

6-12BAR

50ML

74*21.5*20

4L

2

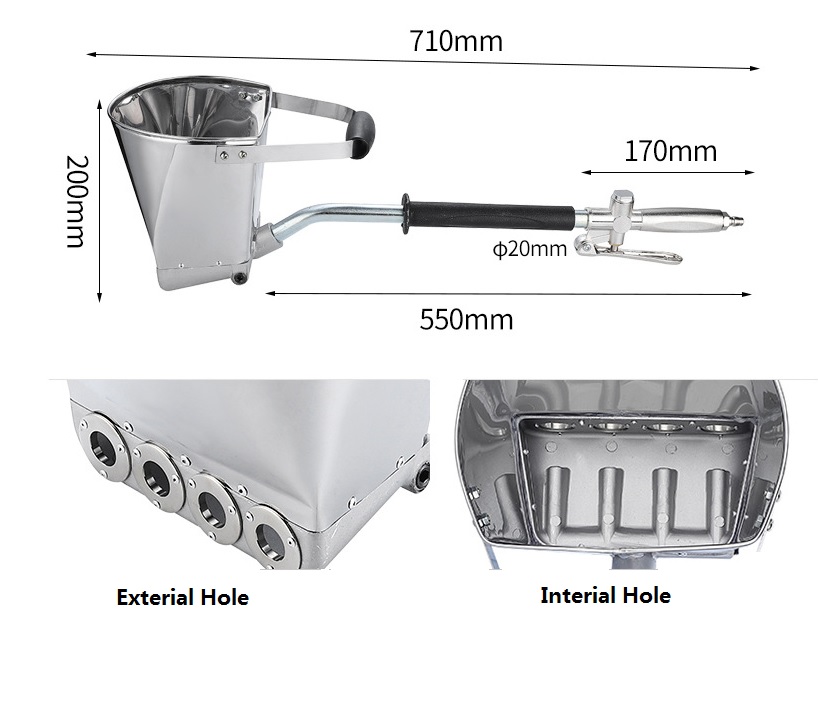

Mortar Sprayer specifications

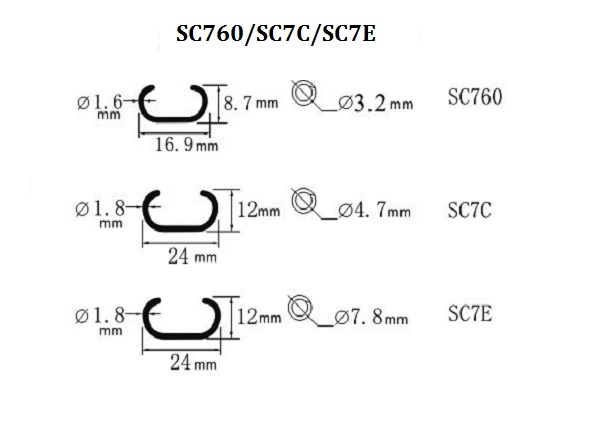

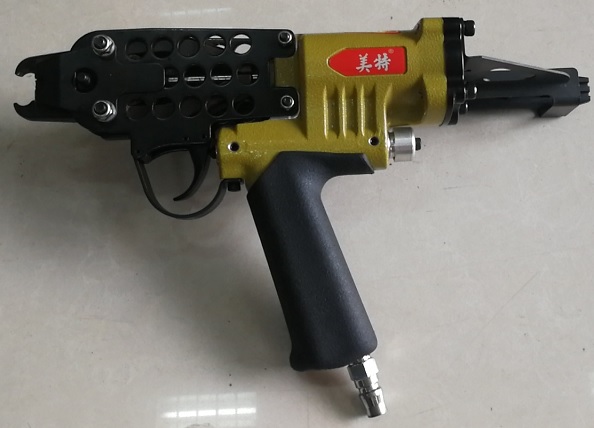

Pneumatic C-ring Tools

It has different names , like Hog ring nail gun,Pneumatic nailer gun,Air stapler,Ring plier tools,C nail gun,

C ring stapler ETC. It is used for connecting to welded mesh, also can be used

Mattress,Car seat,Sofa,Fencing,Pet cage,Aquaculture cage etc.


Parameters

SC7E

SC760B

SC7C

Weight (kg)

1.74

1.63

1.74

Length (mm)

349

330

338

Width (mm)

84

84

84



Height (mm)

201

201

201

Capacity (pcs)

100

100

100

Air pressure( kgf/cm3)

4-7

4-7

4-7

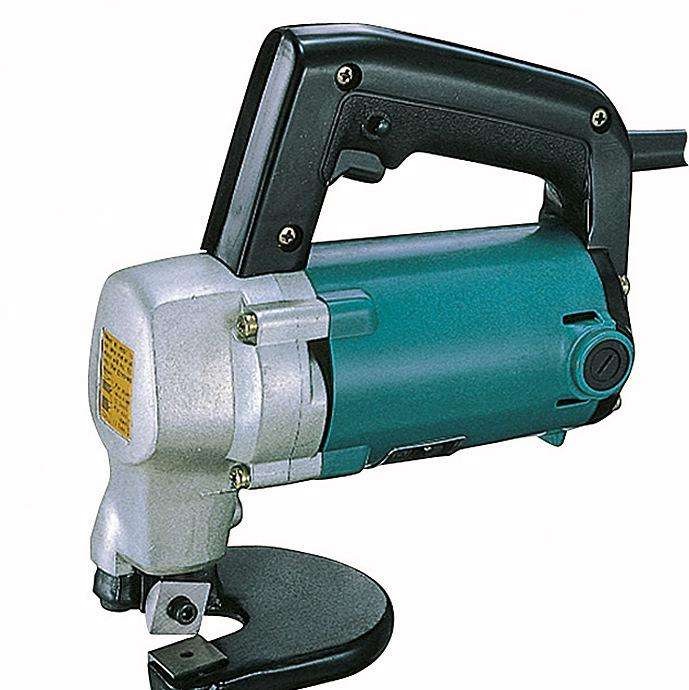

Electric Mesh Cutter


It is used for cutting the welded mesh.

Model No.

LS7003

LS7003

LS7005

LS7006

Max Cutting Diameter

2.5 mm

3.2mm

3.2mm

4.5mm

Rated Voltage

220v/230v

220v/230v

220v/230v

220v/230v

Rated Frequency

50/60HZ

50/60HZ

50/60HZ

50/60HZ

Rated Input Power

420W

660W

750W

1200W

No Load Speed

1200R/Min

1600R/Min

1000R/min

600R/Min



Mesh cutter

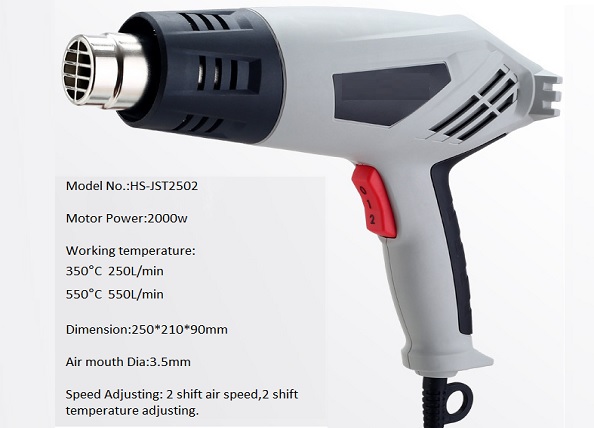

EPS Hot Air Gun



EPS hot air gun is used for melting the EPS to make EPS channels for putting pipelines in the 3D panel wall.

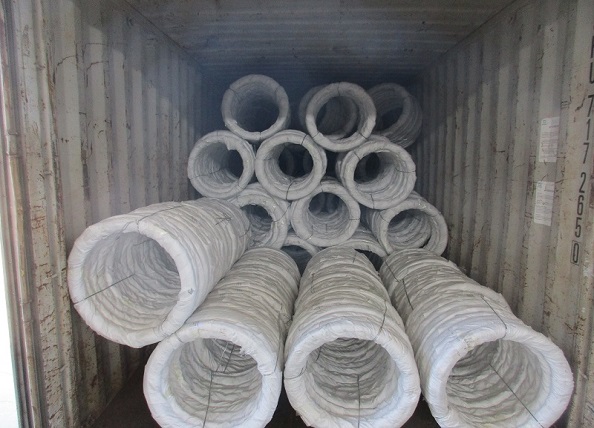

Galvanized wire

For the 3D panel system, 2.0mm,2.5mm,3.0mm,3.5mm is the usual wire diameter that is used for making 3D panels.

Of course, if special requirement, you may use 4.0mm even 5.0mm wire dia if necessary.

We shall give you suitable T.S. and zinc thickness galvanized wire for guarantee  good quality 3D panels.


The raw material include high tensile galvanized wire,because only quality raw material can guarantee quality products.

Steep Prop and steel Formwork

They will be used in 3D panel house construction process.If it is not easy to get from local, we can supply together .

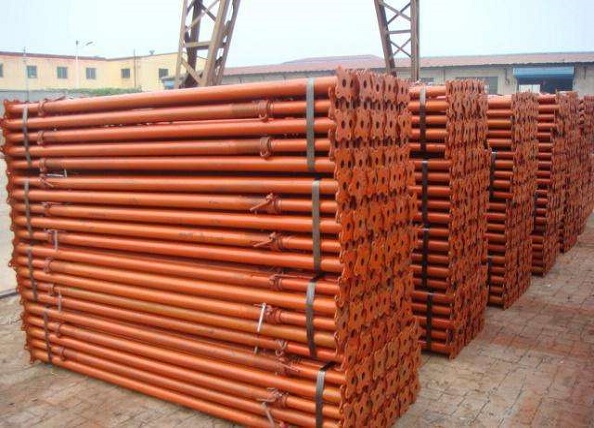

steel prop

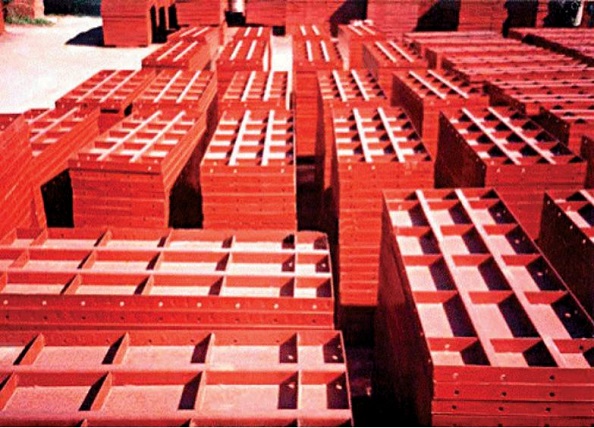

Steel formwork
