Product Name- Contactless RFID card reader modulewith 2 PSAM
Product description-

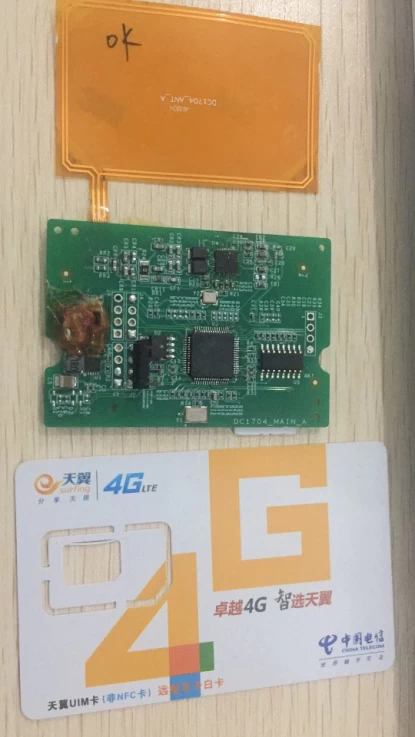

The DC1704 Contactless Card Reader Module is designed for fast and easy integration into embedded systems. It is compliant with ISO 14443 and ISO18092. It has 2 SAM (Secure Access Module) slots which can be used together with a SAM card for key diversification and mutual authentication, providing high-level security in contactless transactions.
Features-
Contactless smart card interface
ISO 14443-Compliant, Type A & B Standard, parts 1 to 4, T=CL protocol
MiFare® Classic, MiFare Ultralight C, MiFare EV 1, MiFare DESFire
FeliCa
External antenna
Two SAM card slots compliant with ISO 7816 (Optional)
T=0 or T=1 protocol
ISO 7816-Compliant Class B (3V)
UART Interface
TTL 3.3V
Firmware upgradable
Baud rate: 115200 bps
Product Applications-
Transport operators, retails
unattended applications in vending machines, parking meters and gaming kiosks
ID verification
