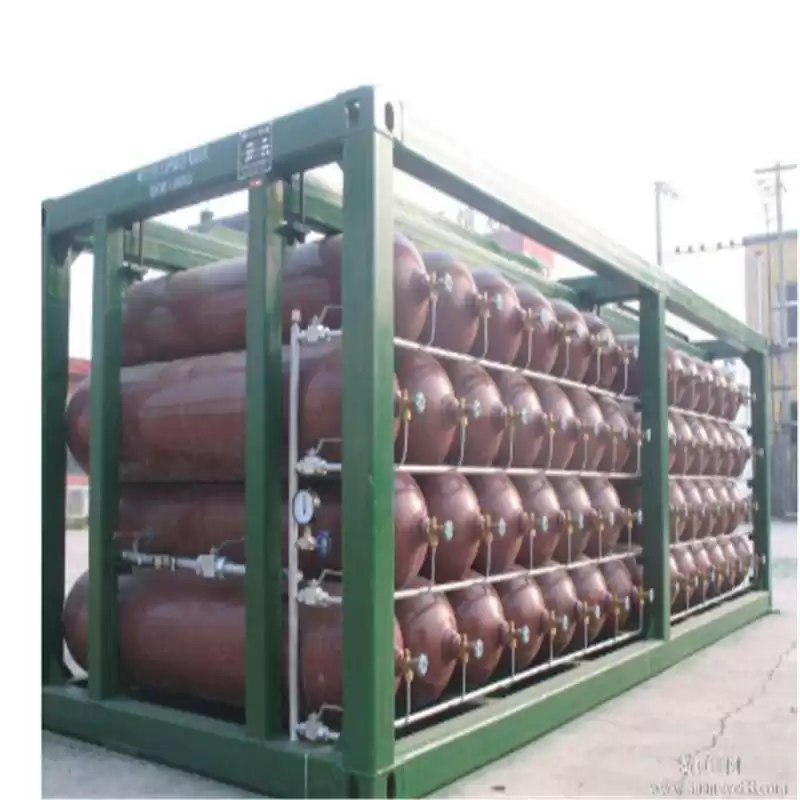

Container Type Cylinder Group
In order to meet the needs of unbalanced refueling of automobiles, CNG refueling stations must be equipped with a high-pressure gas storage system to store high-pressure gas pressurized by the compressor. A reasonable capacity of the gas cylinder group can not only increase the utilization rate and refilling speed of the gas cylinder group, but also reduce the number of compressor starts and extend the service life.
Features
-
Various capacity and storage for various customer
-
ASME,DOT,ISO international certification
-
Filling content: compressed gases or liquified gases
-
Environment temperature:-40℃ to 65 ℃
-
Material：34CrMo4
-
Heat treatment：quenched and tempered
Technical Parameters
|
Total Water Volume（L）
|
Work Pressure（MPa）
|
Cylinder No.（Qty.）
|
Single WL（L）
|
Single Length（mm）
|
Single Weight（Kg）
|
|
2400
|
≤25.0
|
30
|
80L
|
～1620
|
～105
|
|
3120
|
≤25.0
|
39
|
|
3840
|
≤25.0
|
48
|
|
1950
|
≤25.0
|
13
|
150L
|
～1970
|
～194
|
|
4500
|
≤25.0
|
30
|
