Continuous Roll To Roll Doctor Blade Coater Coating Machine For Lithium ion Electrode Making

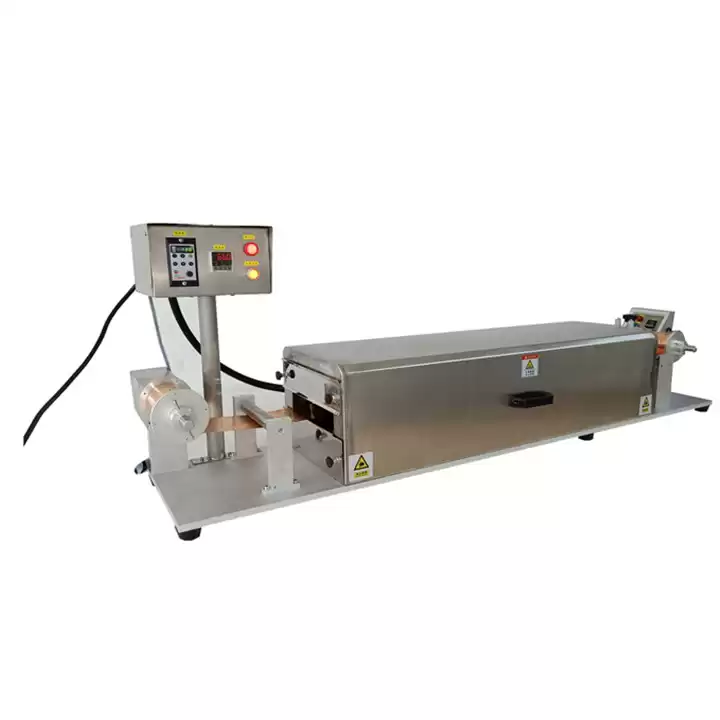

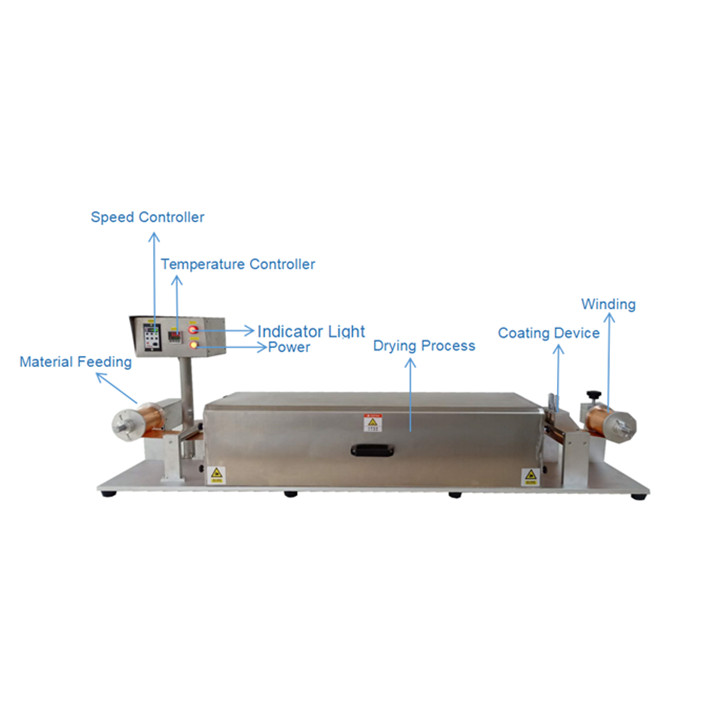

The TMAX-JCT-150 desktop continuous coating machine is a small roll to rolling coating machine for lab research, it is assembled by high high precision coating device, suitable for institutions, university and factory pilot scale battery research work.


Model

Desktop Roll to Roll Continuous Coating  Machine

 TMAX-JCT-150

Source voltage

AC 220V/110V, 50HZ/60HZ

Power

3KW

Warranty

One Year limited warranty with lifetime support

Suitable material thickness

Aluminum foil : 0.01-0.03mm

Copper foil : 0.006-0.020mm

Max electrode width

50-150mm

Coating speed

0-2m/min, adjustable

Max baking temperature

100℃ ,PID control mode

Coating thickness

0.01mm-2mm

Coating thickness accuracy

0.01mm

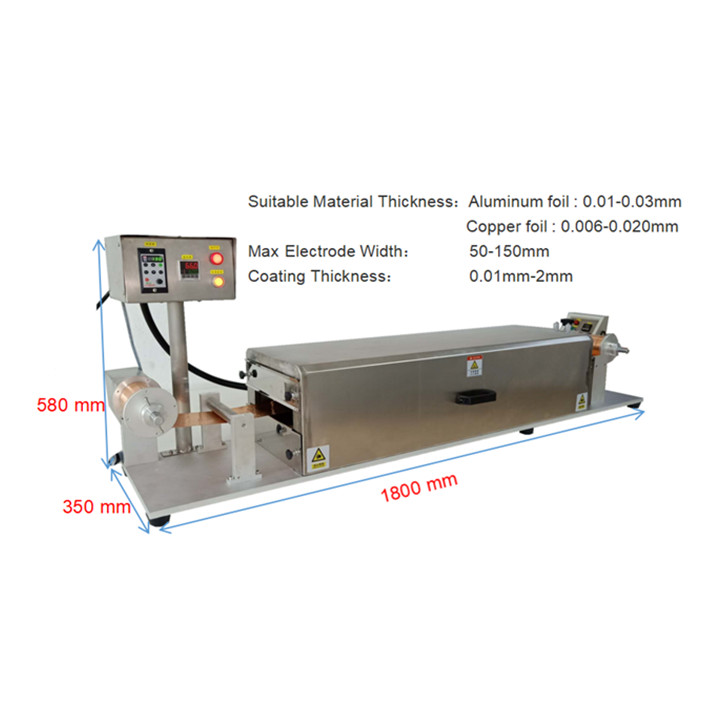

Dimension

1800* 350  * 580 mm(L*W*H)

Weight

About 130 kg

Oven length

400/500/800/1100mm



Roll To Roll Coater

Roll To Roll Coater
