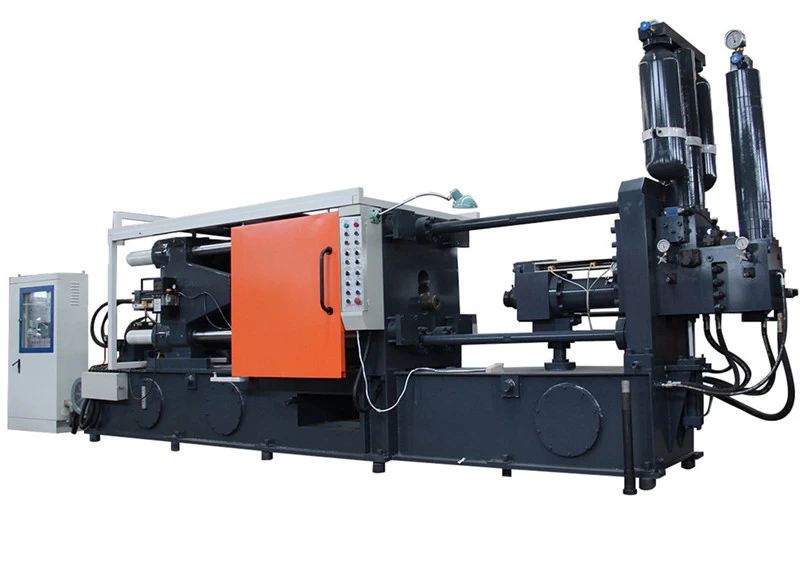

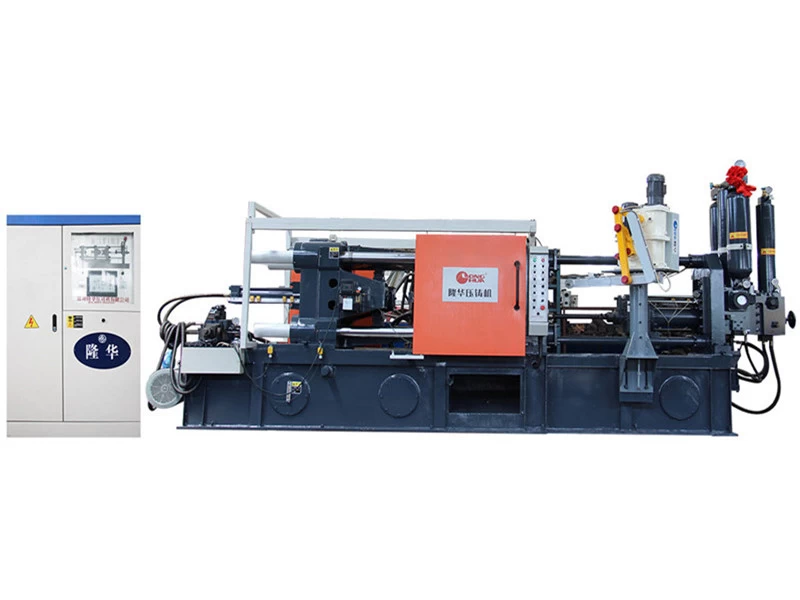

Copper Alloy Die Casting Machine Nonferrous Metal Die Casting Machine(LH-280T)

Stable high performance die casting machine.





Product Item

Copper alloy die casting machine nonferrous metal die casting machine(LH-280T)


Product Description

The die casting machine has a stable high performance injection system, which makes the injection more powerful and greatly improves the stability of product quality.



die casting machine thixomoldingbrass die casting machine


LH SERIES OF STANDARD PARAMETER TABLE (LH-280 T)

ITEMS

UNIT

SPECIFICATION

HYDRAULIC WORKING PRESSURE

MPA

14

CLAMPING FORCE

KN

2800

SPACE BETWEEN TIE BARS

MM

560*560

TIE BAR DIAMETER

MM

¢110

DIE OPENING STROKE

MM

400

INJECTION FORCE(INTENSIFY)

KN

240

PLUNGER LAUNCH DISTANCE

MM

140

INJECTION POSITION

MM

0  --  160

PLUNGER DIAMETER

MM

¢50----¢70

INJECTION STROKE

MM

400

CASTING PRESSURE (INTENSIFY)

MPA

143/99/73

CASTING FIANGE PROTRUSION

MM

12

CASTING FIANGE DIAMETER

MM

110

MAX CASTING AREA UNDER 40MPA

CM2

700

LNJECTION WEIGHT(AL)

KG

3.2

DIE HEIGHT(MIN--MAX)

MM

250~650

EJECTOR FORCE

KN

140

EJECTOR STROKE

MM

120

MOTOR CAPACITY

KW

15

MACHINE DIMENSIONS  (L*W*H)

M

6.4*1.7*2.8

REFERENTIAL MACHINE WEIGHT FOR UPLIFTING

T

12

OIL TANK CAPACITY

L

750


PS:WE RESERVE THE RIGHT TO MAKE ANY TECHNICAL IMPROVEMENT WITHOUT FURTHER NOTICE


Peripheral Robots


If you want to achieve full automatic production, you need to equip the followingperipheral robots:



Ladling machine:


Scoop liquid metal into the die casting machine instead of your hand.


Sprayer:

Spray release agent to remove die casting from mold.


Extractor:

Take out the die castings in place of your arm.


Conveyor:

Transport die castings to a location.


Particles machine:

Increase the service life of die casting machine.
