Braided Shield Cable mainly cover electric cable,high voltage cable,overhead cable,waterproof wire,fire-resistant cable,special cable,national standard cable,high temperature cable,low smoke halogen free cable,rubber sleeve cable and other related products.
· Main of cables features

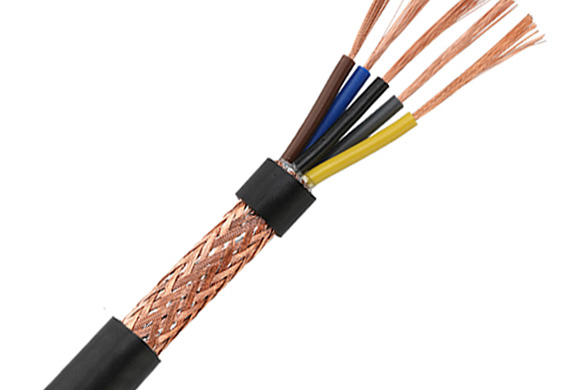

Name: Braided Shield Cable
Cross-sectional area: 0.5-25mm2.
Flame retardant properties: IEC 60 332.1.
Test voltage: 2000V, 5min.
Insulation resistance: >20M ohms × KM.
Operating temperature (fixed installation): -30~ +70 °C.
Operating temperature (mobile installation): -5~ +70 °C.
Bending radius: 15 × cable outer diameter.
Rated voltage: 300V/500V Conductor: Multi-strand copper conductor, in accordance with GB/T 3956 Category 5 (equivalent to IEC60228.5).

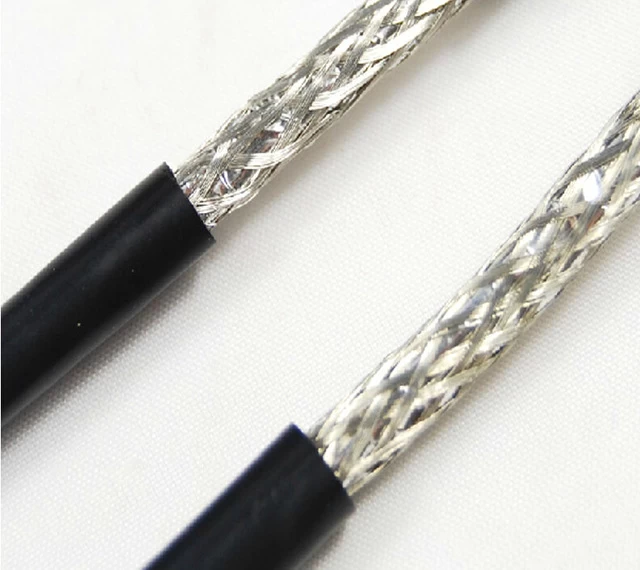

Insulation: Polyvinyl chloride (PVC) compound. Shield: tinned copper wire braided shield with a braid density greater than 85%
Sheath: Flexible polyvinyl chloride (PVC), grey (RAL 7001). Core mark: ≤ 5 cores, colored core wire; black core wire white number, can contain yellow-green ground wire.
Number of core wires: 2-24 cores. Reference standard: JB8734, VDE 0281.
Packing specifications: 100m, 500m, 1000m.
·Application:
Suitable for communication, audio, broadcasting, audio systems, anti-theft alarm systems, intelligent automation systems, automatic meter reading systems, fire protection systems, etc., anti-interference line connection, efficient and safe transmission data cable
