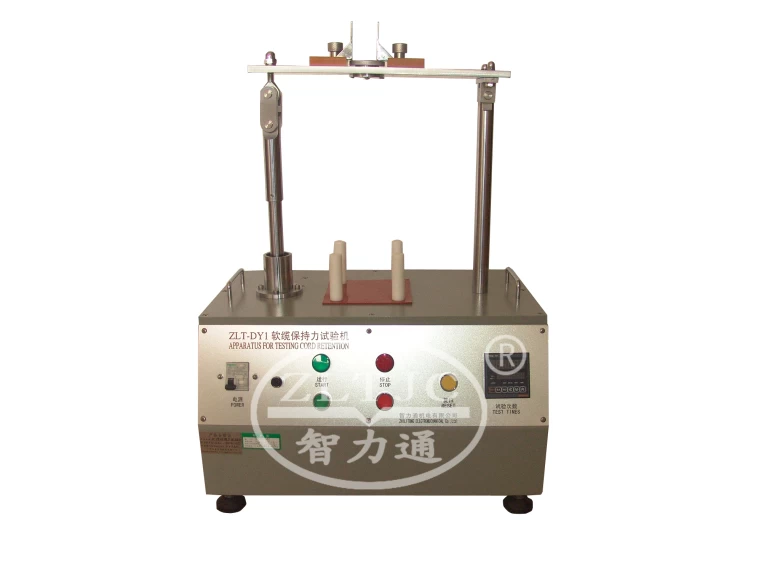

Cord Anchorage Testing Machine
Product details: Model ZLT-DY1.

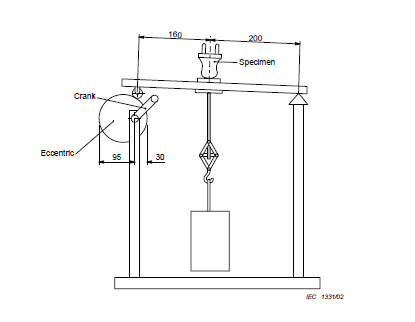

For testing cable connections with intermittent tensile load in according to IEC60884/2006 figure 20, VDE0620 Bild 20.
Standard Outfit:
1 basic frame, with housing,
1 eccentric disc, diameter 125 mm, eccentricity 32,5mm,
1 A.C. geared motor with additional gear reduction to approx.60rpm,
1 lever for the specimen, with track wheel,
1 clamping mechanism with various gripping dies to match the cord size and shape,
1 set of weights for loads 10N*1-60N*1-20N*2,
1 electrical predetermining counter, four digit, resettable, to indicate the number of strokes,
For connection to A.C.220V50Hz, other voltages or frequencies on request.
