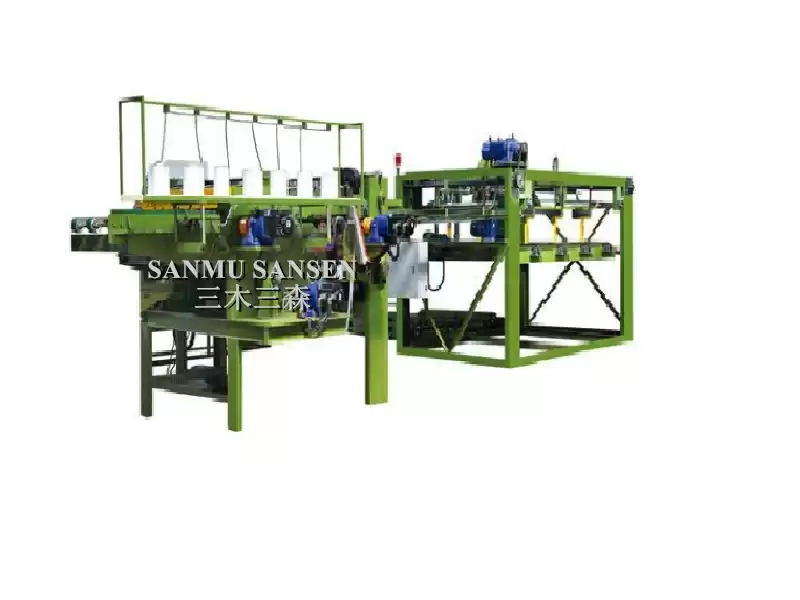

Product Name: Core veneer composing machine
Major Technical Parameters
|
DESCRIPTION
|
UNIT
|
|
|
Length of machine
|
mm
|
10000
|
|
Width of machine（the
widest point）
|
mm
|
2600
|
|
Width of machine（the
highest point）
|
mm
|
2600
|
|
Power of precursor
|
kw
|
3
|
|
Power of rear guard
|
kw
|
4.5
|
|
Power of front cutting
|
kw
|
3
|
|
Power of back cutting
|
kw
|
1.5
|
|
Power of conveyor 1
|
kw
|
1.5
|
|
Power of conveyor 2
|
kw
|
1.5
|
|
Power of elevating
|
kw
|
3
|
|
Power trunking
|
kw
|
4
|
|
Power of point-trough
|
kw
|
4
|
|
Length of knife
|
mm
|
1400
|
|
Effective width
|
mm
|
1350
|
|
Effective thickness
|
mm
|
1.2-3.5
|
|
Work efficiency
|
pcs/hour
|
250
|
|
Occupied area
|
mm
|
4000*14000
|
|
Total weight
|
kg
|
5500
|
Main Features
Core veneer composing machine mainly
used in horizontal splicing 2 or more pcs venner with same thickness joint to one wood veneer sheet.This machine can automatic stack veneer . It won’t stuck and
overlap the veneers while working. And the glue thread can stick tightly.
